YH 1200 1/4 Stone Arc edge Grinding and Polishing Machine
- Category: >>>
- Supplier: Foshan Yongshengda Machinery Co. Ltd.
Share on (60829767285):
Product Overview
Description
| PRODUCT RECOMMENDED |
| PRODUCT SPECIFICATIONS |

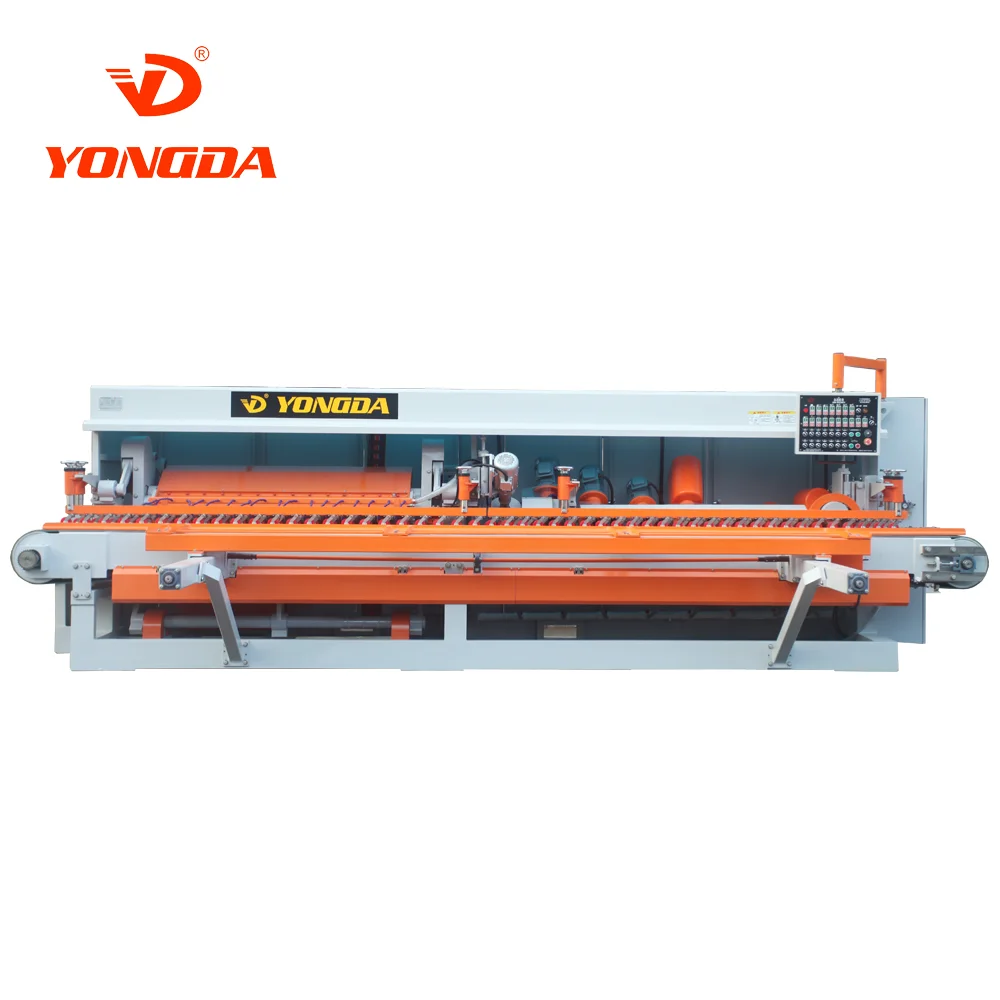

| The YH-1200(90°)Stone Arc-edge Grinding and Polishing Machine is the requisite equipment for stone deep processing company. The machine is designed for marble, granite and artificial stone continuous grinding, chamfering, squaring, beveling till reaching 90° edging polishing. The processing features fully automatic operation, fast processing speed and low cost and the luminosity of the product reach 90°, which is even higher than that of the stone surface. Comparing with the manual processing method, the quality and the economic benefit can be highly improved. |
| Items | YH-1200(90°) | |
| nos of polishing head | 14pc | |
| dia of polishing head | 100mm | |
| nos of chamfering wheel | 5pc | |
| dia of chamfering wheel | 200mm | |
| working width | 150~1200mm | |
| working thickness | 20~50mm | |
| polishing speed | 1~4m/min | |
| water consumption | 150L/min | |
| air consumption | 100L/min | |
| total power | 26 kw | |
| outer dimension | 7000×2200×1800mm | |
| weight | 5000kg | |

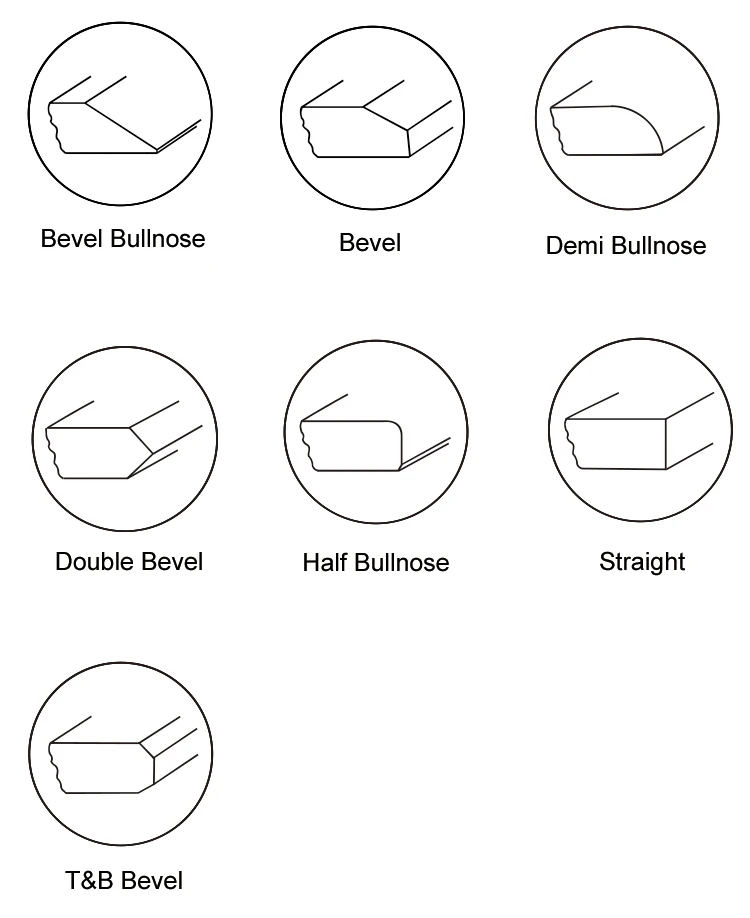

| PRODUCT FUNCTION |
 |
| PRODUCT ADVANTAGES |
1. Polishing Arc-edge range reach 1/4 (90°) 2. Full automatic processing of square-edge,bevel-edge,arc-edge 3. The processing thickness is up to 5CM 4. Material of different width can also be produced continuously 5. Gloss reach more than 90 °, even higher than the gloss of stone surface 6. 100 times faster than manual edge grinding and polishing 7. Fast processing speed and low cost; |

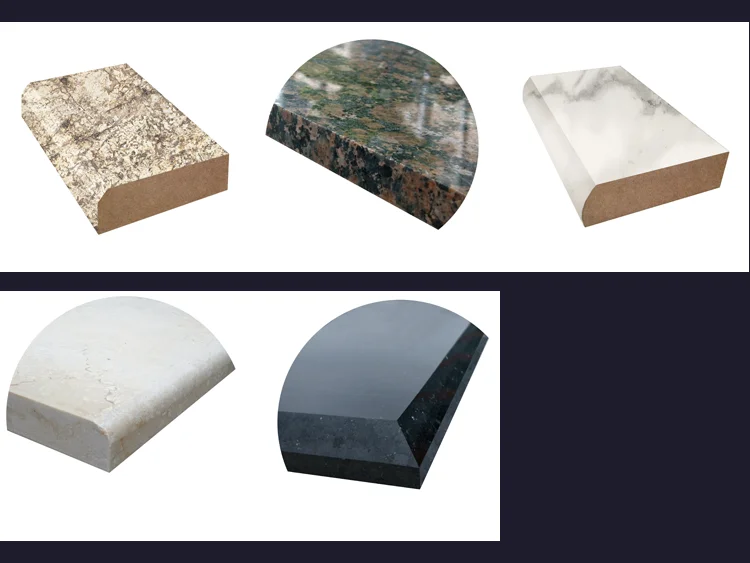

| CUTTING EFFECT |
 |
| COMPANY INTRODUCING |
 |
 |
| CUSTOMER PHOTO |
 |
| CERTIFICATION REPORT |
 |
| ISSUE |
 |
| AFTER-SALES SERVICE |
 |
