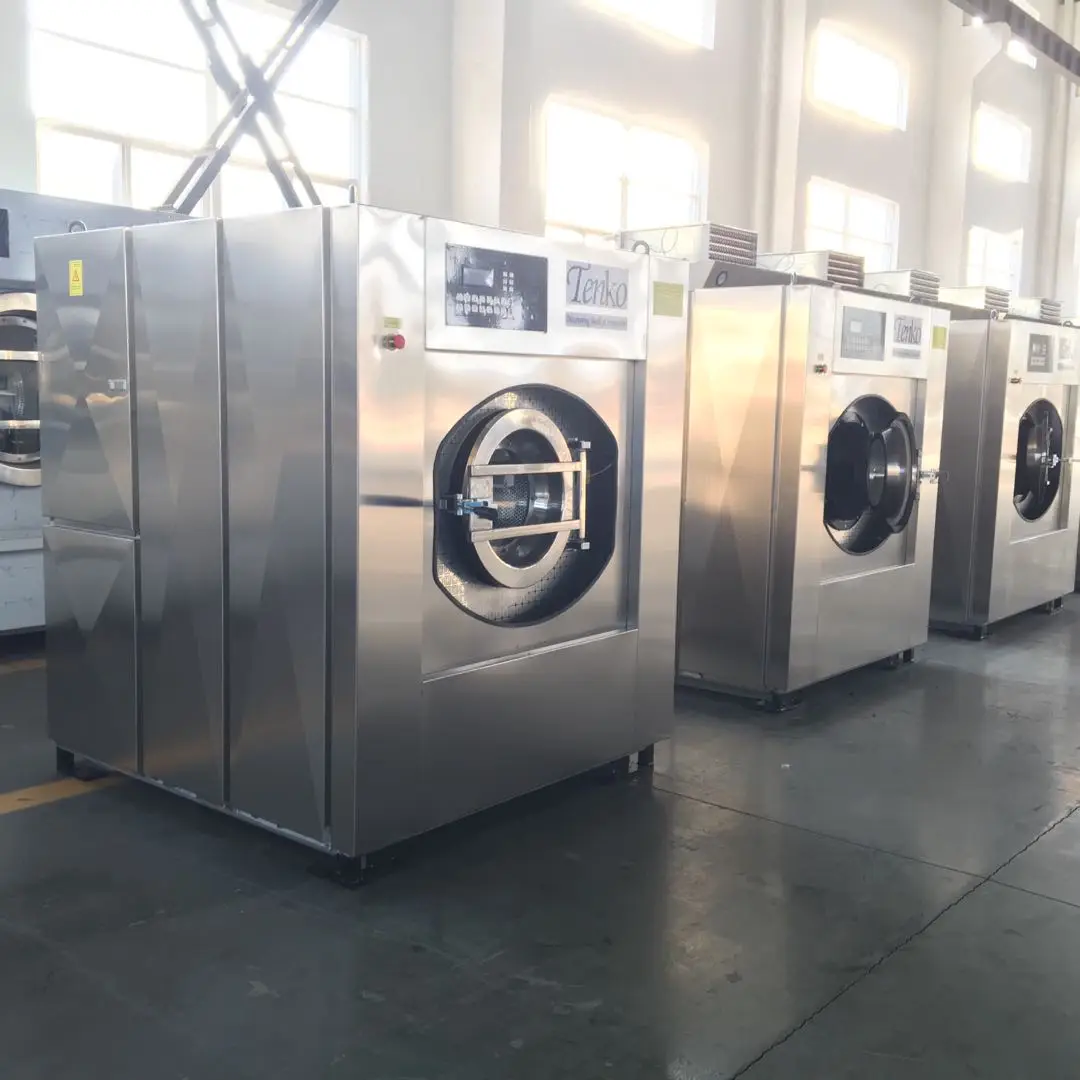

dry wash machine

Product Overview

Description

dry wash machine



Type	XTQ-10H	XTQ-20H	XTQ-30H	XTQ-50H	XTQ-70H	XTQ-100H	XTQ-120H
Rated  capacity(kg)	8-10	15-20	20-30	35-50	50-70	70-100	90-120

DrumDiameter(mm)	520x400	700x500	900x500	1080x575	1080x730	1200x856	1300x900
Overall dimension LXWXH(mm)	1070x830x1260	1260x1050x1400	1460x1400x1635	1610x1550x1800	1760x1550x1800	1990x1690x2030	2195x1790x2100

Drum washing speed(r/min)	45-960	45-890	36-780	35-760	33-680	31-680	30-650
Motor power (kw)	1.1	2.2	3	4	5.5	7.5	11
Draining valve (mm)	φ50	φ70	φ100	φ100	φ100	φ140	φ100-2
Hot water pipe	3/4"	3/4"	1 1/2"	1 1/2"	1 1/2"	1 1/2"	2"

Cold water pipe	3/4"	3/4"	1 1/2"	1 1/2"	1 1/2"	1 1/2"	2"
Steam pipe	3/4"	3/4"	1"	1"	1"	1"	1 1/2"
Power supply	Standard:380V+N-3PH-50Hz    can be ordered by customers requirement
