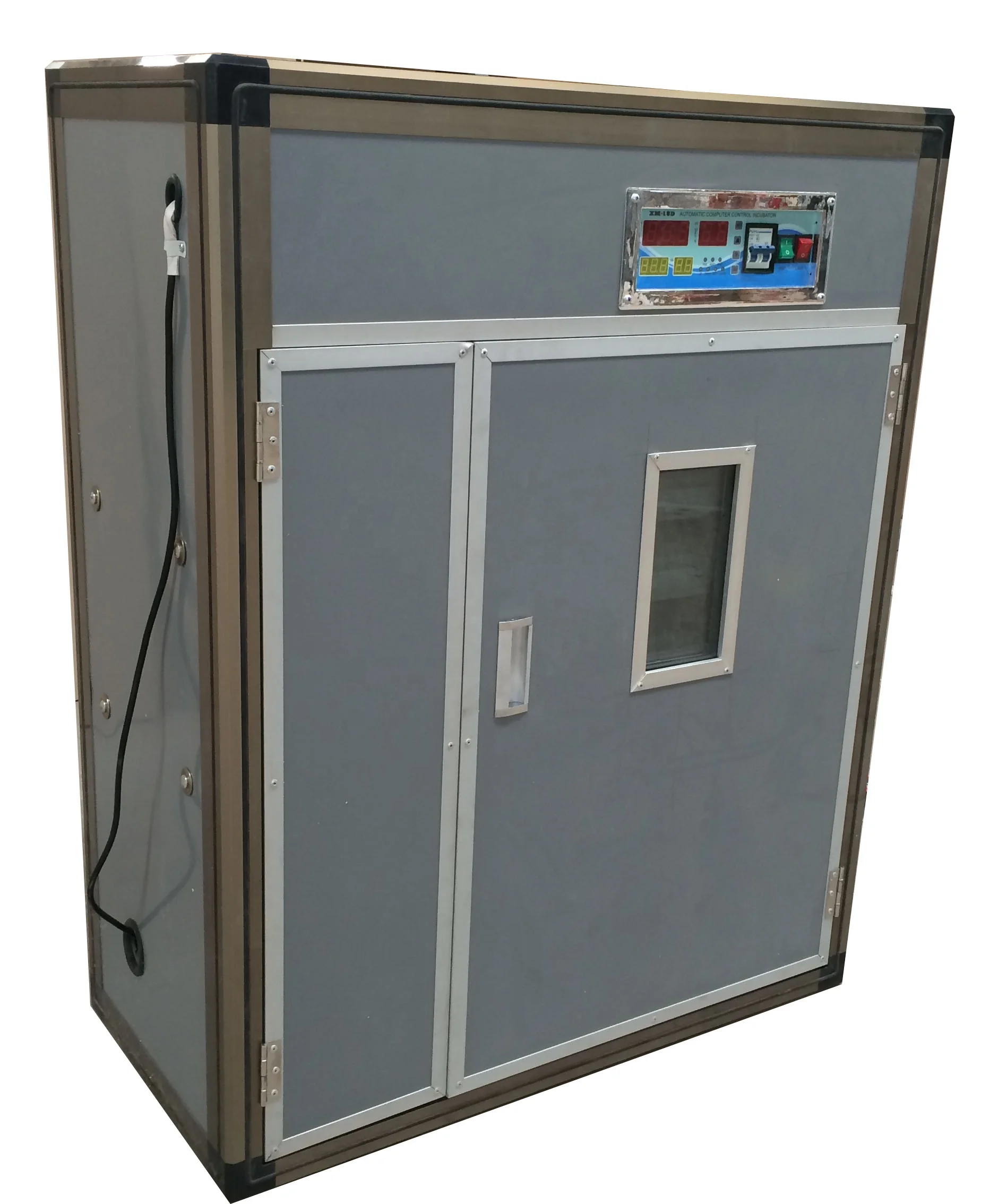

528 Incubadora De Huevos Full Automatic Incubation And Hatchery Breeding Machinery
- Category: >>>
- Supplier: Dezhou Tongda Incubation Equipment Factory
Share on (60829789996):
Product Overview
Description
Product Description
528 chicken eggs incubator automatic controller
Brief Introduction:
1. micro-computer controlled on temperature & humidity;
2. Energy can be electricity ,coal & gas and so on
3. Automatic egg turning, automatic alarm on temperature & humidity.
Main Material:
1. Exterior structure in colorful steel plate
2. The edge covered by aluminum alloy
Poultry Name | Egg Capacity (pcs) |
Model Number | TD-528 |
Brand Name | TONGDA |
Place of Origin | Shandong, China (Mainland) |
Chicken(Pigeon) egg | 528 |
Duck(Turkey) egg | 378 |
Geese egg | 192 |
quail egg | 1326 |
Electric power | 150 W |
Use voltage | 100V-120V or 220V-280V AC 50/60 HZ |
Size | 0.97*0.47*1.17(m) |
Volume | 1.3(m3) |
Price | Contact me, please |
Temperature Set Range | 0-99.9°C |
Temperature control accuracy | ≤±0.1 |
Display resolution of moisture | ±5%RH |
Relative humidity | Less than 85% |
Ambient temperature | -10°C~ 40°C |
turnning eggs time | 0.1~99.9 hour (factory settings 1.5 hour) |
Ventilation cycle | 5~999 minutes (adjustable, factory 0 hours, non-ventilation ) |
Ventilation time | 0-999 seconds (adjustable, factory 30 seconds) |
Length of the power line | 1.5 m |
Delivery time | Within 3 days |
MOQ | 1 SET |
Usage | Chicken,Bird,Ostrich,Duck,Turkey,Quail,Goose |
Color | White |
Material | color steel crust and edge with aluminum alloy |
Function | Full-automatic Poultry Egg Incubator |
LifeTime | 10 - 12 Years |
Hatching rate | high more than 96% |
Free Spare Parts | Egg candler, heating pipe, humidity pipe, limit switch, manual |
Quality | Won Nation Patent ans ISO9001:2008 |
Products Show

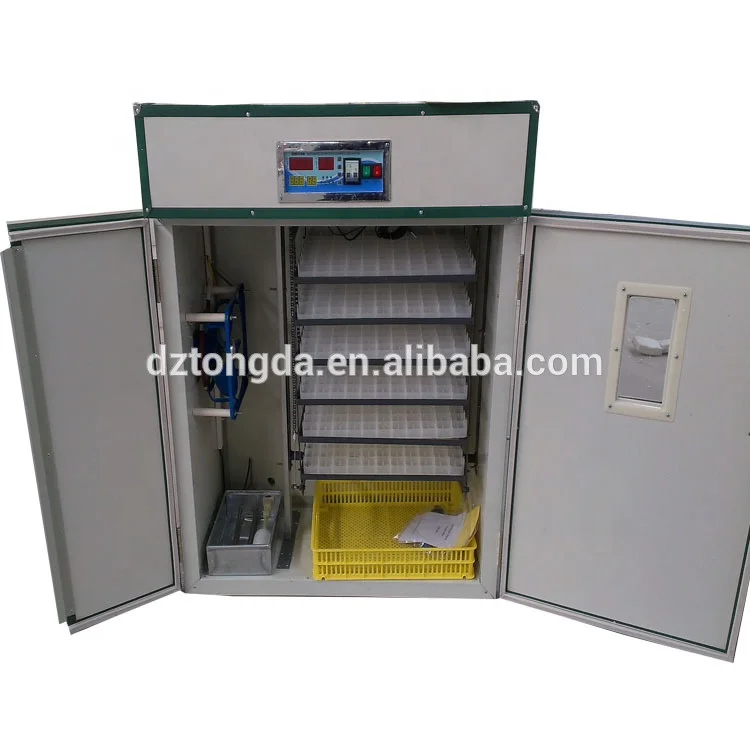

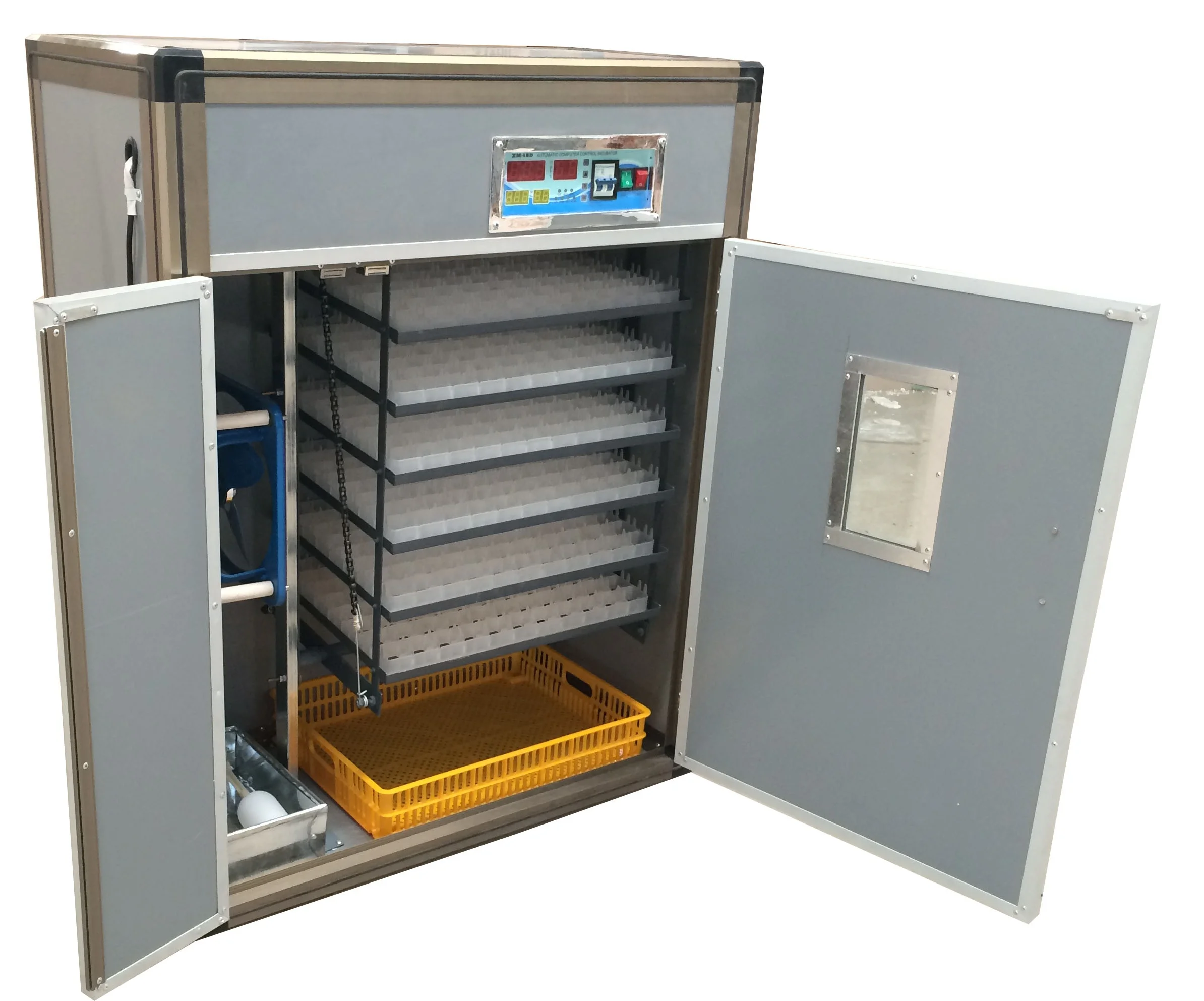

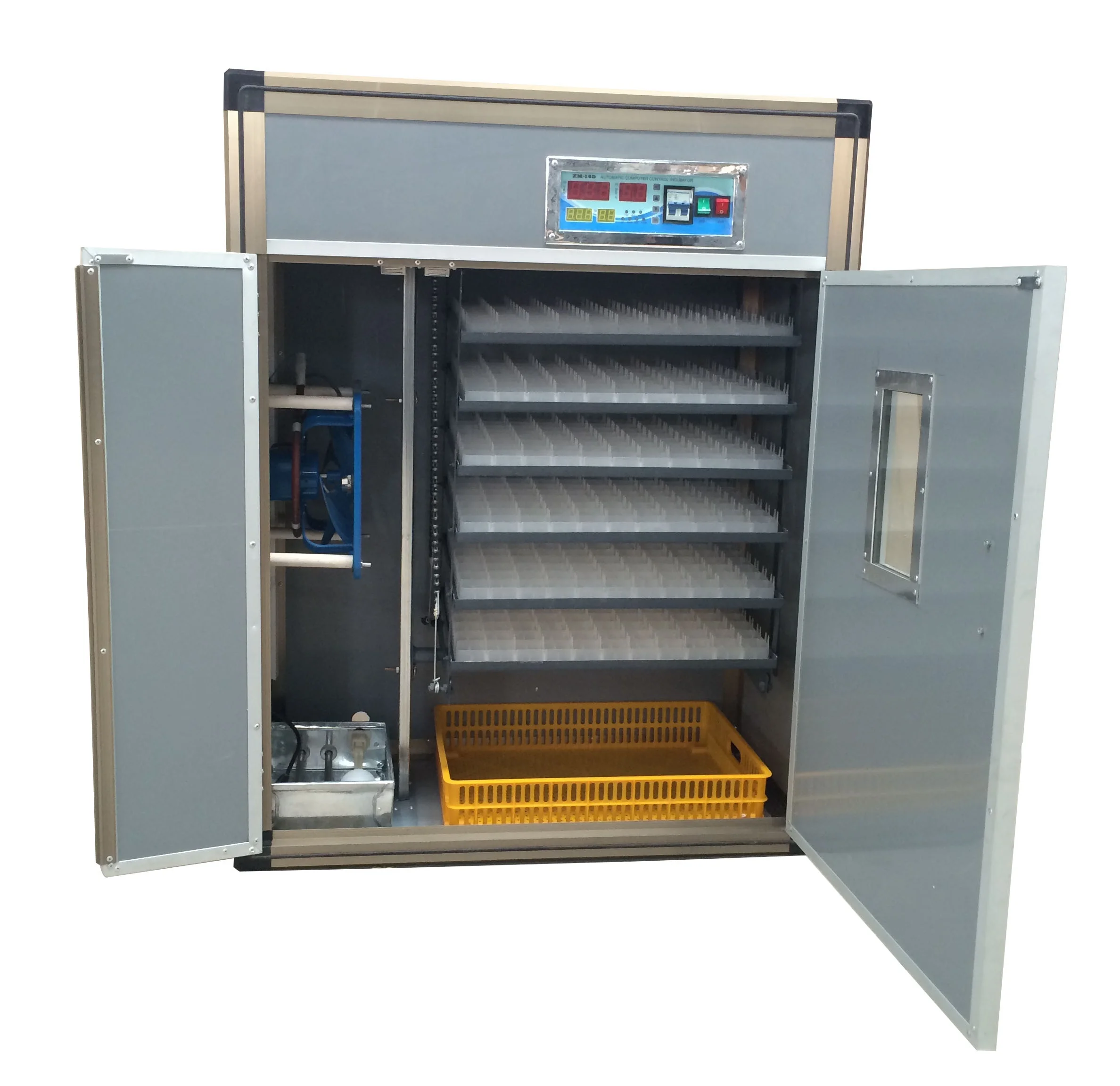

528 egg incubator Introduction:
It cotains six egg trays, each egg tray capacity is 88 chicken eggs. Each Yellow hatchertray contain one white egg tray. The Advantage is the hatchertray quantity is larger and easy to operate.
Inside Details Show:
From left to right Picture number ONE, TWO , THREE. FOUR

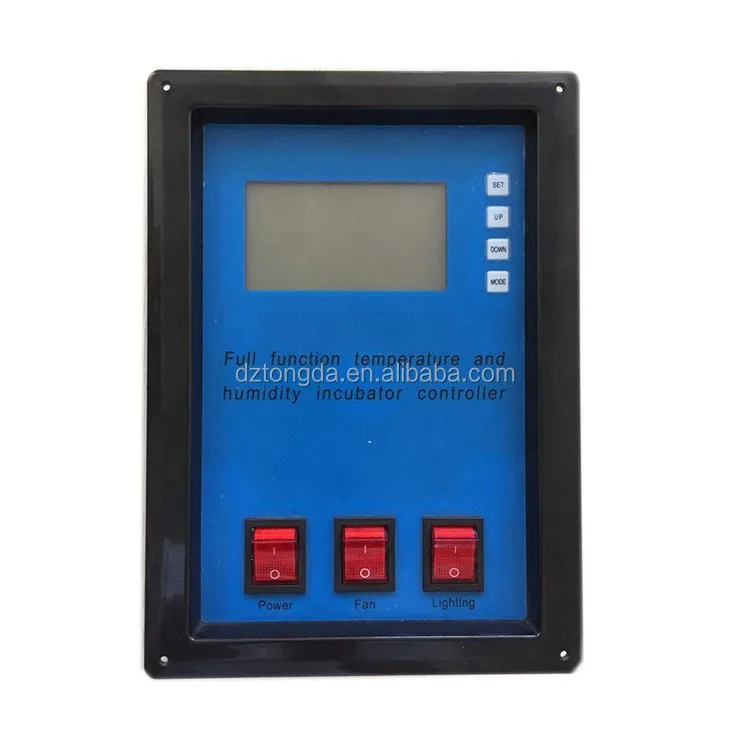

No. One : The Controller contains 4 screens (1. Bigger screens display actual temperature and humidity, Smaller screens display setting temperature and humidiy)

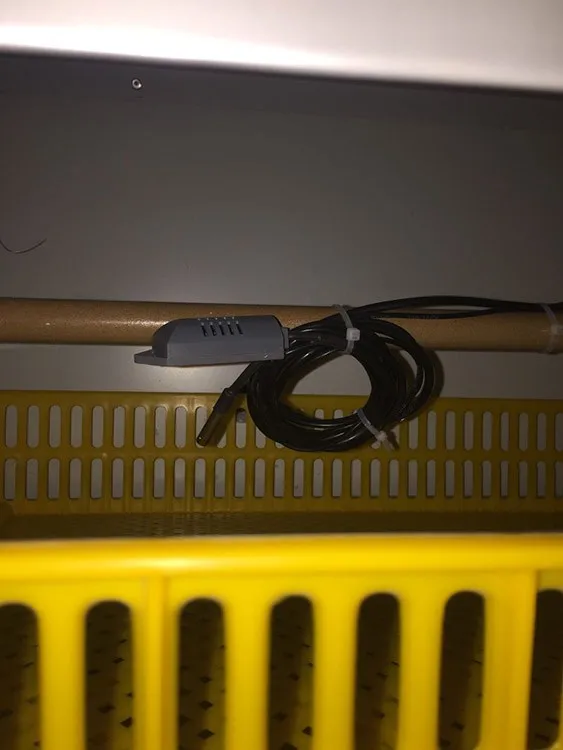

No, Two: It is the temperature sensor and humidity sensor.

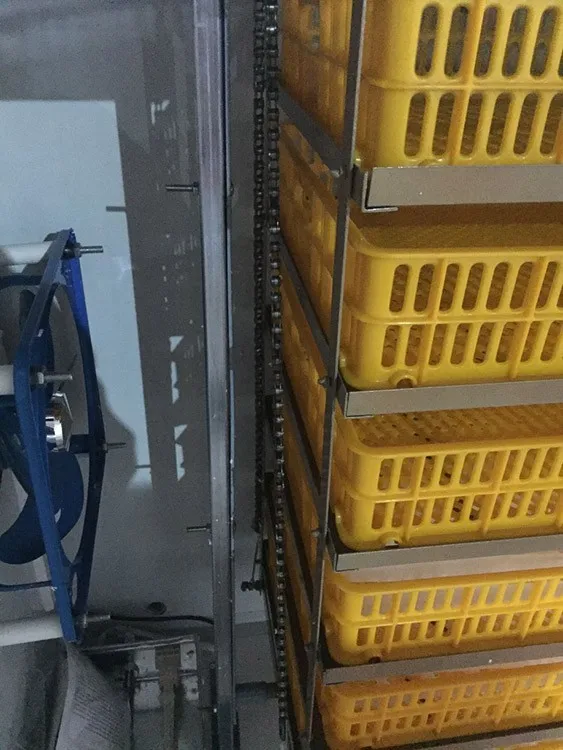

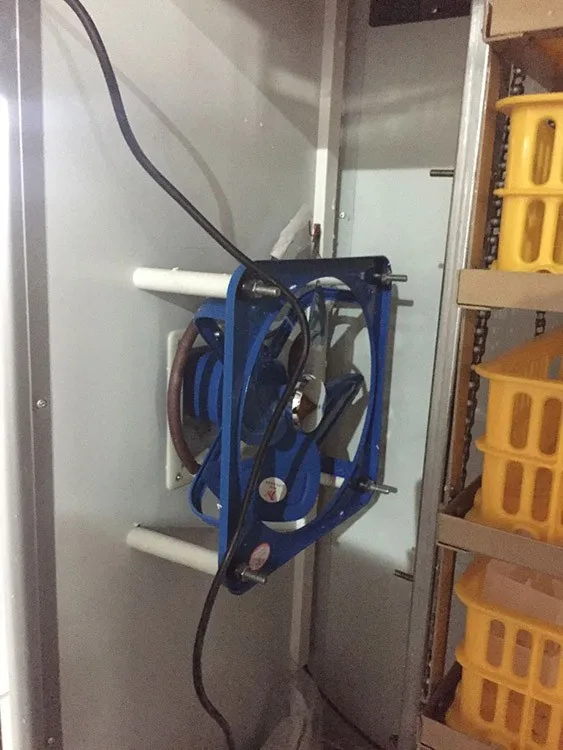

No. Three: It is the temperature fan at side face. Advantages is easy to distribute the heat evenly. Behind the temperature fan is the heater tube.
The Cycle chain is combine the egg turning motor, it is used the turning egg tray in 45 degree up and down.
No. Four: Below the Temperature fan is the humidity plate, Put appropriate water in the humidity plate. It has ball valve to control the water yield.

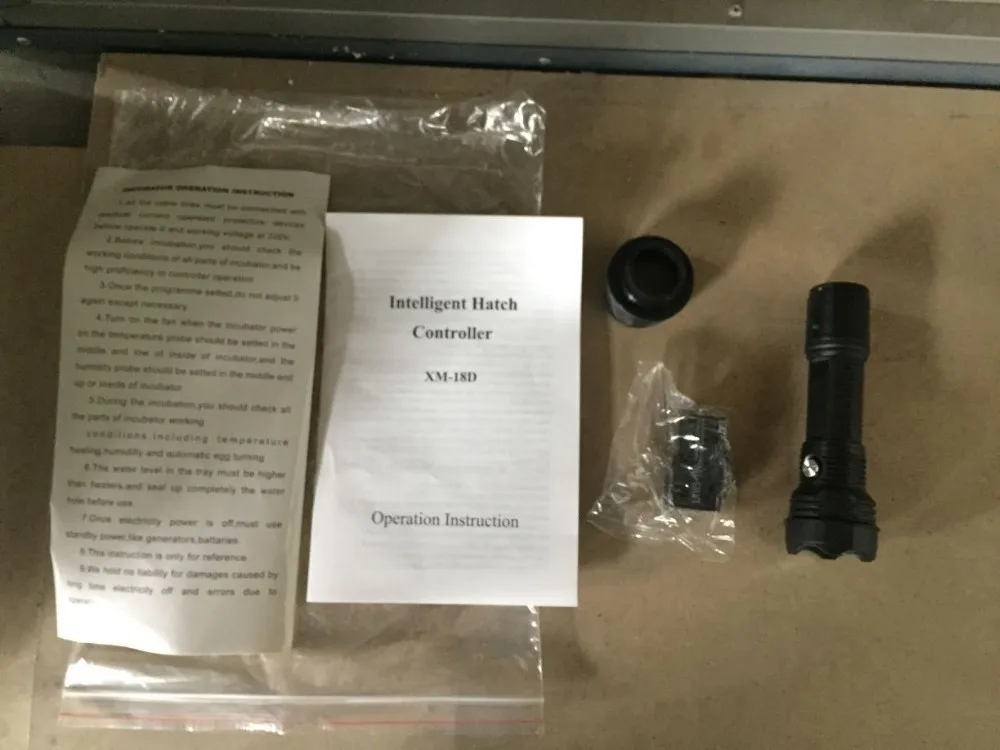

Free Spare Parts:
Egg candler,
heating pipe,
humidity pipe,
limit switch,
English manual

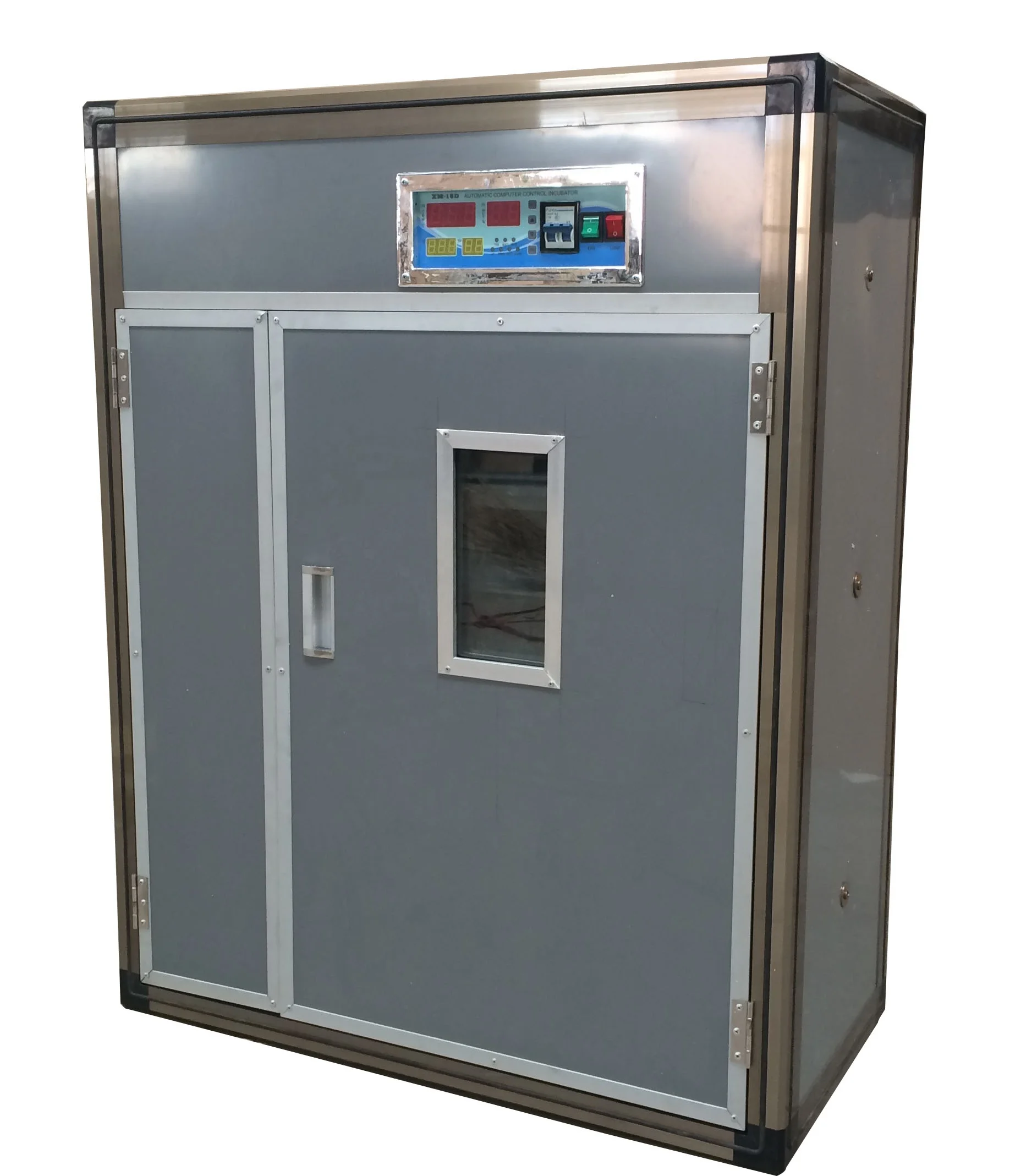

Appearance Show
The Back side and Side face show
There is a ventilator on behind. The side face have the aspirail. They are all guarantee the inside environment temperature and humidity.
Packing & Delivery
Packing Details : We use best quality wooden case to pack the machine, foam inside the package, not easy to be broken.
Delivery Details : 3-5 days depend on your quantity. We load goods in container and ship to all over the world by sea transport.
1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
Our Company
Our company is a professional factory that produce incubator and other poultry equipment, Set the development, production, sales and service in one.Our Factory products divided six series:
1.Plastic Product Series ( feeder and drinker and so on)

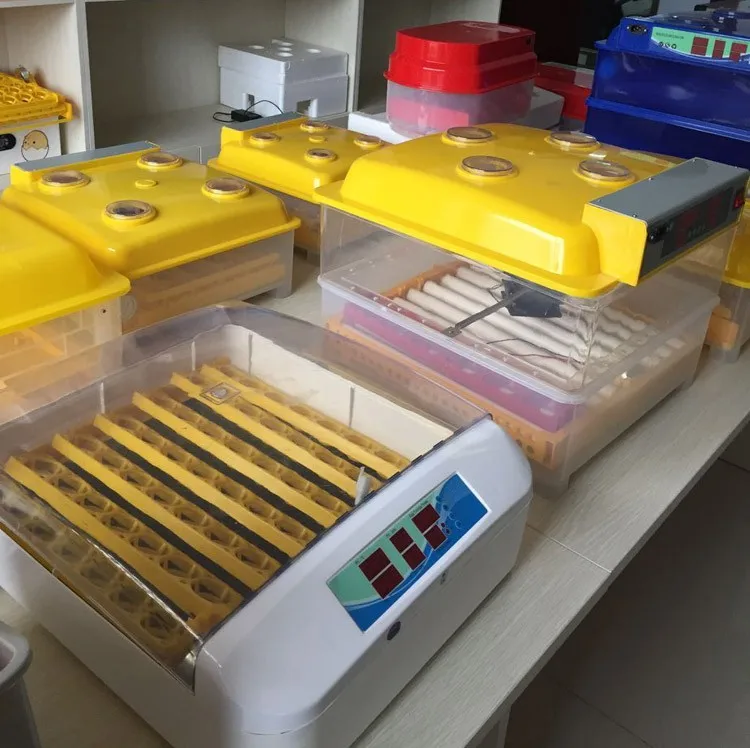

2.Mini Egg Incubator Series (8/12/24/36/48/56/72/96/112/196/294 eggs incubator and so on)
3.Automatic Drinker Series (Plasson Automatic Drinker and so on)

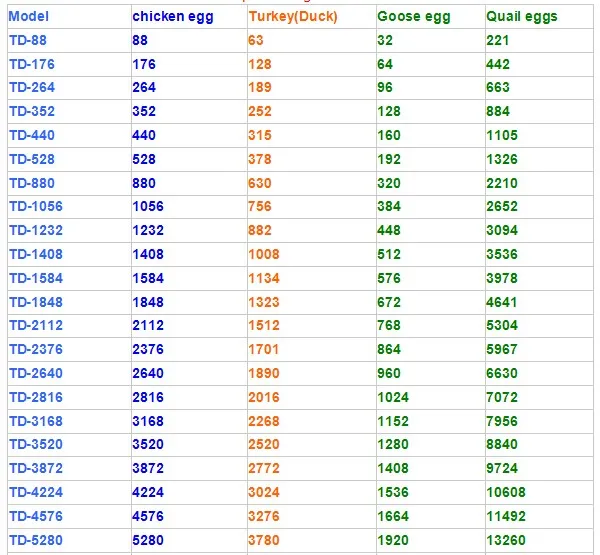

4.Industry Egg Incubator Series (264/352/528>880/1056/2112 /8448/ 12672 egg all in one body material incubator and so on)
5.Stainless Steel Products Series (Quail plucker machine / Round top plucker machine and so on )
6.Incubator Accessories Series ( XM-18D Controller, mini incubator controller, Dual system incubator controller and so on)
1.Plastic Product Series ( feeder and drinker and so on)
2.Mini Egg Incubator Series (8/12/24/36/48/56/72/96/112/196/294 eggs incubator and so on)
3.Automatic Drinker Series (Plasson Automatic Drinker and so on)
4.Industry Egg Incubator Series (264/352/528>880/1056/2112 /8448/ 12672 egg all in one body material incubator and so on)
5.Stainless Steel Products Series (Quail plucker machine / Round top plucker machine and so on )
6.Incubator Accessories Series ( XM-18D Controller, mini incubator controller, Dual system incubator controller and so on)
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Sample Room Show
Plastic Products Series
Poultry Feeder: 1kg, 3kg, 6kg,9kg
Poultry Drinker: 1L, 1.5L, 3L,6L, 11L, 14L,
Big Head Drinker: 1.5L, 3L, 5L, 10L, 12L,
30cm/50cm/68cm Long Feeder
Feeder scoop, Chicken Cage Drinker,
Poultry Transport Crate
Pigeon Feeder and Drinker
Chicken Nest
Plasson Automatic Drinker / Chick heating Drinke
Incubator Modle
FAQ
Q：Are you a manufacturer or trading company?
A:We are manufacturer, our factory is in Shandong Dezhou Industrial Park, the R&D center is in Shenzhen, and the operation center is in Hangzhou
Q：What is the advantage of your incubator?
A:Hight hatching rate 98%-100%
Reliable quality Less trouble of machines
Durability parts
Energy saving
Competitive Price
Q：How to use egg incubator?
A:We will enclosed our product instruction for your reference and we can send operation video to you.
Q：How did you ship the goods and how long does it arrive?
A:Small order we usually ship via express(DHL, EMS, TNT),1-2 weeks to arrive your house; bigger order( generally more than one cbm) we will send you by sea, the arrival time according to different countries and sea ports.
Q：How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using
Q：What is the advantage of your incubator?
A:Hight hatching rate 98%-100%
Reliable quality Less trouble of machines
Durability parts
Energy saving
Competitive Price
Q：How to use egg incubator?
A:We will enclosed our product instruction for your reference and we can send operation video to you.
Q：How did you ship the goods and how long does it arrive?
A:Small order we usually ship via express(DHL, EMS, TNT),1-2 weeks to arrive your house; bigger order( generally more than one cbm) we will send you by sea, the arrival time according to different countries and sea ports.
Q：How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using
