100psi high pressure Aquatec style 0.32GPM auto drinking water membrane chamber booster system diaphragm pump

Product Overview

Description

100psi high pressure Aquatec style 0.32GPM auto drinking water membrane chamber booster system diaphragm pump



Features:
1. Easy to move and install;
2. With self-priming function;
3. Built-in pressure automatic switch control pump;
4. Medium temperature up to 60 °C;
5. Low noise, corrosion resistance, high pressure.

Product purpose:

1. reverse osmosis water purification system;
2. Filter separator

3. spray equipment
4. general Industrial equipment

5. chemical metering and dosing;
6. Health and environmental protection;
7. Printing industry.



model	voltage	max current	max flow	speed	max pressure	suction	pressure switch	power
	v	A	GPM / LPM	RPM	Psi / Mpa	m	Psi / Mpa	w
DP35	24	4.8	3.2/ 12	1300	35/ 0.24	5	35/ 0.24	40
	12	7	2.5/ 9.5	1200	35/ 0.24	5	35/ 0.24	40
DP50	24	6	4.2/ 16	1800	50/ 0.35	5	50/ 0.35	65
DP60A	24	3	1.3/ 5	1200	60/ 0.42	5	/	40
	12	6	1.3/ 5	1200	60/ 0.42	5	/	40
	220	0.42	1.3/ 5	1200	60/ 0.42	5	/	40
DP60	24	3	1.3/ 5	1200	60/ 0.42	5	60/ 0.42	40
	12	6	1.3/ 5	1200	60/ 0.42	5	60/ 0.42	40
	220	0.42	1.3/ 5	1200	60/ 0.42	5	60/ 0.42	40
DP60A brushless	12	5	1.3/ 5	1200	60/ 0.42	5	/	20
	24	2.8	1.3/ 5	1200	60/ 0.42	5	60/ 0.42	28
DP60  brushless	24	2.8	1.3/ 5	1200	60/ 0.42	5	60/ 0.42	28
	12	5	1.3/ 5	1200	60/ 0.42	5	60/ 0.42	20
DP70	24	9	5/19	1200	70/0.48	5	70/0.48	95
	12	17	4.7/18	1200	70/0.48	5	70/0.48	95
DP100A	24	1.1	0.32/ 1.2	375	100/ 0.68	5	/	10

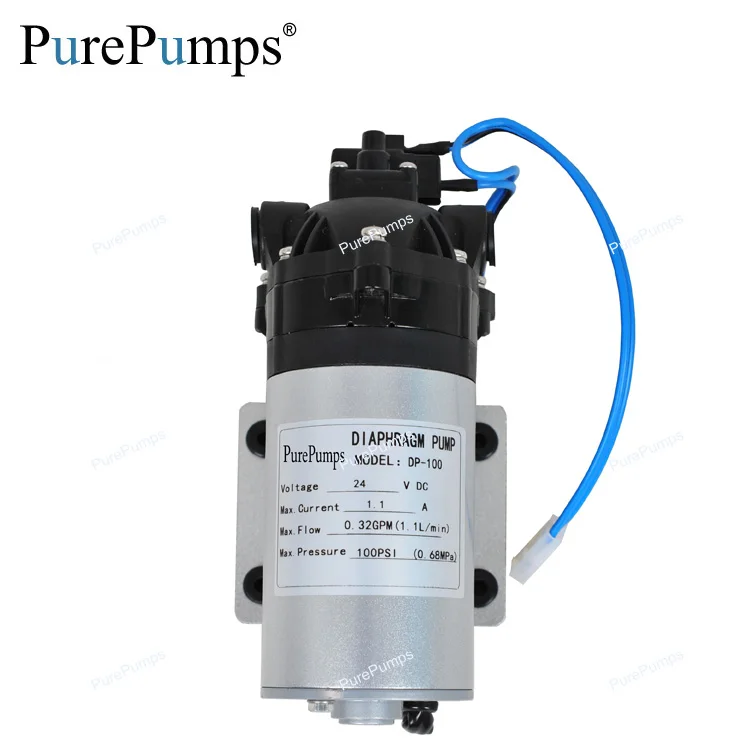

DP100	24	1.1	0.32/ 1.2	375	100/ 0.68	5	100/ 0.68	10
DP125	24	1	0.26/ 1	375	125/ 0.86	5	125/ 0.86	10
DP130B	24	1.2	0.45/ 1.7	470	130/ 0.9	5	125/ 0.86	15
	12	2.2	0.45/ 1.7	470	130/ 0.9	5	125/ 0.86	15
DP130	24	1.2	0.45/ 1.7	470	130/ 0.9	5	/	15
	12	2.2	0.45/ 1.7	470	130/ 0.9	5	/	15
DP150	12	10	1.3/ 5	1200	150/ 1	5	/	40
	24	4	1.3/ 5	1200	150/ 1	5	/	40
