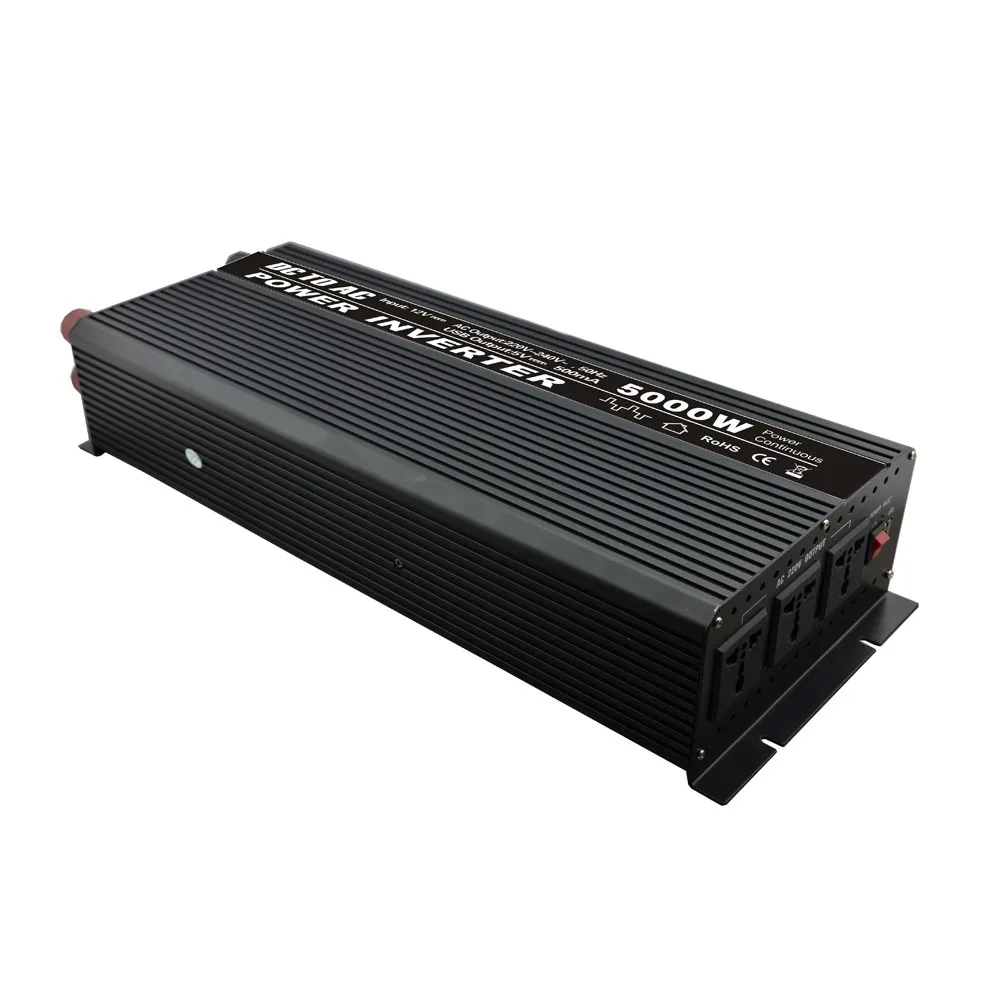

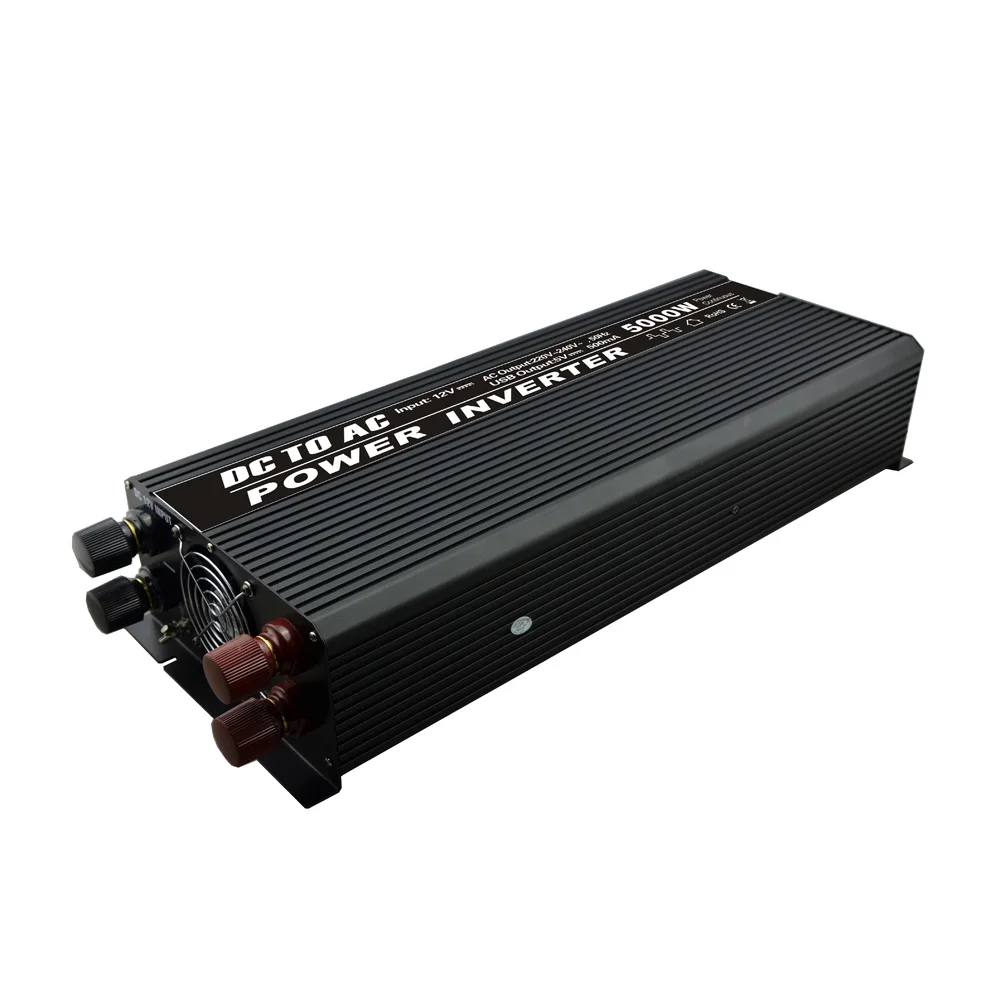

5000 Watt Continuous/10000 Watt Peak Modified Sine Wave Power Inverter

This power inverter is modified sine wave inverter which converts DC power to AC power. Full power inverter with strong protections. Its output voltage is always within 10% of rated voltage until it shutdown for overload or other reasons.

Features:
●Protections: low-voltage, over voltage, over load, over temperature.
●Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference.
●Advanced automatic constant circuit, prolong battery life.
●Perfect protection against battery under voltage, overload, short-circuit.
●Microprocessor control guarantees high reliability.
●Can work with inductive load such as air conditioner, motor door and so on.
●The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter.
●Having grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter.
●With 100% full power, efficiency reaching up to 85%.
●Isolated output.
●Soft start.
●USB charging port +5VDC, 500mA.

Detailed Images

Specification

Product Model	M5000	M5000B	M5000C
Input Voltage	DC 12V	DC 24V	DC 48V
Working Voltage	DC9.5V-15.5V	DC20-30V	DC40-60V
Input Current	416A	208A	104A
Conversion Efficiency	>85%
Continuous Output Power	5000W
Peak Power	10000W
Output Voltage	AC 100V-120V/210-240V
Output Frequency	50Hz-60Hz
Output Current	45A/22A
Output Waveform	Modified Sine Wave
Temperature Protection	≥70℃
Operating Temperature	0℃~40℃
Cooling Method	Temperature Controlled Fan
Buzzer Alarm	yes
Low Voltage Turn Off	10±1V	20±1	40±1
High Voltage Turn Off	15±1V	30±1	60±1
Protection	Under Voltage/Over Voltage:LED Red Light,Automatic Recovery
	Overload:LED Red Light,Automatic Recovery First Time,Over Load Twice Continuously Need to Recovery Manually Fault Indicator
	Over temperature:LED Red Light,Automatic Recovery
	Short Circuit:LED Red Light,Automatic Recovery
	Input Reverse:Fuse Blown

Packing & Delivery

Net Weight	7.5kg
Gross Weight	8kg
Overall Dimension	480*200*100mm
Package Dimension	500*260*150mm
Carton Dimension	610*545*335mm 4Pieces/Carton
