Multi Jet Dry Type Vane Wheel Water Meter MXSC

Product Overview

Description

Description:
LXSC-15Z~50Z Multi-jet Dry Type Vane Wheel Water Meter With Rotary Register
Features

With external regulating device

Magnetic drive, lower transmission resistance
Magnetic shield, use for external magnetic field protection

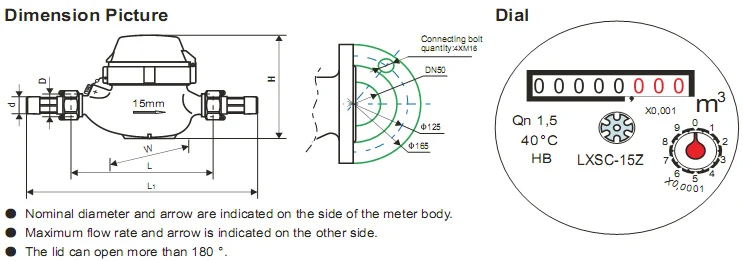

Sealed dry dial register ensures clear reading
Register can rotate more than 360°reading in any position
Central strainer
Inlet strainer

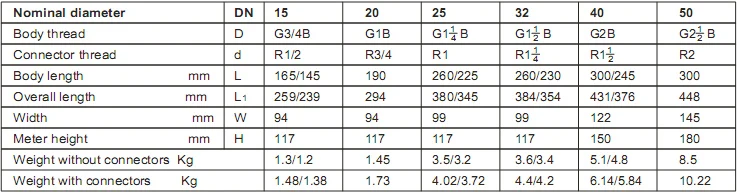

There are two versions DN50 meter body to be chosen: with threaded ends or flanged ends

Compliance with Standard

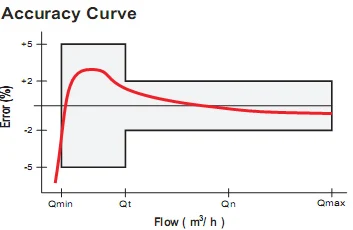

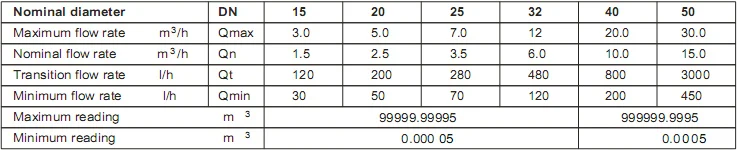

Technical data conforms to ISO 4064 Class B Standard for horizontal installation

Options
Meter with non return valve(different price) is available except LXSC-50Z, LXSC-25Z-225mm, LXSC-32Z-230mm, LXSC-40Z-245mm
Meter for hot water up to 90°is available
Meter equipped with reed switch is available

Installation Requirements
The meter should be installed in horizontal position with the register face upwards
Pipeline must be flushed before installation
The meter should be constantly full of water during operation

Application
Measuring the volume of cold potable water passing through the pipeline

Working Conditions

 Water temperature:≤40℃
Water pressure:≤1.6MPa
