380V Automatic electric motor stator coil winding and inserting Combined machine
- Category: >>>
- Supplier: Ningbo Nide Mechanical Equipment Co. Ltd.
Share on (60829863756):
Product Overview
Description
380V Automatic electric motor stator coil winding and insering machine
1. The main Features and Functions
The motor stator coil winding and inserting machine has one automatic motor coil winding stations and one stator coil inserting station. During winding, the motor stator copper wire will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer. The coil winding and inserting station is controlled by the dual-power servo motor, and the parameters such as winding, pushing the line, pushing the height of the paper, and changing the product stack thickness can be set on the touch screen. With automated coil winding and insertion wokring at the same time, the stator coil winding and inserting machine will be save labor cost, high efficiency, and can fulfill the 2-pole, 4-pole and 6-pole three-phase motor coil winding.
The coil winding and inserting machine uses the German Beckhoff CNC system as the control center; the Huichuan servo motor is the actuator; the Autonics sensor is the signal acquisition component. The data display and input adopt a touch monitor.
The product is mature in technology, advanced in technology, reliable in quality, and convenient to use and maintain.
2. Application
This motor stator coil winding and inserting machine is suitable for miniature induction motors , air conditioner motors, washing machine motors, compressor motors, fan motors, generator motors, and pump motors, etc.
3. Technical parameters
| Product name : | automatic motor stator coil winding and inserting machine |
| Stator OD: | ≤φ150mm |
| Stator ID: | 40-110mm |
| Stack Height: | 30-120mm |
| Appropriate Wire: | φ0.2-φ1.2mm |
| Motor Winding stations: | 1 |
| Stator Coil inserting stations: | 1 |
| Winding inserting mode: | chained /same core |
| Power supply: | 380V 50/60Hz |
| Air pressure: | 0.6-0.8 MPa |
| Watt : | 5Kw |
| Weight : | ≈1800Kg |
| Dimension: | (L)2200×(W)1200×(H)2200mm |
4.The picture display

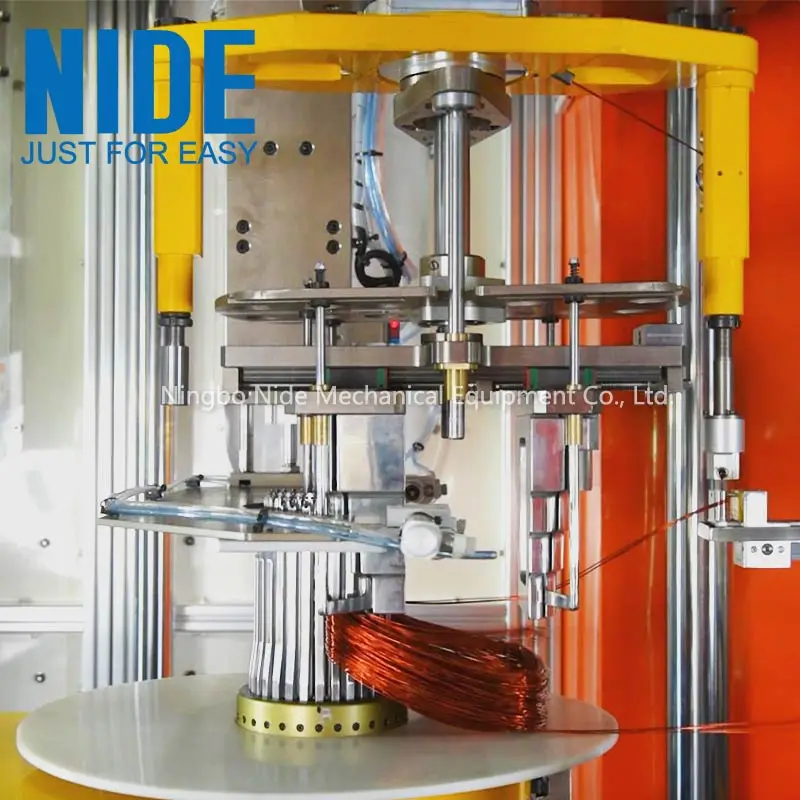

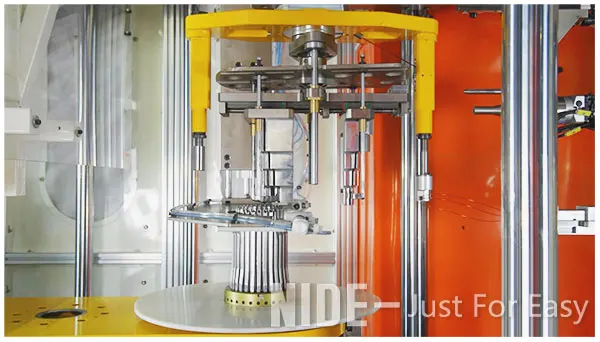

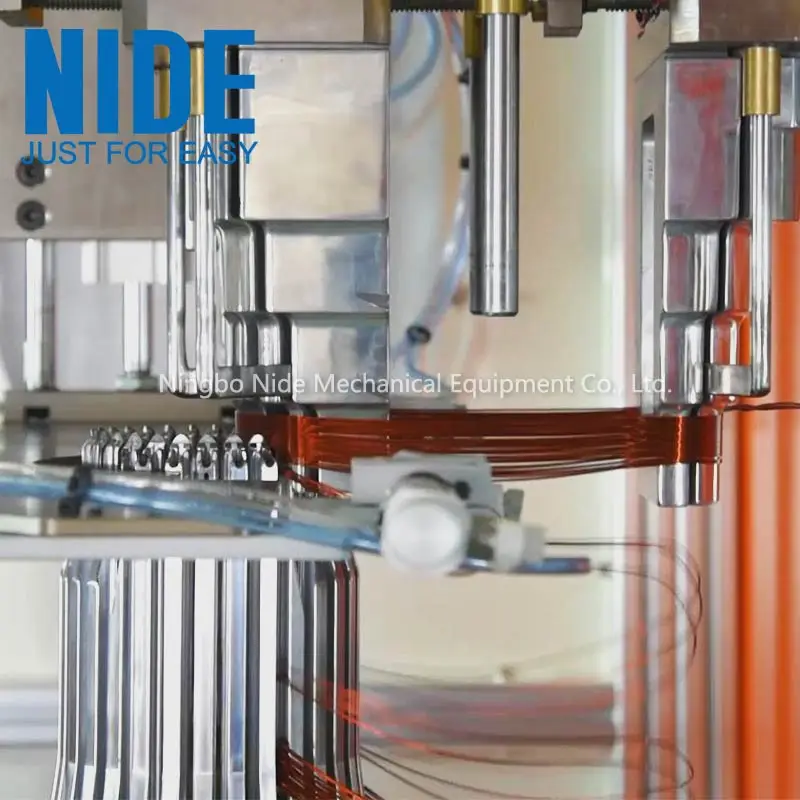

1. The automatic motor winding and inserting machine winding stations

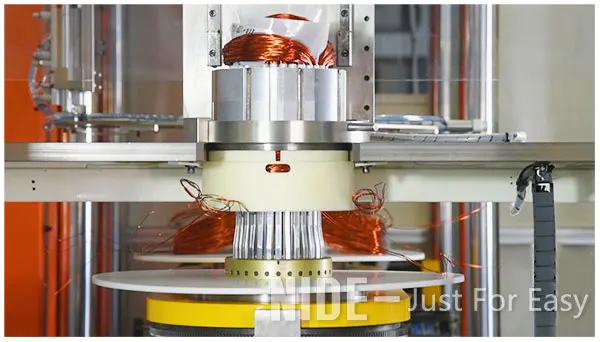

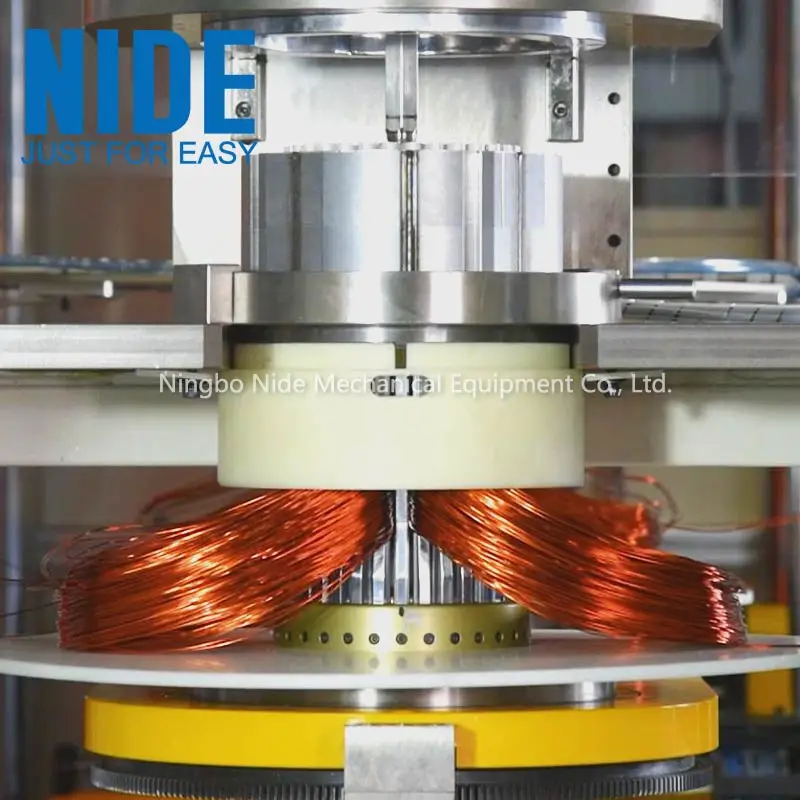

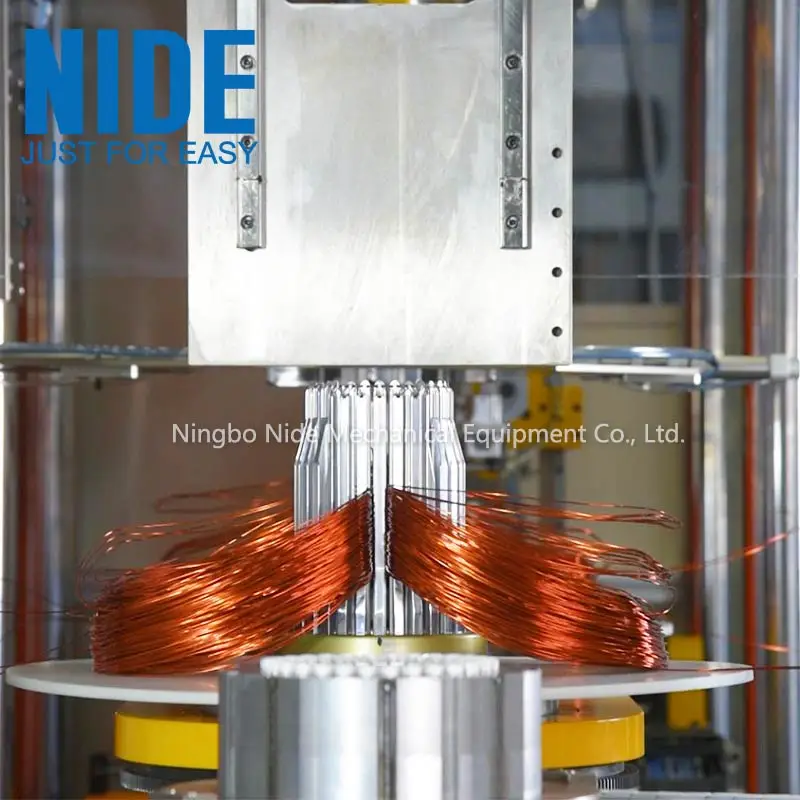

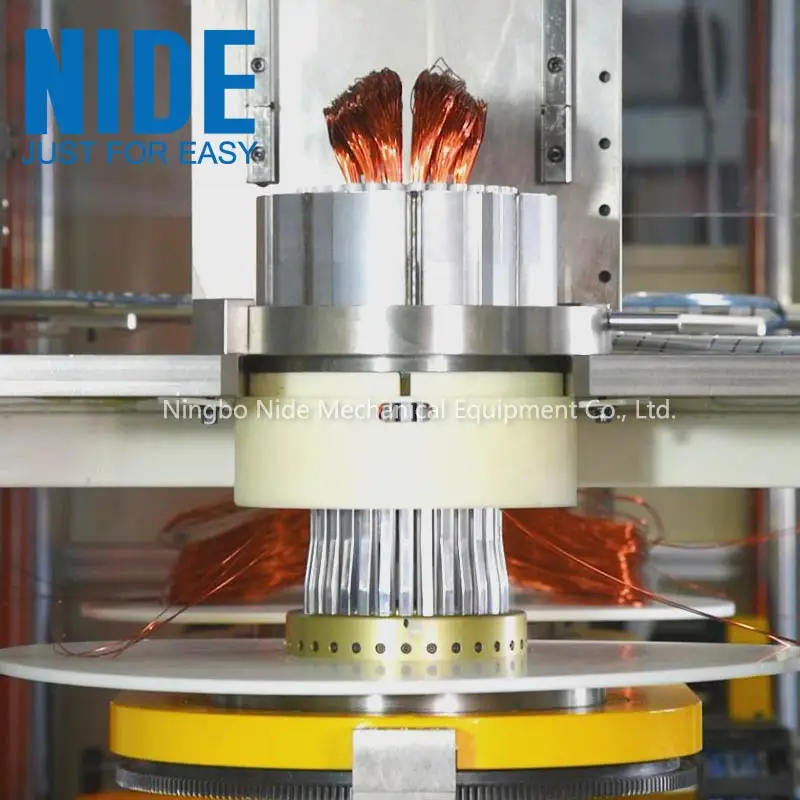

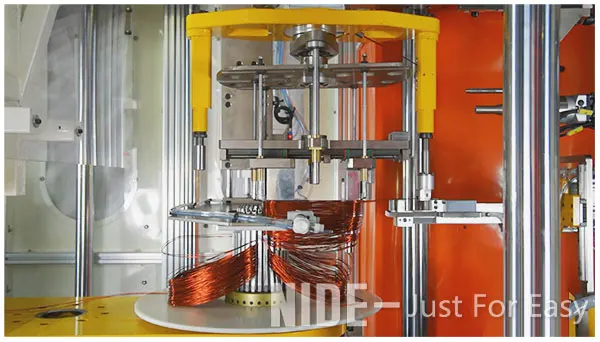

2. The automatic motor winding and inserting machine coil insertion stations

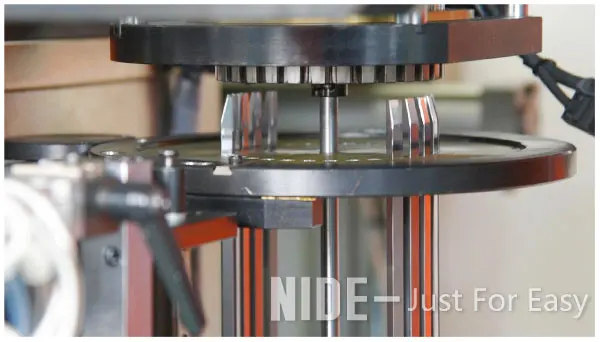

3. The coil winding and insertion machine coil Inserting abrasive display
The motor stator coil winding and inserting combined mahcine working youtube video
Stator production
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
More Information
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2010, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
