Digging Holes Screw Drill Hydraulic Earth Auger For Excavator
$1,800.00-2,000.00

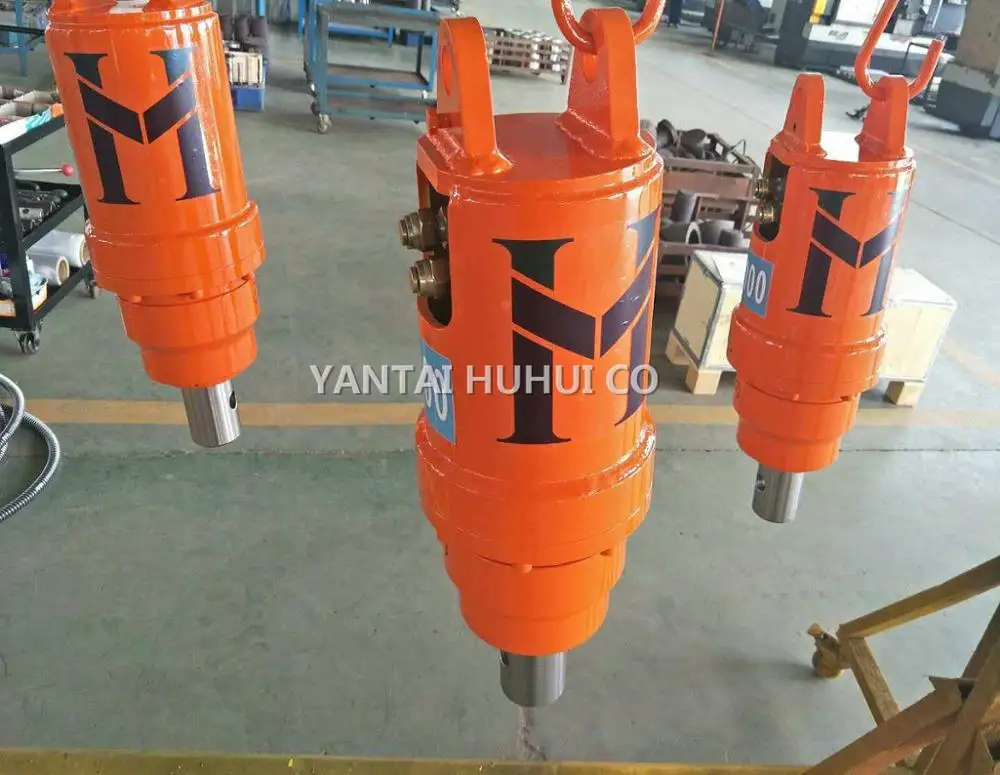

Excavator & Backhoe Attachments Hydraulic Auger Drive Rock Drill
- Category: >>>
- Supplier: Yantai Huhui Trade Co. Ltd.
Share on (60829884603):
Product Overview
Description
Product Introduction
Auger Drive Models & Specifications
Model | Applicable Carrier | Max. Torque | Working | Working Oil Flow | Output Shaft | Size | Weight | Auger Series |
ton | Nm | bar | l/m | mm | mm | kg | ||
HHD2000 | 1.5-3 | 2510 | 60-238 | 20-70 | 65Rd | Φ200 x 585 | 55 | H4 |
HHD4000 | 2.5-4.5 | 3760 | 80-238 | 30-75 | 65Rd | Φ200 x 585 | 60 | H4 |
HHD5500 | 3-6 | 5600 | 80-238 | 60-95 | 75Sq | Φ270 x 900 | 127 | H6 |
HHD7000 | 4.5-6 | 7300 | 80-238 | 50-115 | 75Sq | Φ270 x 900 | 151 | H6 |
HHD8000 | 5-8 | 7661 | 80-238 | 50-115 | 75Sq | Φ270 x 900 | 152 | H6 |
HHD9000 | 4-8 | 8860 | 80-170 | 40-75 | 75Sq | Φ270 x 870 | 122 | H6 |
HHD10000 | 4-9 | 10250 | 80-170 | 40-75 | 75Sq | Φ270 x 870 | 125 | H6 |
HHD12000 | 13-17 | 12300 | 80-238 | 70-150 | 75Sq | Φ290 x 945 | 155 | H6 |
HHD15000 | 15-17 | 15160 | 80-238 | 80-170 | 75Sq | Φ300 x 945 | 171 | H6 |
HHD20000 | 15-20 | 19200 | 80-238 | 80-170 | 95Sq | Φ345 x 1155 | 266 | H8 |
HHD25000 | 17-25 | 24920 | 80-238 | 80-230 | 95Sq | Φ345 x 1155 | 271 | H8 |
HHD40000 | 20-30 | 39500 | 100-170 | 100-150 | 110Sq | Φ460 x 1600 | 485 | H10 |
HHD50000 | 25-36 | 50300 | 100-170 | 100-150 | 110Sq | Φ460 x 1600 | 492 | H10 |
Auger Drill Range - (Length 1.2M-10M )
Mounting Hitch
Inner Structure

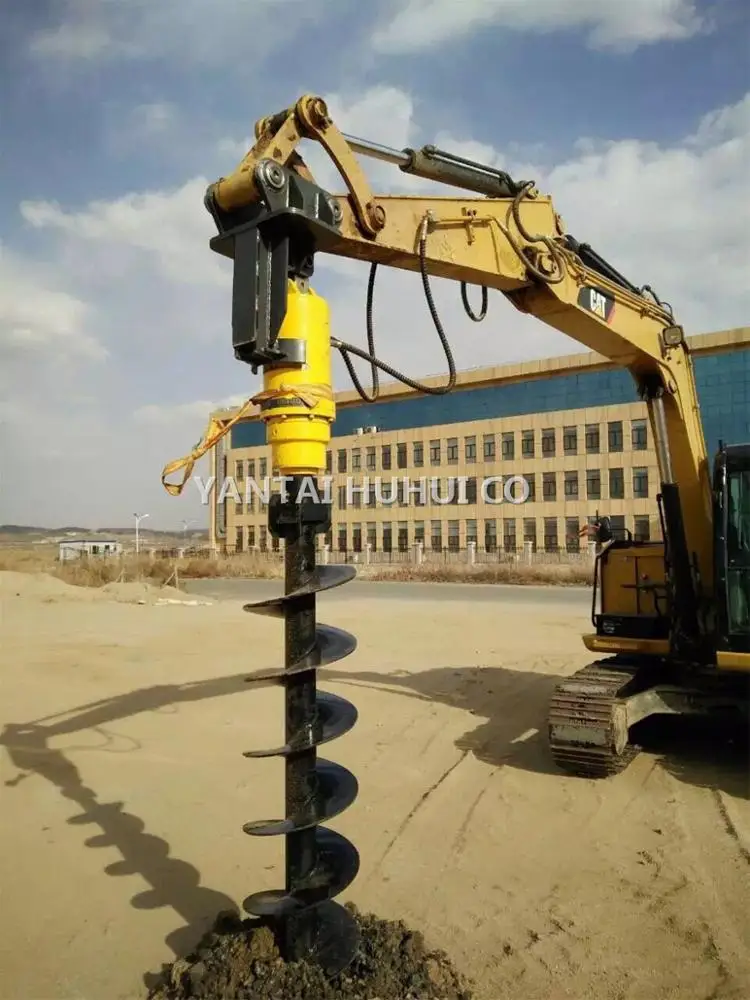

Application
Landscaping, Tree planting, Well boring, Foundation piles, Screw pile installations, Ground source heat pumps, Pole an Mast Installations, Solar energy piling, Bridge pier drilling and Golf course etc

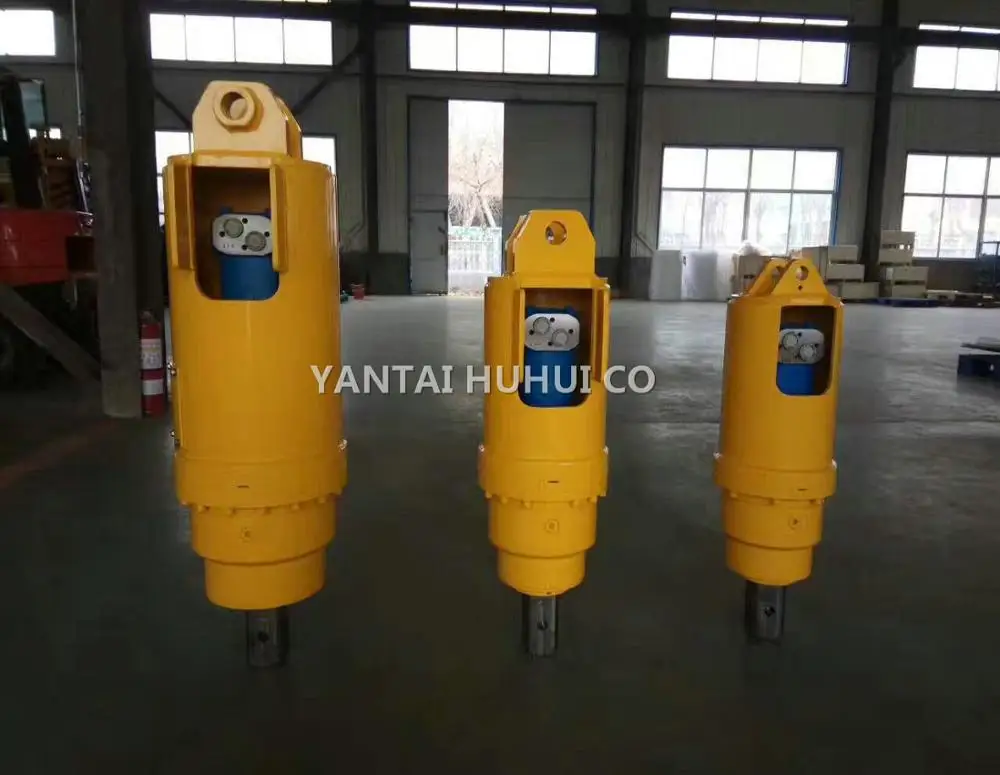

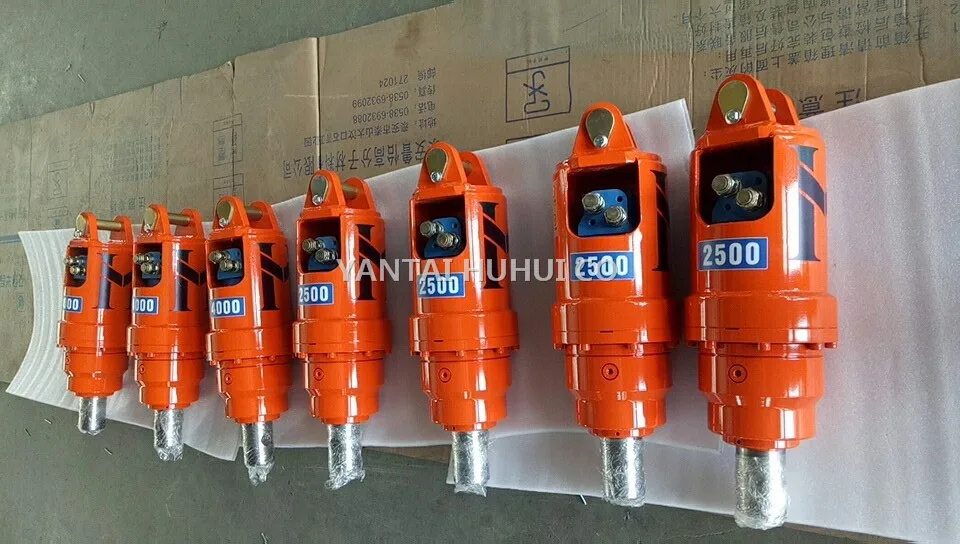

Production & Stock
Attachment Production Catalog

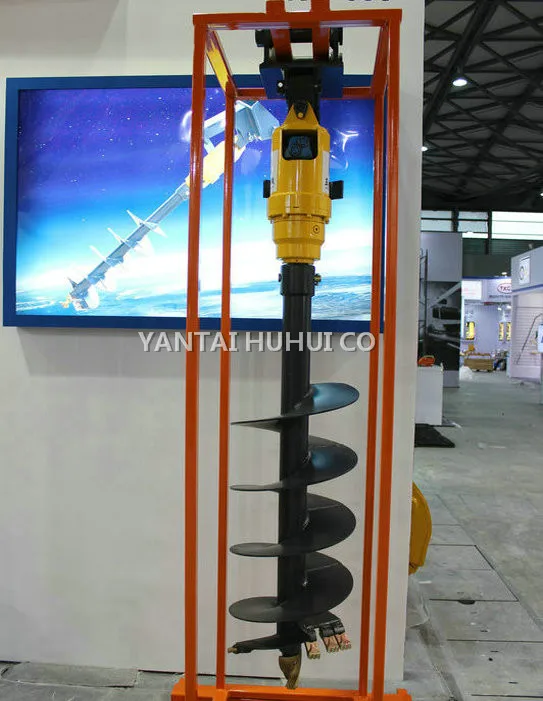

Bauma China
Notes: We can manufacturer according to your drawing.
