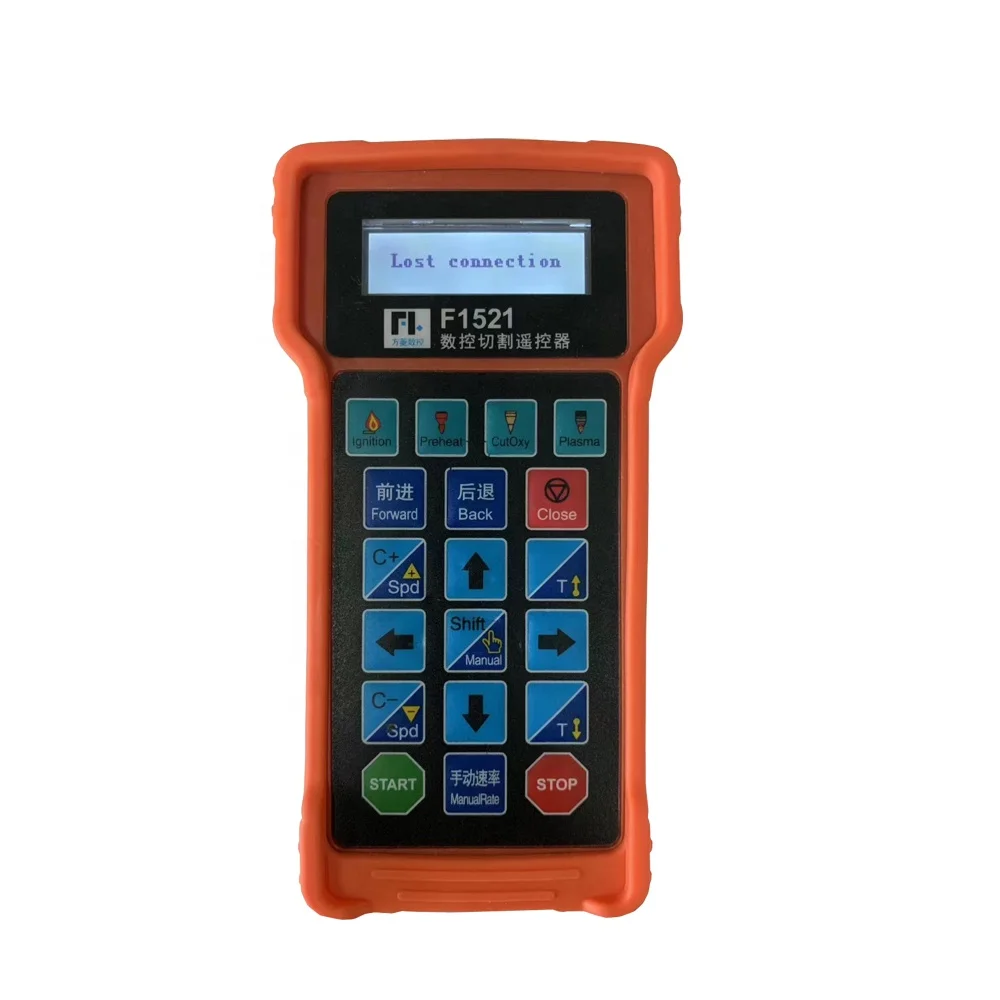

FLSK Fangling F1521 F1510 Remote Controller for CNC Control System F2100b

Product Overview

Description



Brand:Fangling

Model:F1521 (F1510 was not produced.)

Remote controller



1.Performance and Characteristics of Wireless Remote Control Module:

1. 433MHz free ISM band free license trial;
2. Remote control distance> 30m, at least not less than 0.5m;
3. Hardware detection error, software optimization algorithm, two-way communication, to ensure stable and reliable communications;
4. send and receive modules by address match, the address can be set manually, the maximum support 128 addresses;
5. Wireless remote control module to dry battery power supply, at least up to 6 months more than the use of time;
6. The receiving module is 8421 port mode or single IO mode, up to 16 output ports.





2.Basic features:



Processor	industrial microprocessor chip
Communication frequency band	2.4GHz ISM band
Remote distance	30m
Standby time	3 months
Working temperature	0 ~ 40℃
Storage temperature	-40 ~ 60℃

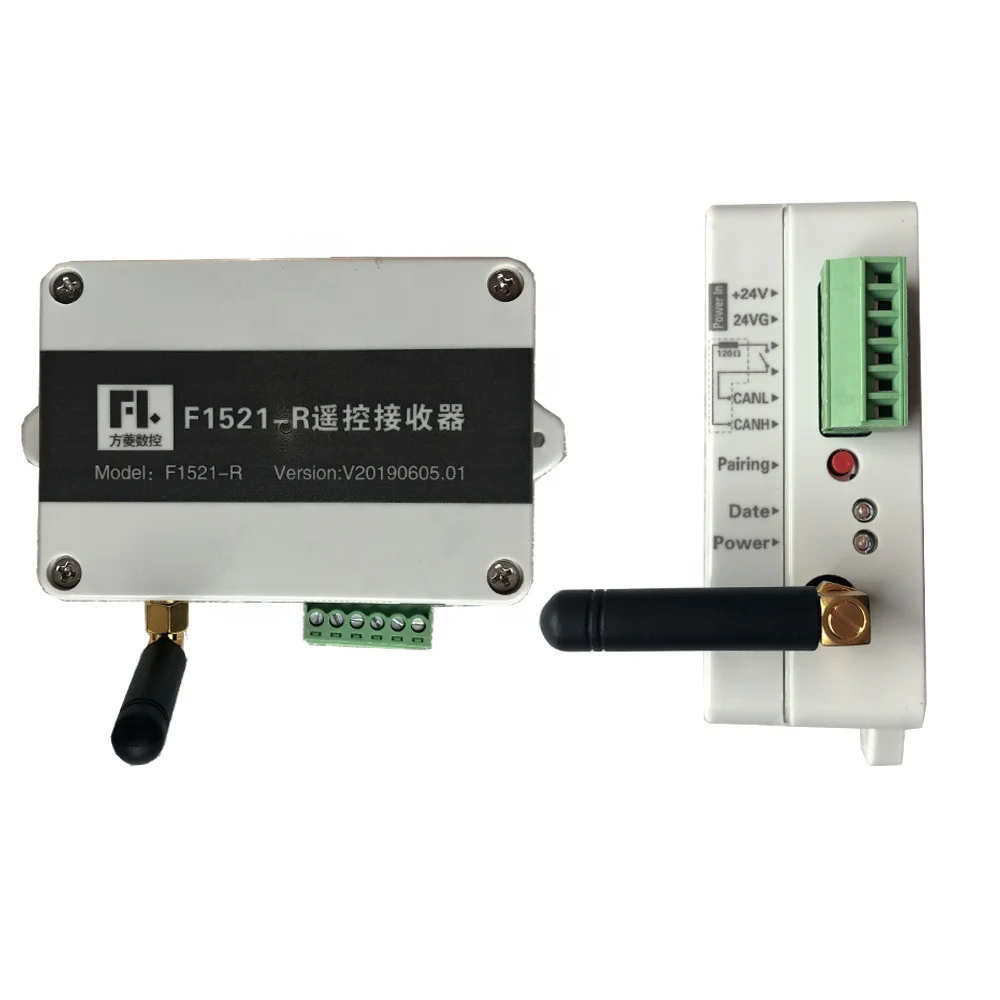

3.The output port of receiver:

Model:F1521-R

Output ports:8

Powe suppler mode:24VDC

Each output port cooresponds to a LED lamp to display IO port state,when it is ON,lamp lights, when it is OFF,lamp is off.



FAQ:

Q1:When the machine can’t work well,What should I do?

A1.(1)Salesman is online for 24-hours, they can check the problems with engineer and then give you solutions as soon as possible.

     (2)Our machine is with one’s year warranty, If any problems of machine parts under “normal use”,new machine parts will be sent by air in free.

     (3)Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.

Q2:What’s kind of payment way ?
A2.T/T ,Paypal,Western Union or Trade assurance order in alibaba.

Q3:Can you produce the product according to customers' request?
A3.Sure ,we are the professional manufacturer,just give us the drawing or request for customized.
