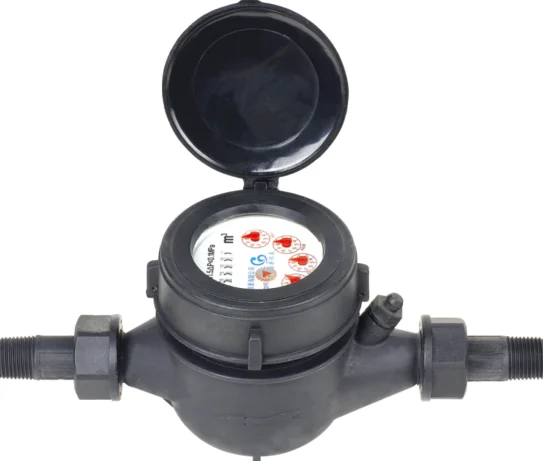

Multi jet Dry Type Plastic Water Meter

Product Overview

Description

Specifications



Plastic water meter
1, Dry-dial Magnetic,Resistance to exterior magnet interference
2, ISO 4064,Class B
3, Multi-jet, Nylon



Description:

Feature
1.Dry-dial,Magnetic drive,Resistance to exterior magnet interference
2.Multi-jet
3.Selected high quality materials for steady & reliable characteristic
4.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
5.Measuring accuracy conform to ISO 4064 class B Standard
6.Universal use.Easy for interchange & maintenance

Description
This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline.

Working condition
Cold water temperature: ≤40 degree

Hot water temperature: ≤90 degree
Water pressure:≤1Mpa



Main technical data

Meter size	Class	Qs Overload  Flow	Qp Nominal  Flow	Qt Transitional  Flow	Qmin Min  Flow	Min Reading  Lectura	Max Reading  Lectura
Dia DN  (mm)		m3/h		1/h		m3
15	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50
25	A	7	3.5	350	140	0.0001	99999
	B			280	70



Dimensions and weight



Meter size	L	B	H	Connecting Thread	Weight
	length	Width	Height
Dia DN(mm)	mm			D	kg
15	165	99	104	G3/4"B	1.3
20	190	99	106	G1"B	1.5
25	225	104	120	G11/4"B	2.1



If you are interested in our water meter, please feel free to contact us!
