Frozen Chicken Cube Nugget Food Turkey Packaging Packing Machine
- Category: >>>
- Supplier: Guangzhou Burgen Machinery Technology Co. Ltd.
Share on (60830020617):
Product Overview
Description
ONE-STOP SOLUTION
Multi-head Weighing
PACKING MACHINE UNIT
>> We Are a Manufacturer
One-stop solution for packing machines and packing films Save
▷Packaging Machine Parameters
Model | BG-320CD | BG-420CD | BG-520CD | BG-720CD | |||
Film Width | Max.320MM | Max.420MM | Max.520MM | Max.720MM | |||
Bag Length | 80-250MM | 80-300MM | 80-350MM | 180-500MM | |||
Bag Width | 50-150MM | 60-200MM | 100-250MM | 100-350MM | |||
Roll Diameter | Max.320MM | Max.320MM | Max.320MM | Max.320MM | |||
Film Thickness | 0.04-0.12MM | ||||||
Packing Speed | 5-60Bag/Min | 5-60Bag/Min | 5-60Bag/Min | 5-55Bag/Min | |||
Power | 220V50/60HZ 2KW | 220V 50/60HZ 2KW | 220V 50/60HZ 3KW | 220V 50/60HZ 3KW | |||
Machine Size(mm) | (L)1005* (W)850*(H)1241 MM | (L)1217* (W)1015*(H)1343 MM | (L)1488* (W)1080*(H)1490 MM | (L)1780* (W)1350*(H)2050 MM | |||
Machine Weight | About 620KG | About 650KG | About 680KG | About 750KG | |||
Option Device | Two synchronous belt device, air filling device, angle fold device, automatic rectifying device, hole-punching device, link bag device. | ||||||
APPLICATION
◆ APPLICATION & BAG TYPE ◆
◆ Sachet Sample ◆
Multi-Head weighing packing machine suitable for use in a variety of granular, block, strip objects.
Food : All kinds of puffed food,whole grains,frozen food,pet food,cookies,dried fruit and candy, etc
Hardwares : Hinge, stainless steel pipe, bearings , screw,nuts, washe rand plastic parts etc.
Medical : Capsule,Pill etc.
◆ Pouch Features Or Options ◆
Valves or Vents
Reclosable or Resealable Zippers
Tear Notches
Euro or Round Punch Holes
Paste wet wipes
Rounded Corners

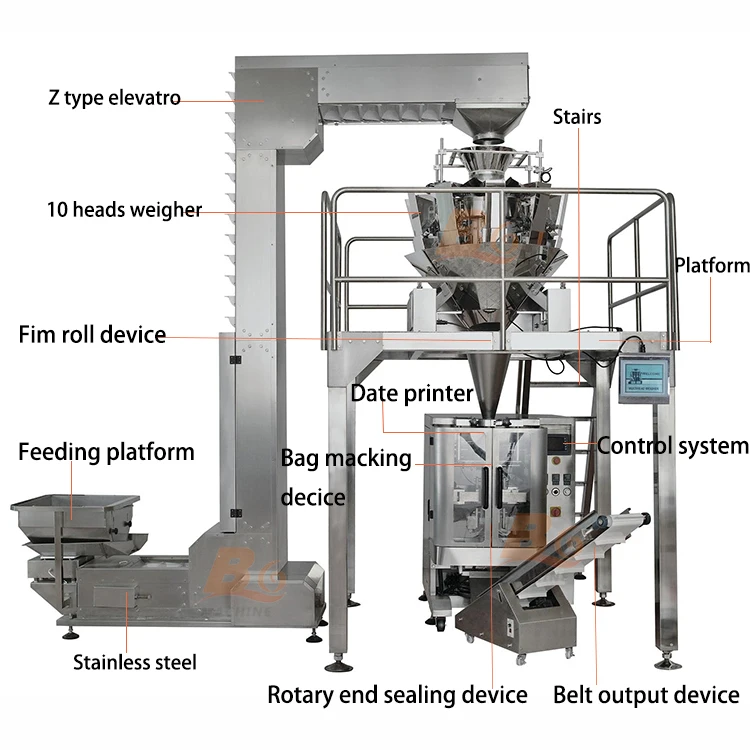

MACHINE DETAILS

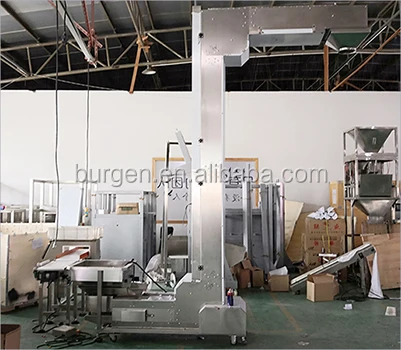

0⒈ Z Type Elevator
★Save labor lost and time

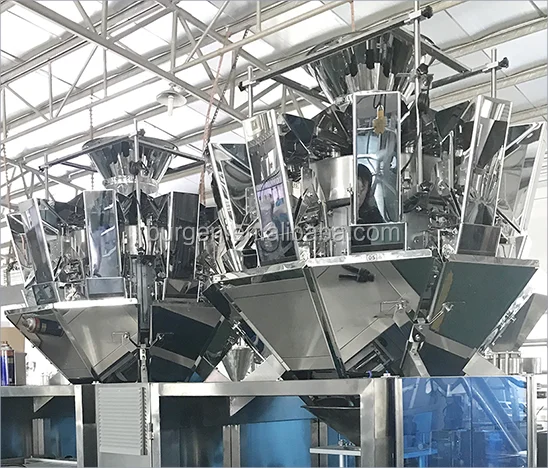

02.Combined Weighing Scale
★Improve weighing stability and accuracy
★Measurement accuracy±0.5G
★Measurement accuracy±0.5G
03. Bag Former
★Provide diversified bag-shaped.
★Save on film costs.
★Prevent roll film deviation.
★Save on film costs.
★Prevent roll film deviation.
04. Touch Screen
★Simple operation
★Multilingual.
★Automatically remember 8 sets of parameters.
★Multilingual.
★Automatically remember 8 sets of parameters.
Feature:
1.Automatic weighing packaging machine can automatically complete the fastener delivery, measuring electronic multi-head metal packaging machinery, filling, bag making, date printing.2.The combined selection of the weighing hopper can be sent to the staggered dump to avoid clogging problems.
3.A variety of automatic alarm protection features to minimize wear and tear. The work door is automatically stopped when it is opened, which is safe and reliable.
Spare Parts Brand
COMPANY PROFILE
About us
We are a factory focus on manufacturing packing machine and packing film, providing one-stop solution for clients, which can largely save your time and cost on the packing business.
We have achieved SGS certification and production have CE certification.We have perfect pre-sales, sales, after-sales service, provide technical advice, product optimization consulting and customer service.
We have achieved SGS certification and production have CE certification.We have perfect pre-sales, sales, after-sales service, provide technical advice, product optimization consulting and customer service.
→ Our Team
Certifications
PACKING&DELIVERY
If have any special requirements can be discussed,we will pack it as requested.
Delivery Time: Machine will be shipped in 15 working days after payment,before shipment,our technician will test the machine well,so our client can use directly when got the machine.
Further information (video,pictures, technical parameter and other models) needed,pls feel free to let me know.
Delivery Time: Machine will be shipped in 15 working days after payment,before shipment,our technician will test the machine well,so our client can use directly when got the machine.
Further information (video,pictures, technical parameter and other models) needed,pls feel free to let me know.
WHY CHOOSE US
Q&A
Q1: What information should I tell you to help me choose the most suitable packaging machine?
A1: product to be packaged, bag size or film width, bag shape (pillow bag, guesset bag or four bags), package weight and net weight, what kind of film material, product photo, bag photo,Quantity, production, and your true and correct contact details.
Q2: Can you provide after-sales service?
A2: We provide lifetime after-sales service. We provide free Internet technical help, English technical manual, detailed operation video, and we can also provide engineers with on-site machine operation and machine maintenance training.
Q3:Why should we choose your company?
A3: We specialize in R&D, manufacturing and sales of various packaging equipment for more than 10 years and provide the best after-sales service.
Q4: How long is the warranty period for the machine?
A4: The warranty period is one year (nonhuman damage).
Q5: What's your usual payment term for orders?
A5: We accept terms of T/T 30% in advance as down payment and 70% before loading in factory.
