mixing mill for eva/plant for the production of foam rubber/rolling mill mini

Product Overview

Description

Usage

They are used to mix Rubber-, Silicone-, Abrasives, and PVC compounds.

Especially in rubber-processing, mills are built for different mixing processes.

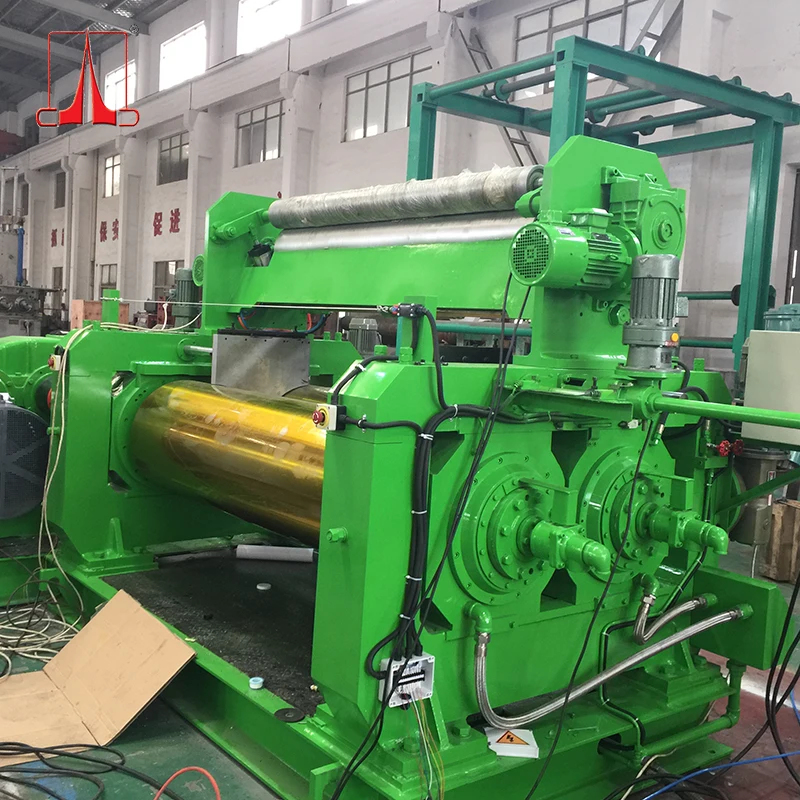

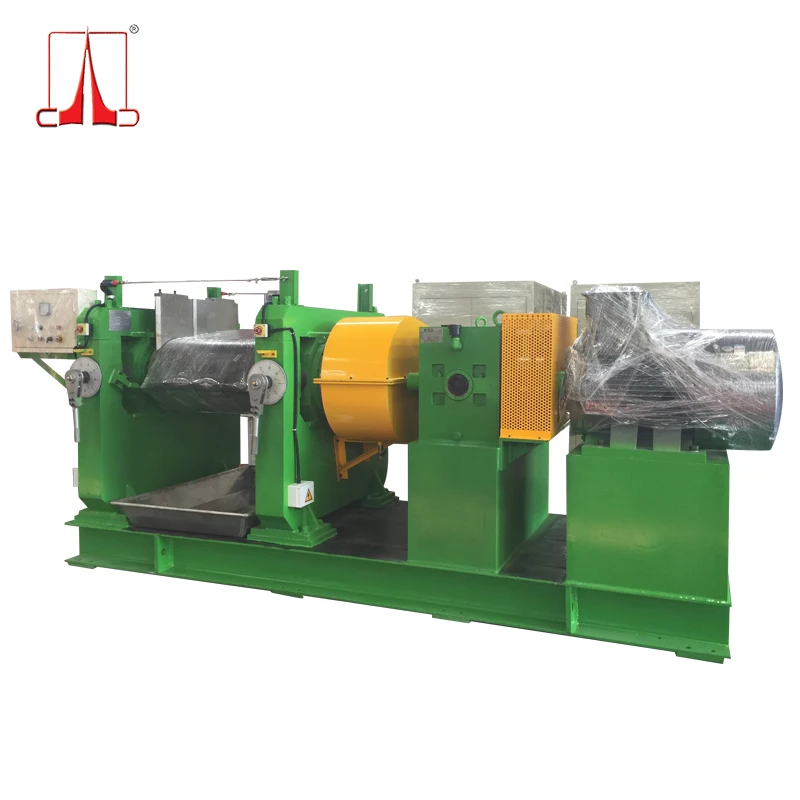

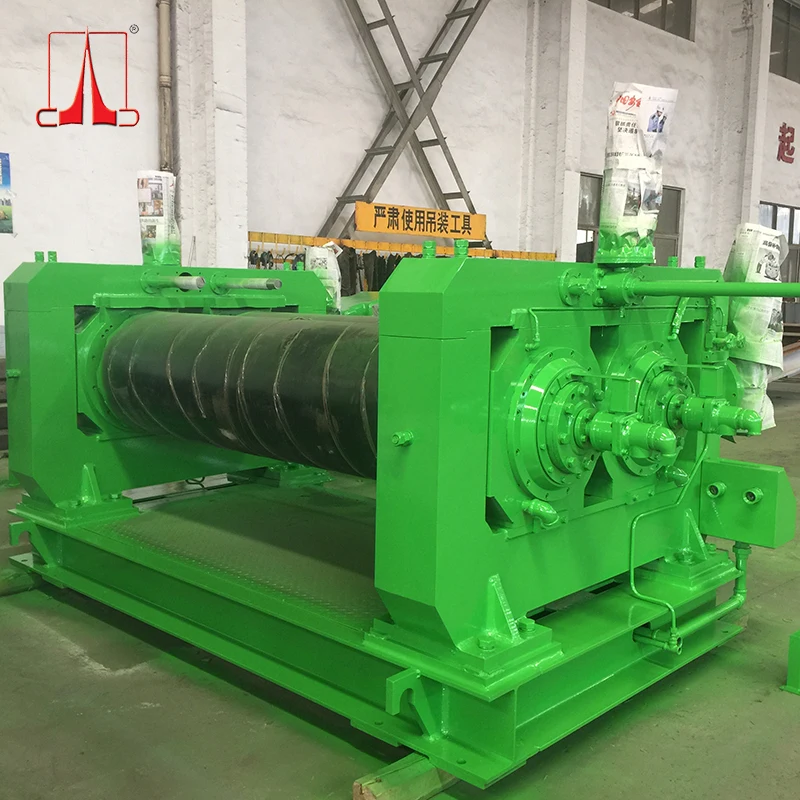

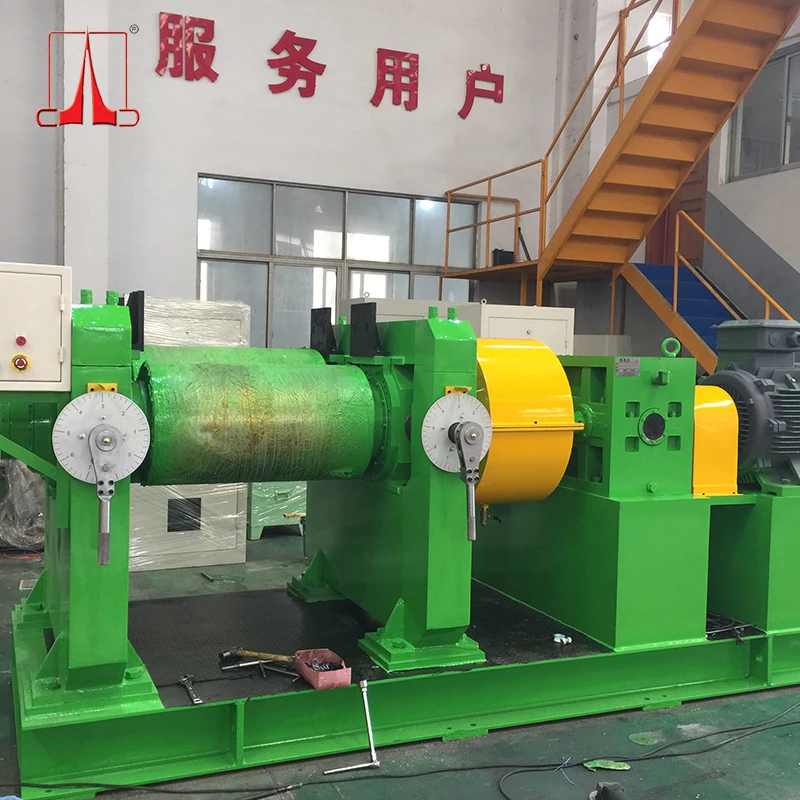

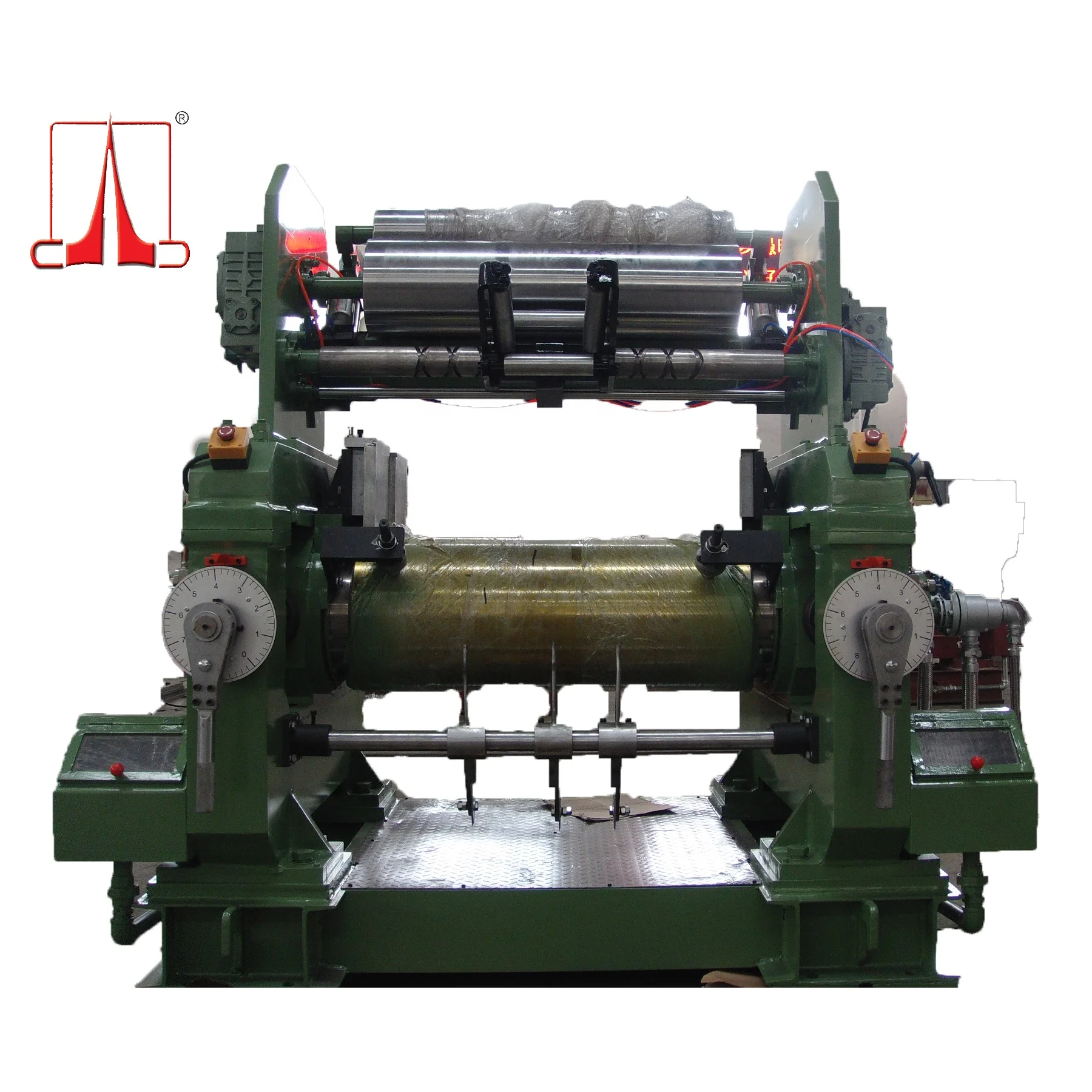

Build Up of Two Roll Mill

A mill is typically assembled on a steel foundation plate, which is again set on rubber-pads or sound-metals adjustable, to isolate noise-levels to the building also to avoid tensions on the mill structure, precisely levelling out of the mill is very important for smooth operation.





Range available :



Project\\Model	SK400×1000	SK450×1200	SK560×1830	SK610×2030	SK660×2300	SK760×2800
Roll diameter(mm)	400	450	560	610	660	760
Working length(mm)	1000	1200	1830	2030	2300	2800
Main motor power(kw)	45	55	75	90	132	220
Reducer speed box	Hard toothed
Type of drive	Cardan shaft




Rolls:
Manufactured from chilled cast iron, inside rolls are cooled by water or
heated by steam

Frames:
Manufactured from welded steel plates or high tensile cast iron for maximum
rigidity

Bed:
One piece construction of welded steel plate or cast iron provides maximum
stability

Bushing:
1) An oil sealed type bushing, the bushing housing is manufactured from
cast iron, and the inside diameter is fitted with high lead bronze.
Designed with water circulation circuit for water cooling, reducing heat
generated between the roll neck and the bushing

2) The bearing type bushing is constructed of cast iron housing and high
strength bearing at inside diameter

Bushing lubrication:
Employs automatic circulated lubrication system

Roll gap adjustment:
1) Manual gap adjustment is standard
2) Powered gap adjustment is optional

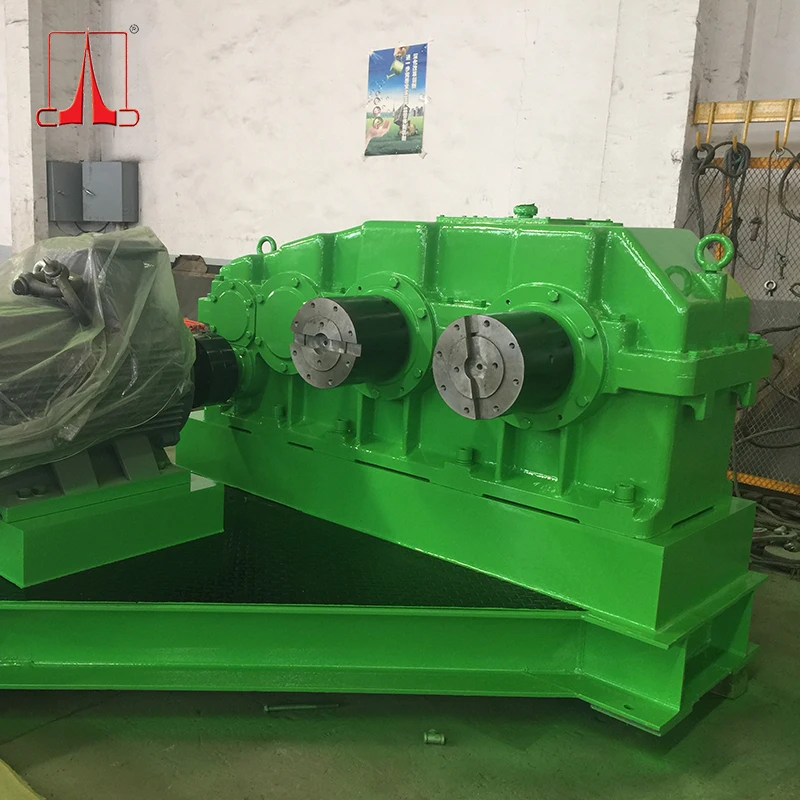

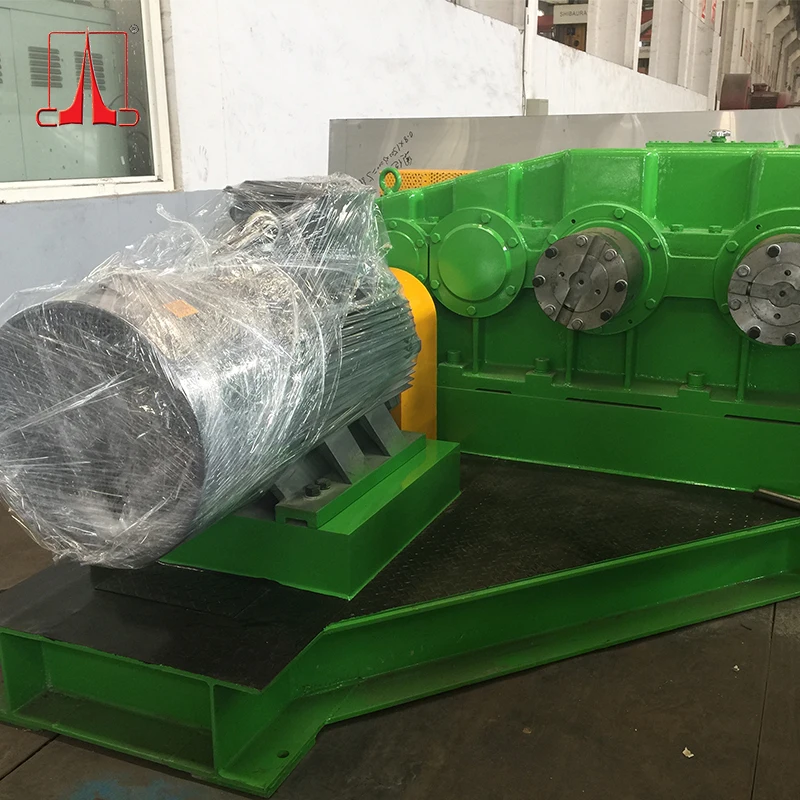

Reduction gear box:
Three-step totally enclosed gear reducer is driven by bevel gear. Gears are
lubricated by self splash lubrications system
