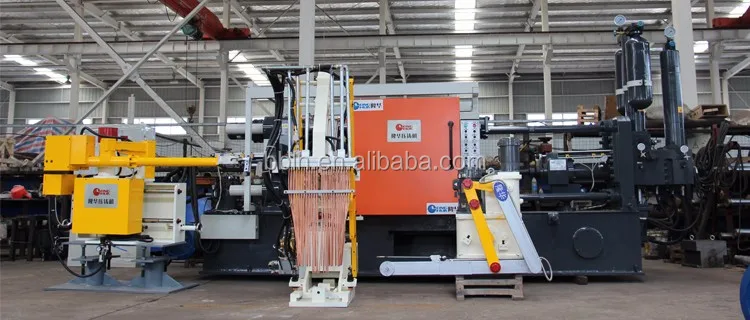

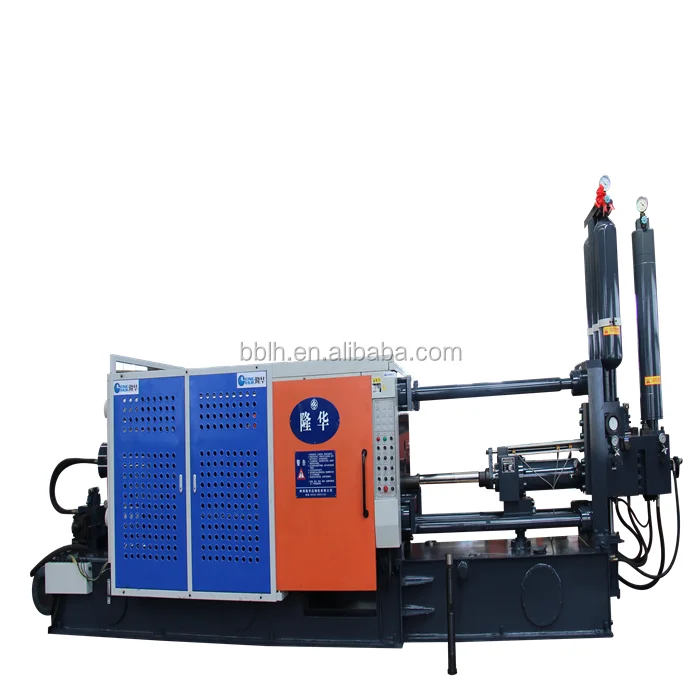

800T Die Casting Machine Copper Injection Machine for Metal Producing

Items

Unit

Specification

Hydraulic Working Pressure

MPa

14

Clamping Force

KN

6300

Space Between Tie Bars

mm

750*750

Tie Bar Diameter

mm

170

Die Opening Stroke

mm

650

Injecction Force(intensify)

KN

590

Plunger launch distance

mm

250

Injection position

mm

0  --  250

Plunger Diameter

mm

70----100

Injection Stroke

mm

600

Casting pressure (intensify)

MPa

153/117/92

Casting Fiange Protrusion

mm

15

Casting Fiange Diameter

mm

165

(40Mpa) Max Casting Area Under40Mpa

CM²

1400

lnjection Weight(Al)

Kg

11

Die Height(Min--Max)

mm

350~850

Ejector Force

KN

315

Ejector Steoke

mm

140

Motor Capacity

Kw

30

Machine Dimensions  (L*W*H)

m

8.4*2.2*3.1

Referential Machine Weight For Uplifting

T

30

Oil Tank Capacity

L

1250
