Professional Manufacturer Fully Automatic Aluminium Foil Paper Slitter Rewinder Machine

Product Overview

Description

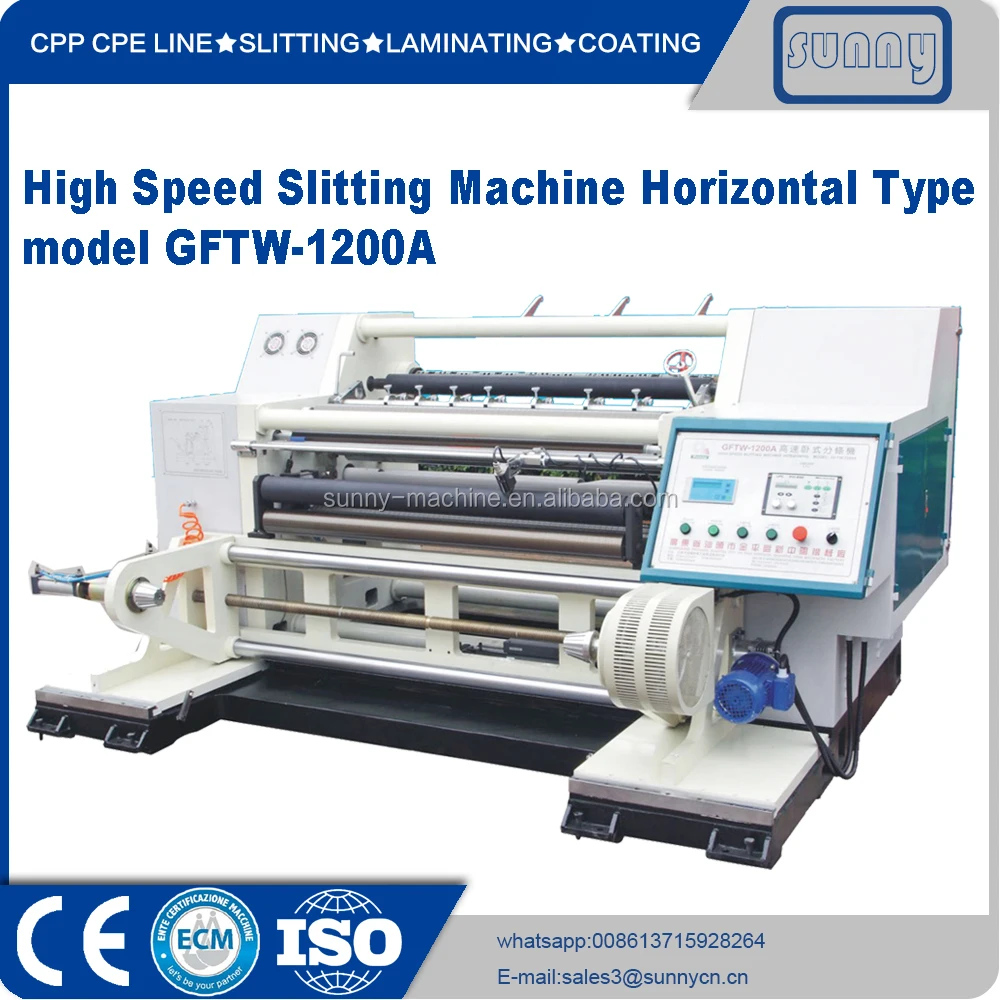

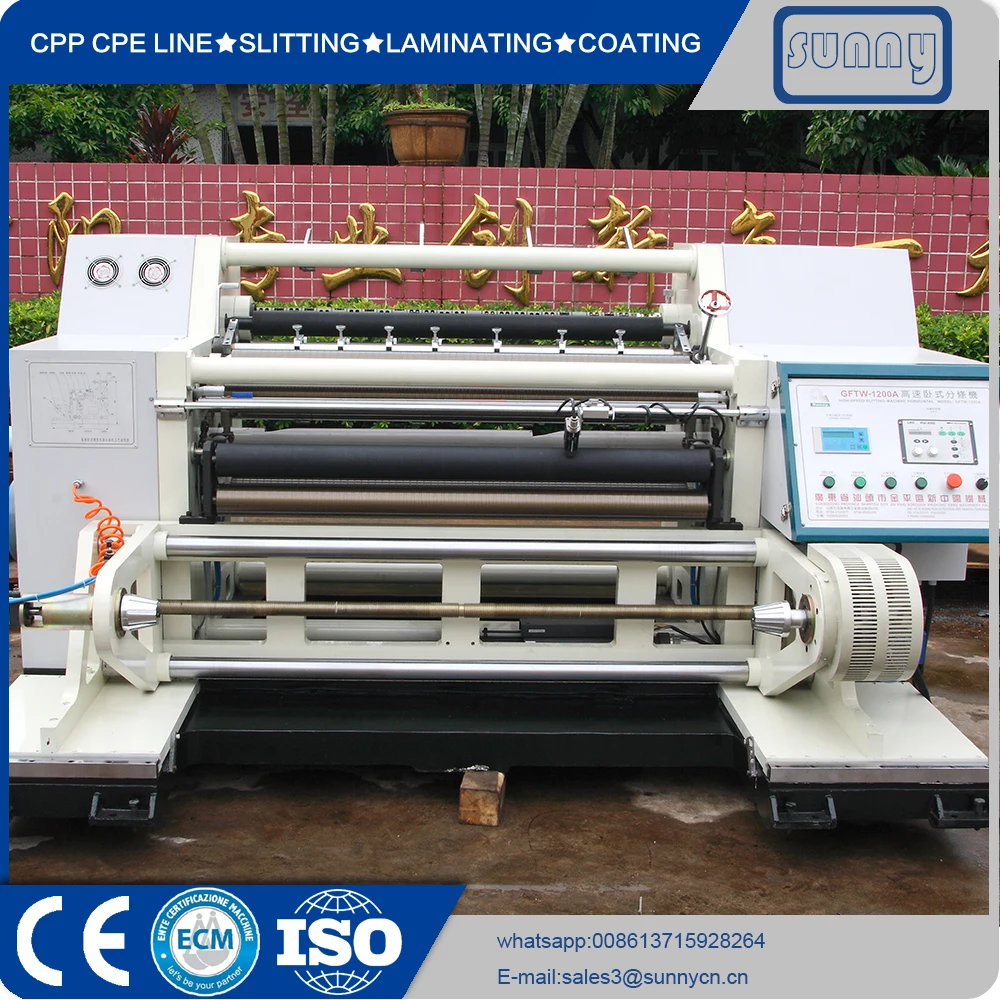

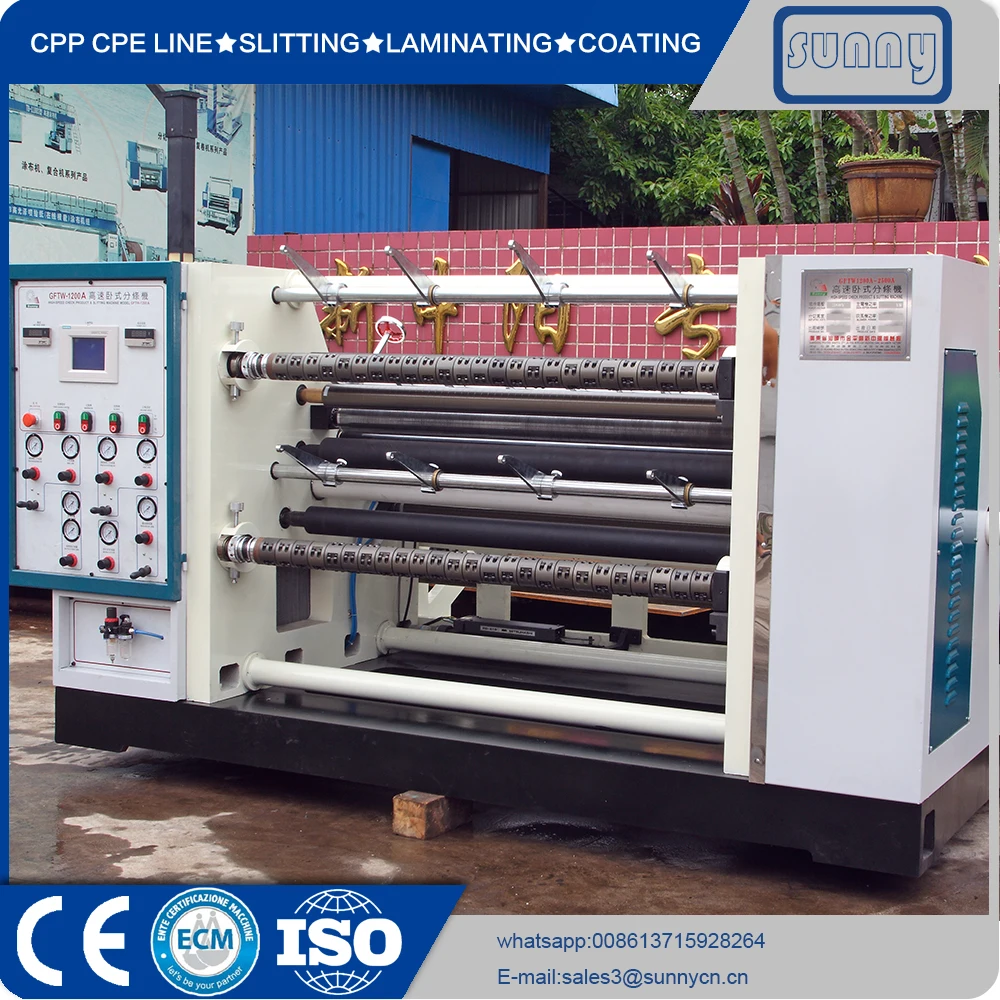

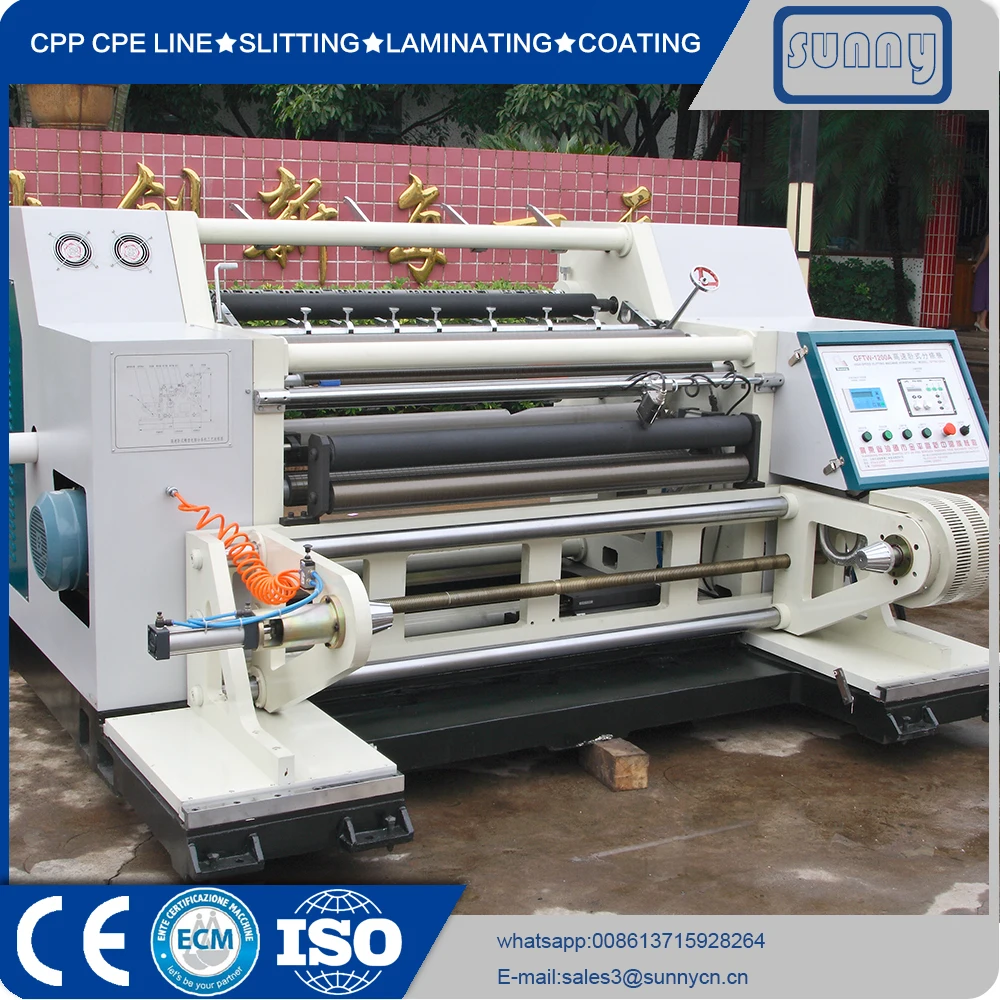

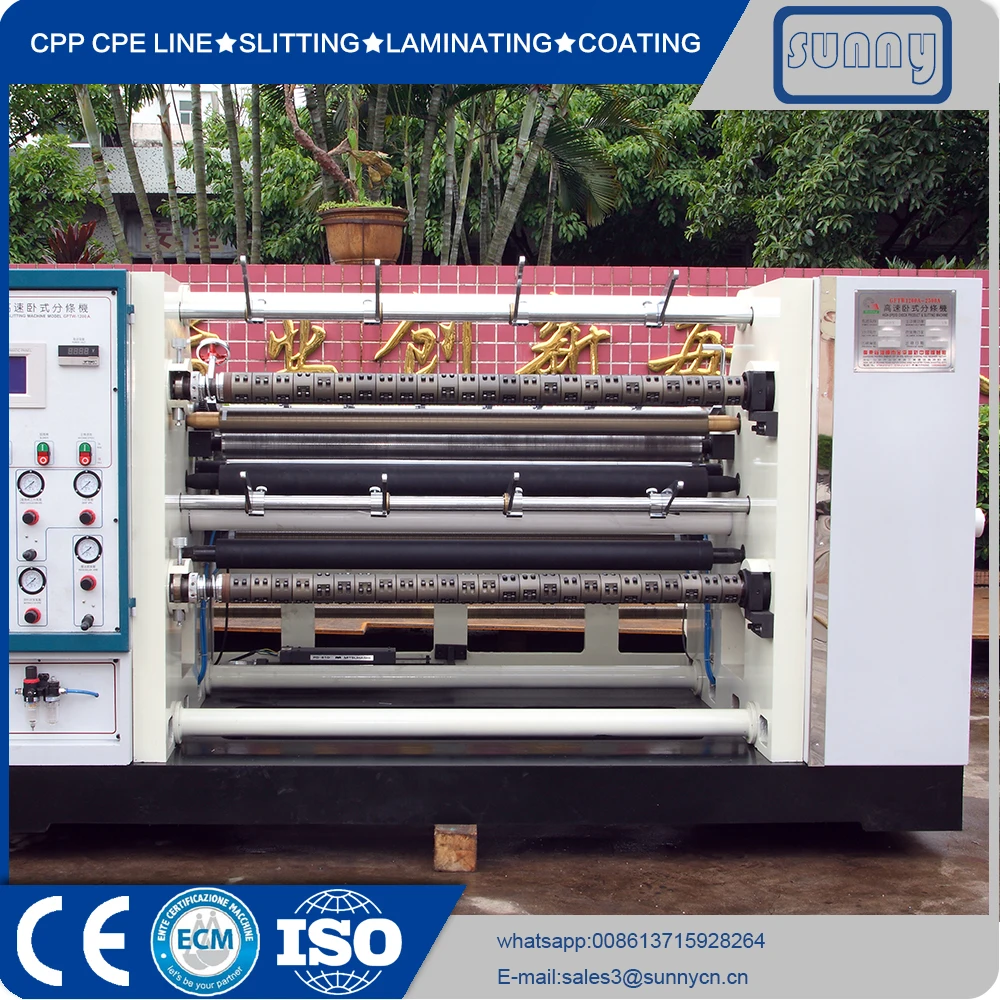

Professional Manufacturer Fully Automatic Aluminium Foil Slitter Rewinder Machine



Application:



slitting line machine GFTW-1200A2 with automatic constant tension drive unwind and taper tension control function, tension keeping function when machine stopped.
slitting line machine GFTW-1200A2 can Slitting into suitable harness, length and neatly roll material. Machine adopts SIMENS HMI, PLC programmable controller, digital module.

JAPANESE AC Servo Motor drive for Rewind, YASKAWA Servo Motor drive for Traction. It make whole machine line speed and 3segments tension achieved synchronous automatic control. Soft start and soft stop achieved by this machine.
slitting line machine GFTW-1300C adopts mechanical structure of easy operation, easy assembly, easy disassembly, easy maintenance

Main Techinical Parameters



1.Substrate material: Aluminum foil

2.Thickness: 0.1-0.2mm

3.Maximum raw material diameter: φ600mm

4.Maximum rewind diameter: φ400mm

5.Effective unwind width: 1000mm

6.Maximum slit width: 1000mm

7.Slit finished width:50mm-1000mm

8.Rewind paper-core: 3 inches

9.Machine speed: 20-250m/min

10.Working speed: 200m/min

11.Testing precision: ±0.1mm

12.Guiding precision: ±0.2mm

13.Complete machine power: 380V / 3 phases, 50 Hz about 17 kw

14.Complete machine weight: about 3.5 tons

15.External dimension: 2510 mm x 2500mm x 1600mm

16.Slit method: straight knife



Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 20 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
