ACME internal square thread inserts 27IR4 ACME

Product Overview

Description

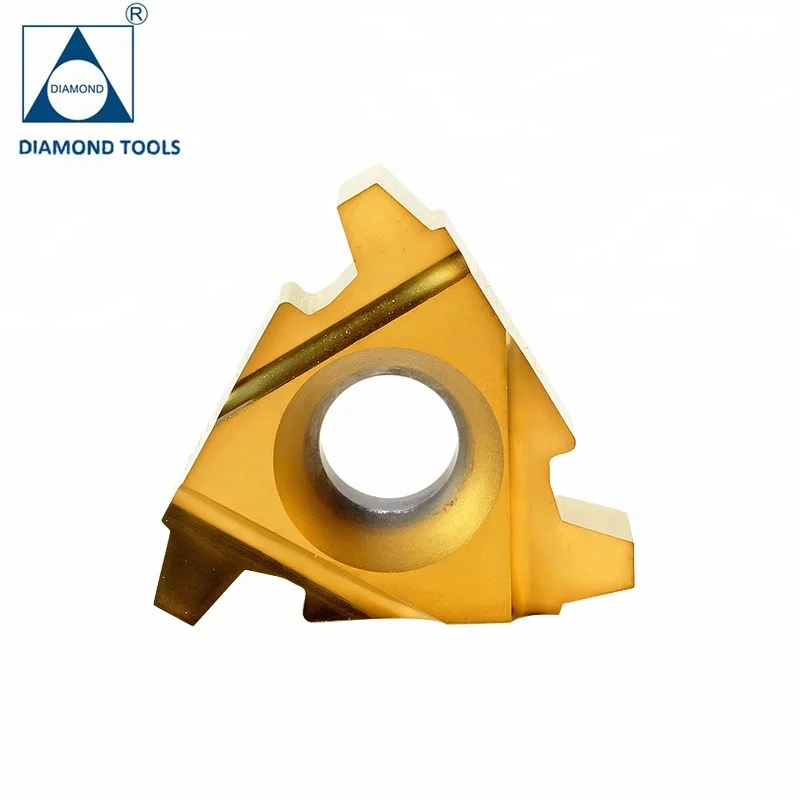

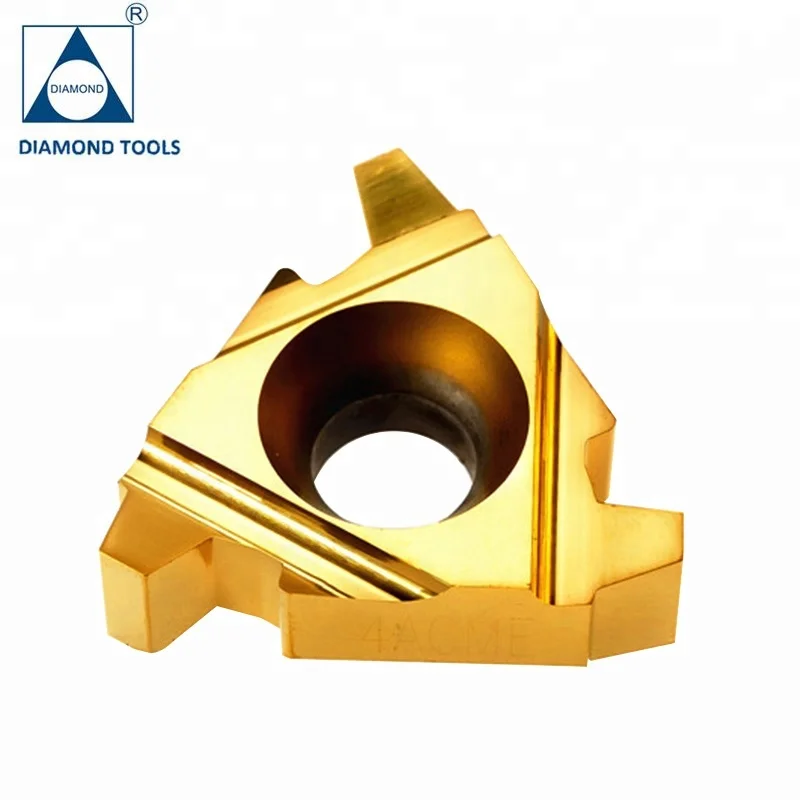

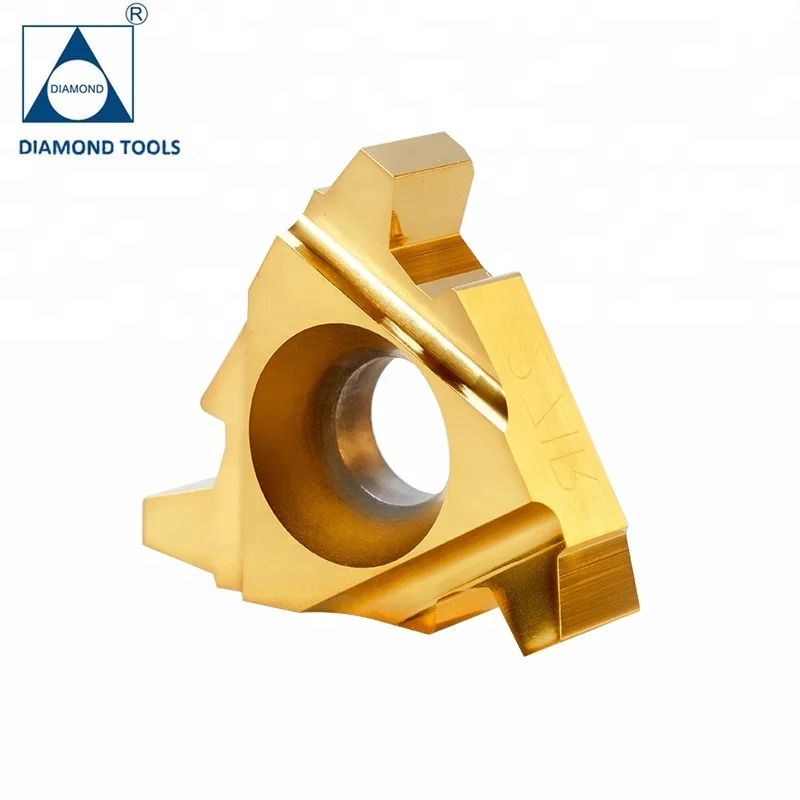

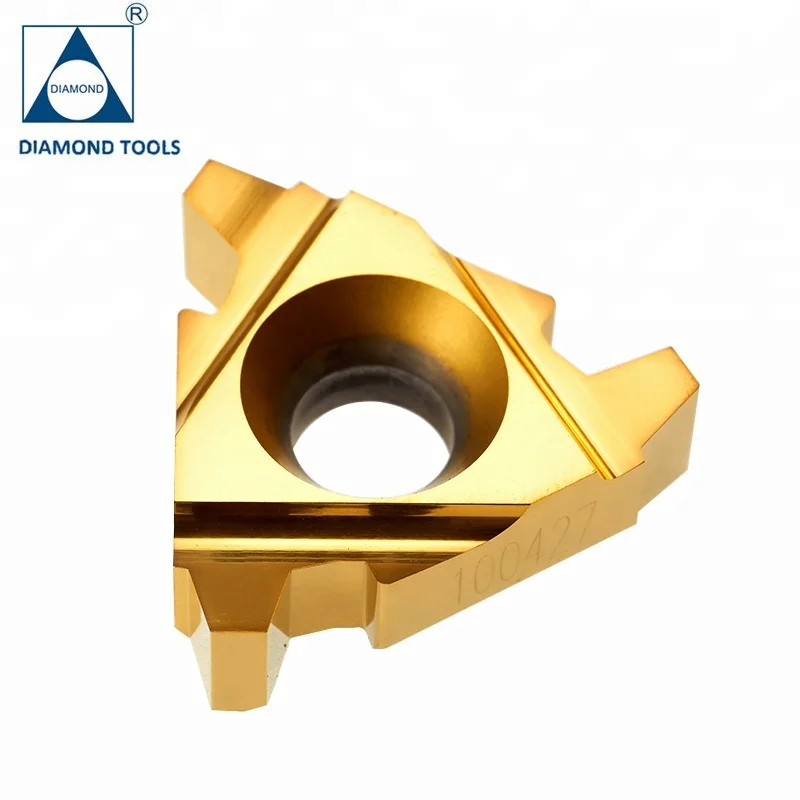

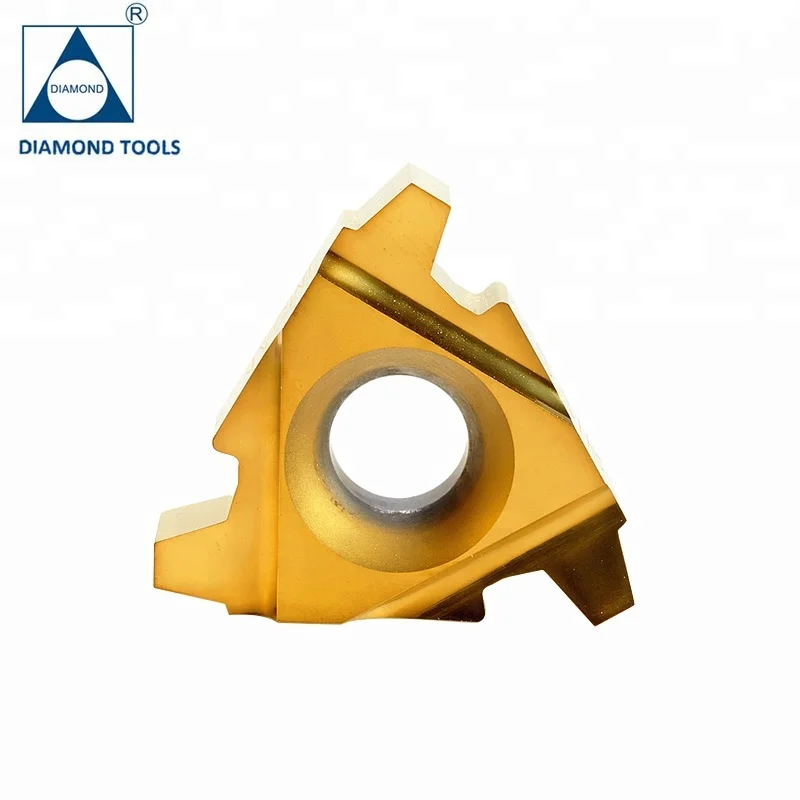

ACME internal square thread inserts 27IR4 ACME



1.Application: Our carbide threading inserts good for Low carbon steel, medium-carbon steel, High carbon steel, Alloy steel , Adjusting quality steel, Stainless steel, Cast steel, Cast iron,Aluminium alloy and copper alloy machining

 2.Advantage Features:

   A. Full profile design ensures the precision of threads.

   B. Rake face feature: Smooth rake face design makes the chip removal more fluency.

   C. Cutting edge process feature: . Uniform horning cutting edge design ensures inserts with small cutting force .

3. Performance: Just use it and you will say yes.

4. Stock: There are always more than 50,000pcs standard inserts in stock for urgent shipment.

5. Test samples: A few pcs free samples for your test.

6. Delivery: Within 5days shipment by international express DHL, UPS, FEDEX, TNT,DPEX and EMS.



 Specificatons:









	D	Pitch	Designation		Dimension
		TPI	Right Hand	Left Hand	L	X	Y
External	3/8"	16	16ER16 ACME	16EL16 ACME	16	1.0	1.1
		14	16ER14 ACME	16EL16 ACME		1.0	1.2
		12	16ER12 ACME	16EL12 ACME		1.1	1.2
		10	16ER10 ACME	16EL10 ACME		1.3	1.3
		8	16ER8 ACME	16EL8 ACME		1.4	1.5
	1/2"	6	22ER6 ACME	22EL6 ACME	22	1.8	2.1
		5	22ER5 ACME	22EL5 ACME		2.0	2.3
	5/8"	4	27ER4 ACME	27EL4 ACME	27	2.4	2.7
Internal	3/8"	16	16IR16 ACME	16IL16 ACME	16	1.0	1.1
		14	16IR14 ACME	16IL16 ACME		1.0	1.2
		12	16IR12 ACME	16IL12 ACME		1.1	1.2
		10	16IR10 ACME	16IL10 ACME		1.3	1.3
		8	16IR8 ACME	16IL8 ACME		1.4	1.5
	1/2"	6	22IR6 ACME	22IL6 ACME	22	1.8	2.1
		5	22IR5 ACME	22IL5 ACME		2.0	2.3
	5/8"	4	27IR4 ACME	27IL4 ACME	27	2.4	2.7





Enlarged view of Cutting Edge:



Flow chart:



Matched Tool Holder of Inserts:

  Machining Parameters:

Be processed material	M30(m/min)	P30(m/min)
Low carbon steel or medium-carbon steel	80-130	80-140
High carbon steel	60-110	60-120
Alloy steel or Adjusting quality steel	60-110	60-120
Stainless steel	60-100
Cast steel	60-110	60-120
Cast iron	60-200
Aluminium alloy or copper alloy	90-280



Quality control:
We have dedicated team of quality control and precise equipment to keep good and stable performance for our products and processing services.
