printing packing machine signal beacon tower light audible adjustable

Product Overview

Description

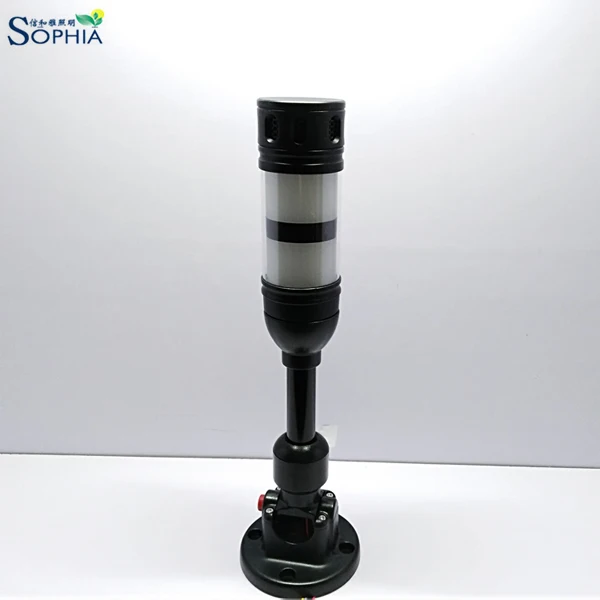

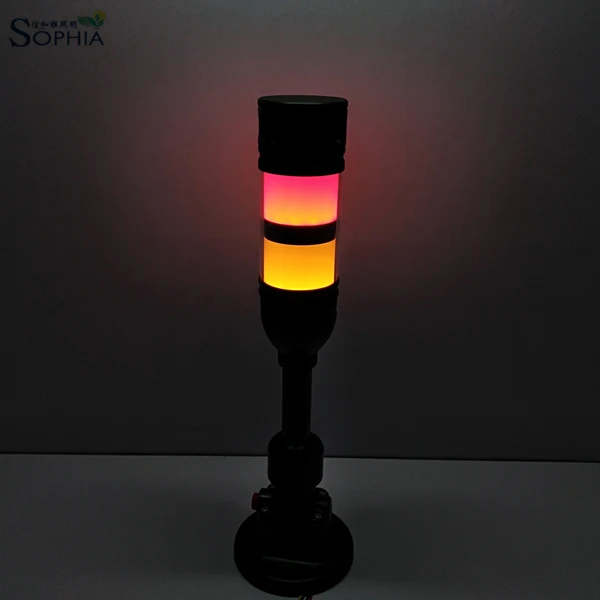

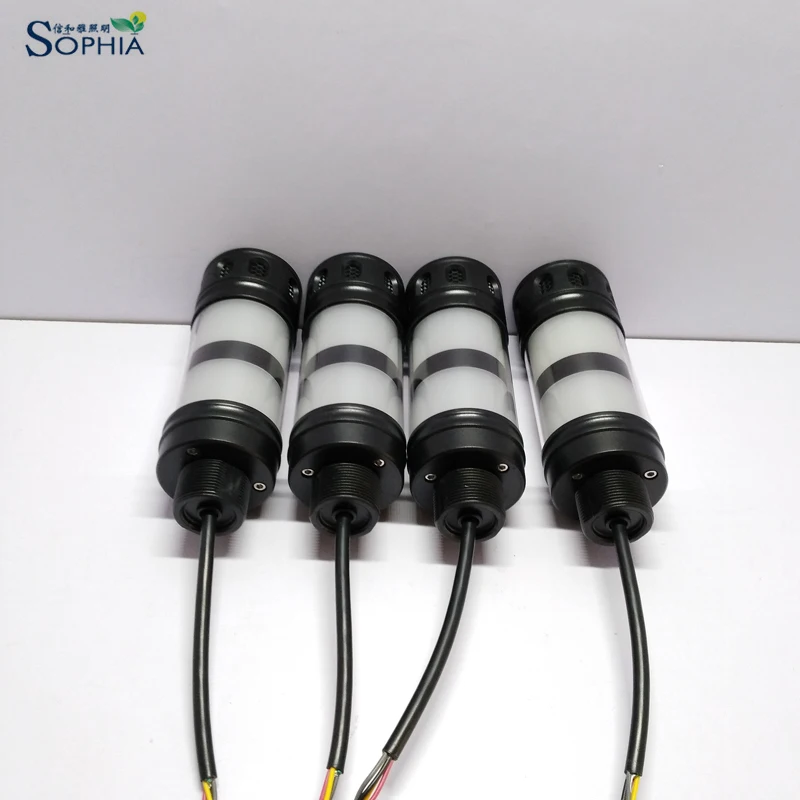

 Sophia TL50, Red, Amber, 24V, continue on, Buzzer continue sound, with 90mm aluminum tube, swivel base, audible adjustable





Six different mountings available





Application

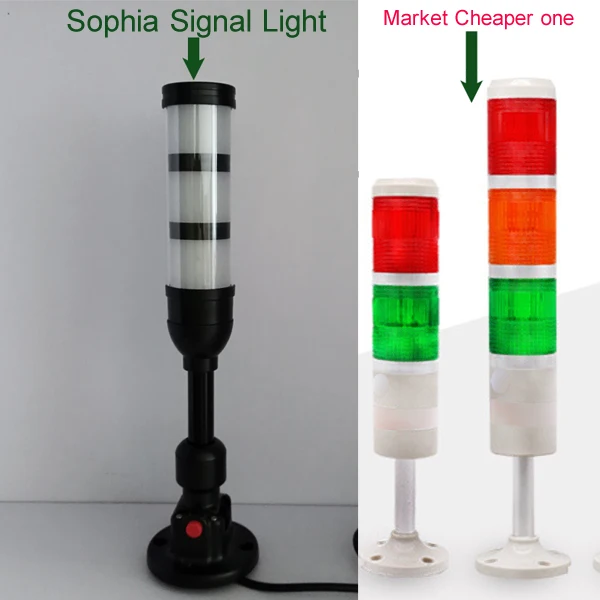

Comparison



Item No.	TL50-Red-Amber-Buzzer
Stack	Two
Input	24VDC
Current	12VDC 80mA; 24VDC 40mA
Buzzer	15mA(optional)
Color	Red/Orange/Yellow/Green/Blue/White, random combination
Performance	a Constant on
Electric protection	Protected again reverse polarity
Response time	<10milli seconds
Buzzer frequency	2.5KHz+/-500Hz, 95db
Working temperature (ºC)	-40ºC~50ºC(no buzzer);-20ºC~50ºC(with buzzer)
IP rating	IP67
LED life span (H)	100000 hours

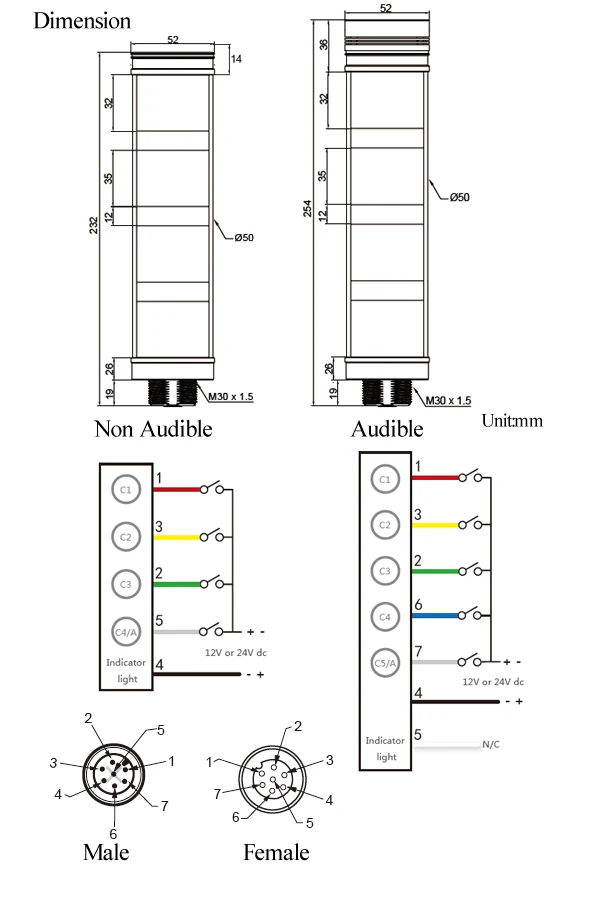

Dimension(mm)	Ø50x H150mm (not include base)
Installation accessory	Foldable base/ fixed plate/ Aluminum pipe with plate/Nut
Material	Powerful SMD LED, high transmittance and reinforced ABS and polycarbonate housing, Surface very smooth and flat, high transmittance, unique designed driver, can recognize various performance and maximum five stacks
Feature	Rugged, cost effective and easy to install multi segment indicator; Bright and uniform indicator segment appear gray when off to eliminate false indication from ambient light; Water resistant and IP65 housing with UV stabilized material; Up to 5 stacked colors available; Available in black or white housing; Audible models available with standard or sealed buzzer; No assembly required.
Approval	CE, FCC

More Similar Products



Industrial Light







7W COB flexible arm light









RL50 Indicator light





TL70 LED tower light





Pick To Light

FAQ

Dear Customers, thanks for your attention the following:

1 Red, Yellow or Red,Green, Price is same, standard is Red, Yellow.

2 Standard is 24Vdc. If need DC12V input, price increase USD2.0/pc;

3 Usually, lamp with 1 meter cable. If need M12 QD(quick disconnect, price increase USD5.5/piece);

4 If no need buzzer, price reduce USD3.0/piece.

5 If no need swivel base, aluminum tube, connectors, price reduce USD3.8/piece.
