Product Overview

Description

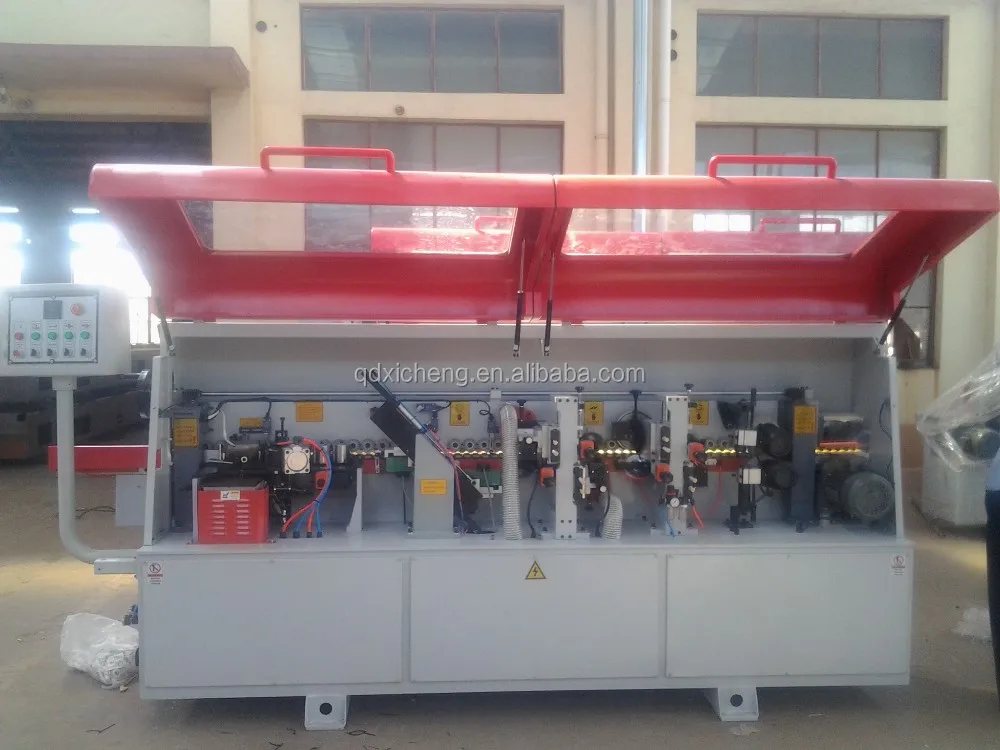

FZ-528D Automatic Edge Banding Machine

Edge Banding Machine, Woodworking Edge Banding Machine, MDF/Plywood Edge Banding Machine

Main Technical Data of FZ528-D full-automatic edge banding machine
Model	FZ528-D
Motor Power	7.13kw
Overall Size	4350x1600x1500mm
Feed Speed	12—20m/min
Panel Thickness	10—50mm
Edge banding tape thickness	0.4—3mm
Panel Width	≥80mm
Working Air Pressure	6kg
Weight	2000kg



Configuration Form of FZ528-D full-automatic edge banding machine
Pre-milling	×

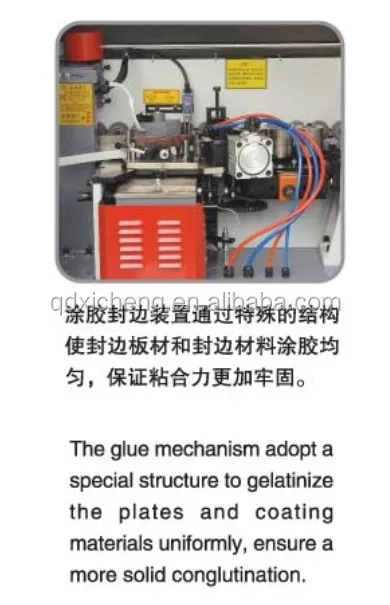

Gluing	√

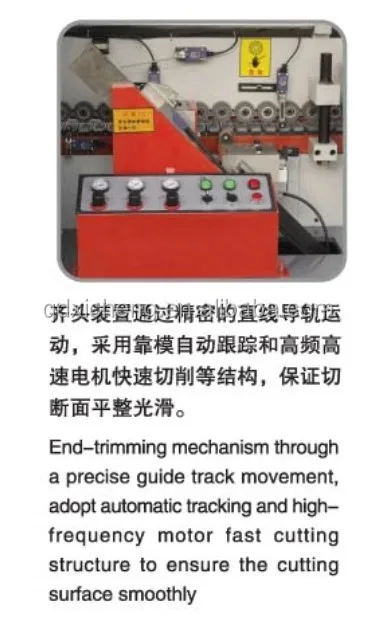

End Trimming	√
Rough Trimming	×

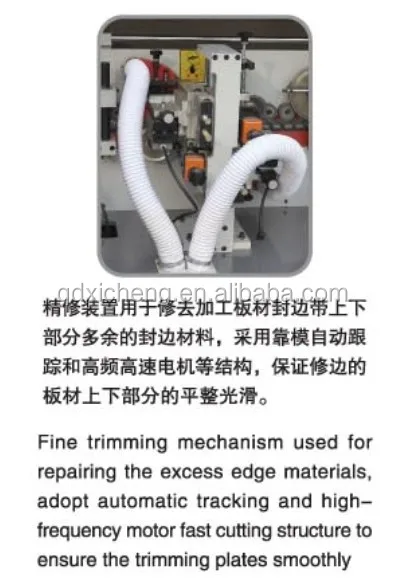

Fine Trimming	√
Profiling Unit	×

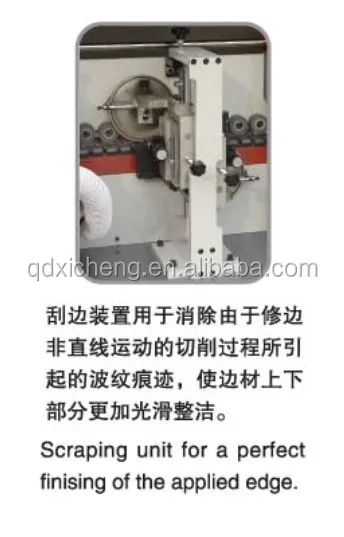

Scraping	√

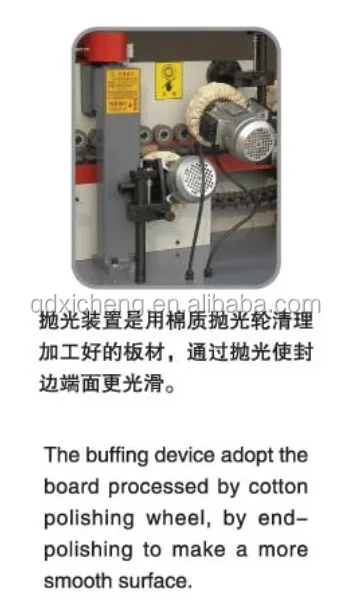

Buffing	√
Grooving	×



1. Full automatic edge banding machine FZ528-D

2. Adapted to the linear sealing of PVC, Melamine and veneer etc.

3. Using imported quality engines and electric components.

4. Serialized products, a wide range of selection by customers

5. High precision and efficiency

6. Main function: a. Gluing

                              b: Ending trimming

                              d: Fine finishing

                               f: Scraping

                               g: Polishing

7. A leading edge banding machine professional manufacturer in China.
