2019 KNX Manufacturer GVS K bus KNX/EIB KNX IP Router KNX smart home products via Remote Control Smart Phone/Tablet control

KNX IP Router can be used as line or backbone coupler. It provides a data connection between the upper KNXnet/IP line (main line or backbone) and the lower TP KNX bus line (sub line). The basic functionality of the IP Router is to couple the Ethernet with one or more KNX-TP lines. The IP Router features a galvanic isolation between the Ethernet and the KNX-TP line(s). Due to its flexibility the IP Router can be used as a line coupler e.g. to connect several KNX TP lines via Ethernet. And it can be used as a backbone coupler to connect several TP areas or different TP installation systems via Ethernet.

The main task of the IP Router is filtering the traffic according to the installation hierarchy. For group oriented communication the traffic is filtered according to the built-in filter tables. With the ETS or any other KNX compatible commissioning tool the IP Router can be used as the programming interface. For this purpose the device provides up to 4 additional physical addresses that can be used for tunneling. The IP Router has no KNX communication objects for itself.

KNX IP Router Function

• The IP Router is one of the rare KNX IP routers on the market that supports long messages up to 240 bytes. In combination with the line coupler and the long messages are made possible (e.g. for energy metering applications).


• The IP Router favourably replaces a line coupler or an area coupler. Using LAN as a fast medium to exchange telegrams between lines and/or areas is the great advantage.


• The IP Router works without external power supply.


• Providing tunneling protocols and a connection point for the ETS (or any other tool to enable commissioning and monitoring) the ETS address for tunneling is not necessarily the one that is already configured. Four parallel connections are possible, one separate address for each and every connection.


• IACK on own sent out messages (ETS configurable).IACK on own sent out messages (ETS configurable).


• After no IACK response on a sent message the IP Router can repeat it up to three times. For physically addressed or for group addressed telegrams this can be configured via ETS independently. In case of an IACK response there will be no repetition. The failure mechanism of a negative IACK or BUSY is still maintained
  hereby.


• Programmable automatic switch on of the filter table after timeout.


• For a predefined amount of time (ETS configurable) it is possible to switch off the filter table with pressing a button on the device. So, without reconfiguring the device with the ETS the filter table can be switched off by a button press which is necessary for running fast diagnostics on site. Filtering of messages can temporarily be disabled by pressing the “Function” button. This eases commissioning and debugging of the system. Without an ETS download a temporary access to other lines is possible. After the timeout an automatic switching the filter table on is implemented (the timeout is configurable in the ETS). This avoids forgetting to reactivate the filter.


• UPnP is available to discover the device in the IP network. That is only possible with a proper network installation in terms of topology. With the KNXnet/IP Search Request the ETS can recognize the device as a communication interface.


• For networks with a high bus load a high internal amount of communication buffers is suitable.


• The IP Router is featuring a high internal amount of communication buffers being capable of smoothing peeks in the communication load course.


• The IP Router’s ETS database entries are available for the ETS3.0f and upward.


• The IP Router supports KNXnet/IP, ARP, ICMP, IGMP, HTTP, UPnP discovery, UDP/IP, TCP/IP, DHCP und Auto IP.

 KNX IP Router Dimension diagram

90 x 36 x 71mm (H X W X L)

1. LED Bus State LAN-- green on: LAN line ok; green off: LAN line error or not connected; red on: manual overwrite active
2. LED Bus State KNX-- green on: KNX line ok; green off: KNX line not connected
3. LED Traffic on LAN-- green blinking:bus traffic on LAN line ; green off: no traffic on LAN line, speed up to 10Mbit/s, red blinking: transmission error on LAN line.
4. LED Traffic on KNX-- green blinking: routed bus traffic from KNX line to LAN; green off: no traffic routed; red blinking: transmission error on KNX line.
5. LED GA (Group Address):Routing of group telegrams; off: LAN and KNX different; green: filter table active; green and red: route all; red: block
6. LED PA (Physical Address): Routing of physical addressed telegrams; off: LAN and KNX different; green: filter table active; orange: route all; red: block
7. Programming LED: Red on: device in boot mode or addressing mode ; red blinking: LAN line error.
Upon receiving the physical address the device automatically returns from addressing mode to normal operating mode
A. Ethernet connector
B. Function button: Switch to manual override via long operation (3s)
C. Programming button: Learning button for switching between normal operating mode and addressing mode for assigning the
physical address
D. KNX-Bus connection

GVS, Professional manufacturer since 1999, specilizing in KNX/EIB Smart Home/Office/Hotel/Building Solution and KNX Products.

As for KNX system, it is international smart home system, originated in Europe since 1999, it is the only Open protocol for home and building intelligent system. It is green and enviremental friendly and safe (low volatage).

It can control lights, dimming light, RGB light, curtains, AC, TV, and it can intergrate other system, such as video intercom system, background music, intelligent door lock, projector and so on. And it can control via mobile phone/tablet.

Application: Smart home, Villa, office, hotel, Airport, Museum, Metro, shopping mall and so on.

Is it easy to learn?

Yes, however firstly you need have a basic course of it for 5 days to learn the basic knowledge of it and how to programme it on ETS software (the common software for KNX system) on PC.

Why choose us?

KNX

    In order to transfer control data to all building management components, a system is required that does away with the problems of isolated devices by ensuring that all components communicate via one common language: in short, a system such as the manufacturer and application domains independent KNX Bus. This standard is based upon more than 20 years of experience in the market, amongst others with predecessor systems to KNX: EIB, EHS and BatiBUS. Via the KNX medium to which all bus devices are connected (twisted pair, radio frequency, power line or IP/Ethernet), they are able to exchange information.

Bus devices can either be sensors or actuators needed for the control of building management equipment such as: lighting, blinds / shutters, security systems, energy management, heating, ventilation and air-conditioning systems, signaling and monitoring systems, interfaces to service and building control systems, remote control, metering, audio / video control, white goods, etc.

All these functions can be controlled, monitored and signaled via a uniform system without the need for extra control centers.

GVS & KNX

• China's first company to introduce KNX standards


• KNX international manufacturers Member


• KNX Member


• The first training centres in China authorized by KNX Association


• Focus on R&D and manufacturing of KNX Products


• KNX manufacturing enterprises with strongest comprehensive strength in China


• GVS Group since 1999


• KNX experience since 2008

GVS is one of the best vendors specialized in R&D and producing home and building automation products,  which includes TouchScreen/push Panels, brightness/motion Sensors, dimmer/switch/shutter Actuators, Power Supply, KNX to IP/RS232/RS485 Protocol Converters, KNX/DALI Gateway, Inputs, IR Transmitters, Softwares, other Modules etc.

GVS History

2013:  became Council Members of IEEE1888.4—Smart Home Applications Standard Working Group

2012:  won “China's Top Ten brands of Smart Home Control”

2011:  "2011 Digital Home Competition Innovation Achievement Award"

2011:  “China Top Ten Brands Monitoring& Intelligent Lighting of Intelligent Building Brand”

2010:  won the "2010 China KNX Application Award"

2008:  became the one of first Chinese companies to join KNX Association and become a member of KNX manufacturers

2007:  first launched the TFT LCD module in China

2005:  won the “Informatisation Application Model in the Electronics Industry”

2004:  Global sales of Video Door Phone Display Module ranked No.1

2001:  National sales of Display Module ranked No.1

1999:  Video-star Group was established.

1.Q: How about your delivery time?
   A:0~7 business days for sample , lead time will be based on your order quantity
2.Q : Can I get some samples for test before I place an order?
   A: Sure, samples will be offered as you requested.
3.Q:How about the quality control in your company?
   A :we always attach great importance to quality control to make sure our customers finally get what they want.
4.Q: In which way will you ship my items if I place an order ?
   A: By ocean, air or express, you can choose the best one that fit for your order.
5. Q: Could you offer me the safest terms of payment?

   A: You can pay us via T/T or Alibaba.

Thanks for you interest in our

2019 KNX Manufacturer GVS K-bus KNX/EIB KNX IP Router KNX smart home products via Remote Control Smart Phone/Tablet control

Any question, please feel free to contact us.

Our Three Main Business Core

• TFT Modules Display


• KNX Smart Home Automation System


• Video Door Phone System/Video Intercom Sytem (TCP/IP, 2 wire and 4 wire system)

Our Hot Products

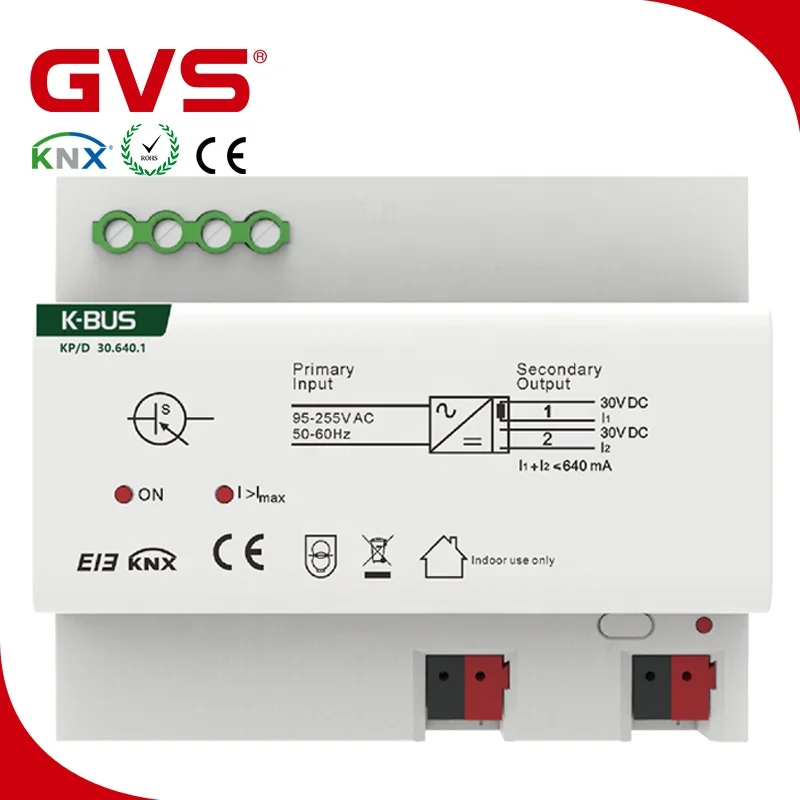

• KNX System component: KNX Power Supply 640mA, KNX USB Interface, KNX Line Coupler, KNX IP Router

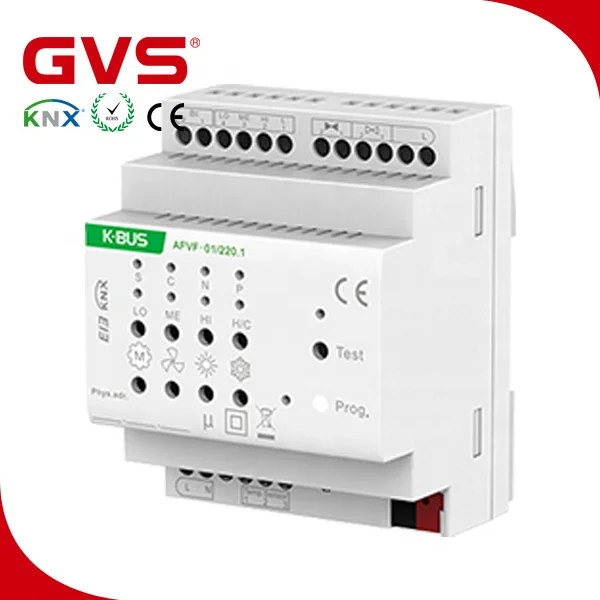

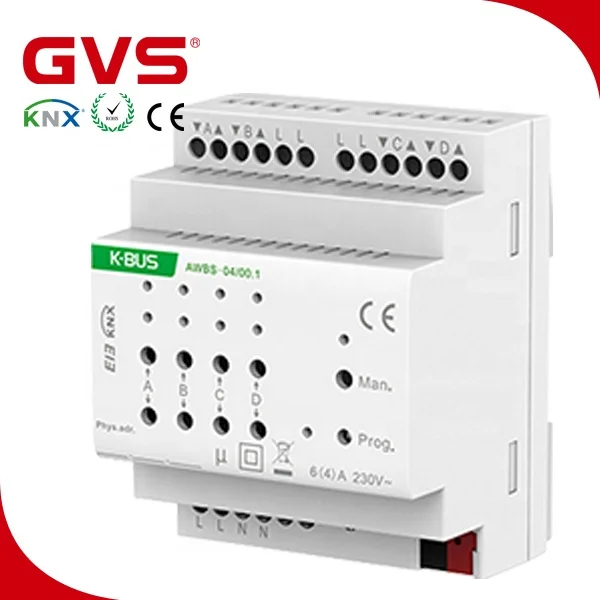

• KNX Actuator: KNX Switch Actuator, KNX Shutter Actuator, KNX Dimming Actuator, KNX Fan coil controller, KNX/Dali Gateway

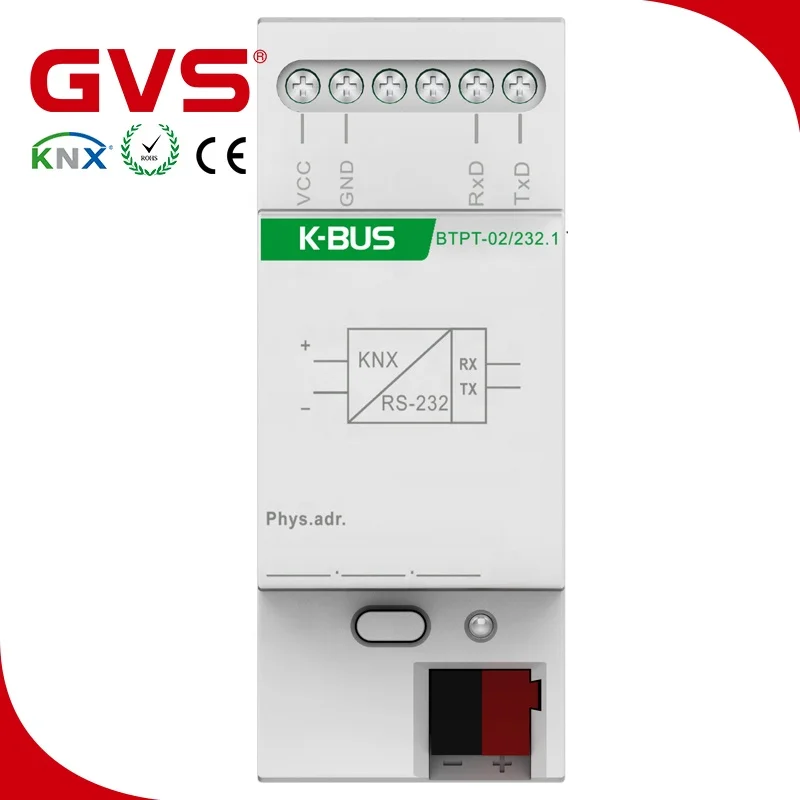

• KNX Protocol Convertor: KNX/RS485 Converter, KNX/RS232 Converter, KNX IP Interface

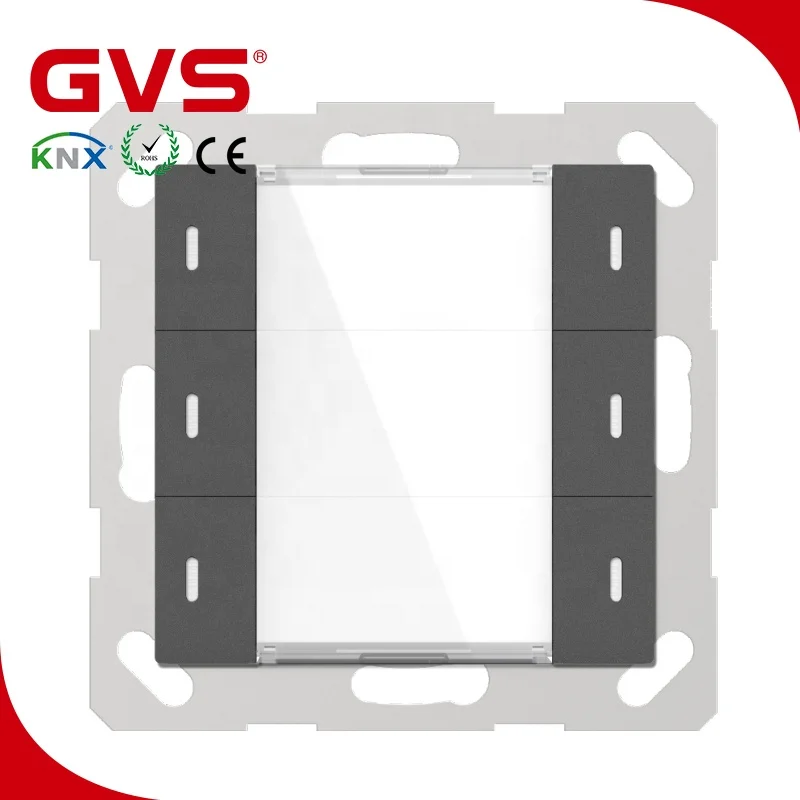

• Other KNX Devices: KNX Push Button, KNX Touch Panel, KNX Room Controller, KNX Universal Interface, KNX Binary Input, KNX IR Transmitter, KNX IR Learner, KNX Brightness & Motion Sensor, KNX Cable.
