HDMI 4K@60Hz Extender Over HDMI 18Gbps Extender over Cat5e/Cat6 70M Transmitter Receiver

1. Introduction

   The 18Gbps HDMI Extender is a tool which can extend your HDMI signal over 230fts/70meters to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by LAN cable. It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 230fts outside, also you can control the Sink in the Source side which is 230fts outside by using the HDMI Extender.

2. Features

1)HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant

2)Video resolutions up to 4K2K@50/60Hz (YUV444)

4)10bits HDR (High Dynamic Range) pass through

5)Supports HDMI High Bit Rate(HBR) audio pass through

6)Supports CEC bypass

7 )Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH

8)POC (Power Over Cable) function is supported, either TX or RX is powered by24V@1A power supply, the another does not need power supply from the DC jack. POC Power consumption is less than 10W.

9)Transmission distance: Over CAT6 cable

70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;

40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit;

3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.

4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)

3. Package Contents

1 x HDMI 18Gbps Transmitter

1 x HDMI 18Gbps Receiver

2 x Wideband IR Tx

2 x Wideband IR Rx

1 x 24V/1A Power Adaptor

1 x User Manual

4. Specifications

 5. Operation Controls and Functions

5.1 Transmitter Panel

1)Power LED: System power indicator.

2)DC 24V: Connect 24V/1A adaptor to AC wall outlet for power supply.

3)HD BaseT Out: Standard HD BaseT signal output port. Connect HD BaseT receiver with a UTP cable following the standard of direct interconnection method

4)HDMI In: Connect this to HDMI source devices such as Blu-ray or PS4 player

5)IR In: Channel 2 IR Receiver. Connect with Wideband IR Rx.

6)IR Out: Channel 1 IR Transmitter. Connect with Wideband IR Tx.

7)RS-232: Phoenix jack provide Serial port control signal from receiver or to receiver.

8) Service: Manufacturer use only.

9 )Connection Signal Indicator Lamp

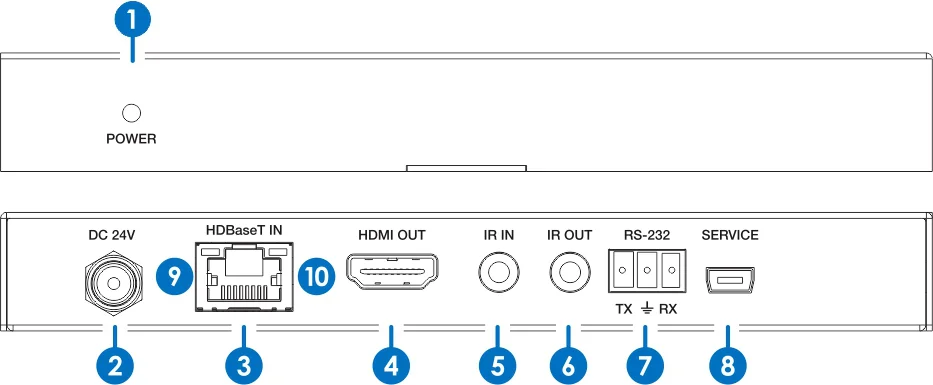

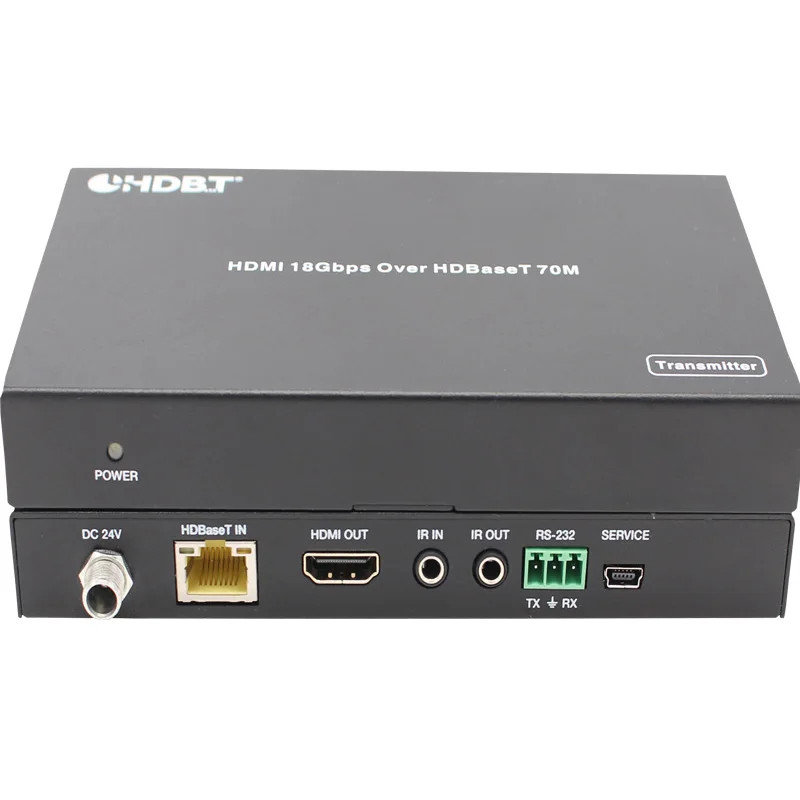

5.2 Receiver Panel

1)Power LED: System power indicator.

2)DC 24V: Connect 24V/1A adaptor to AC wall outlet for power supply.

3)HD BaseT In: Standard HD BaseT signal input port. Connect HD  BaseT Transmitter with a UTP cable following the standard of direct  interconnection method

4) HDMI Out: HDMI output port. This slot is where you connect the HDTV or monitor with HDMI cable.

5) IR In: Channel 1 IR Receiver. Connect with Wideband IR Rx

6) IR Out:Channel 2 IR Transmitter. Connect with Wideband IR Tx.

7)RS-232: Phoenix jack provide Serial port control signal from receiver or to receiver.

8 )Service: Manufacturer use only.

          Connection Signal Indicator Lamp

      Illuminate: The Transmitter and Receiver are in good connections status.

      Flashing: The Transmitter and Receiver are in poor connections status.

      Dark: The Transmitter and Receiver are not connected.

9) Data Signal Indicator Lamp

      Illuminate: The HDMI signal with HDCP.

      Flashing: The HDMI signal without HDCP.

      Dark: No HDMI signal.

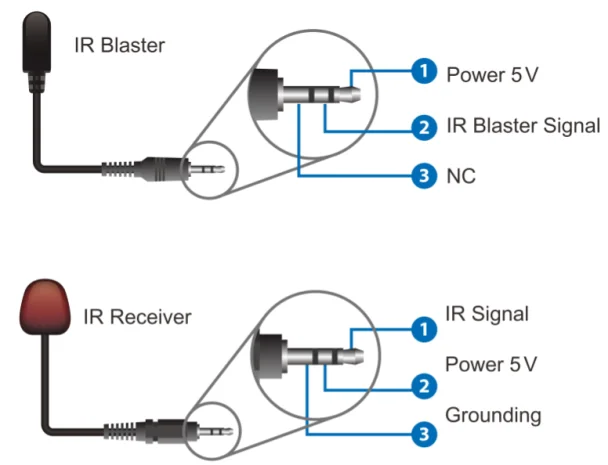

5.3 IR Cable Pin Assignments
