MBQ623A 4 Side Thicknesser 6 Head Spindle Moulder Four Sided Planer for Sale
- Category: >>>
- Supplier: Foshan Holyiso Machinery Co. Ltd.
Share on (60830208592):
Product Overview
Description
Products Description

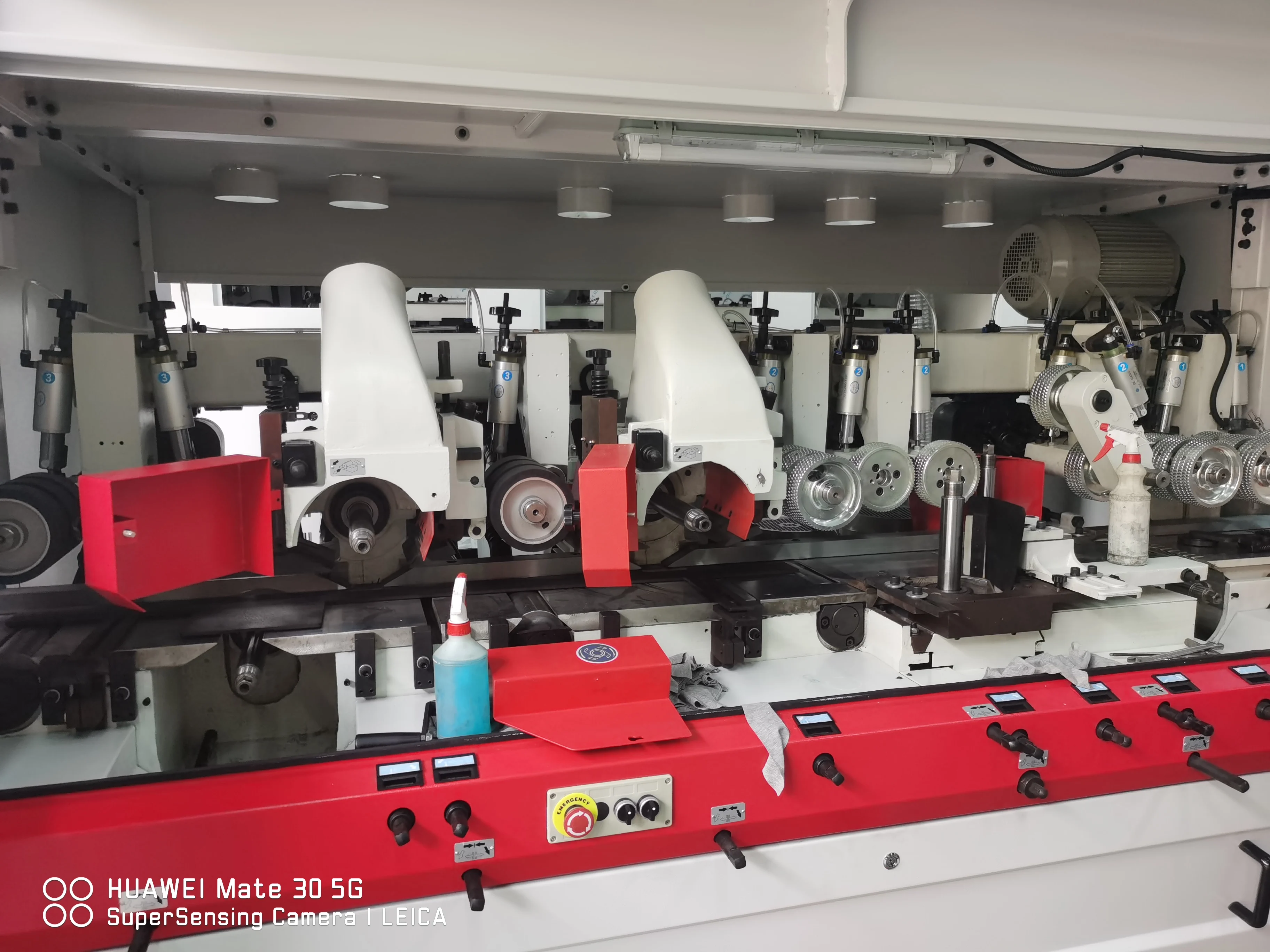

Wood working surface four-side moulder machine
Outstanding Characteristic:
* This adopts frequency conversion material feeding
* Each main shaft is driven by independent electric motor,cutting force is powerful.
* Main shaft is adjustable to focus on the front,operation is convenient.
* Hard chrome plating worktable is durable.
* Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.

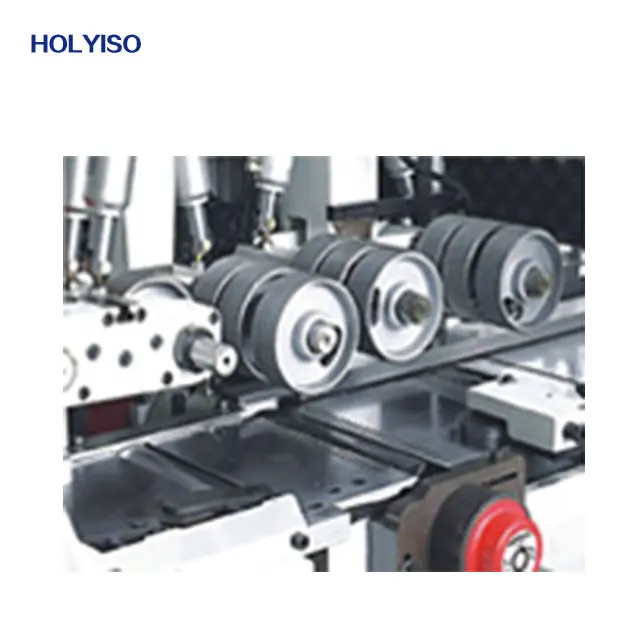

* Multi-group drive rollers improve feeding efficiency.
* Adopts central charging system ,features convenience and promptness.
* International brands electrical parts are applied for good stability.
* On the horizontal axis with the front support means to improve the rigidity of the spindle.
* Spare parts are thick and solid to maintain high precision,high stability and high reliability.

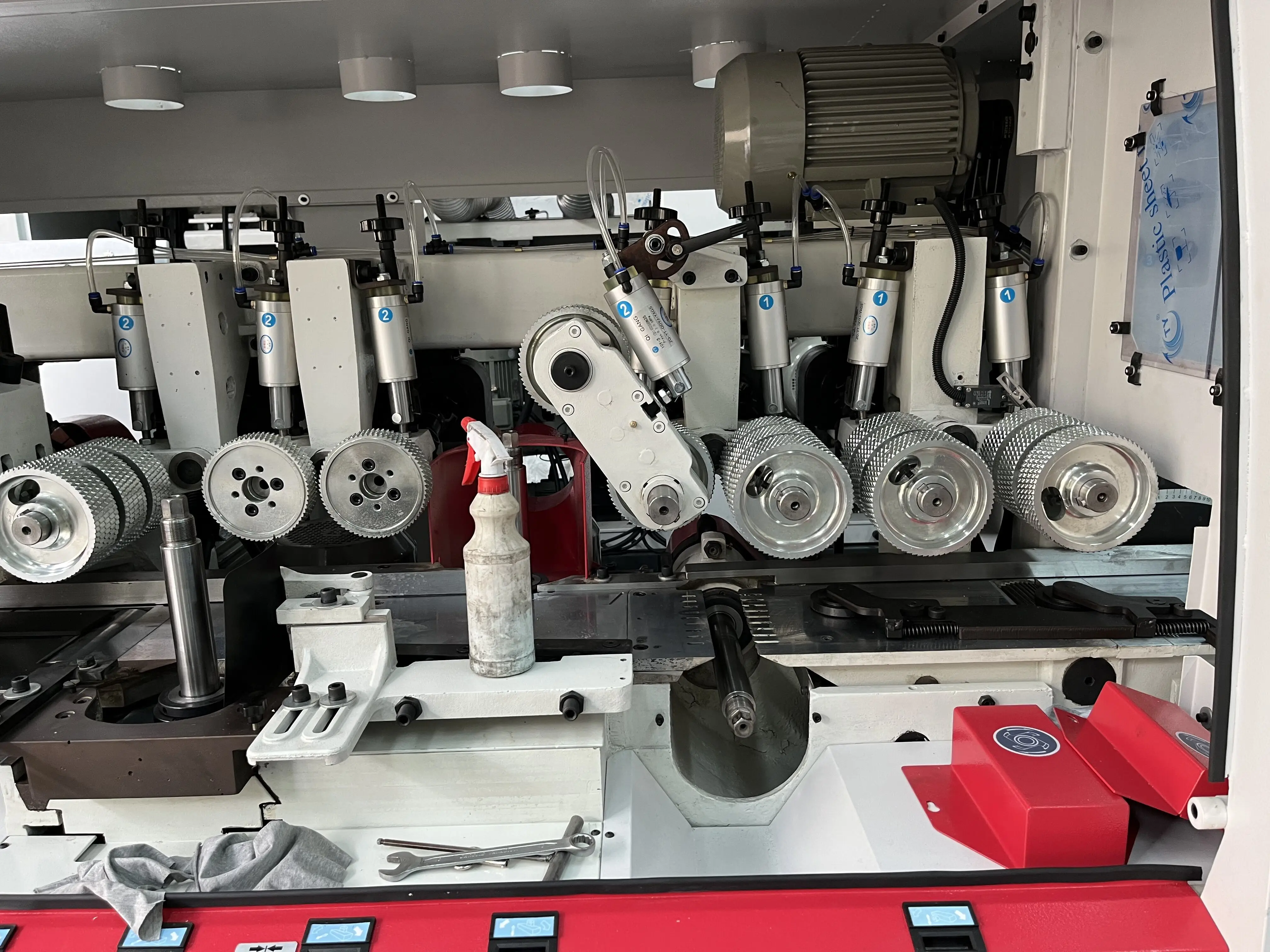

* Pneumatic compressed feeding roller is applied ,the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.

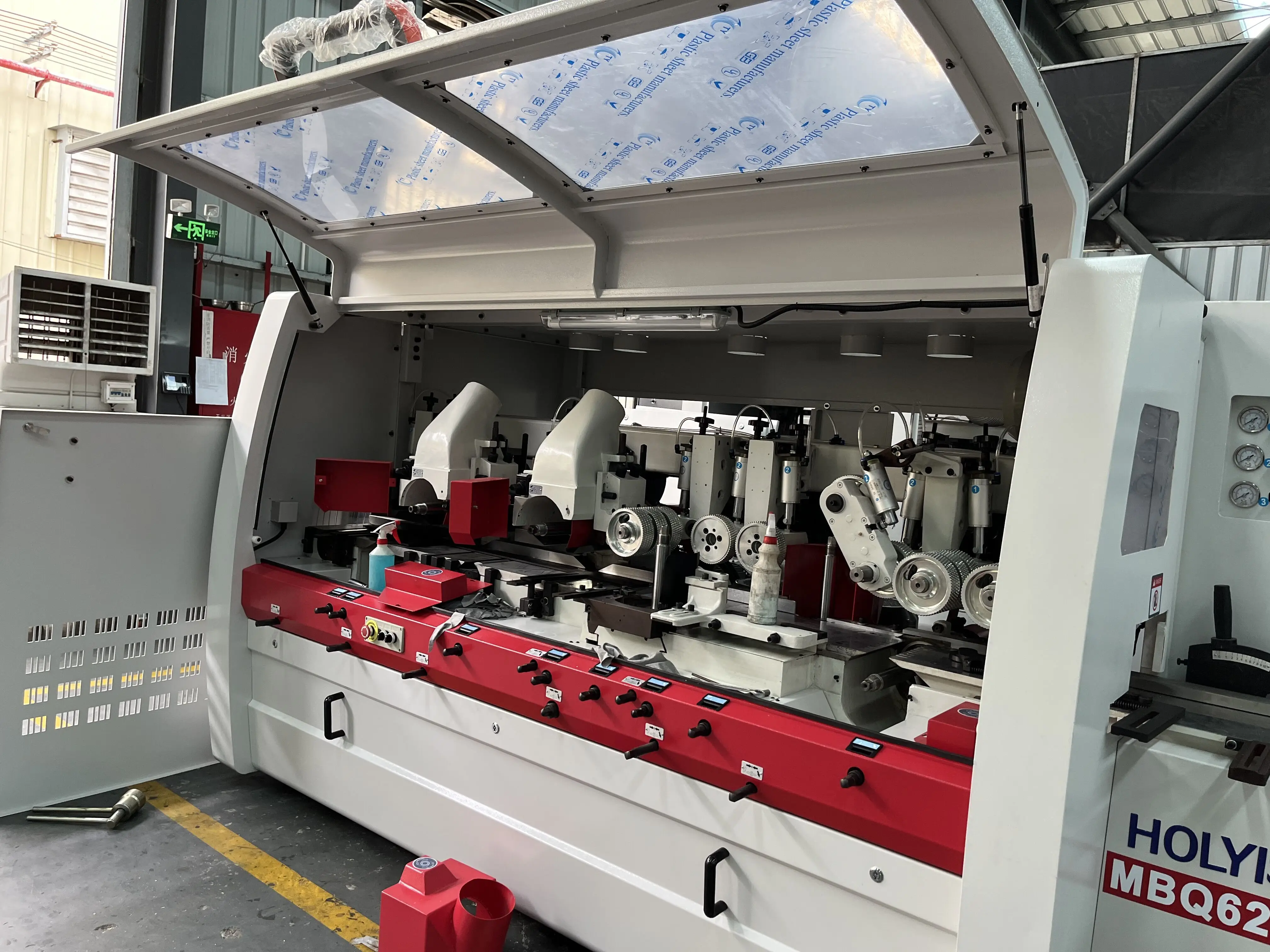

* Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
* Each main shaft is driven by independent electric motor,cutting force is powerful.
* Main shaft is adjustable to focus on the front,operation is convenient.
* Hard chrome plating worktable is durable.
* Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.
* Multi-group drive rollers improve feeding efficiency.
* Adopts central charging system ,features convenience and promptness.
* International brands electrical parts are applied for good stability.
* On the horizontal axis with the front support means to improve the rigidity of the spindle.
* Spare parts are thick and solid to maintain high precision,high stability and high reliability.
* Pneumatic compressed feeding roller is applied ,the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.
* Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Model | MBQ615A | MBQ620A | MBQ623A | MBQ630A | ||||
Working width | 25-150mm | 25-210m | 25-230m | 25-300mm | ||||
Working thickness | 8-100mm | 8-140mm | 8-160mm | 8-200mm | ||||
Feeding speed | 4-18m/min | 6-35m/min | 6-35m/min | 7-28m/min | ||||
Main spindle diameter | φ40mm | φ40mm | φ40mm | φ40mm | ||||
Main spindle speed | 6000r/min | 6000r/min | 6000r/min | 6000r/min | ||||
Pneumatic source pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | ||||
Total power | 29.25kw/40hp | 40.49kw/55HP | 55.1kw/74HP | 90.25kw/121hp | ||||
Right vertical spindle | φ125-φ160mm | φ125-φ180mm | φ125-φ180mm | φ125-φ200mm | ||||
Left vertical spindle | φ125-φ160mm | φ125-φ180mm | φ125-φ180mm | φ125-φ200mm | ||||
1st Lower shaft | φ125mm | φ125mm | φ125mm | φ125mm | ||||
1st Upper shaft | φ125-φ160mm | φ125-φ180mm | φ125-φ180mm | φ125-φ200 | ||||
2st Lower shaft | φ125-φ160mm | φ125-φ180mm | φ125-φ180mm | φ125-φ200 | ||||
2st Upper shaft | φ125-φ160mm | φ125-φ180mm | φ125-φ180mm | φ125-φ200 | ||||
Feeding wheel dia. | φ120mm | φ140mm | φ140mm | φ140mm | ||||
Dust outlet dia. | φ125mm | φ140mm | φ140mm | φ140mm | ||||
Overall size | 3500*1410*1650mm | 3961x1462x1776mm | 4073x1565x1920mm | 4560*1725*1735mm | ||||
Net weight | 2720kg | 3150kg | 3500kg | 5100kg | ||||
* We have many models to choose from * >> Tell us your requirement << | ||||||||
Details Images

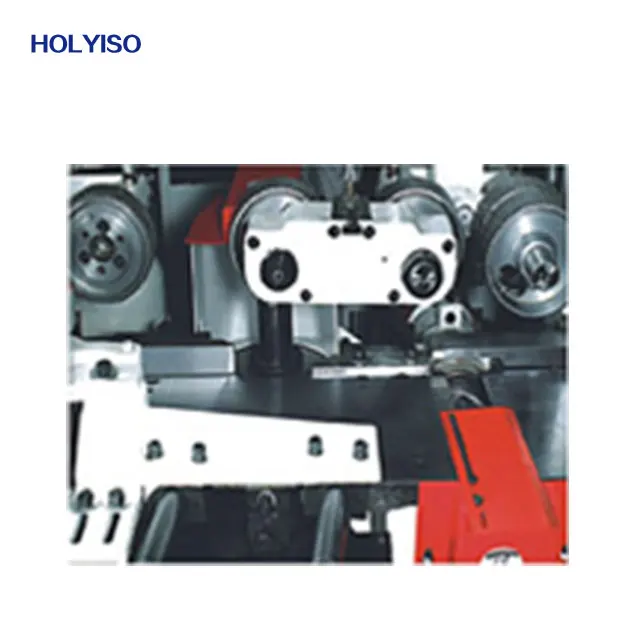

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
>> Get Best Quote <<
Related Products
Packing&Shiping
Delivery:
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Company Profile
Foshan HOLYISO Machinery CO.,Ltd. is committed to providing customers all over the world with high-quality,stable and durable woodworking machinery. It is a professional manufacturer of Panel saw, Edge banding machine,CNC cutting machines and CNC drilling machine.
We have more than 30 professional R&D personnel, the total production area of the factory is more than 27,000 square meters, and more than 30 various high-precision advanced processing equipment, ensuring the perfect performance of the machine. The company uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry.
