2 Inch Thermal Printer Mechanism 58mm Thermal Printer Head Thermal Dot Line Printing KTPC628 401 500,000 Cuts FTP 628MCL401 48mm

Product Overview

Description



58mm 2 inch thermal printer mechanism with Auto-cutter KTPC628-401 Compatible with FTP-628MCL401



Product Specification



Features

1. Low voltage supply

The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage is 4.2V-8.5V.



2. Auto Cutter

Auto cutter with long lifespan



3. Compact and lightweight design

The mechanism is compact and light, dimensions: 81.2mm (width)x42.4mm (depth) x21.8mm (height)



4. Printing with high resolution

A high-density printer head of 8 dots/mm makes the printing clear and precise



5. High speed printing

It can print at 80 mm/s (640 dotlines/s) maximum at 8.5v with standard thermal paper



6. Easy paper loading

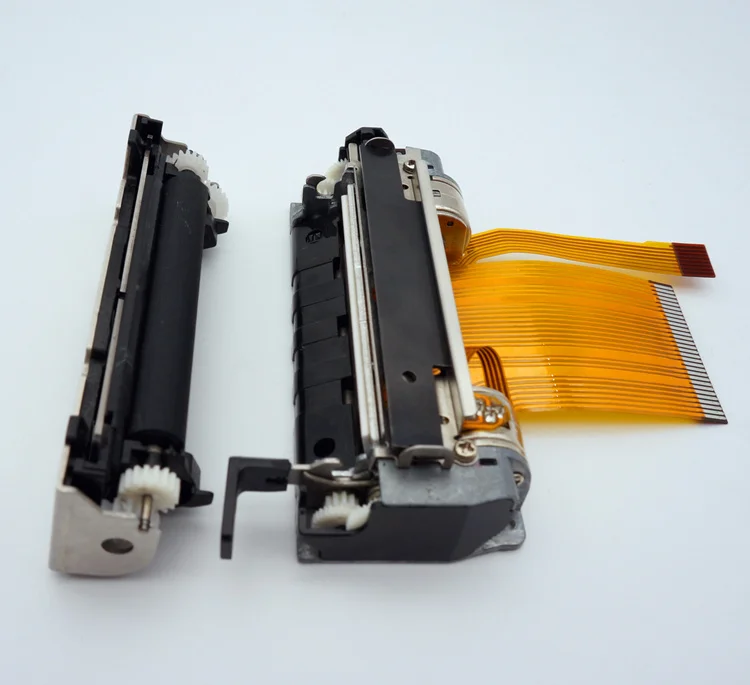

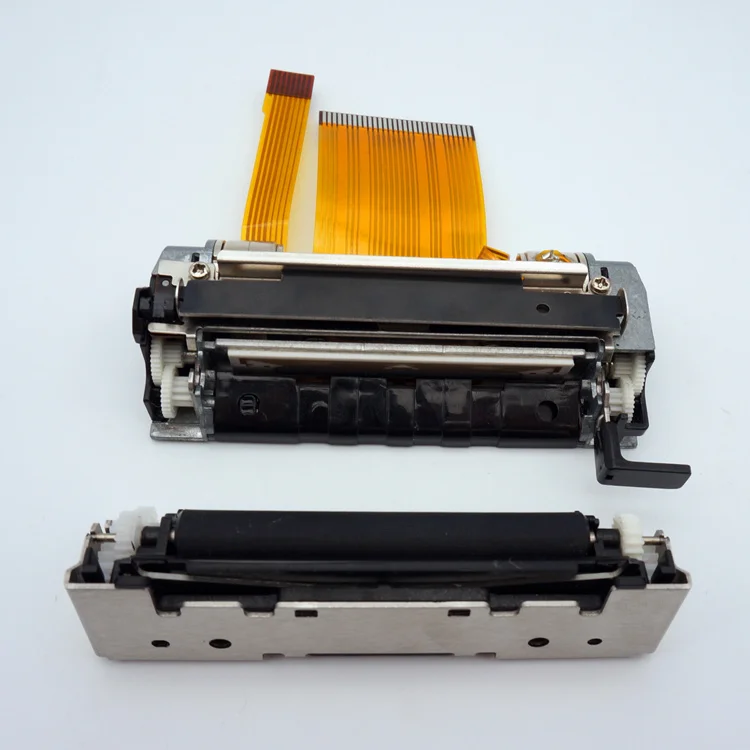

Detachable rubber roller structure makess the paper loading easier. Our unique platen release mechanism allows a wide paper route even if the printer is ultra-compact, so paper can be easily inserted. Conventional auto loading is also available.



7. Low noise

Thermal line dot printing is used to guarantee low noise printing.



Technical parameters

Item		KTPC628-401(2inch with auto cutter)
Printing method		Thermal line dot printing
Resolution		203DPI, 8 dots/mm
Dot structure		384 dots/line
Printing width		48mm
Dot pitch		0.125mm (8 dots/mm)
Paper width		58mm
Paper thickness		60 to 85 µ m (some paper in this range may not be used because of paper characteristics)
Printing Speed		Maximum 80mm/sec. (640 dot line/sec.) at 8.5V
Paper feeding method		Friction feeding (1 dot line/4 pulses, bipolar 1-2 phase excitation)
Power supply	For print head	4.2 - 8.5 VDC average current, 1.8 (2.4)A at 7.2V (print ratio: 12.5%, print speed: 60mm/sec. )
	For motor	4.2 - 8.5 VDC, 1A maximum
	For cutter motor	4.75 - 8.5 VDC, 1A maximum
	For logic	3.3 to 5.25 VDC, 0.1A maximum
Dimensions	Mechanism with cutter	81.2 x 42.2 x 21.8 mm (WxDxH)
Weight	Mechanism with cutter	Approximately 98g
Life	Head	Pulse resistance: 5x10,000,000 pulses/dot (under our standard conditions); Abrasion resistance: paper traveling distance 50km (print ratio: 12.5% or less)
	Cutter	500,000 cuts (cutting synchronization: 20cut or less/1 minute)
	Platen	5,000 times (regarding open/close as one time)
Operating environment	Operating temperature	0 C to 50C
	Operating humidity	20 to 85% RH (no condensation)
	Storage temperature	-20 C to +60 C (paper not included)
	Storage humidity	5 to 90% RH (no condensation)
Detection function	Head temperature detection	Detected by thermistor
	Paper out/mark detection	Detected by photo-interrupter
	Platen release	Detected by sliding switch
	Movable edge Initialization	Detected by photograph sensor (penetrated type)

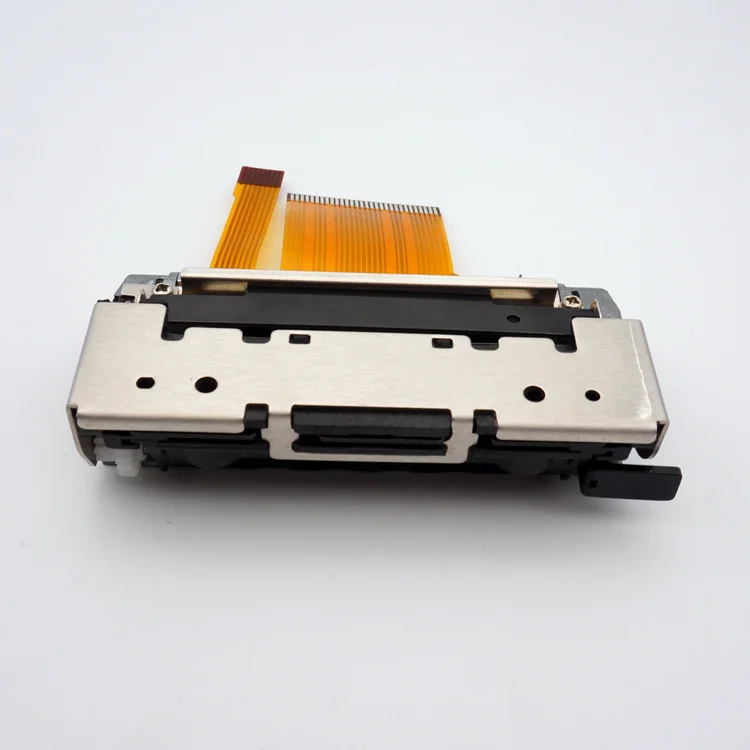

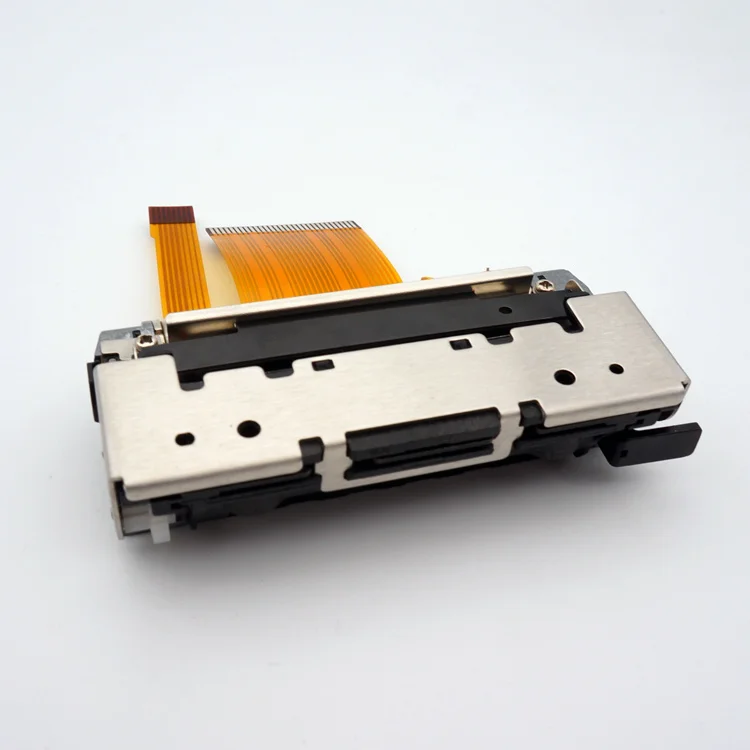

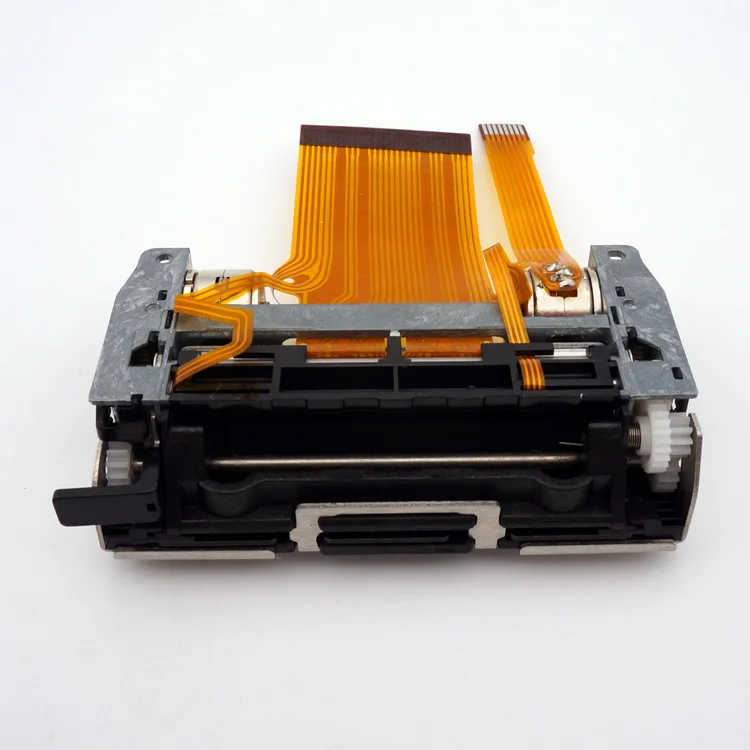

Product Show
