Tianjin Bridge brand best quality Rutile titanium type little smoke E4313 MT12 carbon steel j421 e6013 electrode welding rod
- Category: Welding & Soldering Supplies >>>
- Supplier: Tianjin Bridge Welding Materials Group Co. Ltd.
Share on (60830318941):
Product Overview
Description

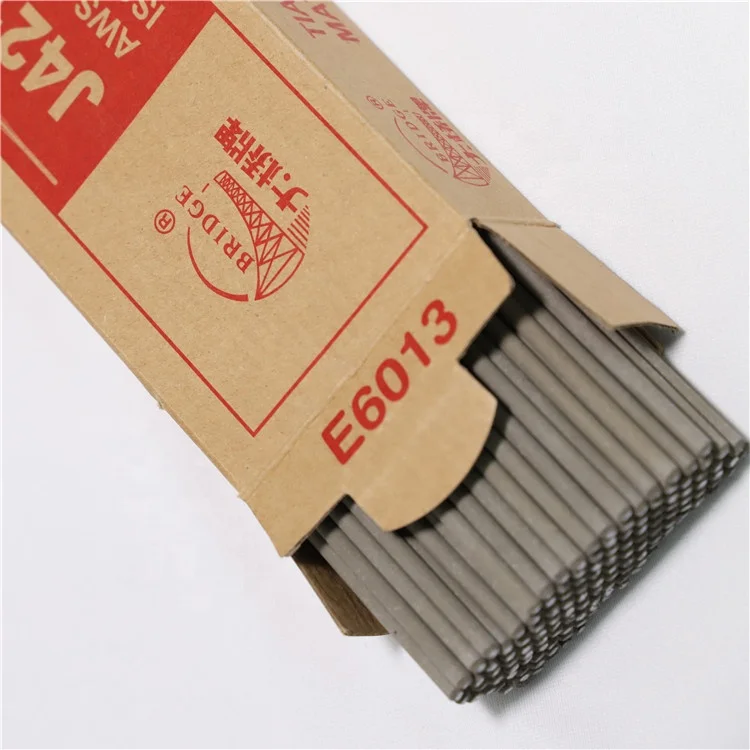

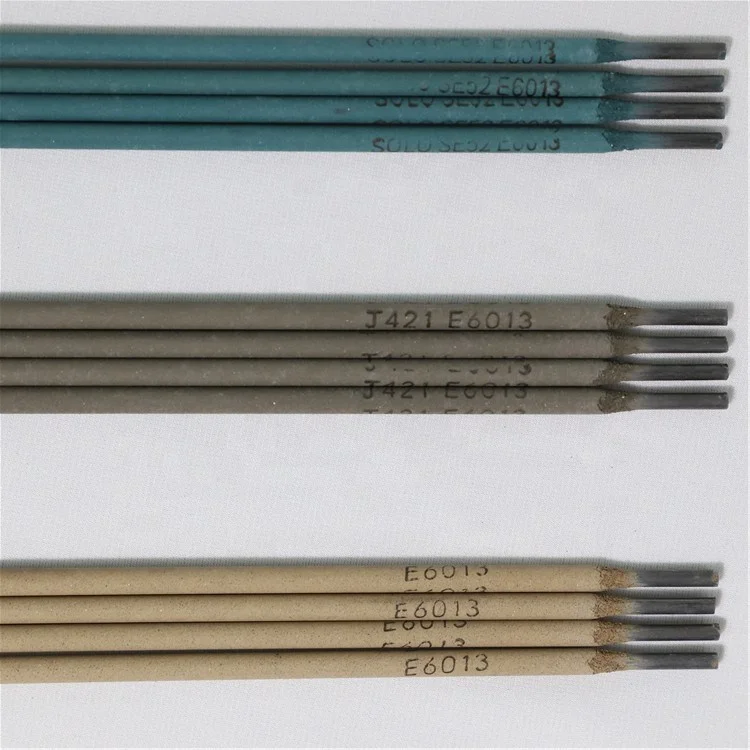

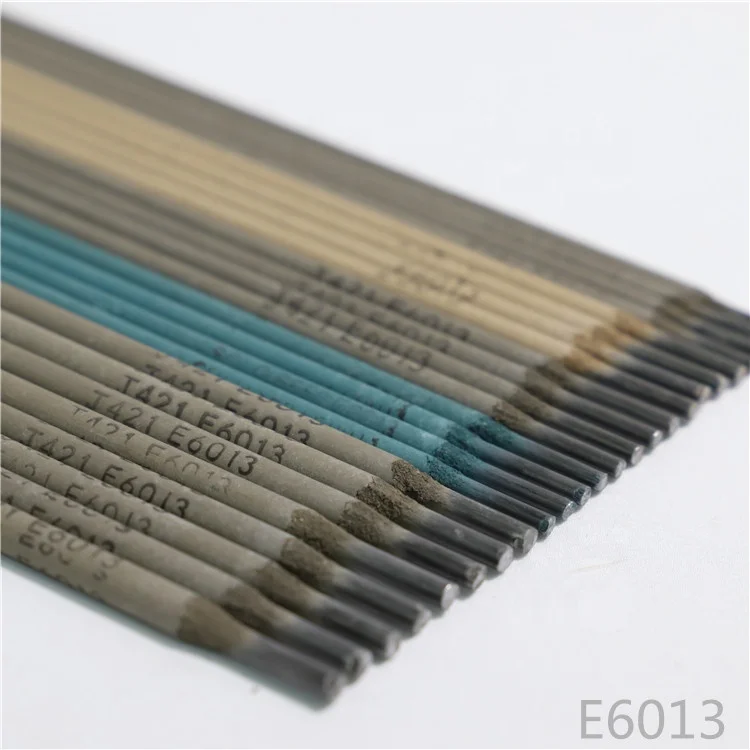

Rutile titanium type stable arc little smoke E4313 MT12 BRIDGE brand carbon steel j421 e6013 electrode welding rod
|
PRODUCT DISPLAY |

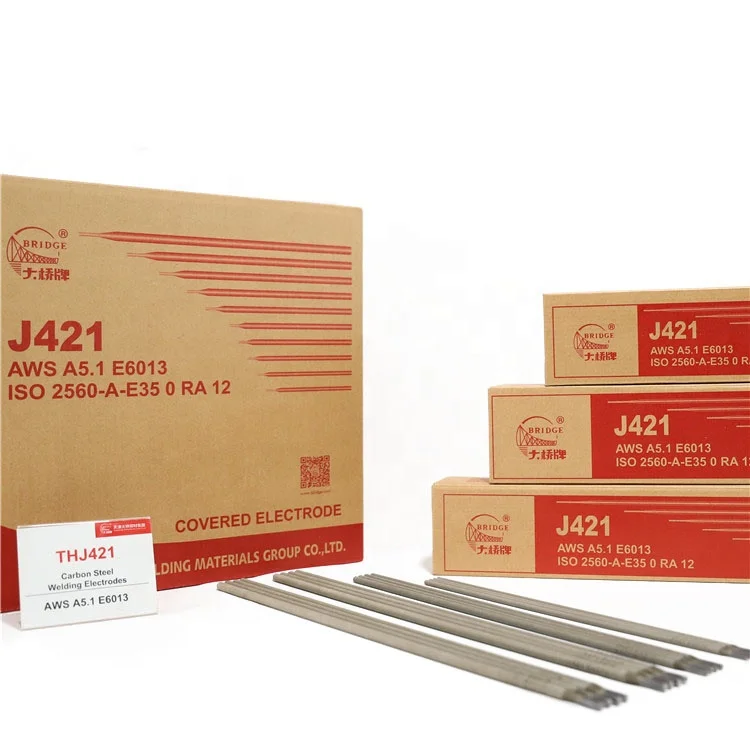

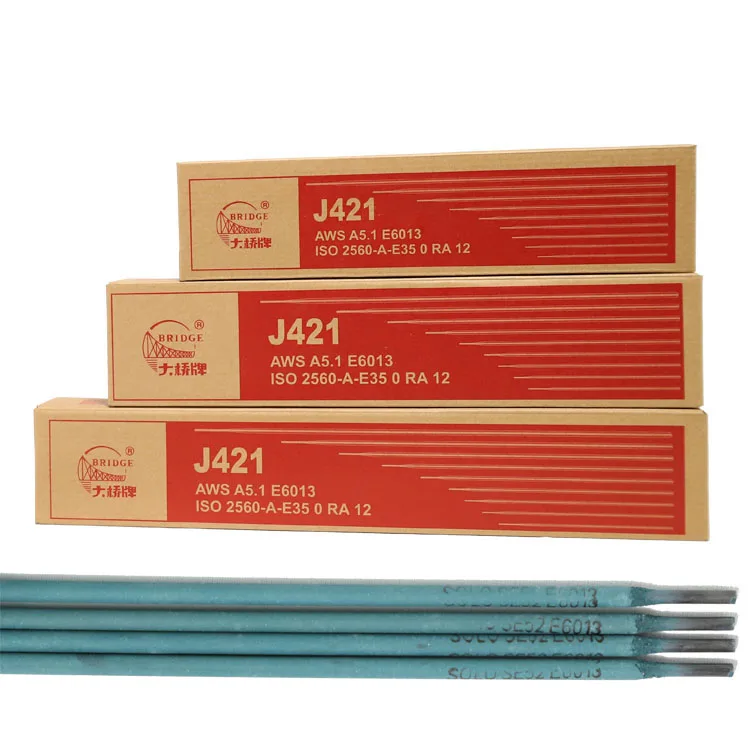

| J421 |
Rutile Type Electrode AWS A5.1 E6013 ISO 2560-A-E35 0 RA 12 GB/T 5117 E4313 |
APPLICATIONS:
It is suitable for welding of low carbon steel structure, especially for the welding of thin plate steel with short discontinuous weld and requirement of smooth welding pass. CHARACTERISTICS:
J421 is a rutile type electrode. Can be welding by both AC & DC power source and can be for all-position. It have excellent welding performance as stable arc, little spatter, easy slag removal and reignition-ability etc.
ATTENTION:
In generally, don't need to re-dry the electrode before welding. When it be affected with damp, should be re-dry it at 150℃-170℃ for 0.5-1 hour.
WELDING POSITIONS:
PA, PB, PC, PD, PE, PF
DEPOSIT COMPOSITION(Quality Score): %
|
items |
C |
Mn |
Si |
S |
P |
Ni |
Cr |
Mo |
V |
|
Require-ments |
≤0.10 |
0.32-0.55 |
≤0.30 |
≤0.030 |
≤0.035 |
≤0.30 |
≤0.20 |
≤0.30 |
≤0.08 |
|
Typical Results |
0.08 |
0.37 |
0.18 |
0.020 |
0.025 |
0.030 |
0.035 |
0.005 |
0.004 |
MECHANICAL PROPERTIES:
|
items |
Tensile Strength Rm/MPa |
Yield Strength Rel/Rp0.2 MPa |
Elongation A/% |
Charpy V-Notch KV2(J)0℃ |
|
Require-ments |
440-560 |
≥355 |
≥22 |
≥47 |
|
Typical Results |
500 |
430 |
27 |
80 |
X-ray flaw detection: Ⅱ level
TYPICAL OPERATING PROCEDURES:(AC,DC)
|
Diameter in(mm) |
2.0 |
2.5 |
3.2 |
4.0 |
5.0 |
5.8 |
|
Current in(A) |
40-70 |
50-90 |
80-130 |
150-200 |
180-240 |
220-280 |
Classification Society Certification:
|
Ship inspection agency |
ABS |
BV |
CCS |
DNV |
GL |
LR |
NK |
CWB |
|
Recognition level |
2 |
2 |
2 |
2 |
2 |
2m |
KMW2 |
E4313 |
The European Union certification:
|
|
CPD - CE certification of steel structure |
|
Type |
ISO 2560-A-E35 0 RA 12 |
| PRODUCT APPLICATION |
Some of our products have been applied to overseas key projects.
Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade
applied to hydro steel at Laos pumped storage power station
E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project
| RELATED PRODUCTS |
| Welding Wire | Flux Cored Welding Wire |
| MORE >> | MORE >> |
| ABOUT US |
We are the professional and perfect partner
of yoursin welding consumables.
| F A Q |
Q:Are you a factory?

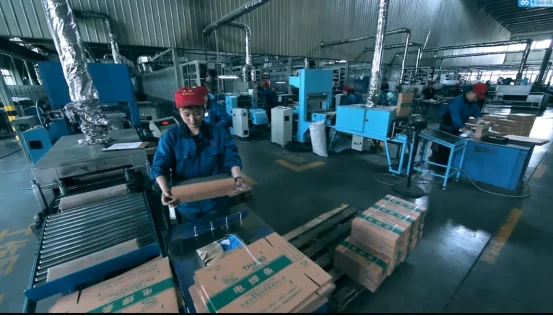

A: Yes ,we are the largest manufacture of welding consumables in China, the covers an area of 1200000 M2.
Q: what is your minimum order ?
A: 1000kgs
Q: what is your delivery time/ lead time ?
A: 10-25 days
Q: Which countries have you exported?
A: Our welding consumables sell well in more than 60 countries and regions, some countries we have sole agent.
Q: What product certifictes do you have?
A: Classifiction of society certification:ABS/BV/DNV.GL/LR/NK/BKI/CWB/KR/RS/RINA/CE.
