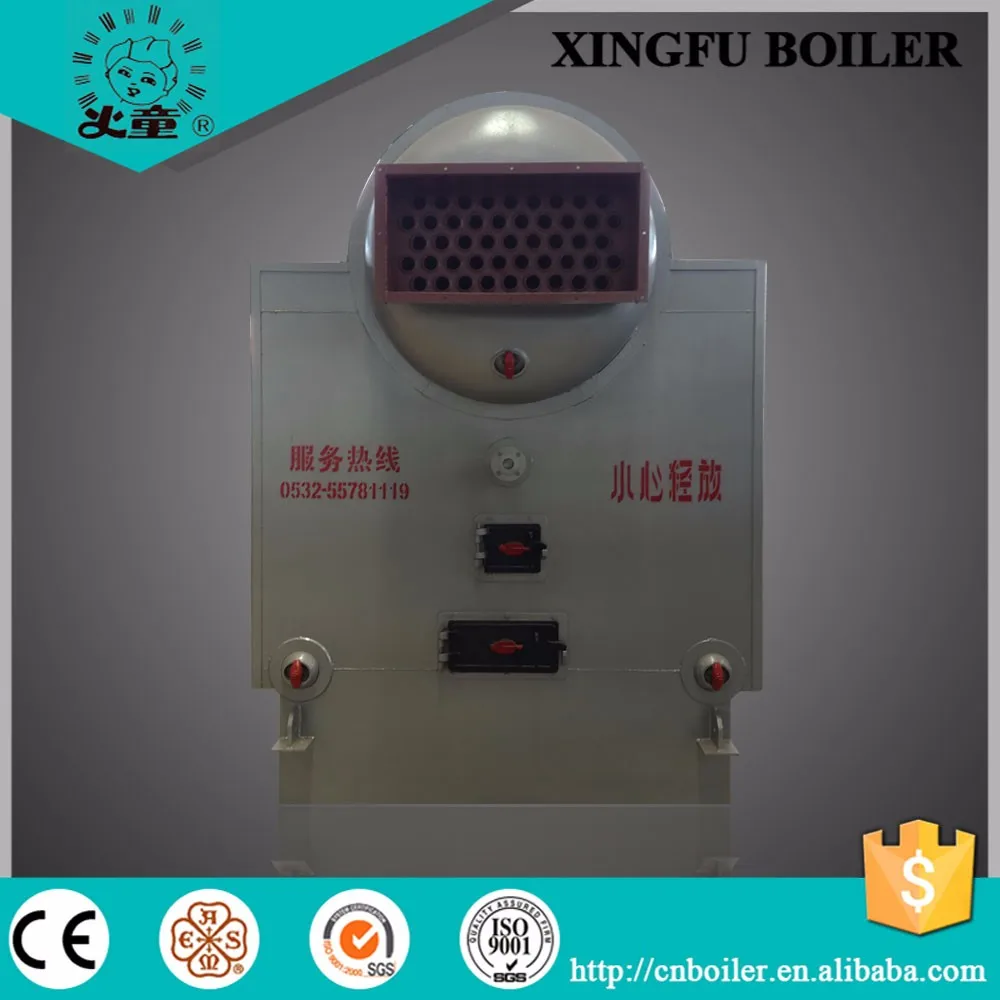

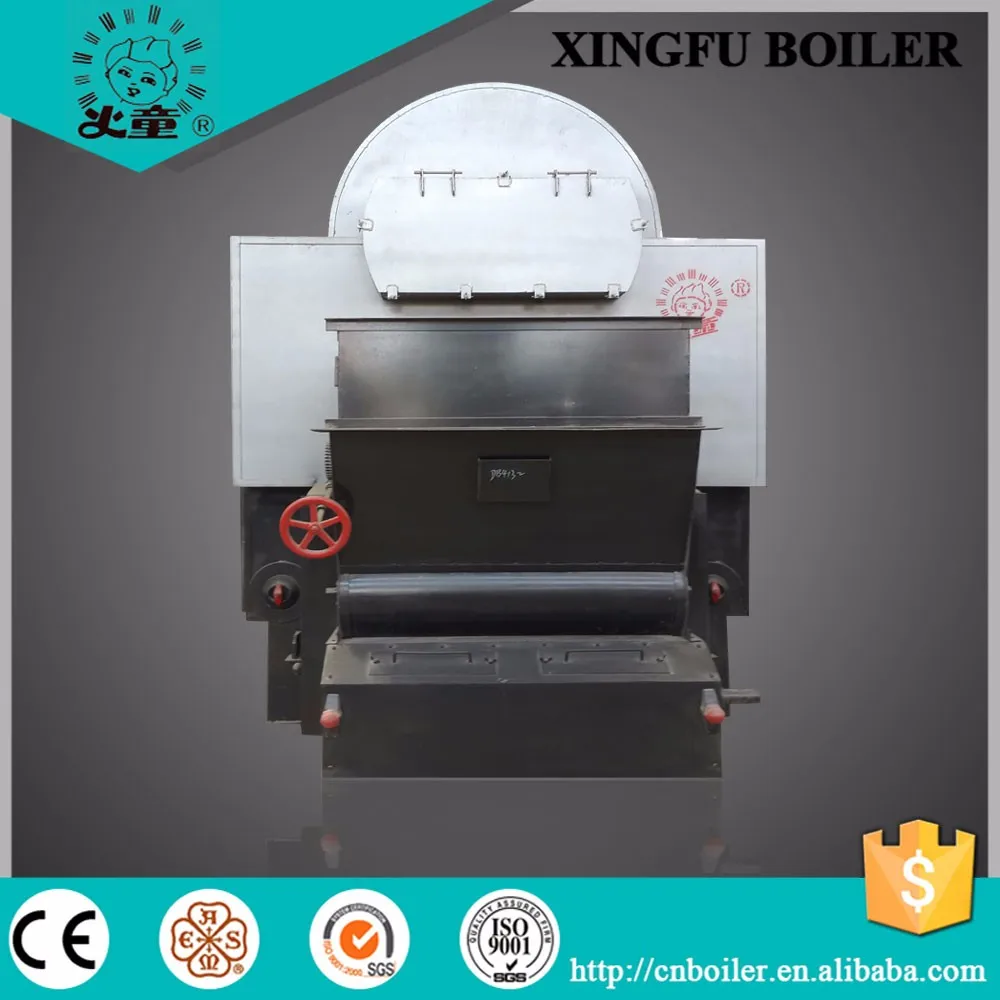

Water Fire Tube DZL Series Industrial Coal Fired Steam Boiler

Product Overview

Description





 Product Description

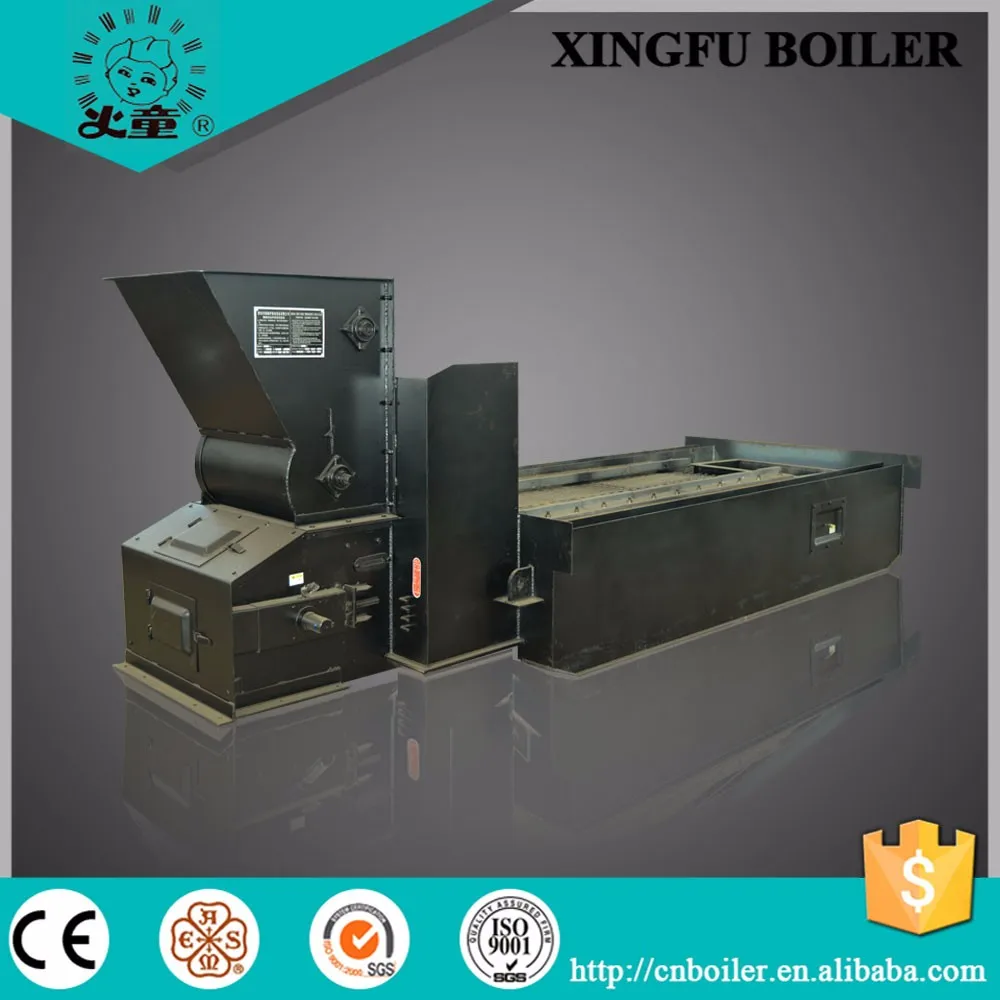

• This series boiler is single drum horizontal type shell boiler, the combustion equipment is chain grate, has the advantages of feed mechanically and strong adaptability of different fuels.

• The DZL series quickly installed coal fired steam boiler is the most advanced water-fire tube boiler in Chinese market, This series boiler can be used in textile, food and package factory with high efficiency, small in size and long working life.

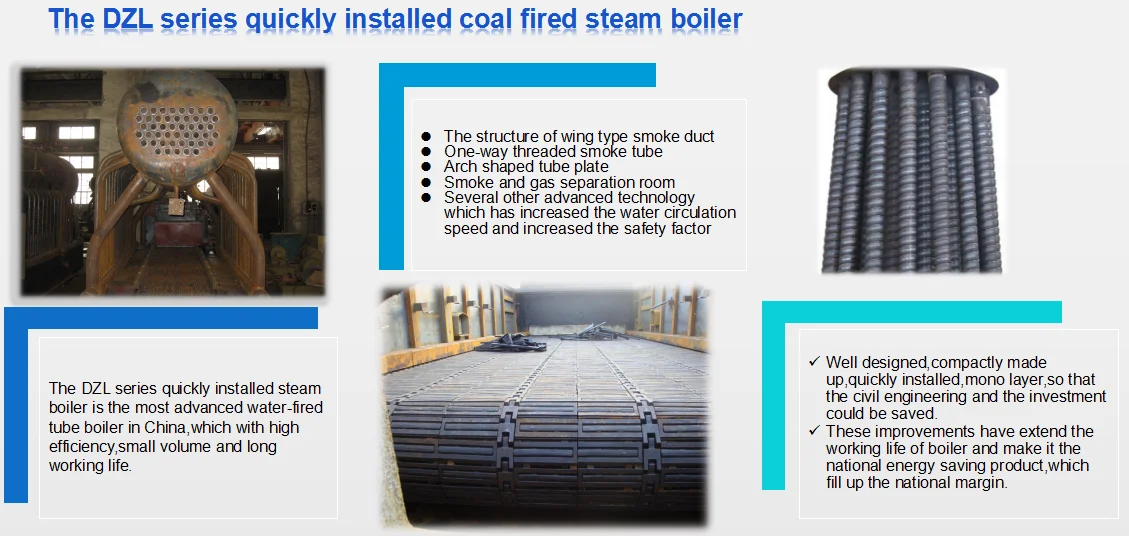

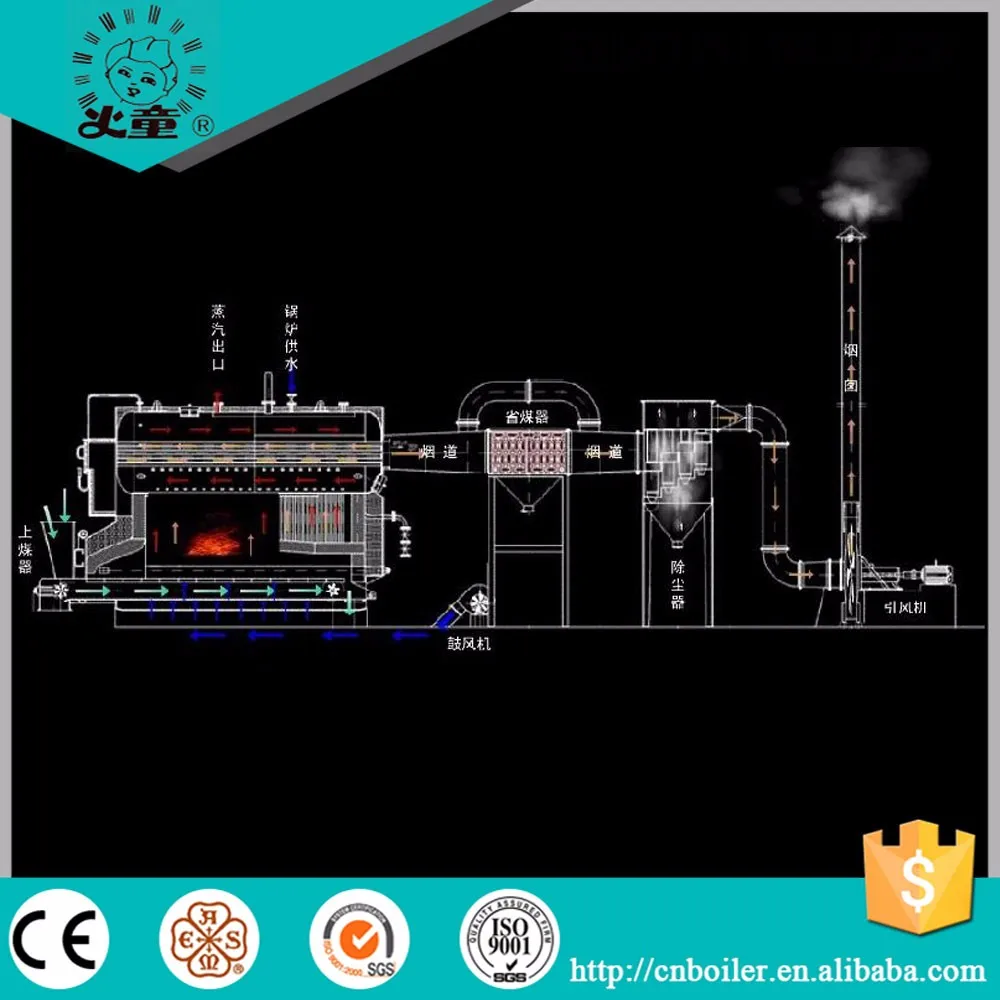

• The coal fired steam boiler after improvement takes use of structure of wing type smoke duct, one-way screwed smoke tube, arched tube plate, smoke and gas separate room and several other advanced technology, which has increased the water circulation speed and safety factor. This boiler series is well designed, compactly made up, quickly installed, mono layer, so that the civil engineering and investment could be saved. With these improvement, the boiler's working life extend much to be the national energy saving product.

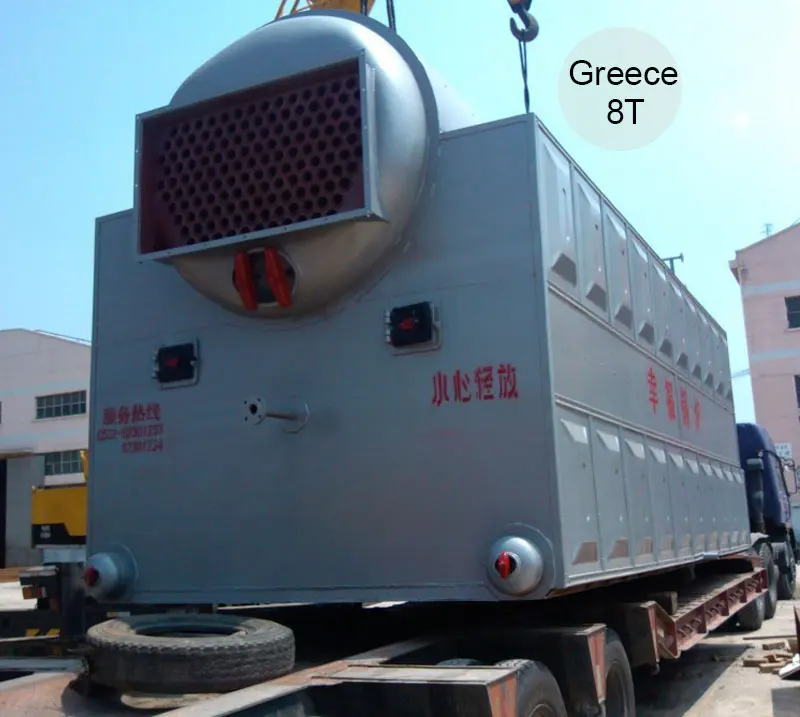

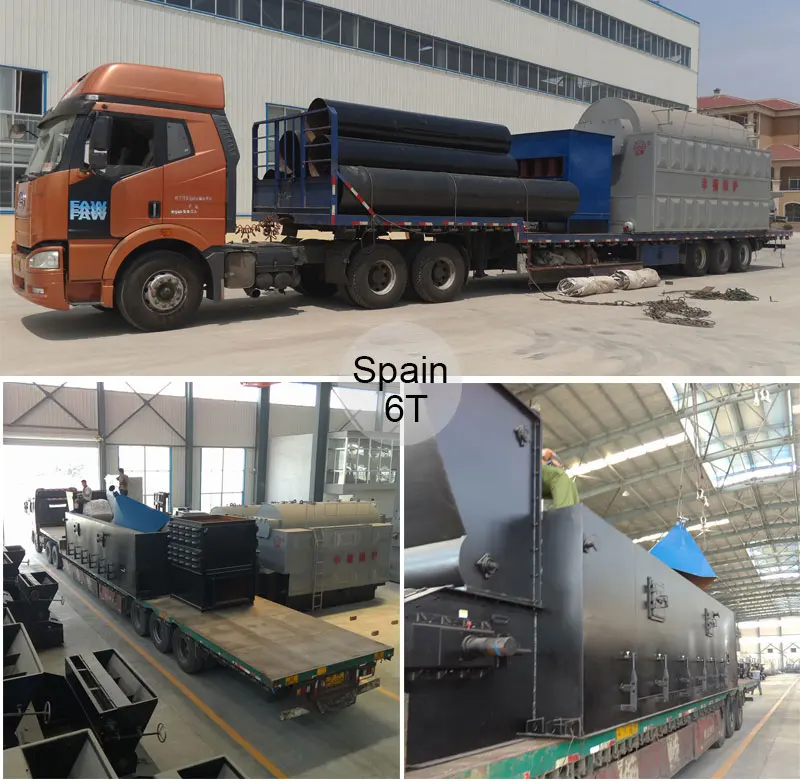

   1-6T steam boiler usally transported as entiraty part, Capacity more than 8t(including 8 t/h)are transported as up body and bottom body (chain grate) .

  SPECIFICATIONS FOR DZL COAL FIRED STEAM BOILER
  Boiler basic parameter	Steam capacity	T/h	1, 2, 4, 6, 8, 10, 12, 15, 20
  	Steam temperature	ºC	170, 184, 194, 204, 226
  	Fuel		Coal
  Boiler performance	Working pressure	Mpa	0.7,1.0,1.25, 2.6
  	Thermal efficiency	%	78-82
  	Feed water temperature	ºC	20,105
  Boiler performance	Grate heat area	M2	1.5-23.15
  	Fuel consumption	Kg/T(steam)	120
  	Boiler transportation weight	T	16-31

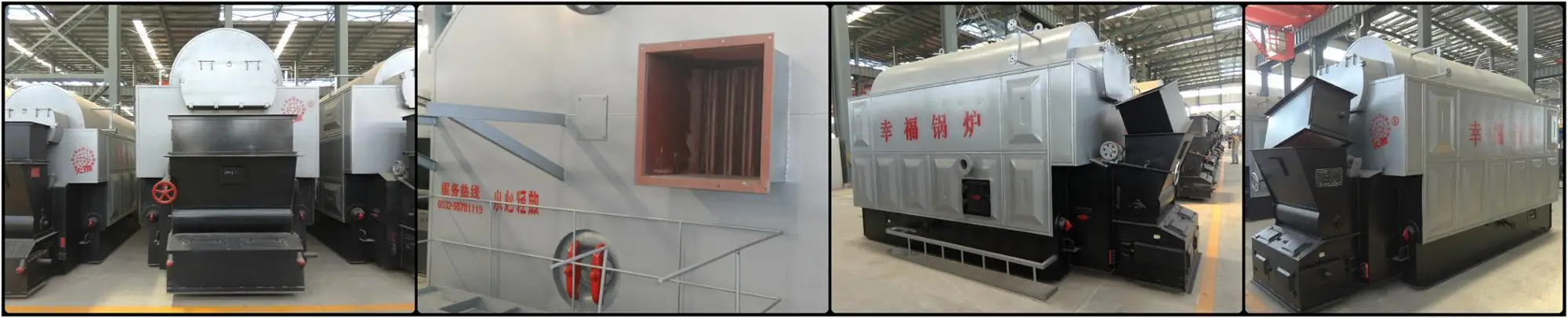

Photos view

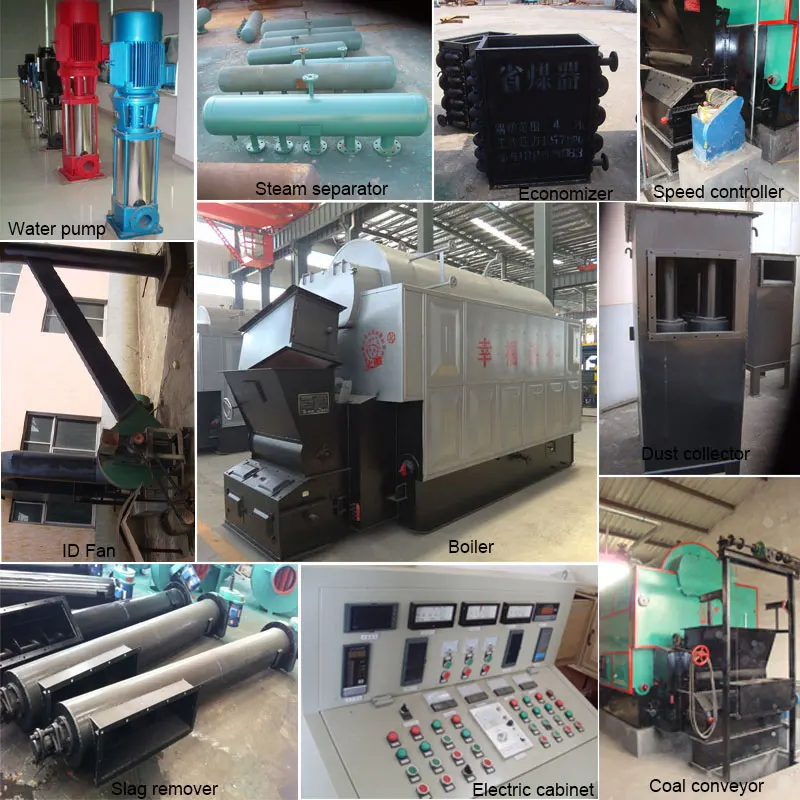

Auxiliaries

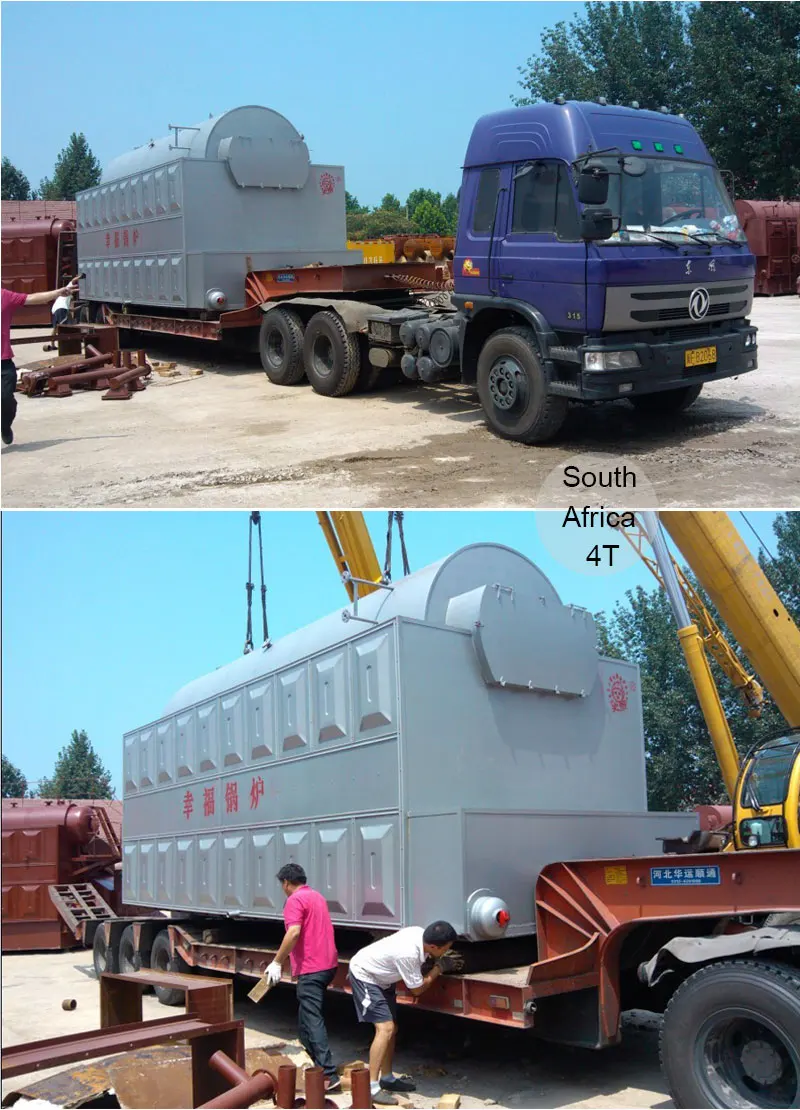

 Project display
