Like series tire shredder is specialized designed to shred the whole tire into rubber chips.
It is the first step in the whole tire recycling production line.
The OTR/truck/car tire shredder has precise processing blades, it is made of high quality steel and through many times heat treatment to achieve the best perforamance.
Model
Input size
Output size
Capacity
Motor
Weight
TS-800
800mm
50*50mm
1-2t/h
2*22kw
8t
TS-1200
1200mm
60*60mm
3-5t/h
2*37kw
14t
TS-1600
1600mm
50-150mm
6-8t/h
2*45kw
18t
TS-1800
1800mm
50-150mm
7-10t/h
2*55kw
23t
TS-2000
2000mm
75-200mm
10-15t/h
2*75kw
36t
TS-2400
2400mm
100-200mm
20-30t/h
2*110kw
56t
TS-2800
2800mm
150-250mm
25-35t/h
2*160kw
75t
TDF system
We will customized the technical detail for you based each customer requirement.
Rubber mulch system
LIKE tire shredding system include tire shredder--Rasper machine
Rasper
designed to produce up to 6t per hours of wire free rubber mulch. This system produces up to a 99% wire free chip ranging 10-30mm, after processing, the steel is removed by our magnetic sparation system. This is the secondary shredder of a tire recycling line.
Rasper
LK-R315
LK-R132
LK-R90
LK-R75
LK-R55
LK-R45
Powder
315kw
132kw
90kw
75kw
55kw
45kw
Voltage
As request
As request
As request
As request
As request
As request
Capacity
3-6t/h
1.5-3t/h
1-1.5t/h
700-1t/h
500-700kg/h
300-500kg/h
Rubber granules system
The production line include tire shredder--rasper machine--Granulator

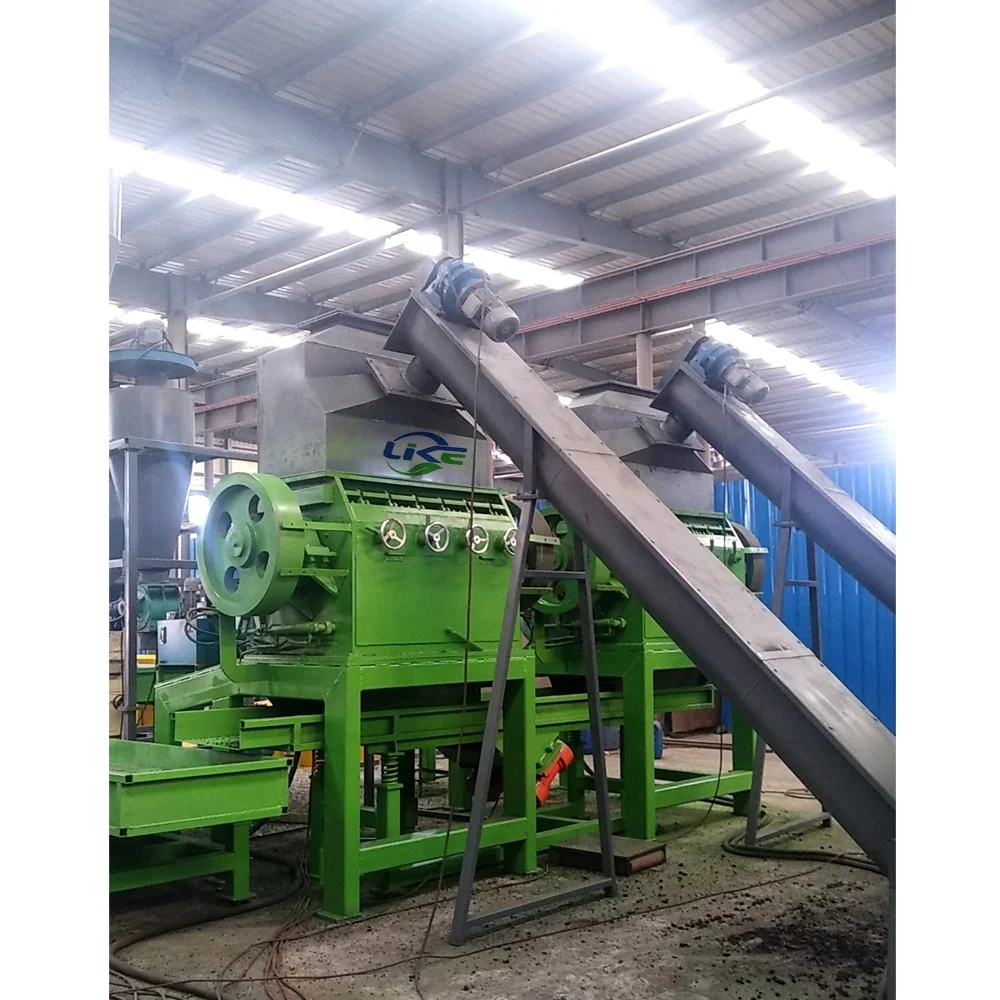

Granulator is the result of the third stationin the LIKE recycling line. At this stage, wire-free rubber mulch is processed into a uniform granule with all steel and fibre removed.
It is designed to process from 300kg to 6tons per hours in capacity and process 1-6mm rubber granule.
Granulator
LK-G90
LK-G45
LK-G37
Powder
90kw
45kw
37kw
Voltage
As request
As request
As request
Capacity
800-1500kg/h
500-800kg/h
300-500kg/h
Final products
1-6mm
1-6mm
1-6mm
Weight
5600kg
3300kg
2950kg
Our Company
FAQ
1) Are you a factory or trade company?
We are professional recycling line machine factory, professional design engineer, experienced production team, advanced manufacturing and processing facility. You can get good technical support from us.
2) How can I trust your company?
a. famous brand component as our standard configuration, like Siemens Motor, Tongli or SEW reducer, Siemens PLC and Schneider component. All parts use high quality material and precise processing
b. Assessed by third party-national test centre. national patents,SGS, CE, ISO certificate
c. Welcome to visit our factory to check at any time
3) How about the test running & installation?
Before delivery, welcome you to come to testing all machines in our factory.
Before shipping out your machines, we will invite you to come to test your machines, when you are satisfied; we start to pack and delivery.
We will dispatch our enginne to your country to help you to install and debug the machine, as well as training your workers.
4) How about the warranty?
Under the proper usage, 1-3 year for whole machine, we provide long-time after sales service for our customer.
After-sales service: 1. Install and debug machine, train workers 2. Free spare parts within gurantee period 3. Long time technical support when production process
