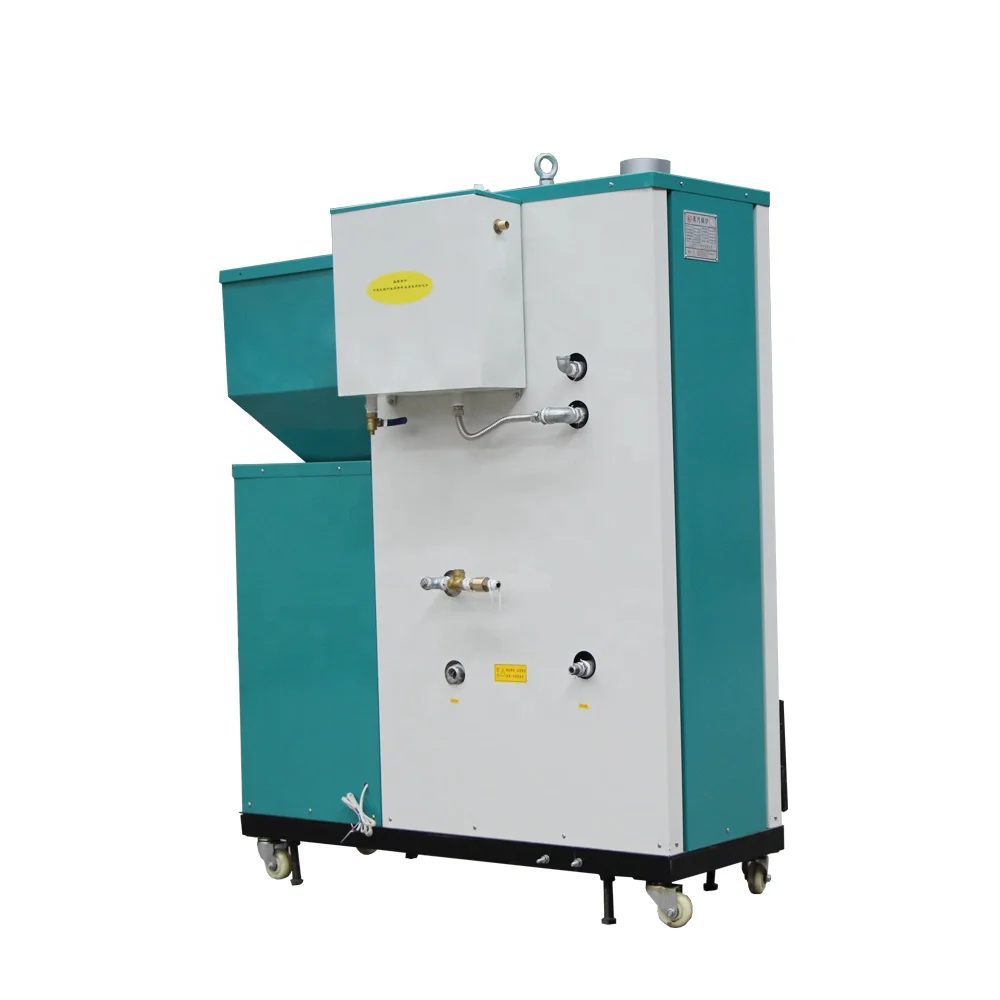

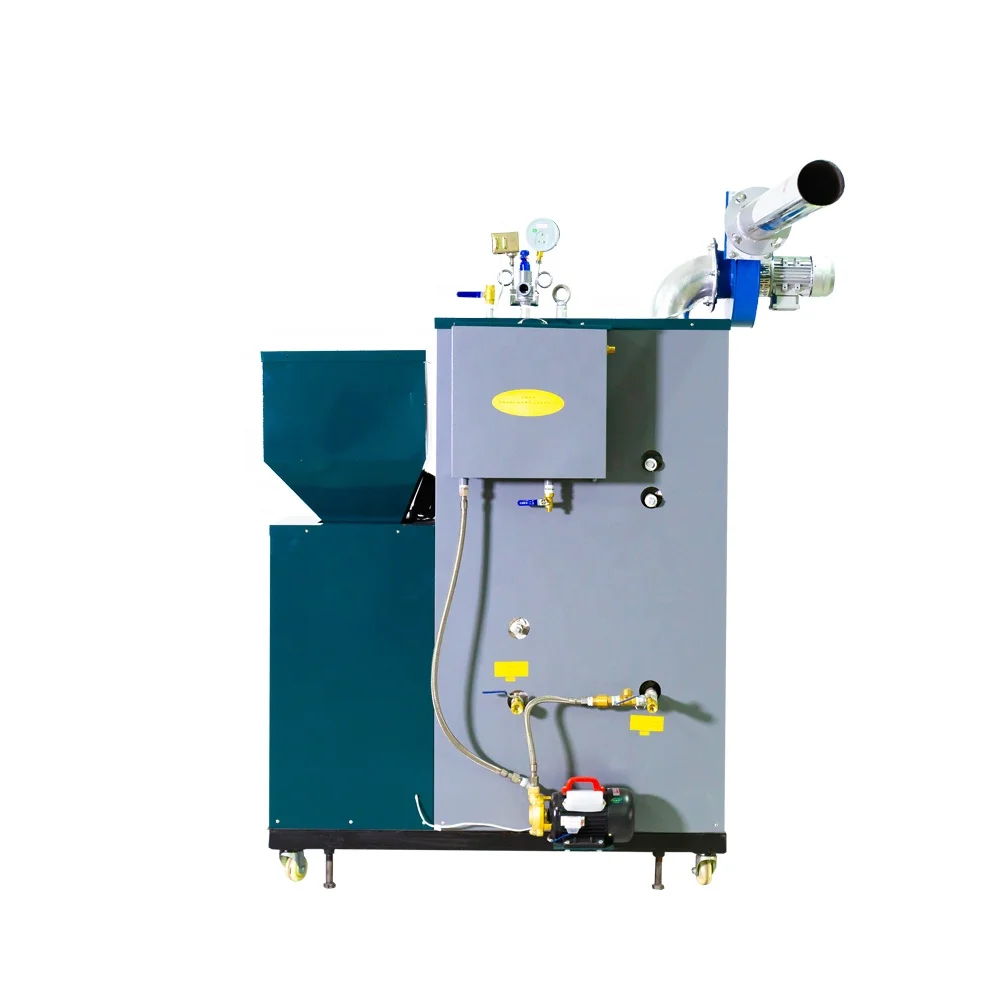

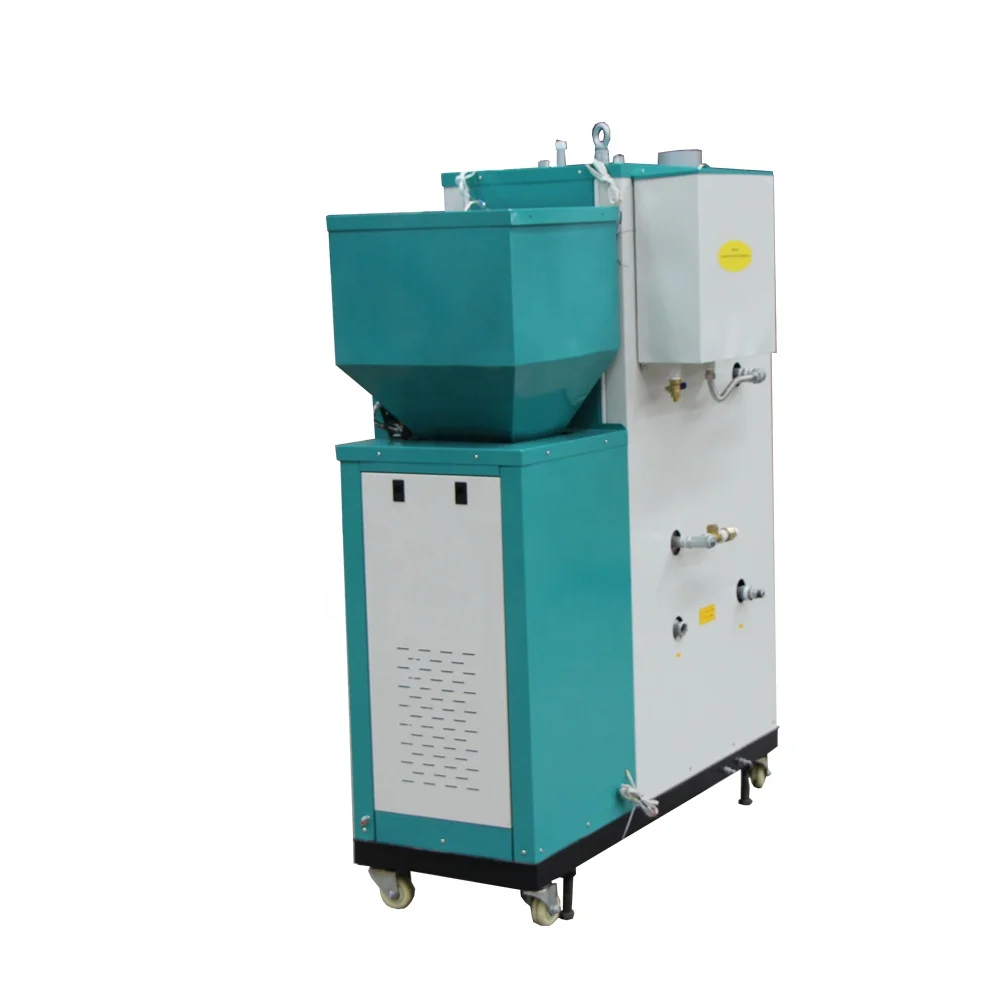

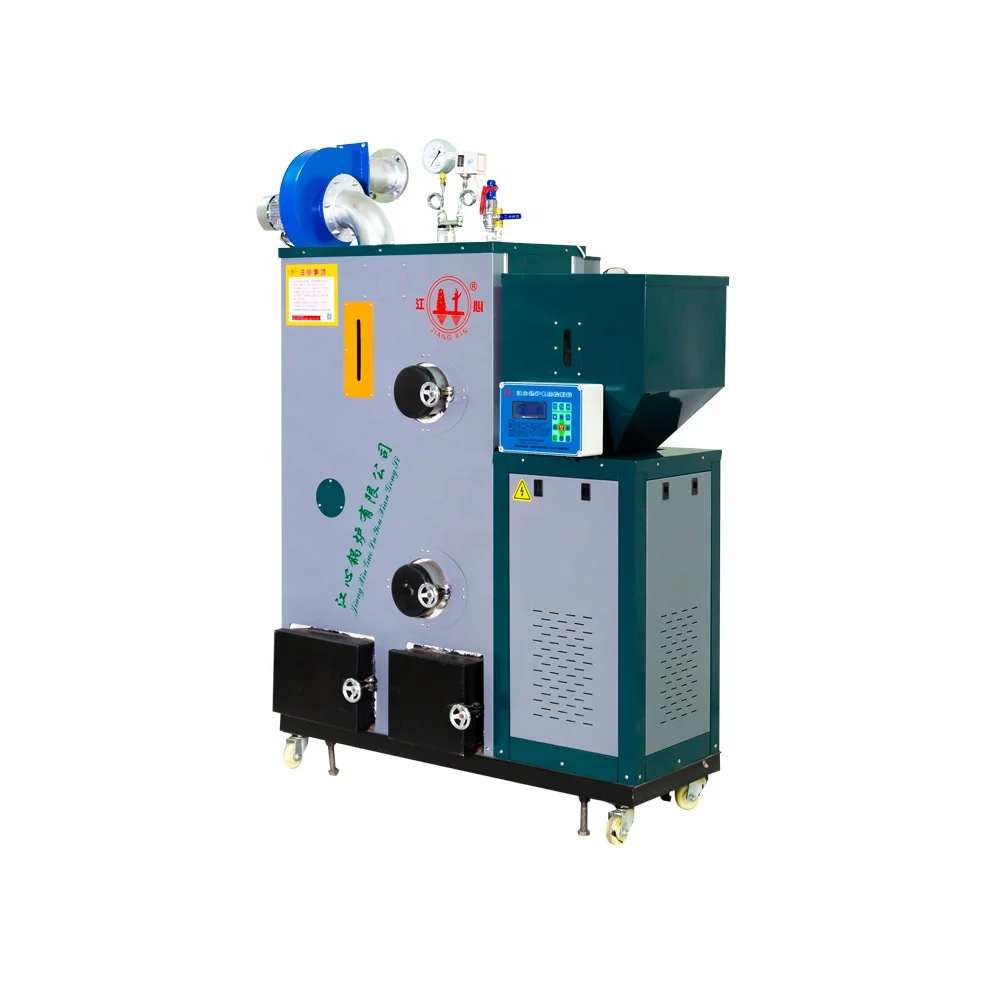

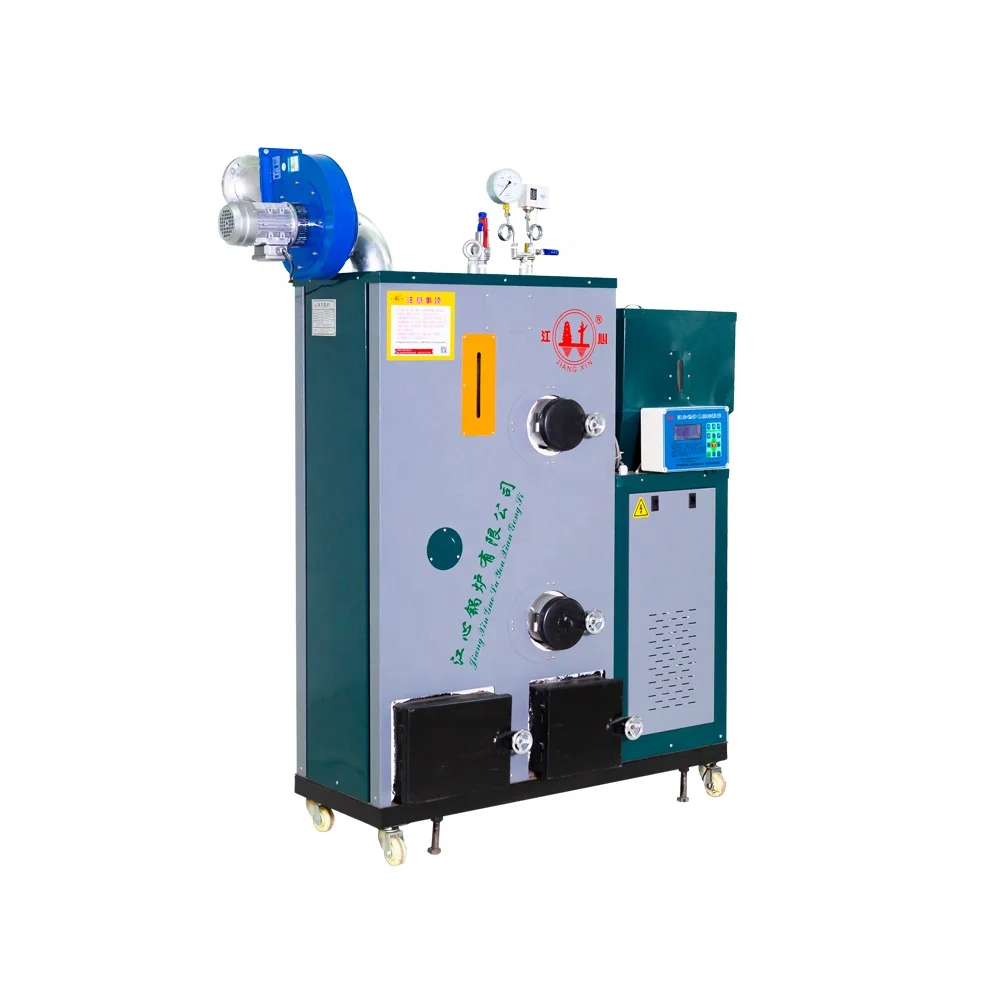

Biomass Fired Steam Boiler For Food Industries System


Biomass fired steam boiler for food industries system is equipped with intelligent automatic controller, which is started by one button and is convenient to operate. It automatically replenishes water and automatically enters the air to realize mechanized fuel supply, combustion, flame out and automatic interlocking control.


Steam boiler for food industries parameters

Model
LHG-0.05-0.7-BMF
LHG-0.1-0.7-BMF
LHG-0.2-0.7-BMF
Rated steam capacity
0.05t/h
0.1t/h
0.2t/h
Rated working pressure
0.7Mpa
0.7Mpa
0.7Mpa
Saturated steam temperature
171℃
171℃
171℃
Feed water temperature
20℃
20℃
20℃
Host heating area
1.15㎡
2.38㎡
4.8㎡
Economizer heating area
0.56㎡
1.78㎡
3.58㎡
Fuel
Biomass particle
Biomass particle
Biomass particle
Water volume
40.6L
49L
258L
Fuel consumption
7.9kg/h
18.7kg/h
37.2kg/h
Thermal efficiency
≥80%
≥80%
≥80%
Transport Dimensions
1260mm*450mm*1640mm
1180mm*830mm*1950mm(Single)
1700mm*880mm*1950mm(Double)
1820mm*1000mm*2550mm
Weight
330kg
570kg(S)/620kg(D)
1040kg
Product details

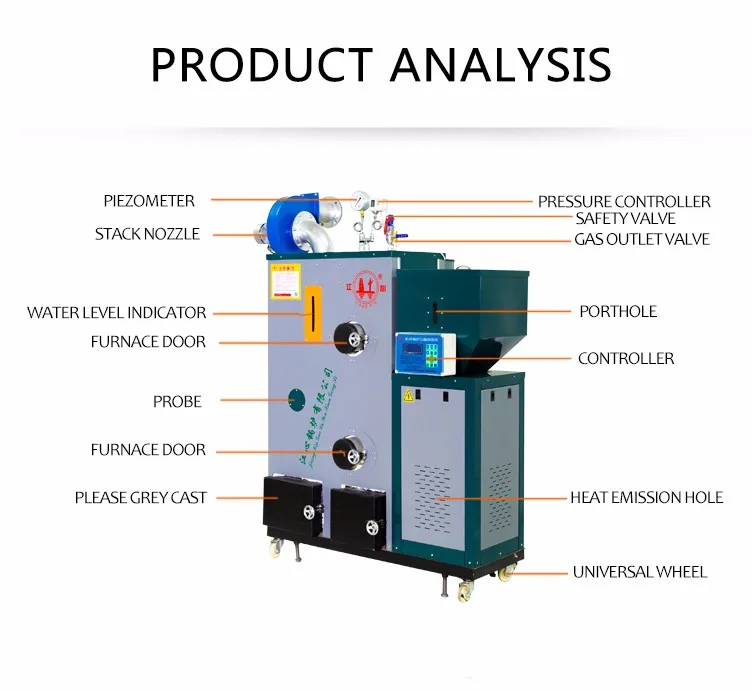

The biomass boiler system accessories including induced draft fan, furnace door, pressure gauge, pressure controller, control box, cleaning and caster.

Process flow

Jiangxin is mainly produce all kinds of boilers for customers. The entire production process includes the use of raw materials - processing - product storage.

In the current production process of Jiangxin, six processing workshops are involved with twelve processes. Each process is completed in a specific workshop. The correspondence is as follows:

About us

Shangrao Jiangxin Boiler Co., Ltd. is a professional boiler manufacturer company with B-class boiler manufacturing certification, which has 16 years' experience in the boiler design, manufacture, installation and service. It is located in Shangrao Economic Development Zero, covering an area of 135 acres, and a building area of about 110,000 square meters.

Exhibition
Packaging & shiping
Packaging
Inner Packing: Bubble film and Molded foam packaging
Outer Packing: Wooden Case
Sample time
6-15 days
Production time
15-30 days after received the deposit
Delivery Clause
FOB, CFR, CIF, Express delivery
Payment Currency
USD
Payment Methods
T/T(30% deposit 70% against bl copy)
L/C
MoneyGram
Western Union
Other payment terms we can negotiate
Service

1)If you are the first time to contact us, please contact our sale manager in the business department to call phone 0086-18170310377.

Please inform you needs about the boiler, including the boiler capacity, boiler fuel, boiler application, etc. Or the problems that need to be solved urgently, etc. Or fax to 0579-96812622.

2) If you are a customer who has already made a deal, please contact our customer service staff directly. Here, your order information has been entered into the computer library, which can conveniently provide you with one-on-one service. Our service commitment:

Your business inquiry we reply within 24 hours
Your sample requirements are available within 3~5 business days.
Your complaint will be answered to you in the first time.
Our Code of Conduct: Sincerely, doing things with heart
