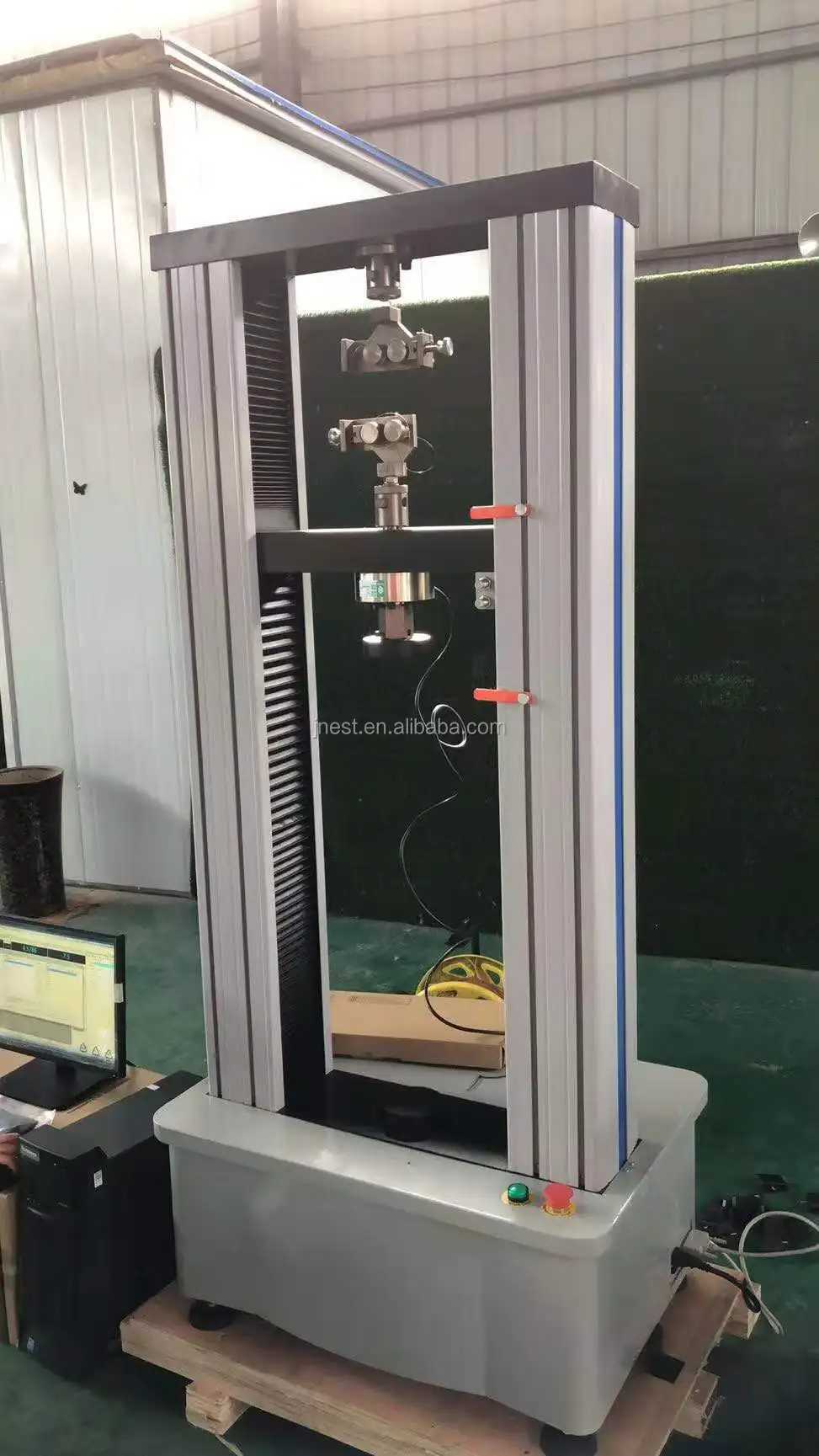

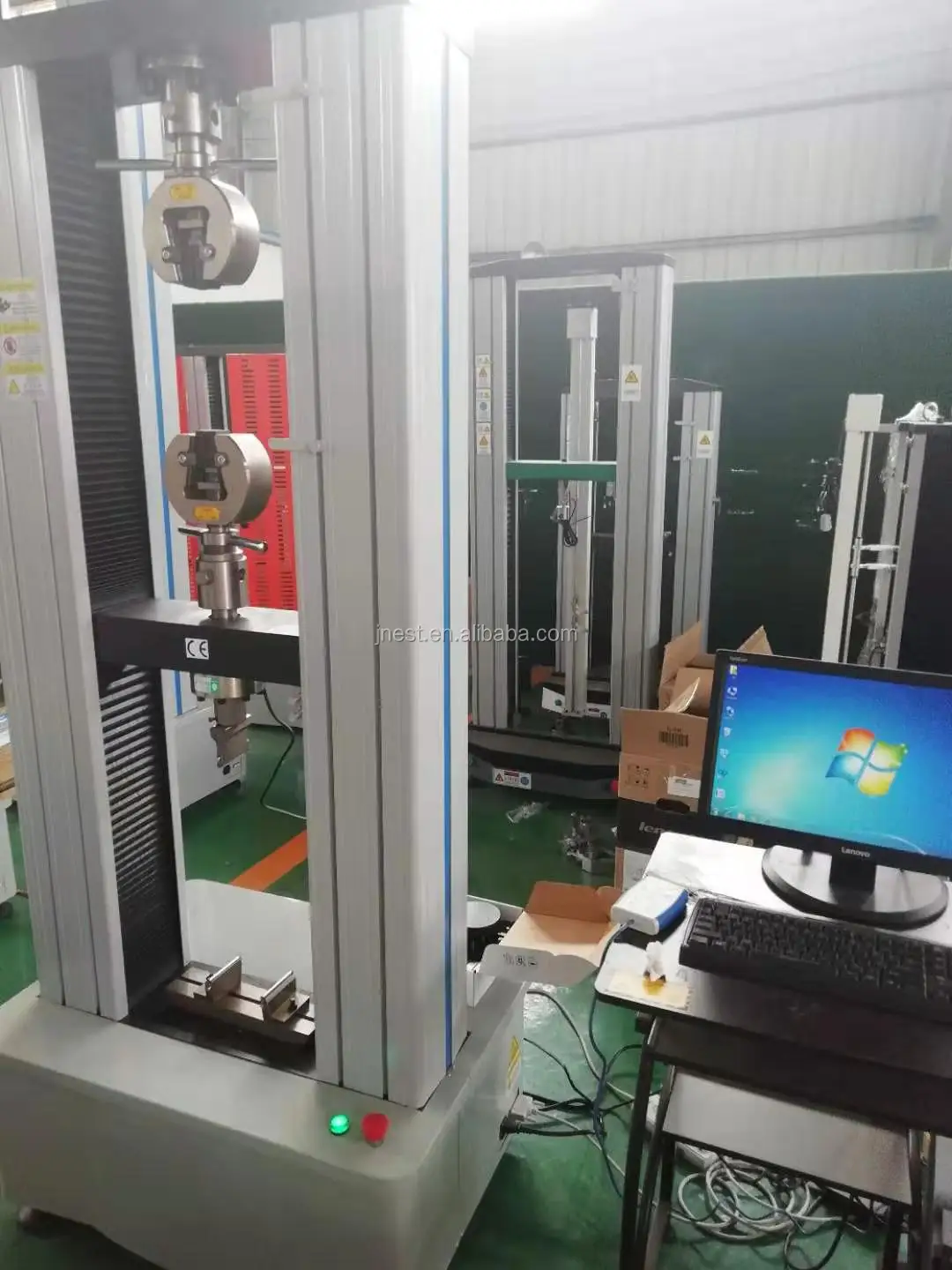

10ton 20ton 30ton rope cable wire leather tensile breaking loading strength testing machine
The 10ton 20ton 30ton rope cable wire leather tensile breaking loading strength testing machine is mainly used to test and analyze the mechanical property of metal materials such as various copper aluminium alloy products and non-metallic materials such as plastic,rubber, paper,woven bags,wood etc.It is widely used in aerospace, petrochemical industry,wire and cable,machinery manufacturing,plastic, rubber,mining,ceramic building materials,machinery,high polymer mechanics and other industries,as well as colleges and universities,scientific research institutions,technical supervision,quality inspection station and other departments.This series is applicable to the mechanical performance test which test load is less than 300kN.
Technical Parameters
10KN | 20KN | 50KN | 100KN | 200KN | 300KN | |
Precision grade | 1 grade | |||||
Test force resolution(KN) | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 | 0.01 |
Testing force measuring range | 1-100%F.S | |||||
Deformation range | 1-100%F.S | |||||
Displacement resolution | 0.01mm | |||||
Effective tensile test space (mm) | 650 | 650 | 650 | 650 | 550 | 550 |
Valid test width(mm) | 400 | 400 | 400 | 400 | 600 | 600 |
Speed adjustment range | 0.01-500mm/min | 0.01-300mm/min | ||||
Power Supply(V/Hz) | Single phase, AC220V, 50HZ
|
