Product Overview
Description

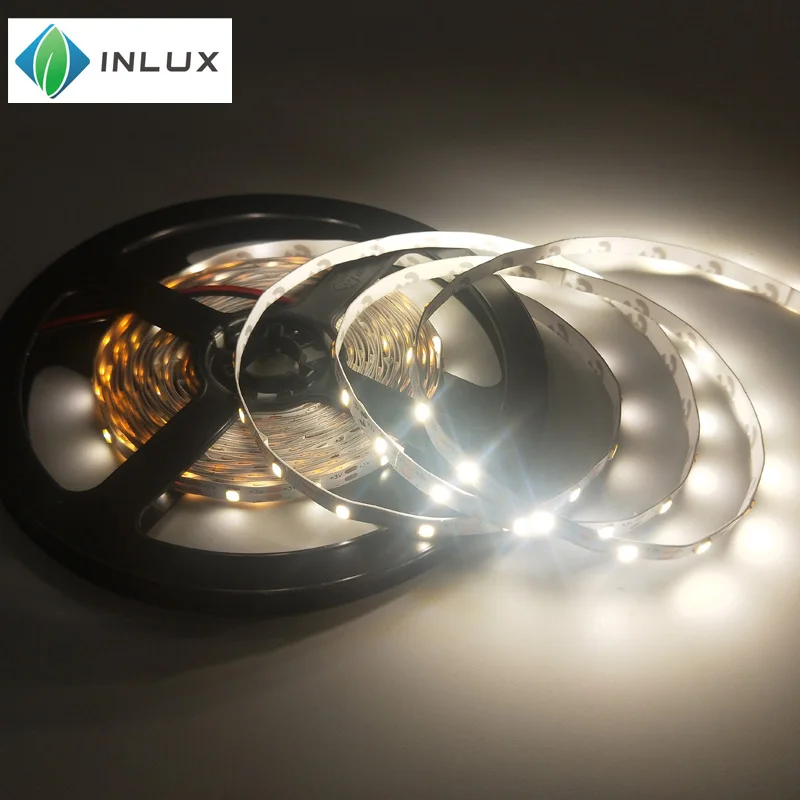

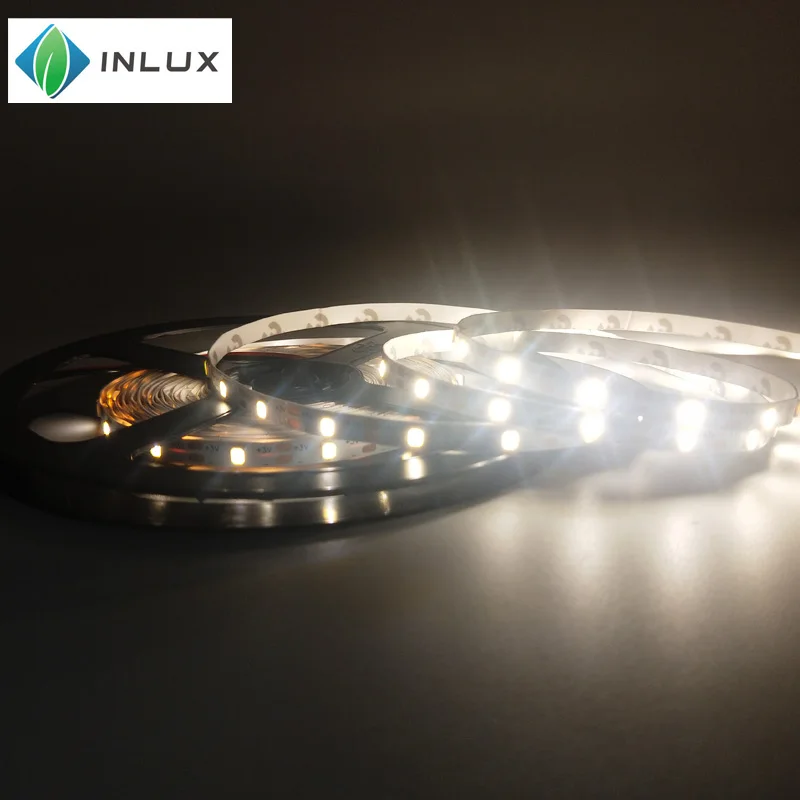

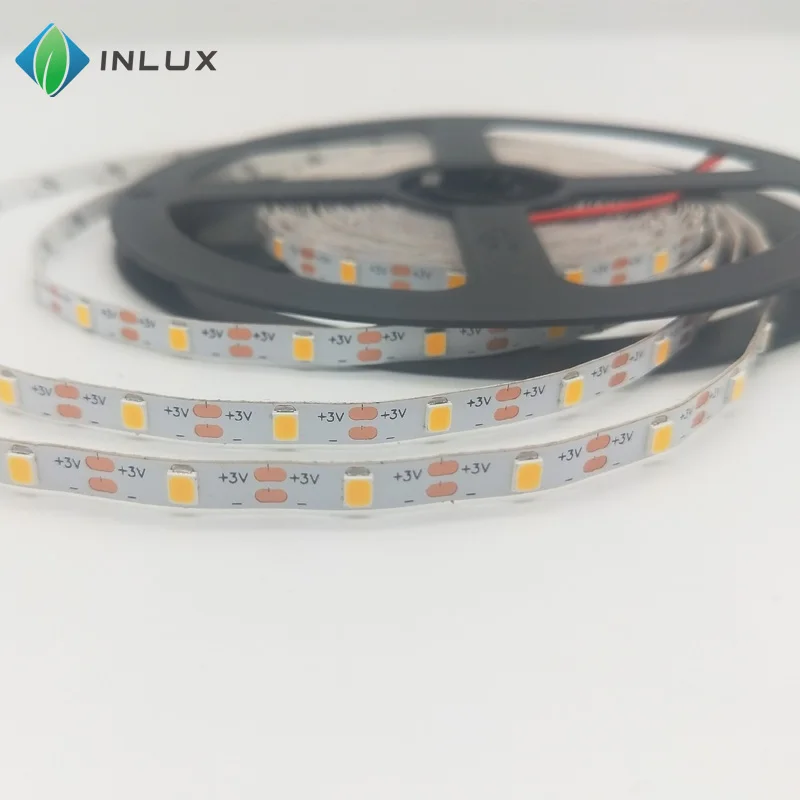

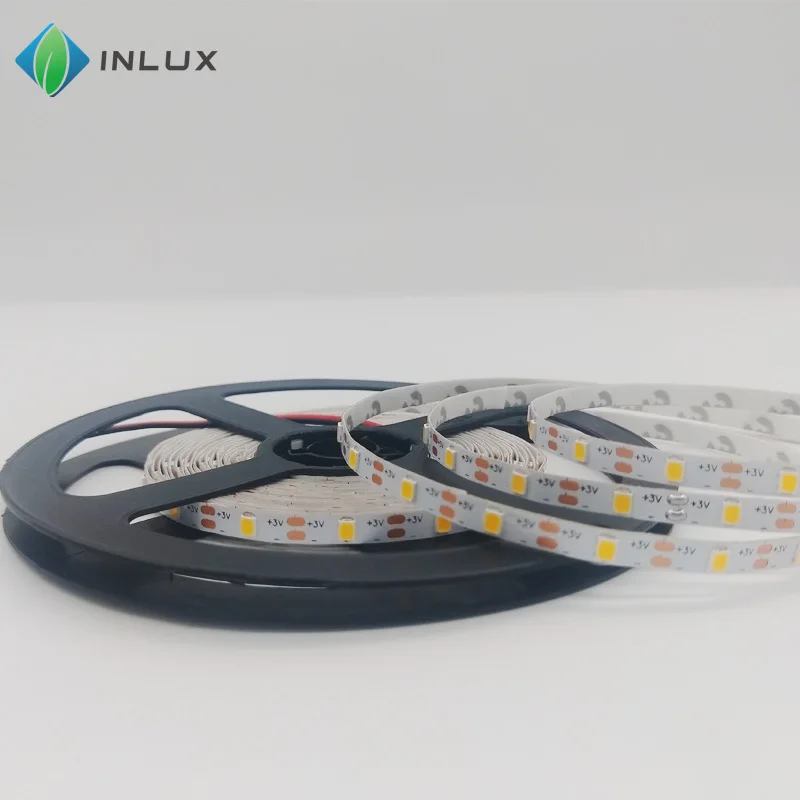

DC 3V smd 2835 60leds warm white cool white 5mm width strip led tv rechargeable battery operated high brightness 3V led strip
Product Description
Different types of SMD2835 led strip lights for options: 30LEDs/M, 60LEDs/M, 90LEDs/M, 120LEDs/M, 240LEDs/M, etc.
SMD 2835 flexible LED strip is currently one of our popular LED strips available.
Product Features
1. Linear LED strip on flexible PCB with original 3M self-adhesive tape on the back.
2. 5 meter per reel, cuttable every 1LED a group.
3. Beam angle 120 degrees
4. Made of SMD 2835 LEDs with lighting emitting in the front direction of PCB.
5. Avaiable colors: warm white, nature white, cool white, cold white, red, green, bule, yellow, etc.
6. Working Voltage: DC3V ( DC5V, 12V or other voltage available )
7. Anti-UV Design, no harm to eyes.
8. IP20 ( IP65, IP67 and IP68 available ).
Product Parameters
| Model Number | IX-60NFS2835-XX-3V |
| LED Typ&Qty | SMD2835 60LEDs/M |
| Working Volatge | DC3V ( DC5V, 12V, 24V available ) |
| Power | 0.18W/LED |
| Luminous Flux | 22-24lm/LED |
| Lighting Colour | WW, DW, PW, CW, Red, Green, Blue, Yellow, Pink, etc. |

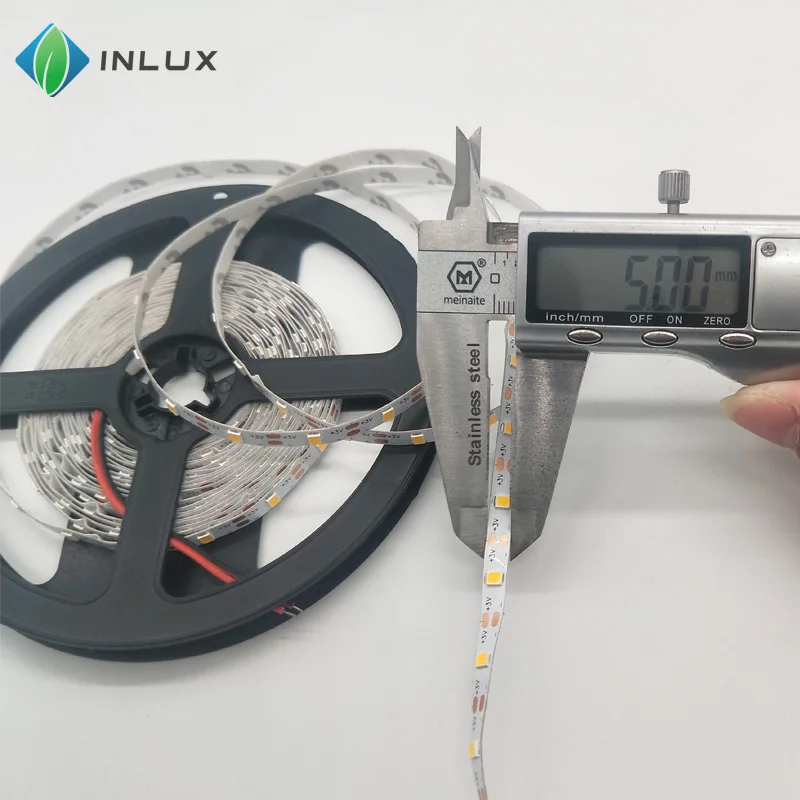

| PCB Size | 5*5000mm(W*L)/Reel |
| IP Rating | IP20 ( IP65 , IP67, IP68 available ) |
| Beam Angle | 120° |
| Cuttable Unit | 1 LED per 16.67mm |
Advantages
| LED Type | Dimensions | CCT | Emitting Color | Luminous Flux | CRI | VF | IF | Beam Angle |
| SMD5050 | 3.5*2.8*1.8mm | 1800-6000K | W/R/G/B/Y/A/PK/UV | CRI80: 7-8lm CR90: 6-7lm CRI95: 6-7lm | 80/90/95Ra | 3.0-3.2V | 20mA | 60° |
| SMD5050 | 5.0*5.0*1.6mm | W/R/G/B/Y/A/PK/UV | CRI80: 22-24lm CR90: 18-20lm CRI95: 16-18lm | 3.0-3.2V | 60mA | |||
| SMD5050RGB | 5.0*5.0*1.6mm | RGB 3 in 1 | / | 3.0-3.2V | 60mA | |||
| SMD5050RGBW | 5.0*5.0*1.6mm | RGBW 4 in 1 | / | 3.0-3.2V | 80mA | |||
| SMD5050RGBWW | 5.0*5.0*1.6mm | RGBWW 5 in 1 | / | 3.0-3.2V | 100mA | |||
| SMD2835 | 2.8*3.5*0.8mm | W/R/G/B/Y/A/PK/UV | CRI80: 22-24lm CR90: 18-20lm CRI95: 16-18lm | 3.0-3.2V | 60mA | |||
| SMD3014 | 3.0*1.4*0.8mm | W/R/G/B/Y/A/PK/UV | CRI80: 10-13lm CR90: 9-12lm CRI95: 9-10lm | 2.8-3.2V | 30mA | |||
| SMD5730 | 5.7*3.0*0.8mm | White | CRI80: 55-60lm CR90: 50-55lm CRI95: 50-52lm | 2.8-3.6V | 150mA | |||
| SMD2216 | 2.2*1.6*0.6mm | White | CRI80: 7-9lm CR90: 7-8lm CRI95: 6-7lm | 2.8-3.2V | 30mA |
