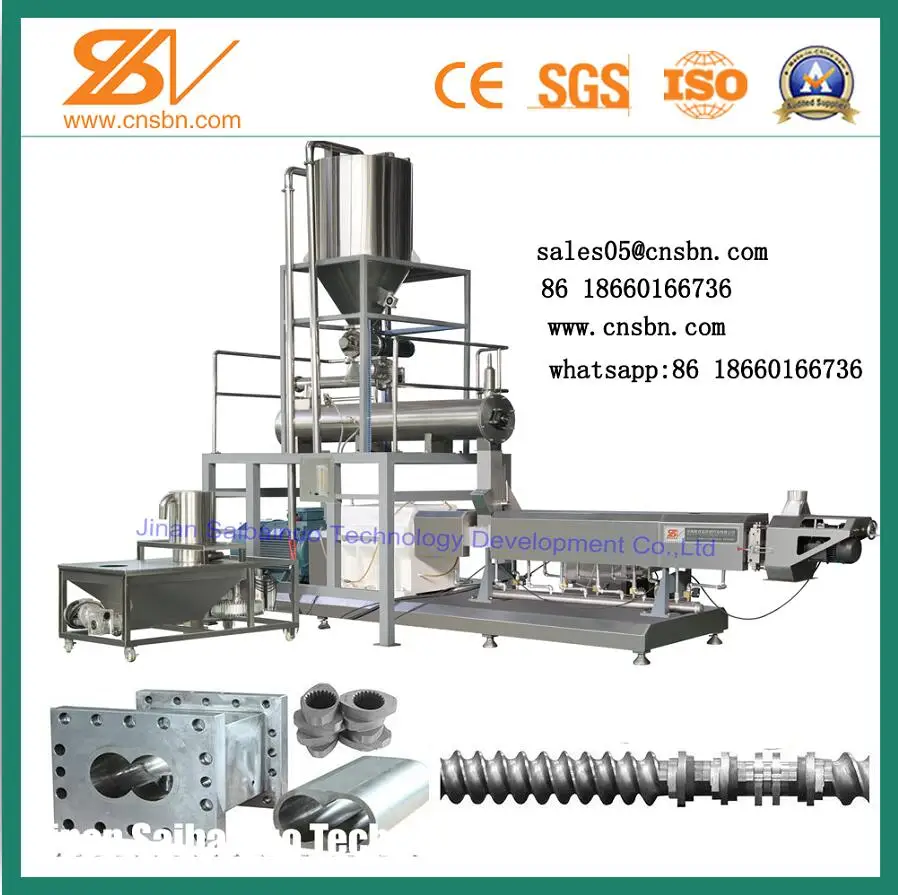

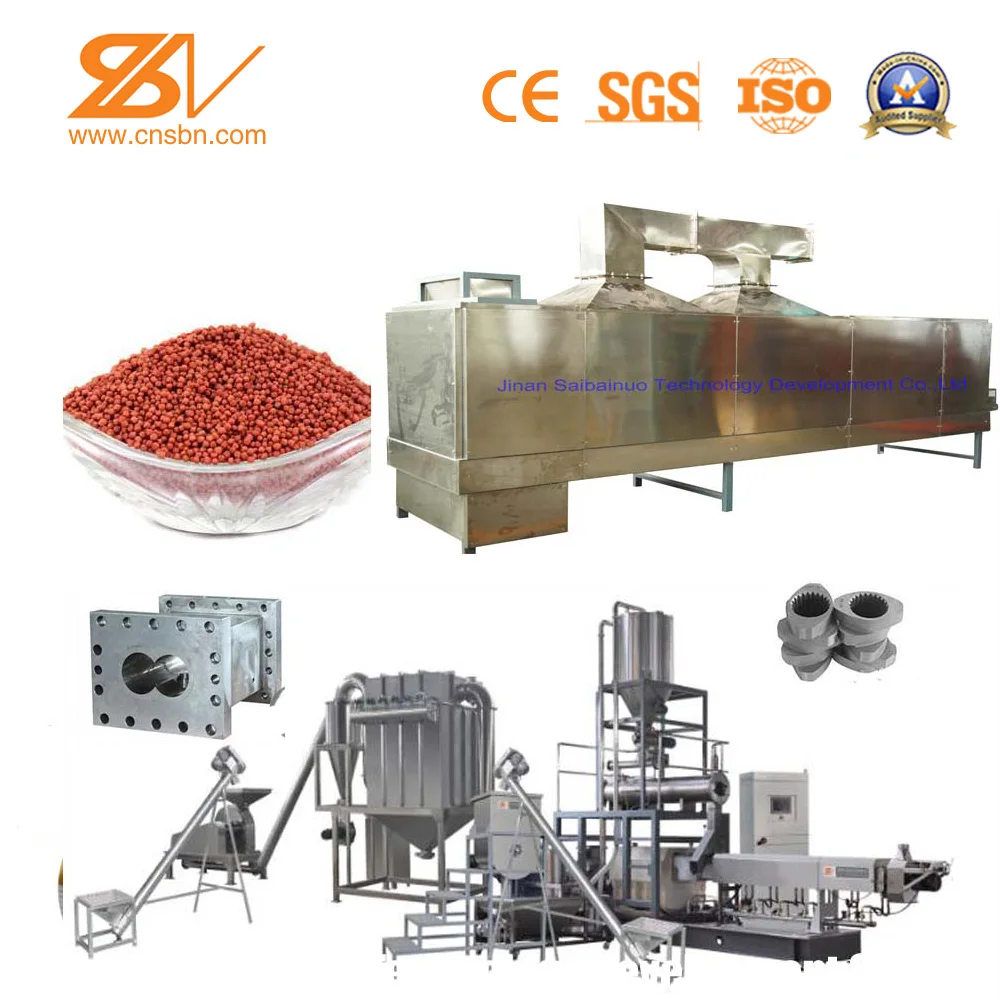

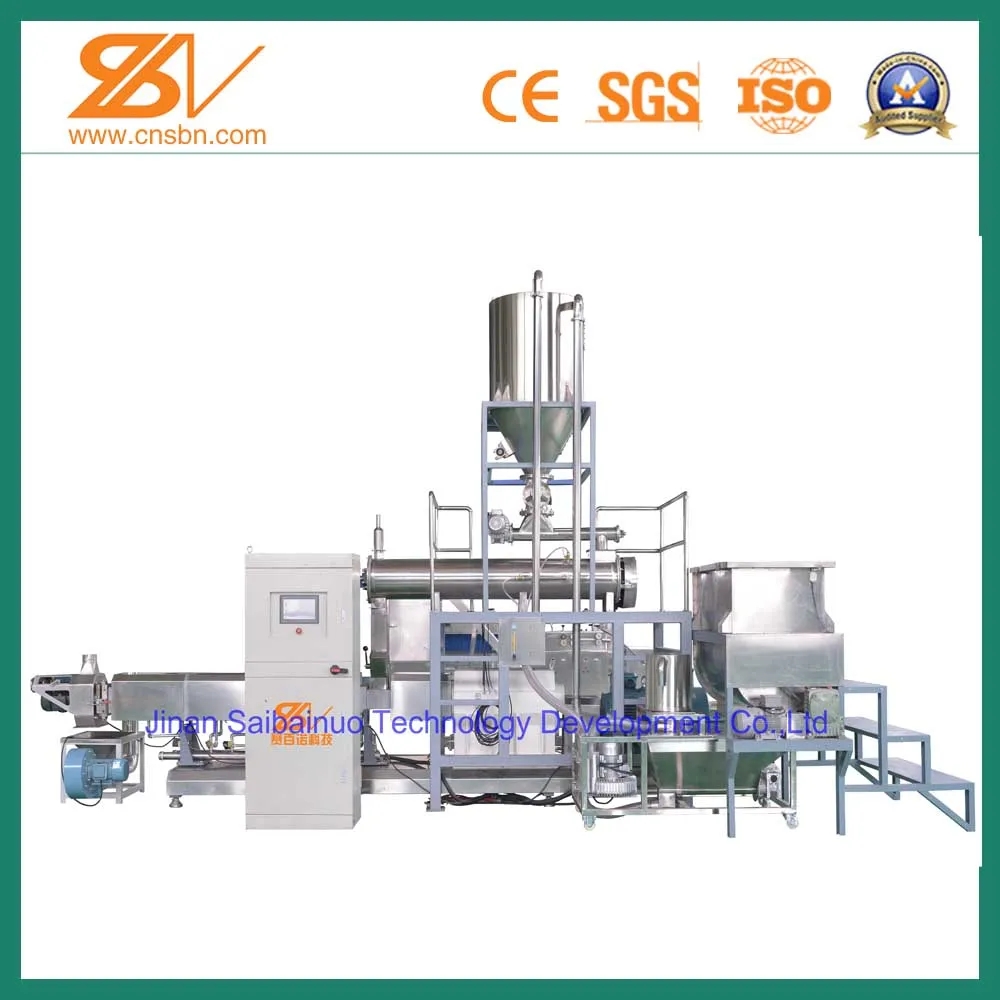

Tilapia fish feed machine extruder , floating fish feed processing line for sale
Product Description
Popular fish feed producing equipment is a new-style line,according to the needs of the market development of new - style feeding equipment,which is developed successfully with our many years' exploit experiences on poultry feed machinery.

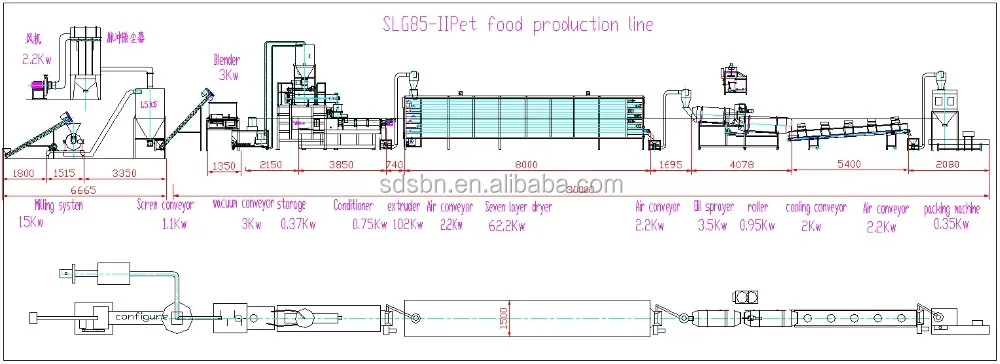

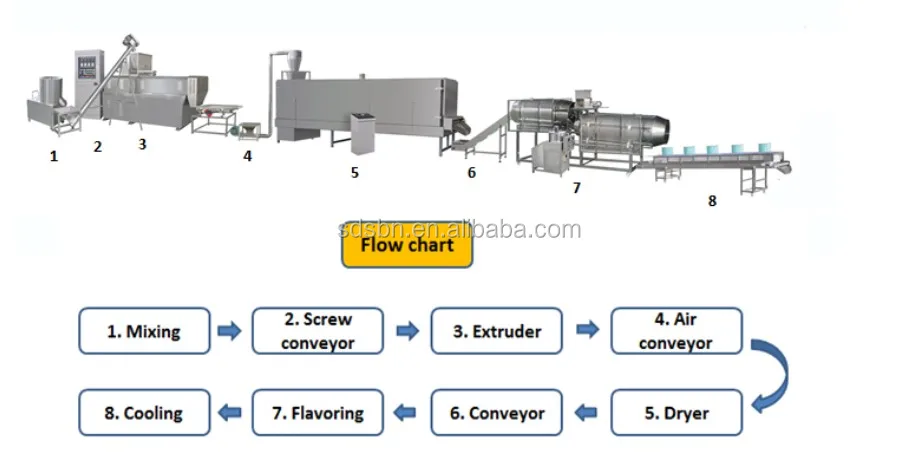

1.Flow Chart :
Raw material→ flour mixing →conveying→ conditioning→ inflating→ conveying→ drying→ sifting→ spraying oil→ flavoring
2.Technical parameters ;
| SLG 65-III | SLG70-II | SLG85-II | SLG95-II | SLG120-II | SLG135-II | ||
Installed capacity | 80KVA | 105KVA | 115KVA | 130KVA | 250KVA | 300KVA | ||
Power | 58Kw | 70Kw | 80Kw | 110Kw | 160Kw | 200Kw | ||
Output | 140-160kg/h | 240-260kg/h | 500-600kg/h | 800-1000kg/h | 2.5-3Ton/h | 4.5-5Ton/h | ||
Dimension | 22×2×4m | 24×2×4m | 28×2×5m | 35x2x5m | 40x2x5m | 45x2x5m |
3.Production line advantage:
1. The motor of our is Siemens Motor.
2. The raw material is Stainless Steel.
3. Our are controlled by frequency changer, it is easy to operate.
4. Our factory will send our engineer to install machines for you.
5. 1 year guarantee time.
6.Multi-function.

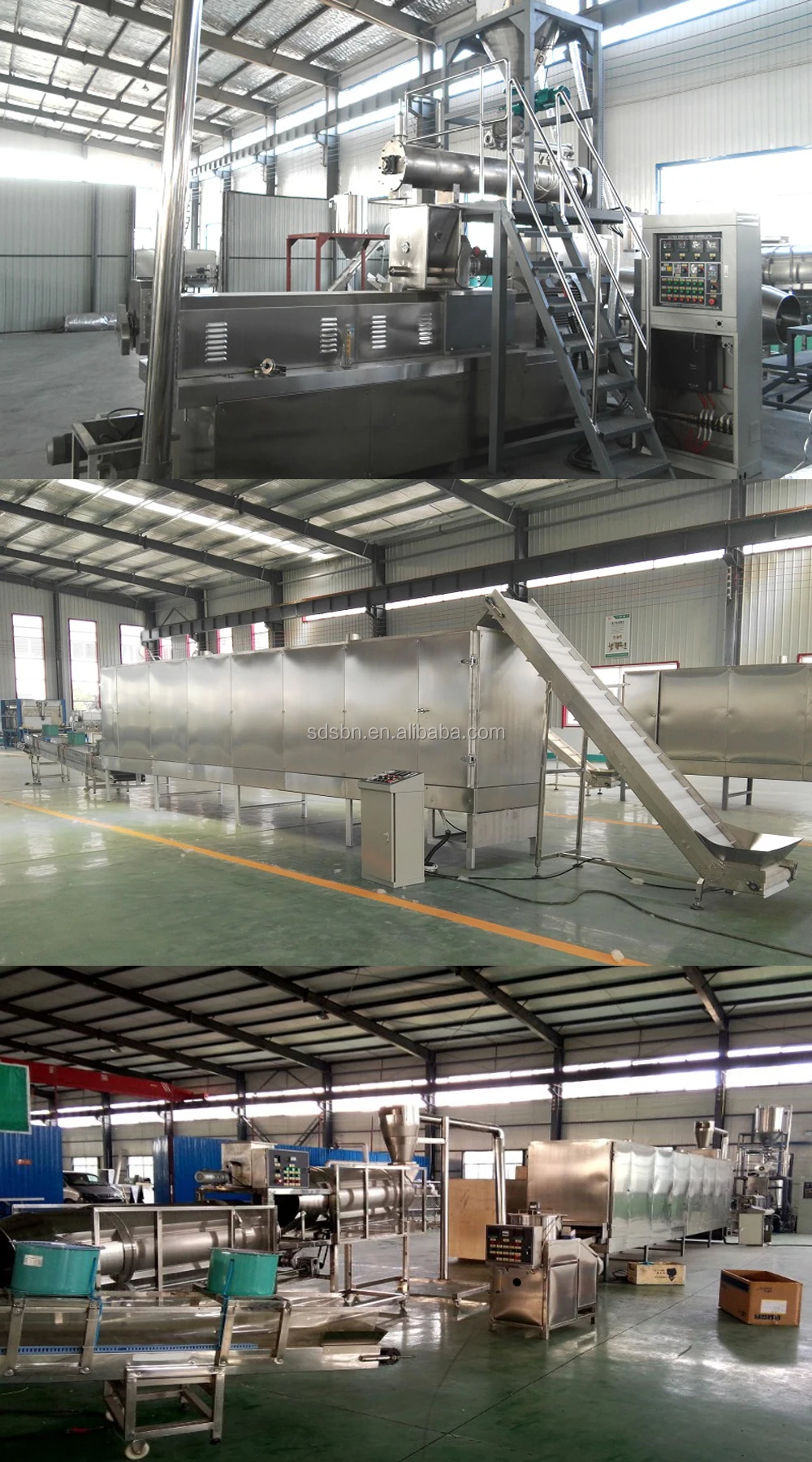

Production Flow
Every parts of the machien is the best quality.Ecery step of the production will be done by the experienced and professional worker.

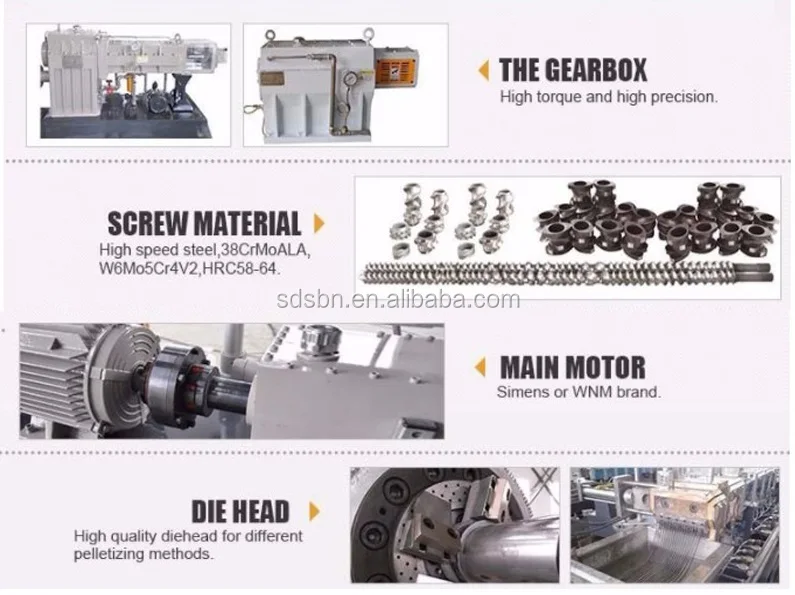

Process line details
NO. | Machine | Intalled power (kva) | Real power(kw) | Specification |
1 | Mixer | 3 | 2.8 | 25kg/6min Mixing the raw material and other additives fully. |
2 | Screw conveyor | 1.1 | 0.77 | Screw turns to make the raw material convey in the sealed tube, no leaking and no pollution. |

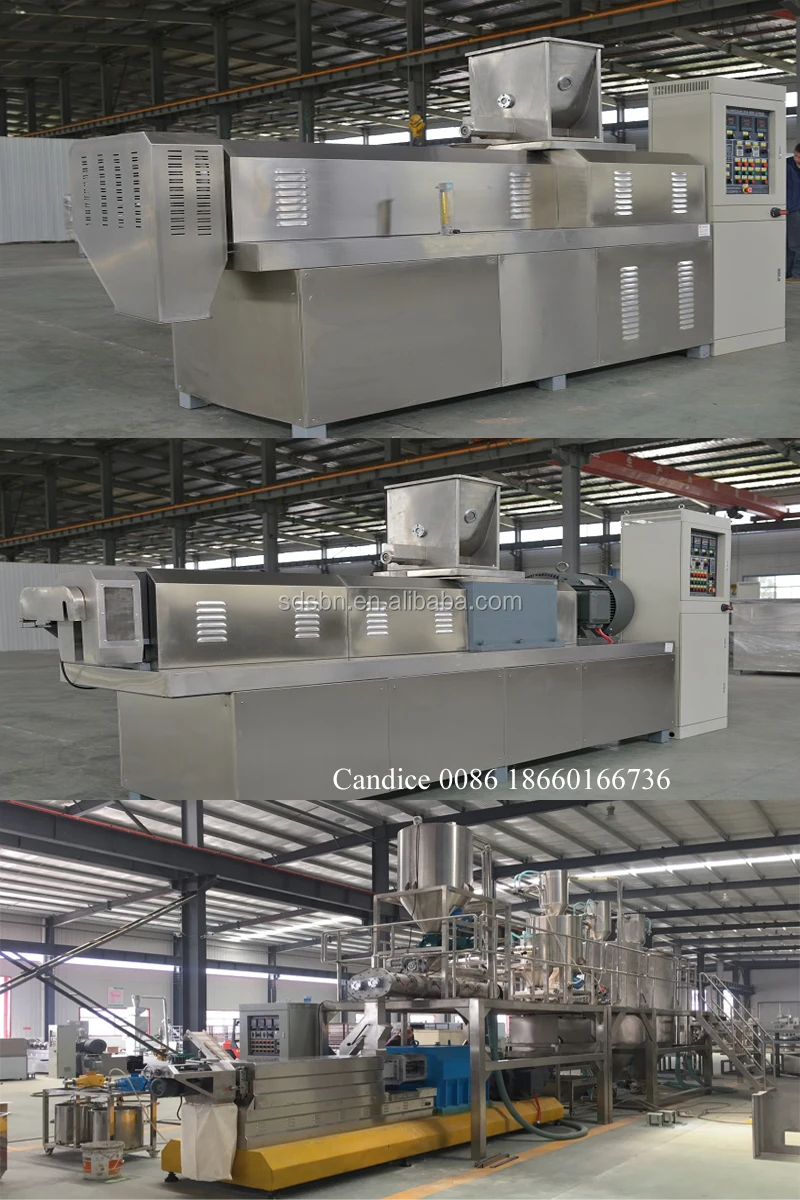

3 | Twin-scew extruder | 80 | 59 |
The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer. |
4 | Air conveyor | 1.1 | 1 | 1.conveys the food relying on the wind-force from the blower |
5 | Oven | 60 | 40 | 1.ectric oven. 2.used to bake and dry food |
6 | Elevator | 1.5 | 1.2 | Evator conveys the food from the discharge port of oven to the feed charge port of roller.
|
7. | oil sprayer | 5 | 4 | 1.l sprayer may make the liquid oil and the solid fat be heated, then spray the food surface by the oil pump. |
8 | roller | 0.75 | 0.65 | sprays the oil from the feeding end of the roller then sprays the flavoring on the surface |
9 | Cooling machine | 2.2 | 1.54 | Conveyor and funs make the pasta cool and shape. |
Packaging & Shipping
Our Services

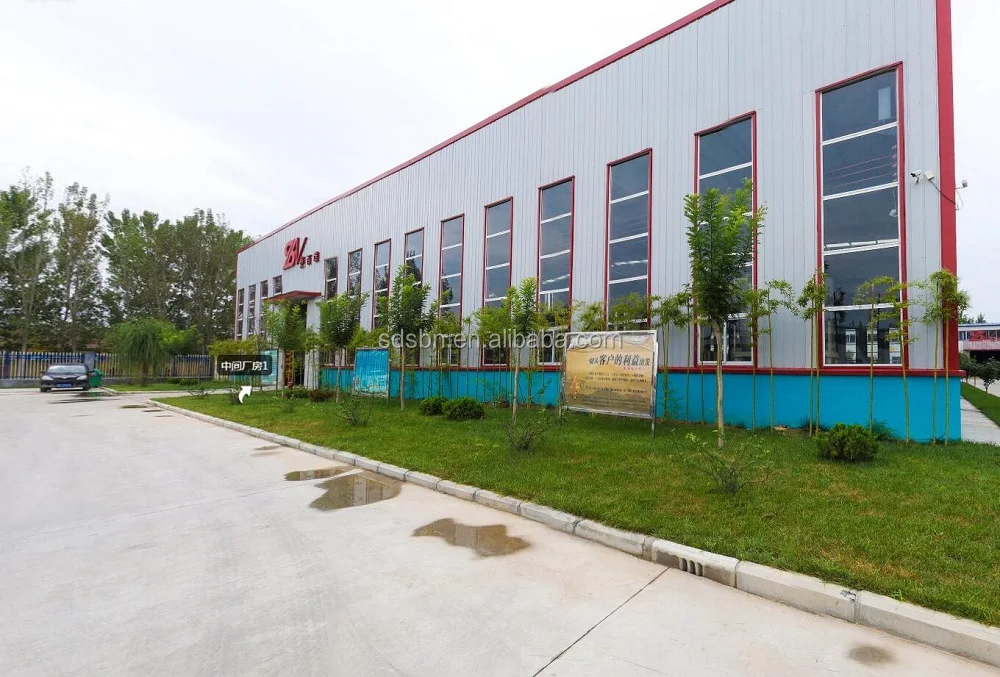

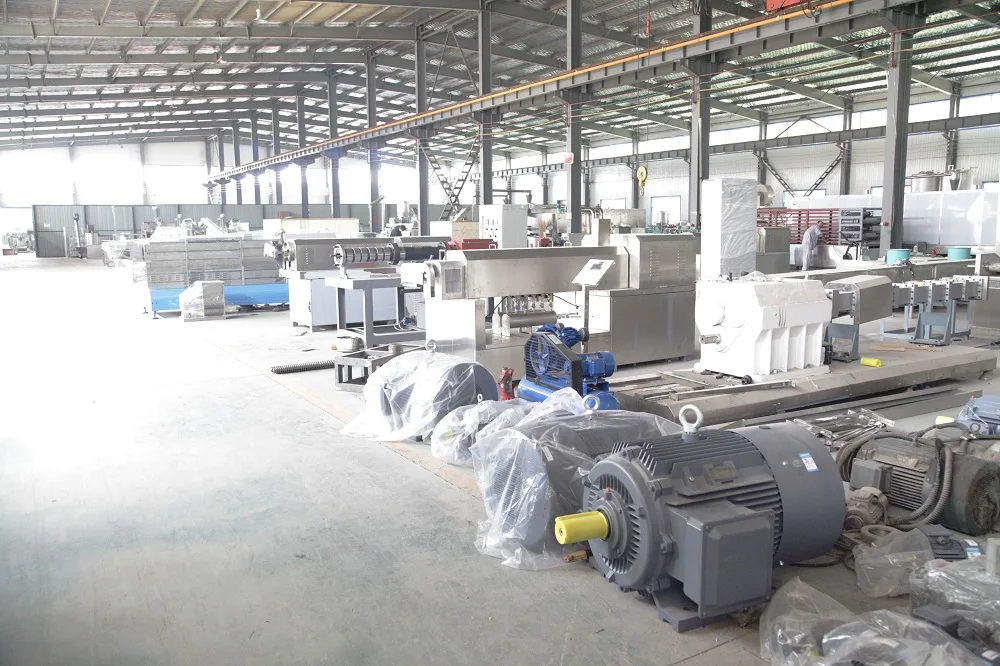

Factory&warehouse
Factory standing area:30000 square meters Workshop standing area:20000 square meters.
Office area:5 floor with 600 square meters.
