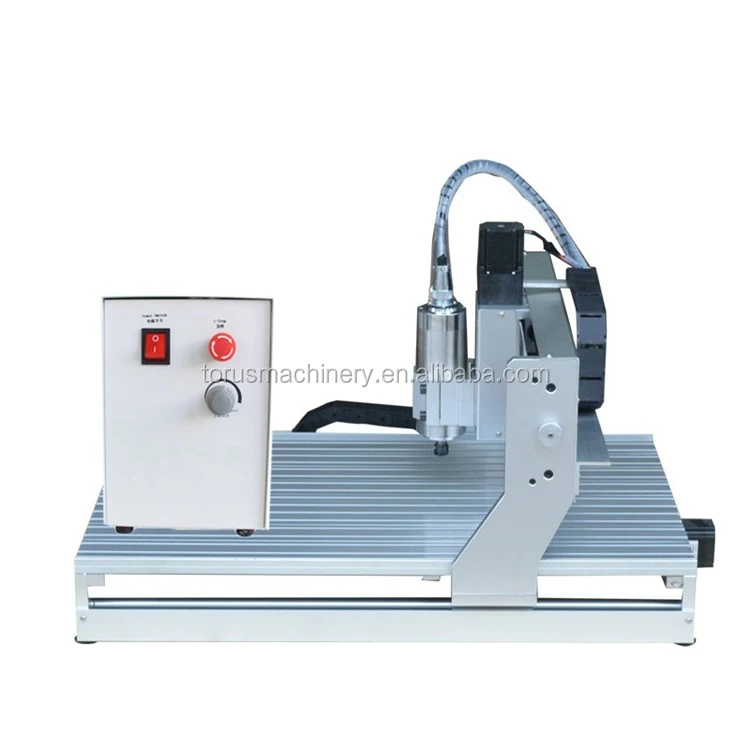

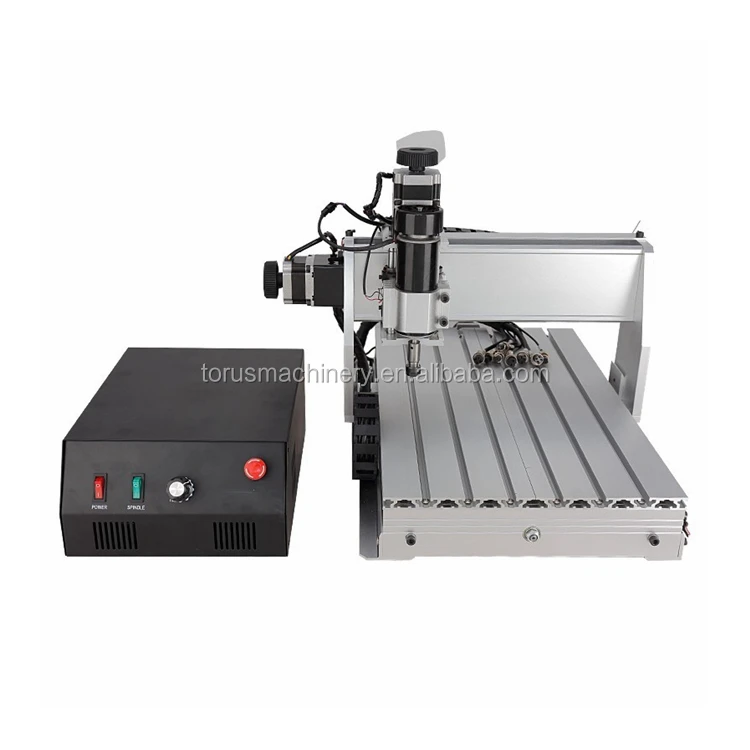

1530 cnc router for wood aluminum copper acrylic pcb

Product Overview

Description

1530 cnc router for wood aluminum copper acrylic pcb

1530 cnc router for wood aluminum copper acrylic pcb

Feature of CNC router:

1530 cnc router for wood aluminum copper acrylic pcb

Description	Parameter
X,Y Working Area	600*900mm
Z Working Area	110mm
Resolution	+0.01mm
Lathe Structure	Cast-iron structure
X,Y Structure	Ballscrew transmission
Z Structure	TBI  ball screw, Hiwin square guide rail
Max. Idling Speed	8m/min
Spindle	2.2KW/1.5kw
Spindle Rotate Speed	0-24000r/min, variable speed
Inverter	Fuling
Working Voltage	AC220V/50Hz,Single Phase
Working Mode	Sub-division Stepper motor
Driver	Leadshine860
Command	G code,HPGL,U00,mmg,plt
Operating System	Ncstudio or DSP with USB interface
Diameter of cutter	φ3.175-φ12.7mm
Cooling Mode	Water-cooling
Work-holding	By Clamp
Net Weight	300KGS
Gross Weight	350KGS

Applications of CNC router

Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising plate, Led Lamp.

Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal

plate, artifical marble and other metal and non-metal materials.

Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.

It is widely used furniture industry, decoration, industrial equipment parts, music instrument, molds, art &

craft, building models, and advertisement industry.

1530 cnc router for wood aluminum copper acrylic pcb

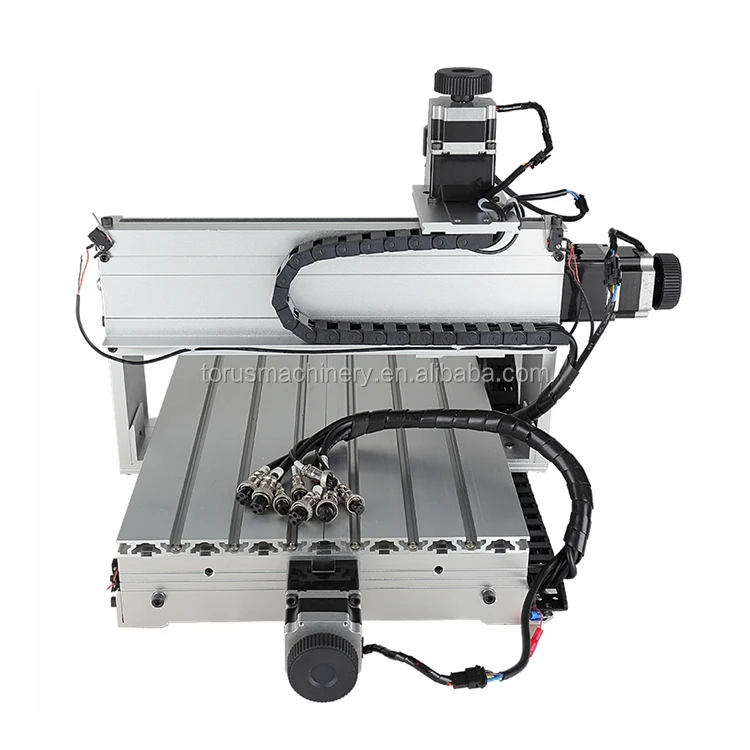

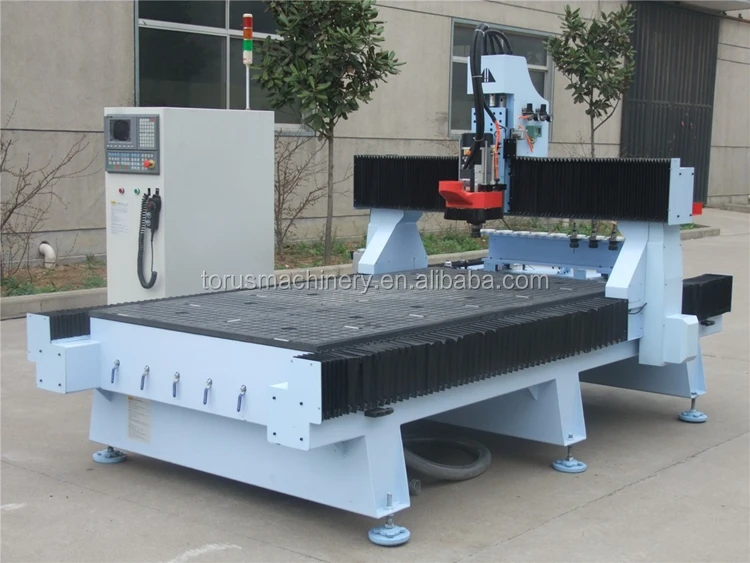

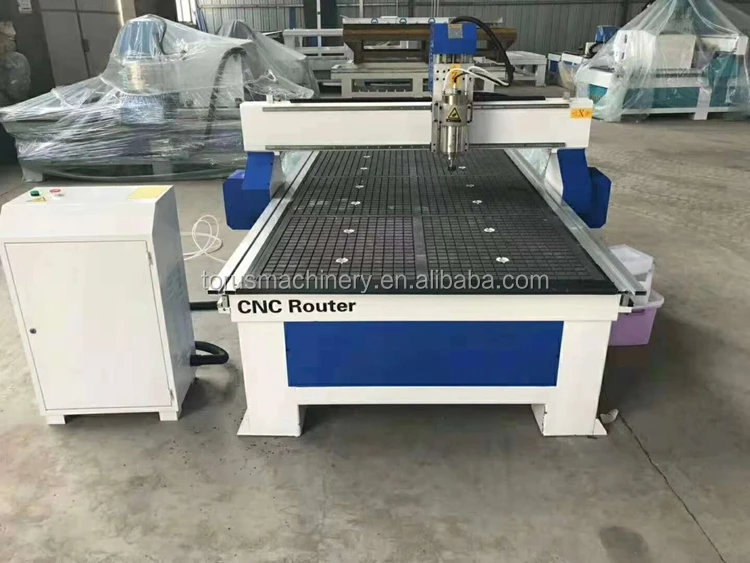

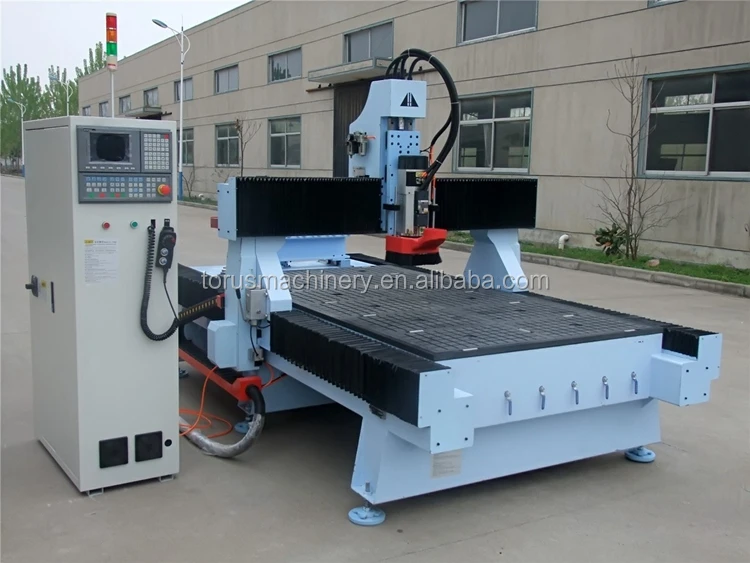

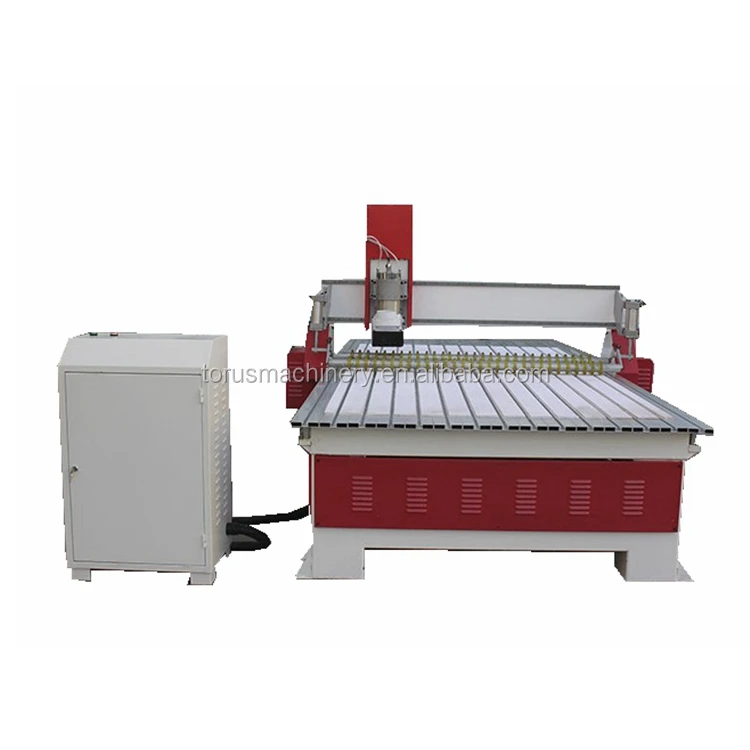

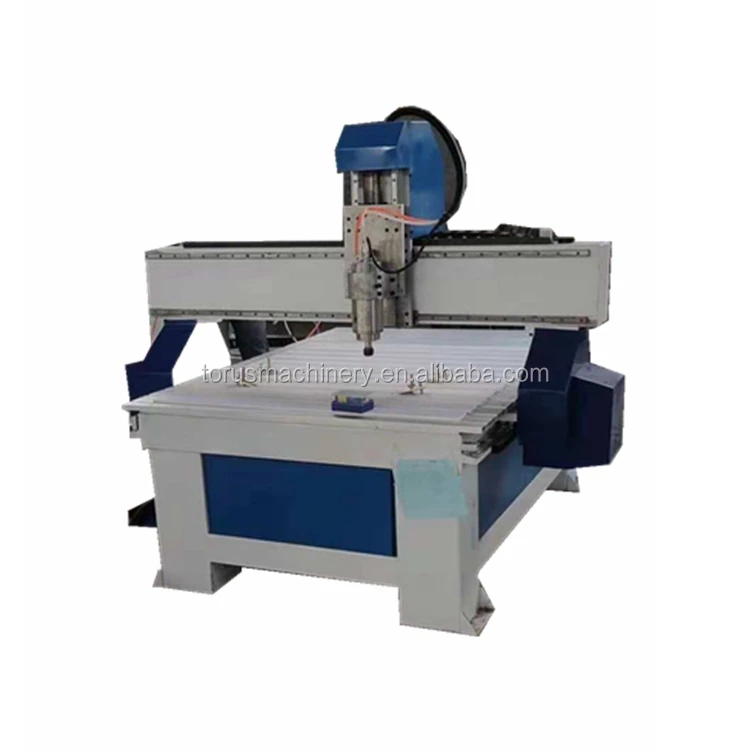

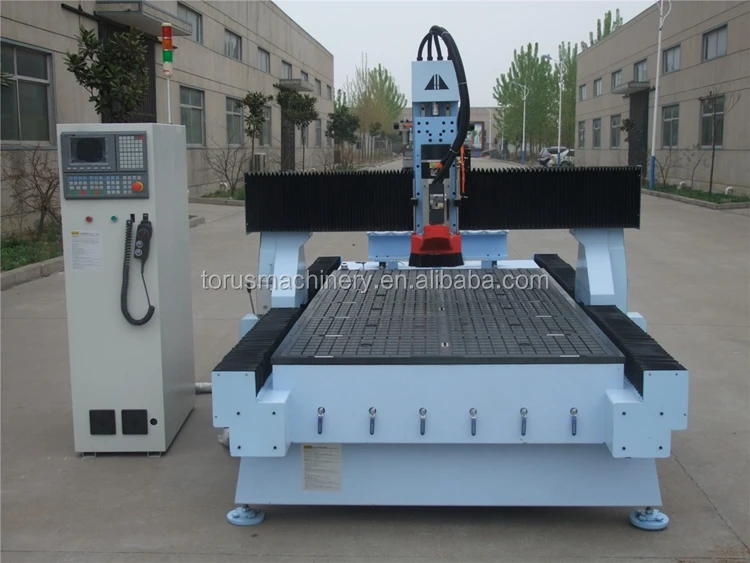

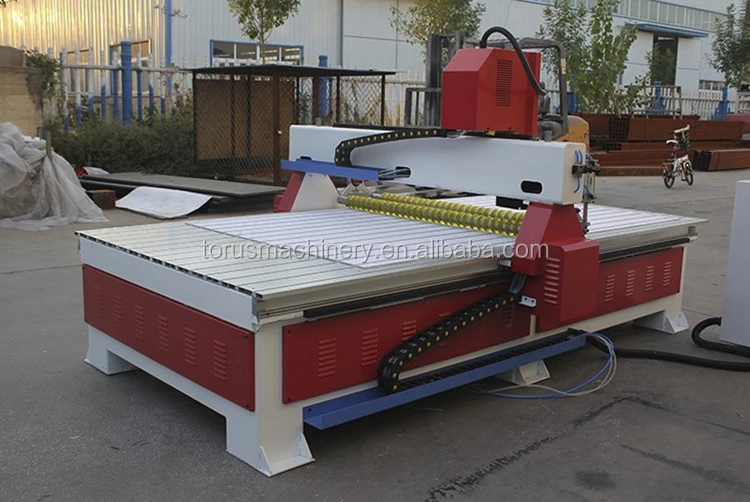

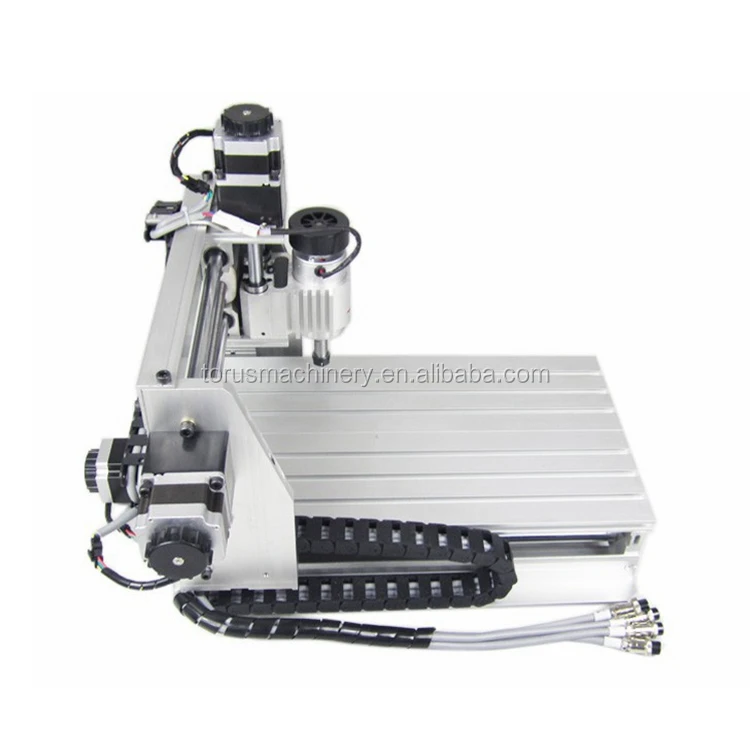

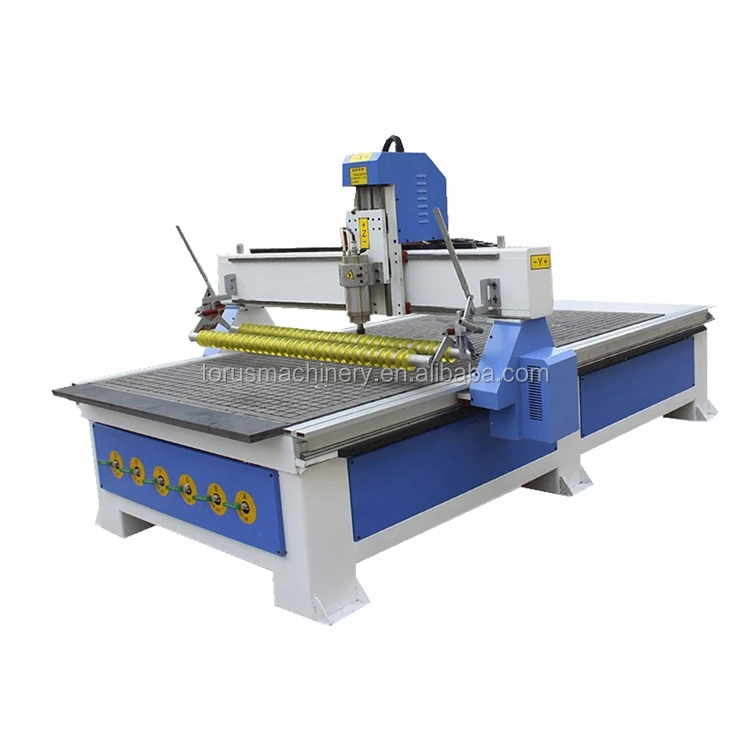

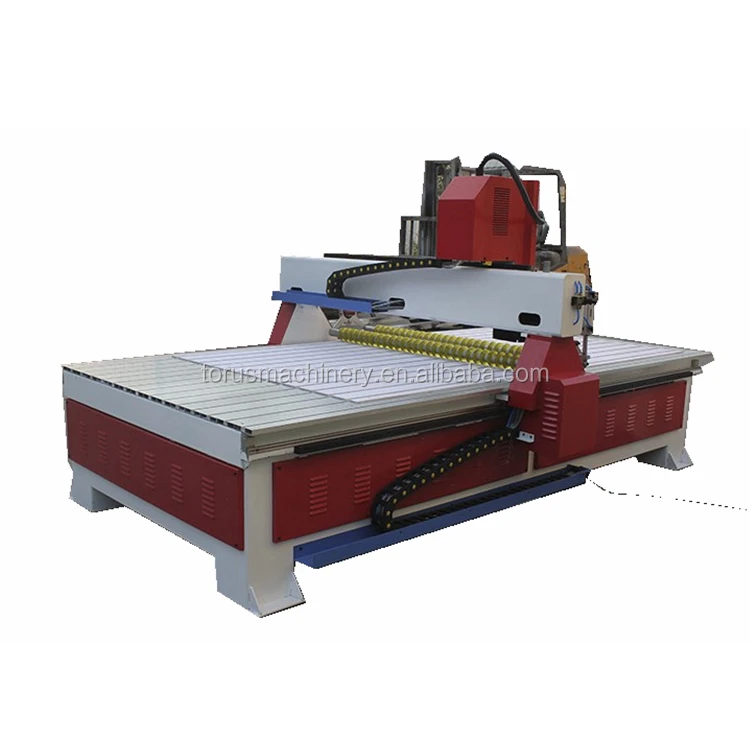

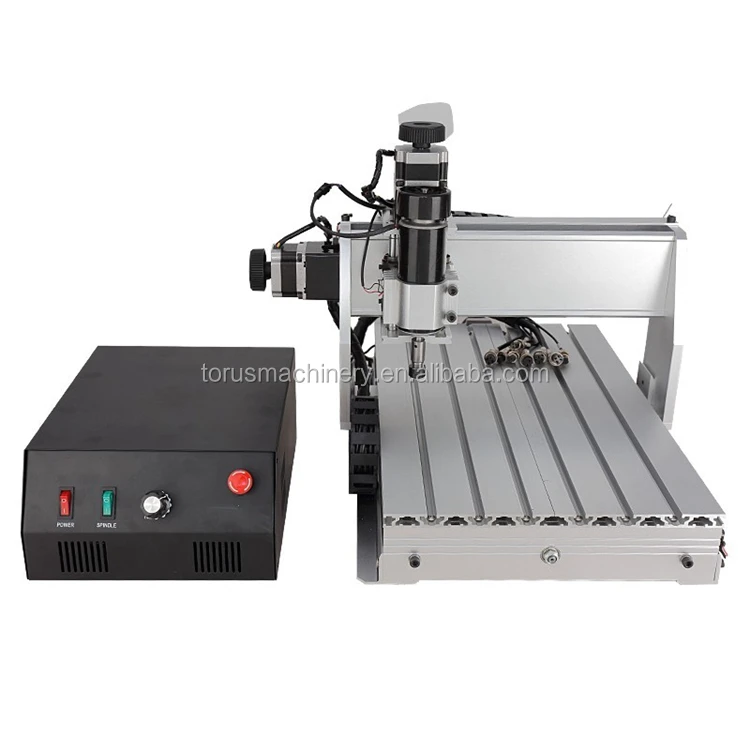

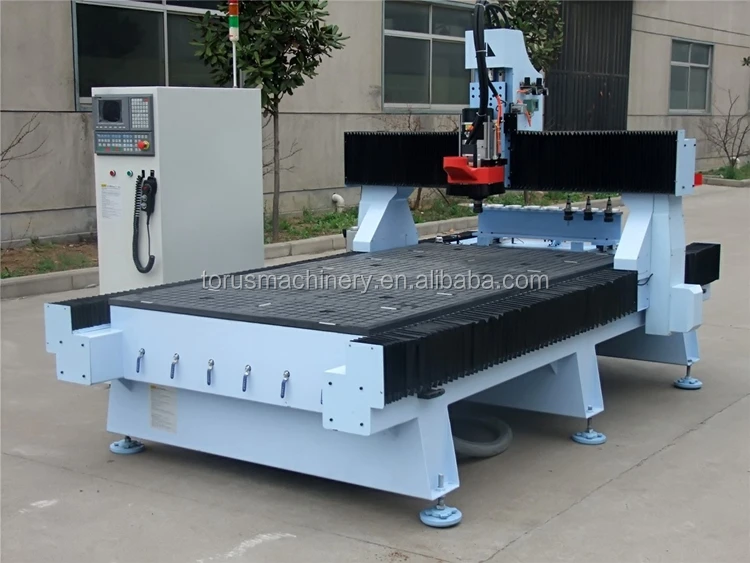

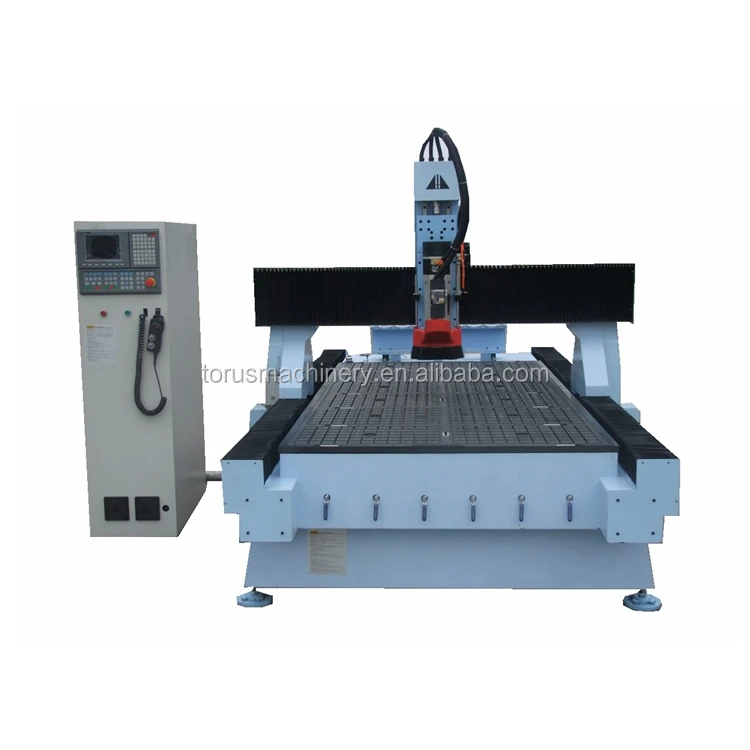

Products show of CNC router:

1530 cnc router for wood aluminum copper acrylic pcb

1530 cnc router for wood aluminum copper acrylic pcb

buffering air fill cushion

We can deliver the goods to you by sea,by air,by express or by land transportation.We will try my best to make you get the goods faster and safe.

1. Help you choose the most suitable machine.
2. Making the machine according to your request.
3. Give you machine’s details and video for help you use the machine more better.
4. One year warranty
5. Quality problem,we will send you the accessories.
6. Free repair whole using life without extra charge.
