Ipretech D7165 EDM Die Sinking Machine Sparking Erosion Machine High Precision Machine

Product Overview

Description

Product Description

Ipretech Machinery——Die Sinker is widely used in fields of mold, bulk production, electronic equipment, precision machinery, medical equipment, auto parts, aerospace and military industries, etc.

Specification	Unit	D7165
Worktable size	mm	1000*550
X-Y Stroke	mm	600*500
Z axis stroke	mm	250
Spindle head axis	mm	300
distance from electrode head to worktable	um	320-950
working tank inner size	mm	1600*920*550
Max. Electrode weight	kgs	250
workable loading	kgs	2500
Machine Overall size	mm	2050*1850*2450
Machine Weight	kgs	3500
Processing current	A	30/50/75/100
Positioning accuracy	mm	0.005
Repositioning accuracy	mm	0.003
Max.working speed	mm3/min	550/750/1050
Max. Roughness	um	Ra:0.2
Max.electrode consumption		<0.2%
Controller Overall Size	mm	750*650*1750
Controller Weight	kgs	200

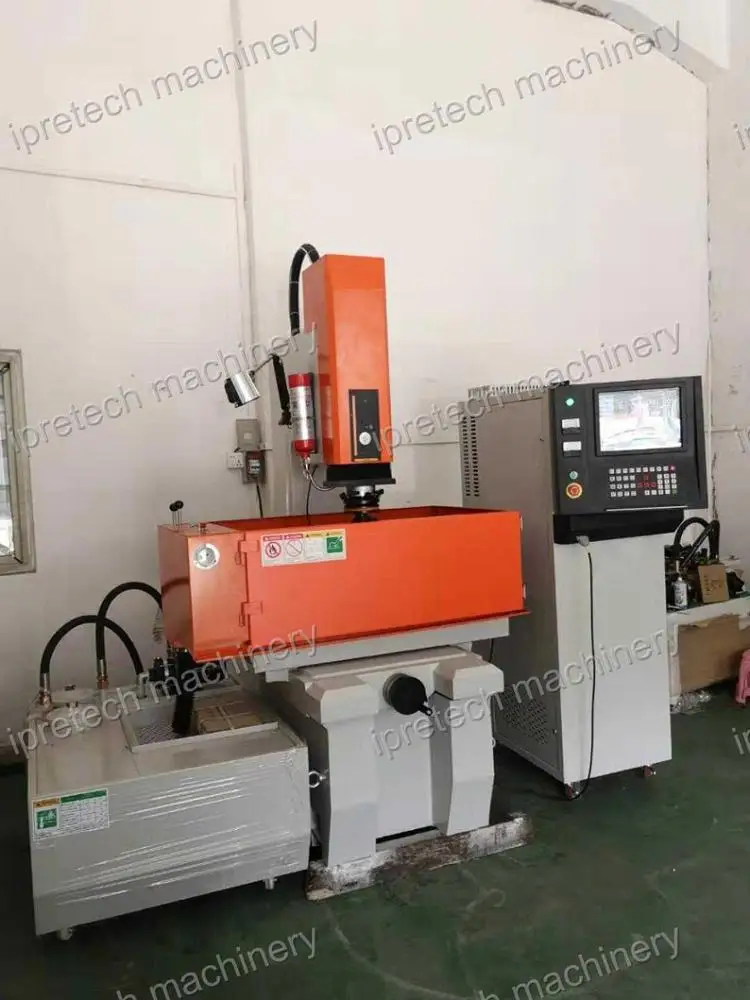

Machine Photo





Machine Features





·         Stable structure: HT250 casting materials, resin sand process, enhanced internal stiffeners, after 2nd tempering and natural aging, which reduces casting distortion. Guide rail after bearing steel forging through heat treatment, to reach the standard hardness and extend the using life.

·         High precision process: CNC EDM D7135, Taiwan C-Tek system, DC Servo Motor& Driver, equipped with Hiwin linear guide rail, PMI  Ball Screw, Maximum processing speed 360mm3/min, roughness Ra<0.2

·         Controller equipment: High integrated and intelligent of the electrical panel into only HF board and driving board, which is much easier for further maintenance and service.

Detailed Images









Our Service

1. Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

2. After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* One-year warranty.

*Free techinical support for machine life-sapn



Packing & Delivery

Packing: Wooden case

Delivery: Popular type 15-20 days, complicated or customized types for 20-30 days.









Company Information



Ipretech machinery company limited is an integrated research & development, manufacturing, import & export as one of the professional CNC machinery tool enterprises. Mainly engaged in a full ranges production of electric sparking series CNC machine and milling machine, machine center, CNC lathe and so on. Our company all products are independent research and development, design and manufacture by advanced design idea & method, the machine body adopts modularization, solid sealed box type structure, after artificial aging qualified castings and a long time the natural aging, obtain complete and reliable stability, with our company independent research and development of the circuit system and software, has excellent mechanical and electrical matching performance, thus greatly improve the stability of product electrical performance.



Under the leadership of our boss Mr.JiaYi, the company has gained two systems ----ISO9001:2000 Quality System Certification and ISO14001:1996 Environmental System Certification, And own appearance design patent certificate and utility model patent certificate, science and technology enterprise qualification certificate 16pcs, ALSO ovserve contracts and keep promises etc. qualification and honor. Ipretech machinery have grown up to be one of the Top EDM manufacturer and Exporter in China. Our market covers the United States, Mexico, Brazil, Argentina, Chile, South Korea, Indonesia, Malaysia, Vietnam, India, Pakistan, Russia, Turkey,Egypt, Italy, Poland, the Czech Republic, Hungary and the United Kingdom.
