USB NFC 13.56MHz RFID Contactless Smart Card Reader Writer ACR122u

Product Overview

Description

 USB NFC 13.56MHz RFID Contactless Smart Card Reader Writer ACR122u



General:

1. ACR122 is a PC-linked contactless smart card reader/writer developed on the 13.56MHz Contactless (RFID) Technology and followed the ISO/IEC18092 Standard for Near Field Communication (NFC), supporting not only Mif are® ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.
2. The ACR122 is a USB Plug and Play device with CCID compliance. By making use of up to 424 Kbps for NFC Tag access and full USB speed of up to 12 Mbps, the ACR122 can read and write faster and more efficiently. The proximity operating distance of ACR122 is up to 5 cm, depending on the type of contactless tag in use. Operating distance can be extended on request by adding an RF boaster, so the ACR122 is suitable for logistics and supply chain management.
3. In order to increase the security level, the ACR122 can be optionally integrated with an ISO7816-3 SAM slot. In addition, the ACR122 is available in module form for easy integration into bigger machines, like POS terminals, physical access devices and vending machines.
4. With excellent performance and flexibility, you can experience the convenience and benefits offered by the ACR122.

Feature:

• USB Full Speed (12 Mbps)
• USB PnP
• Bi-Color LED
• Built-in Antenna
• NFC Reader
• ISO/IEC18092 (NFC) compliant
• NFC Tags Access Speed = 424 kbps
• Contactless Smart Card Reader
• Support FeliCa card
• Support ISO 14443 Type A & B cards
  - MI FARE® cards (Classics, DES Fire)
• CCID Standard
• CE and FCC Certificated
• RoHS Compliant
• User Controllable Buzzer (optional)
• SAM Socket (optional)

Specification:

Dimensions	98 mm (L) x 65 mm (W) x 12.8 mm (H)
Weight	70 grams
Interface	USB Full Speed
Operating Distance	<= 50mm
Supply Voltage	Regulated 5V DC
Supply Current	200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature	0-50°C
Operating Frequency	13.56 MHz
Standards/Certifications	ISO14443 1-4, CE, FCC, RoHS Compliant
Operating System Support	Win98, Win ME, Win NT 4.0, Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7, Win 8 Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64, Win 8 x 64, Win 2012 x64 Windows CE 5.0 and 6.0 Mac Linux Android 3.1 and above

 13.56 mhz USB NFC RFID Contactless Smart Card Reader With Free SDK ACR122U

Application:

• Home Banking and Home Shopping
• E-commerce
• Checking the balance of electronic purses
• Network access control
• Customer Loyalty Program
• Identification and Authentication
• Ticketing
• Online gaming
• Parking and toll collection
• Automatic Fare Collection
• Public Transportation Terminals
• Physical Access Control
• Time attendance
• Vending machines
• Contactless public phones
• Logistics and supply chain management

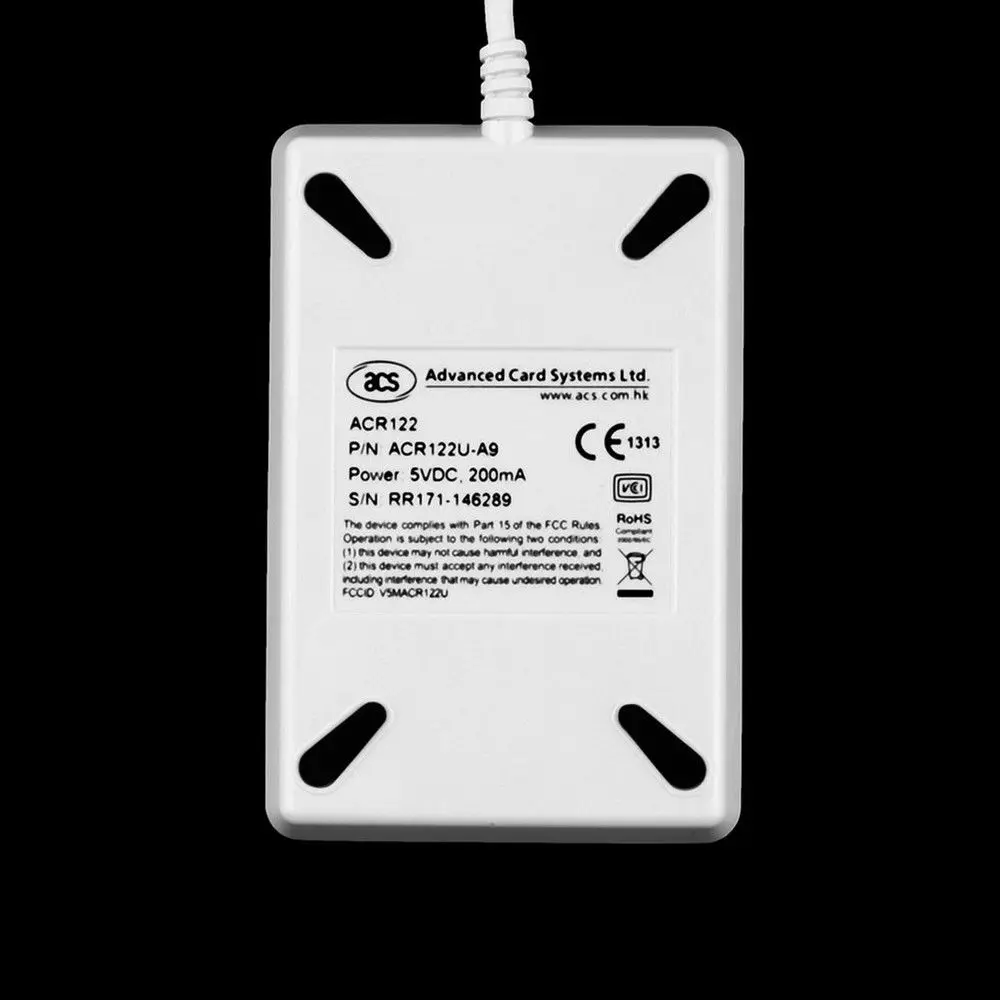

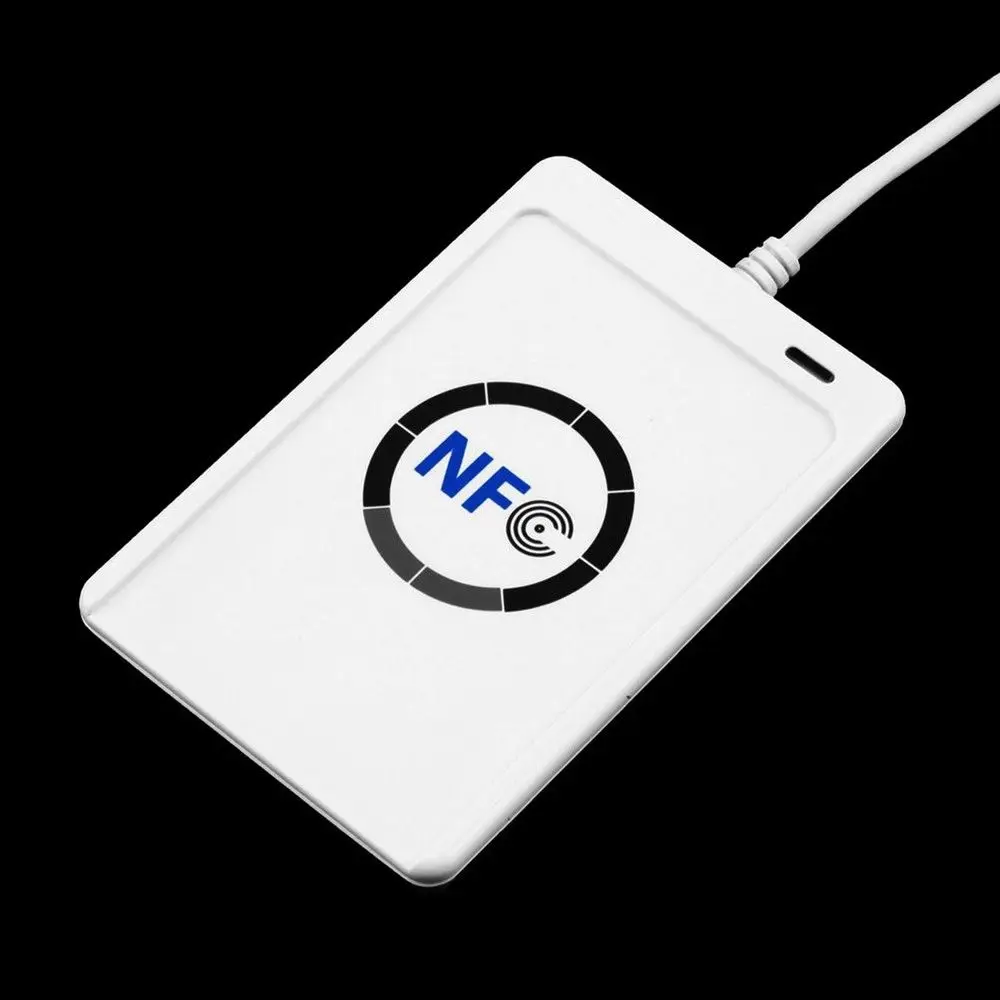

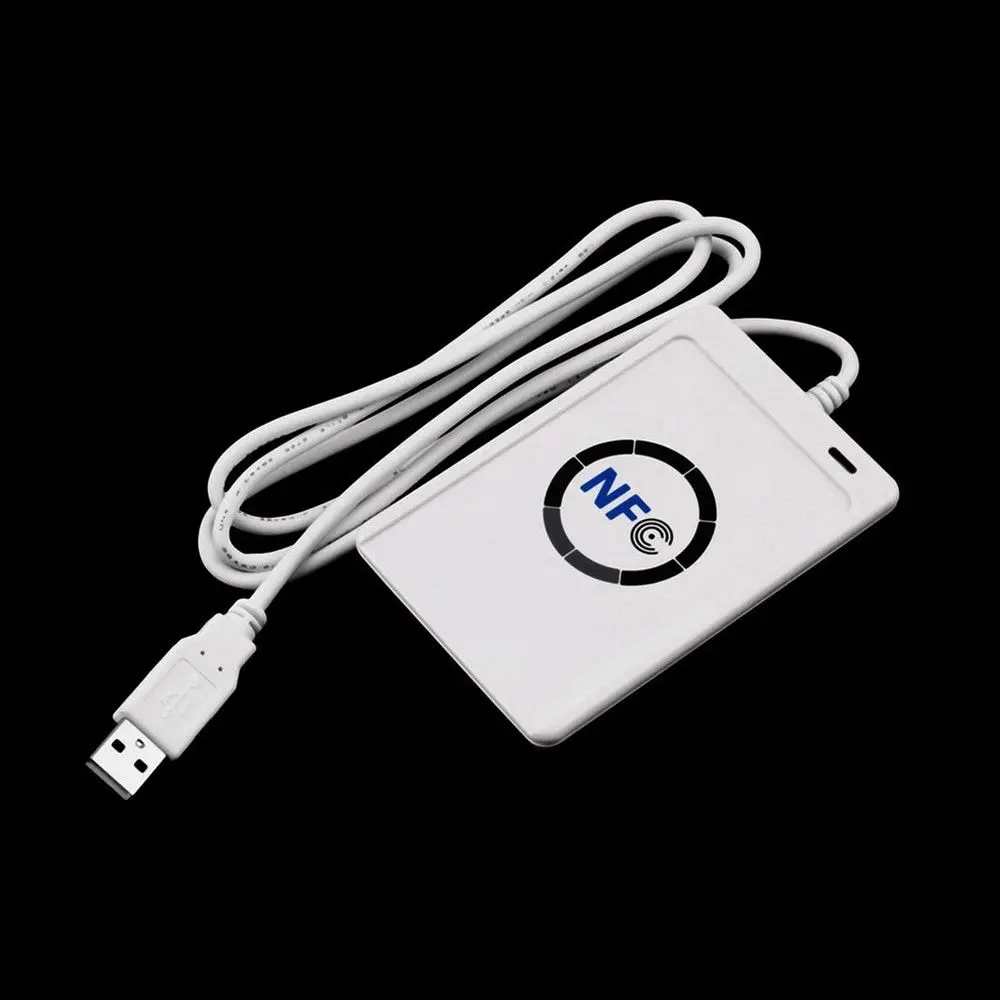

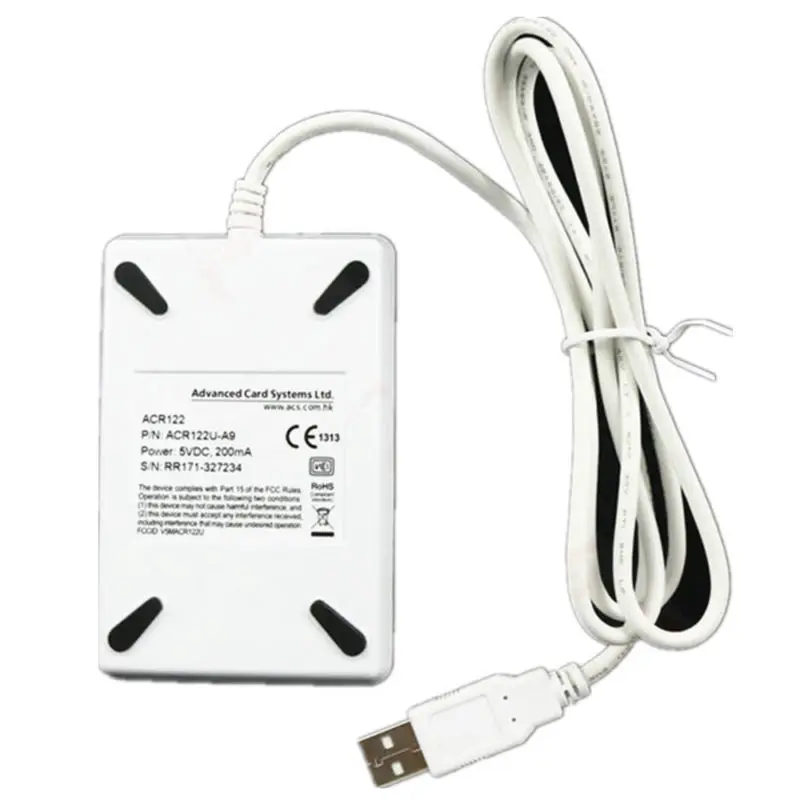

Picture Show:
