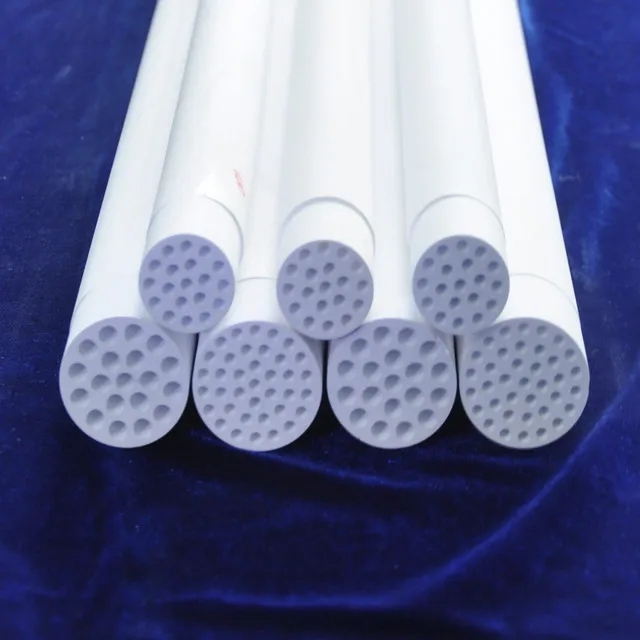

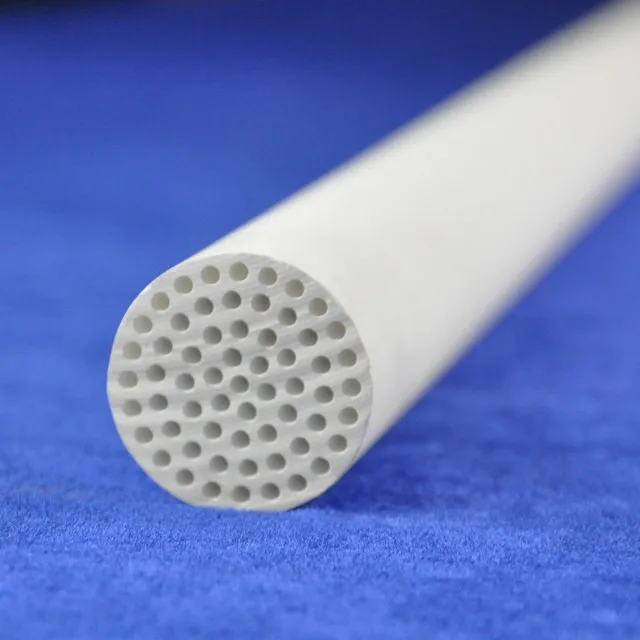

JIUWU Primary brine purification ceramic membrane filtration for use in the chlor alkali industry
- Category: >>>
- Supplier: Jiangsu Jiuwu Hi-Tech Co. Ltd.
Share on (60830613116):
Product Overview
Description
Product Description
Product Description
Ceramic Membrane Brine Purification Solution (hereinafter called CBS Process) is a well- proven process which can guarantee to offer high quality, stable and reliable primary brine for a long-term and is also an advanced process option for chlor-alkali companies.
CBS combines the characteristics of inorganic materials and the use of efficient "cross-flow" filtration which has greater advantages over other purification technologies.
CBS process can also be used for bittern vacuum salt making and the quality of solid salt produced is higher than that of clarification process which can be used as high-quality edible salt or chloralkali salt.
Product Description | Model | CMS |
Wetted Material | 316L | |
Construction | Multi-function membrane pilot test machine | |
Major application | University, Research institute, R&D of company | |
| ||
Standard Configuration | Membrane Housing | CMV19*4*2 |
Membrane area | 44 m2 | |
Circulation pump | Centrifugal type | |
Feed pump | Pump | |
Meter | Thermometer | |
| Pressure gauge | |
| Electronic cabinet | |
Stainless steel rack 316L (Four castors) |
| |
| ||
Control mode | Manual or Automatic | |
| ||
Operation condition | Operating Pressure | 1.5-4 bar |
Temperature | 0-100 ℃ | |
| ||
Application area | Food & Beverage | |
Bio- pharm | ||
Chemical & Petro- Chemical | ||
Water & Wastewater treatment | ||
Features | Advantages |
Exceptional mechanical resistance | Suited to high fouling liquids, viscous products, high concentration factors |
Ability to withstand upset conditions and high frequency backpulsing cycles | |
Long service life | |
Wide chemical and pH compatibility(0-14) | Easily sanitizable and sterilizable |
Suited to treating acid or alkaline feed | |
Long service life | |
Excellent thermal stability | Suited to continuous hot temperature operation and numerous CIP cycles |
Long service life | |
Cross-flow filtration | Continuous process |
No filter cake | |
Easy cleaning, CIP | |
Excellent inorganic materials | Easy maintenance, low maintenance cost |
Long work life |
Packaging & Shipping
Destination | Express delivery | Air cargo and ship cargo |
America | √ | √ |
Europe | √ | √ |
Southeast Asia | √ | √ |
Africa | √ | √ |
Company Information
JIANGSU JIUWU HI-TECH CO.,LTD (referred to as "JIUWU HI-TECH") was founded in 1997. In 2017, JIUWU HI-TECH has listed on Shenzhen stock exchange (stock code: 300631). Now it becomes the largest ceramic membrane manufacturer in the world.
JIUWU HI-TECH has many unique applications in the world, more than 50 patents about ceramic membrane, system and process application. JIUWU HI-TECH’s products could be used in many applications, such as Food &Beverage, Bio-pharm, Environmental and Chemical industry, etc.
FAQ
What’s the benefits of cross-flow filtration ?
A continuous process, easily automated;
Exclusively physical separation that does not alter the products ;
A closed system that eliminates contamination risks ;
Applicable to many industrial processes
