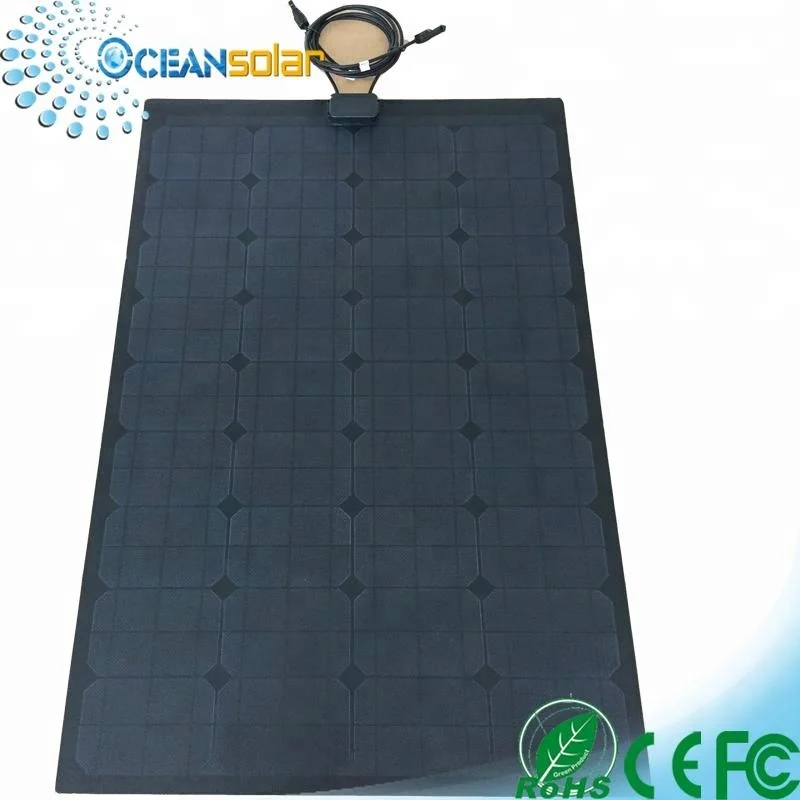

ETFE high efficiency 100w semi flexible solar panel for greenhouse charge
- Category: >>>
- Supplier: Guangzhou Ocean Solar Power Technology Co. Ltd.
Share on (60830635409):
Product Overview
Description
Product Introduction

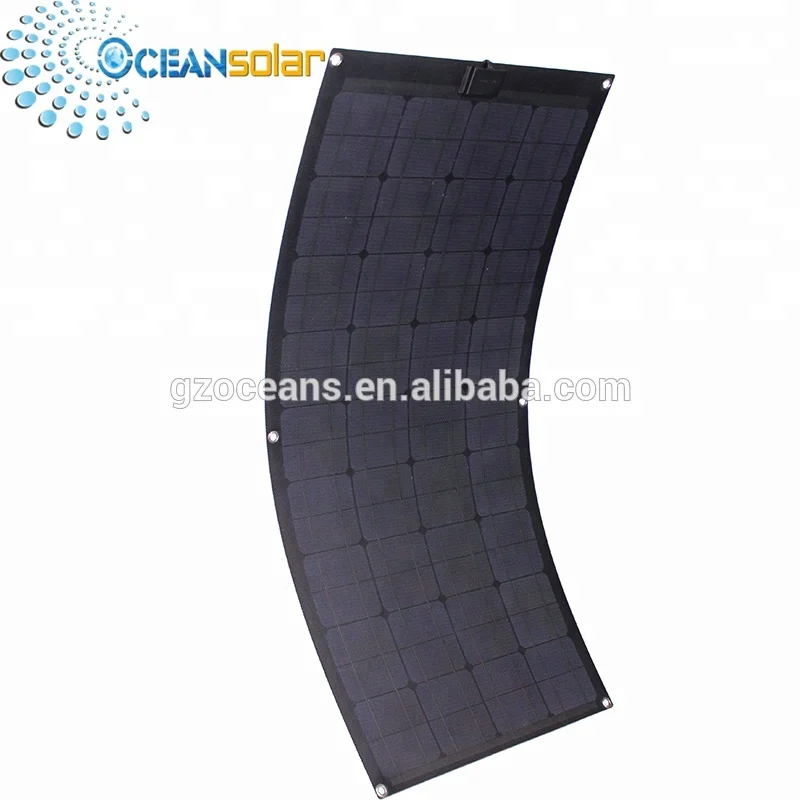

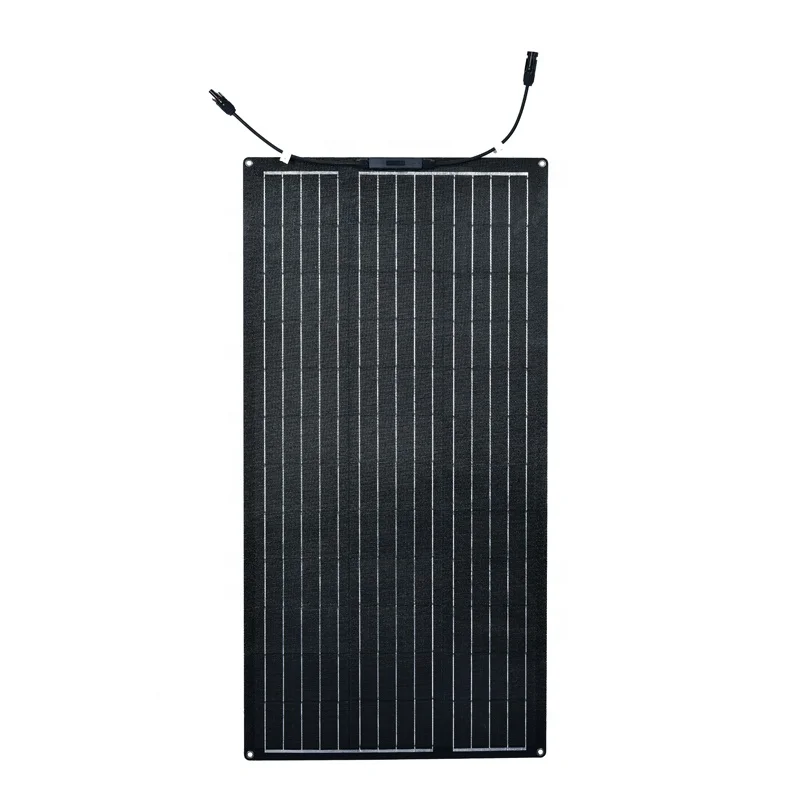

100W flexible solar panel
This 100W semi flexible solar panel can be widely used on yacht, boat, RV roof and so on. Our 2nd generation newest product main advantage is higher efficient in producing power, more light in weight and more water proof and durable in long use.
Mechanical Data:
1).Flexible Angle : up to 10 degree
2).Back Sheet: KPE TPE OR Fiberglass
3).J-Box: IP 67 rated
4).Thickness of solar panel: 2mm

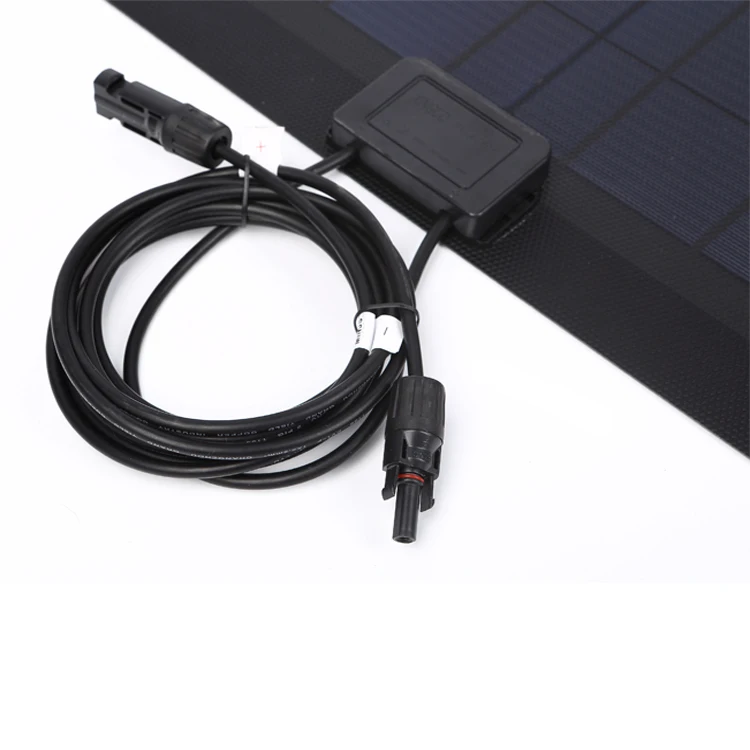

5).Cables/Connector: 0.9meters, 2*2.5mm2 cable with waterproof connectors
6).Type of Solar Cells: 166 Monocrystalline silicon cells.
7).Eyelets: 4pcs in the corners
8). By pass diode: 2pcs (10A for each )
Product Parameters
Model No. | OS100-18MFX |
Power | 100W |
Vmp | 18V |
Solar cell | 166 mono solar cell |
Cell Efficiency | 20%-22% |
Material Structure | ETFE/EVA/Cell/EVA/Fiberglass |
Bending | 10°(Degree) |
Waterproof Grade | Grade IP 67 |
Panel Thickness | 2.5MM |
Backboard Color | White and Black Optional |
Imp | 6.67A |
VOC | 21.24V |
Isc | 7.34A |
Size | 825*700*2.5 mm |
Net Weight | 2.5kg |
Product Details Show
Advantages:
* Good Performance: High efficiency and stable 166 mono solar cell ensure max output power.

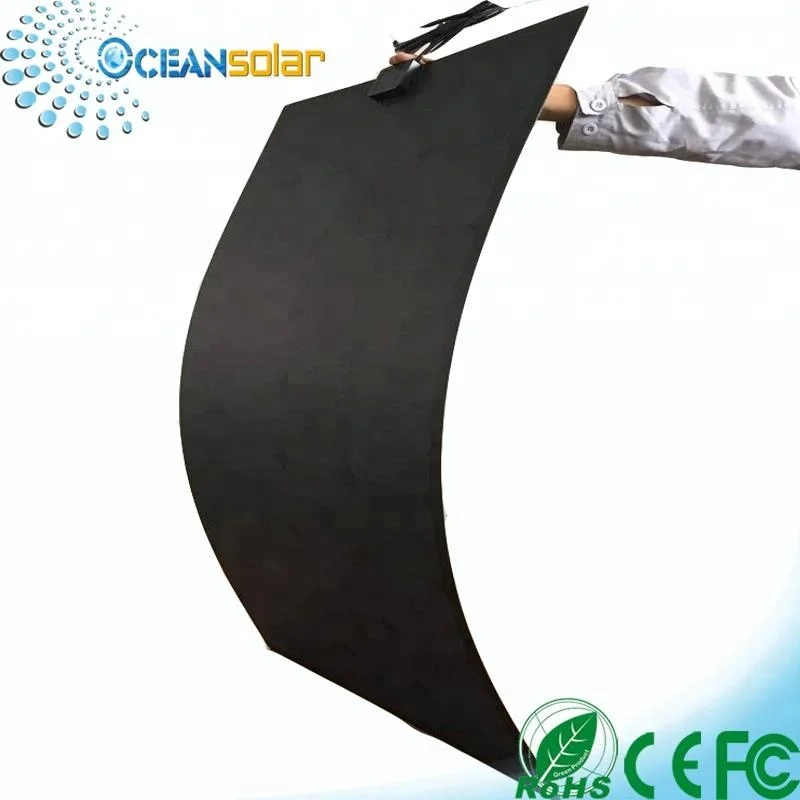

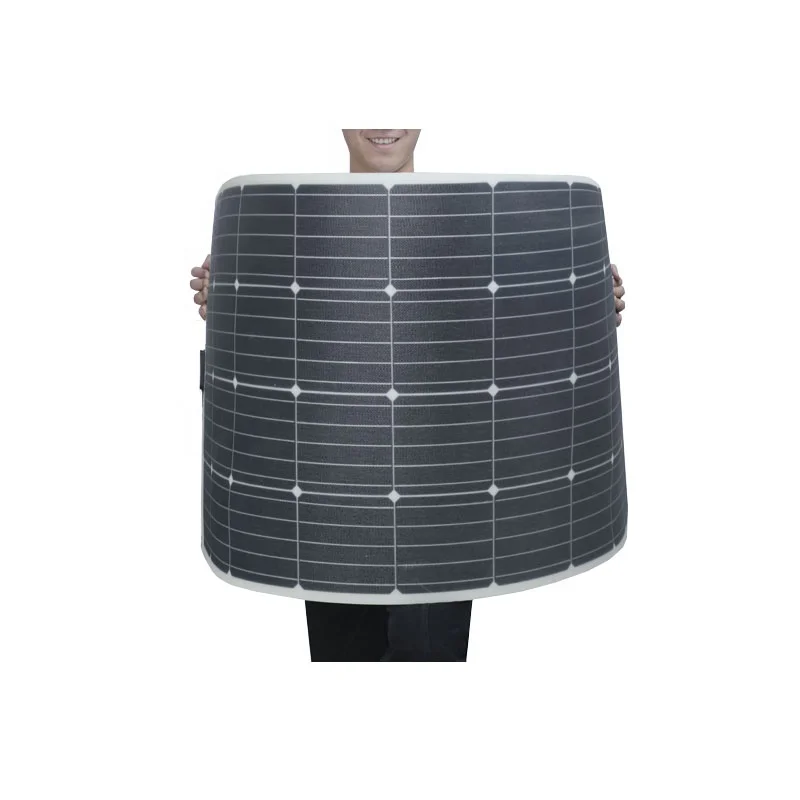

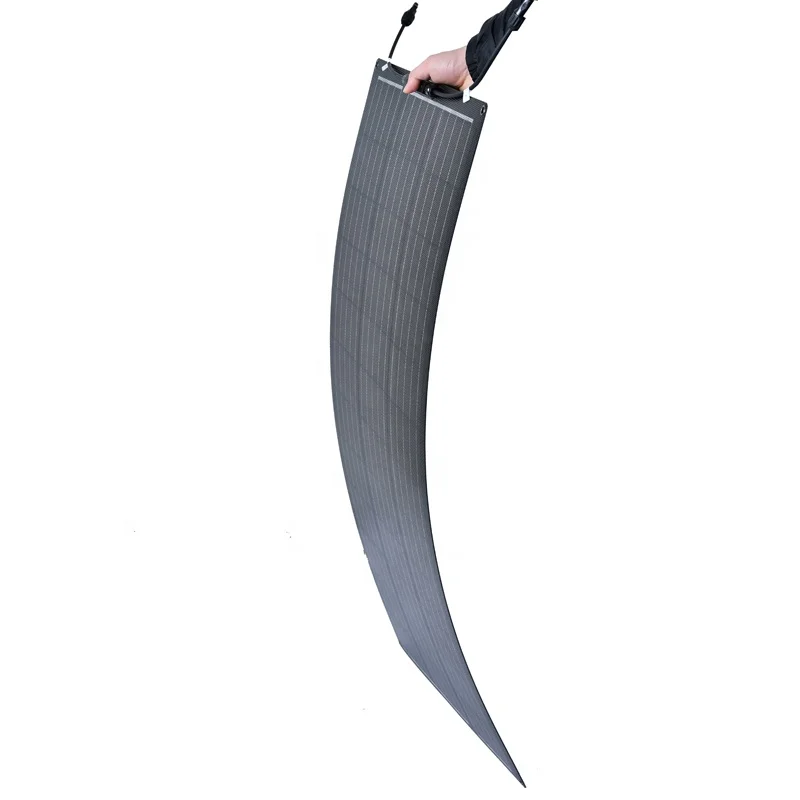

* Bendable Panel: Panel can be gently flexed, bended angle up to 10 degree, can be mounted on a Curved Roof or any other irregular surface.

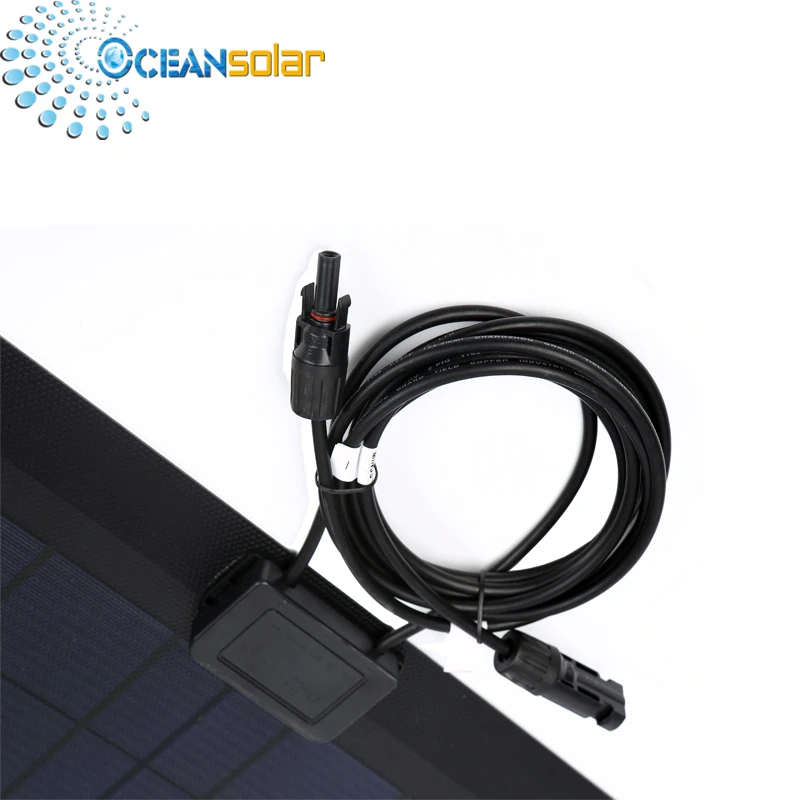

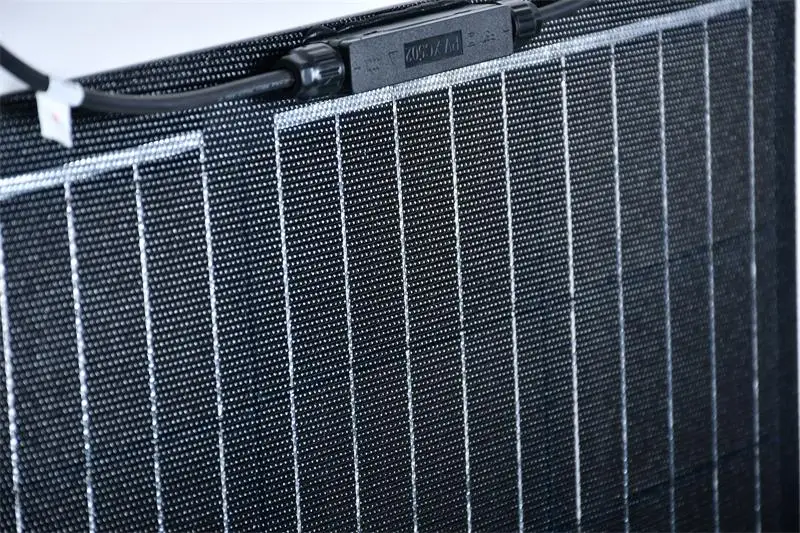

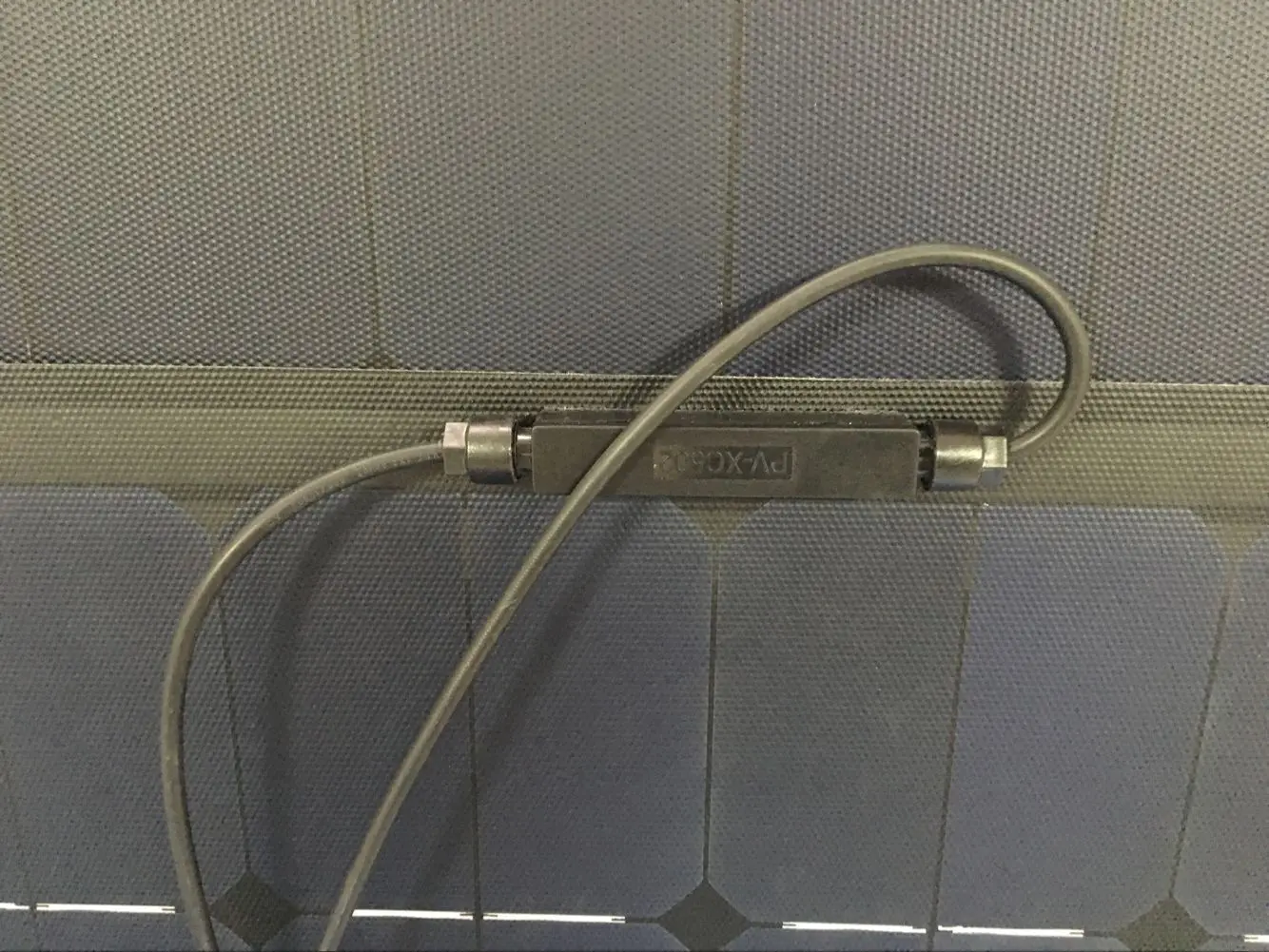

* Super Waterproof: The junction box is sealed and waterproof, MC4 connectors comes with the panel automatically.
* Excellent Durability: Semi-Flexible ,Water Resistant, and Ultra Durable Solar Panel, ideal for RVs, boats etc.
* Quality and Grade: CE and ROHS certified. IP67 waterproof grade.
* Unique Material: Anti-corrosion, anti-fouling, easy to clean, and extend the life of solar panel.
* Bendable Panel: Panel can be gently flexed, bended angle up to 10 degree, can be mounted on a Curved Roof or any other irregular surface.
* Super Waterproof: The junction box is sealed and waterproof, MC4 connectors comes with the panel automatically.
* Easy Installation: Reinforced mounting holes at each corner for fixing screws, make it easier to hang, and remove.
* Excellent Durability: Semi-Flexible ,Water Resistant, and Ultra Durable Solar Panel, ideal for RVs, boats etc.
* Quality and Grade: CE and ROHS certified. IP67 waterproof grade.

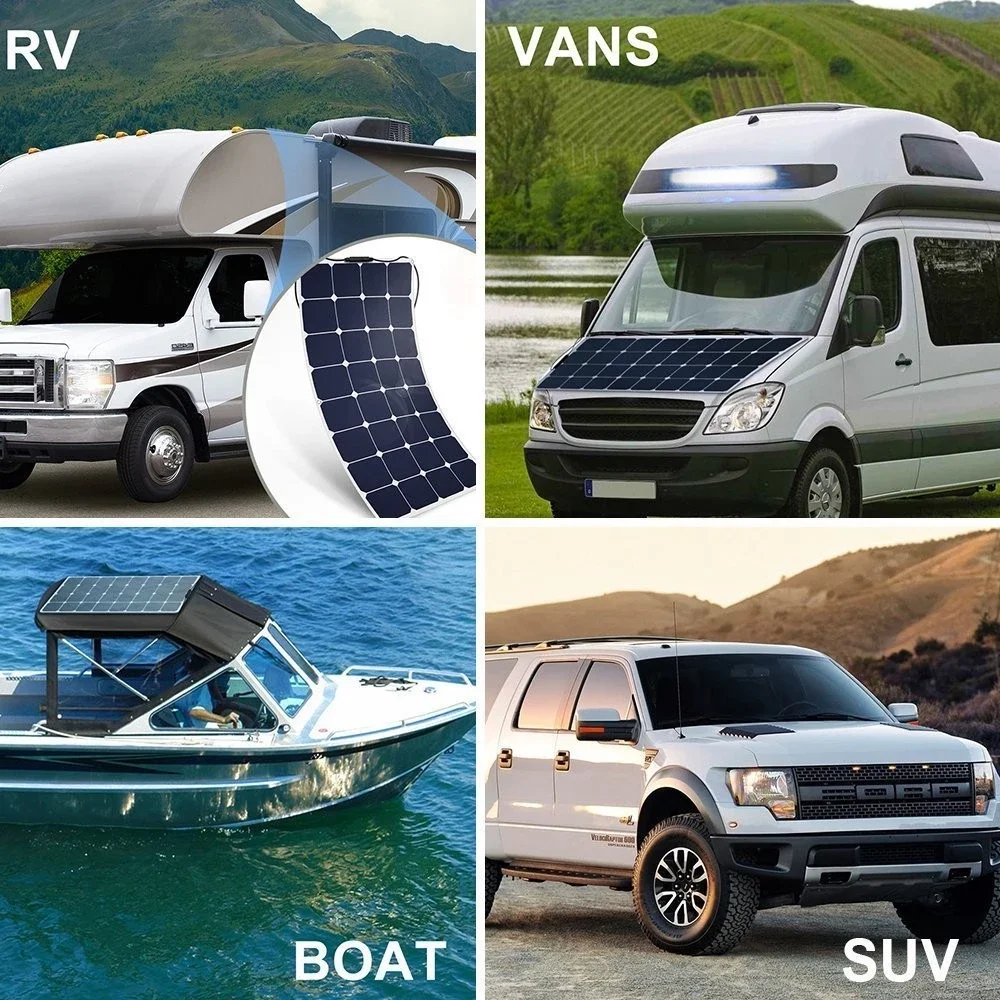

Application Scenarios

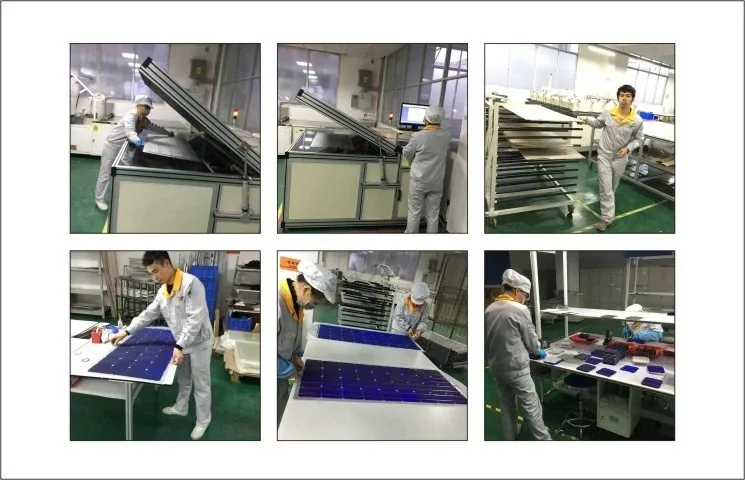

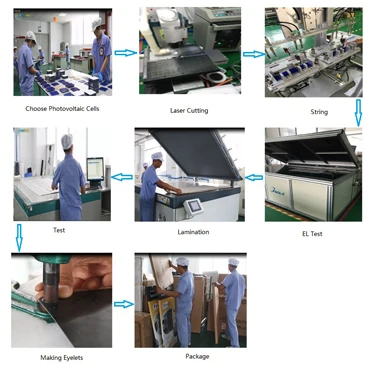

Product Processing

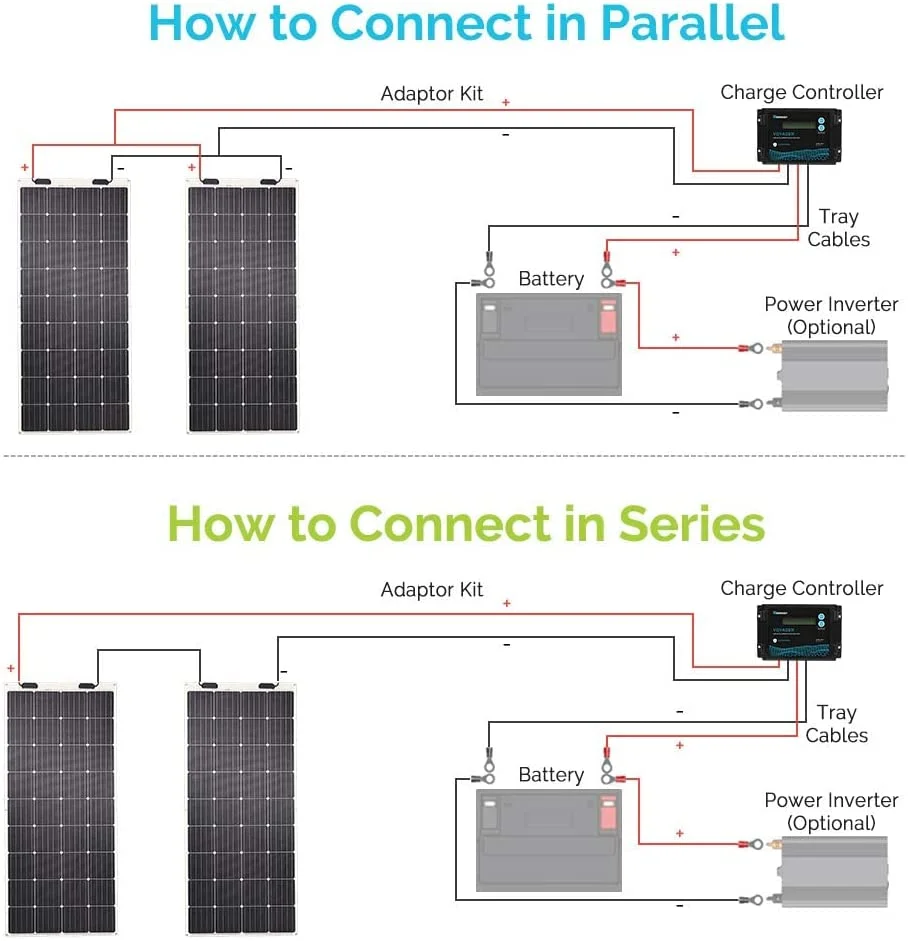

Installation Instructions

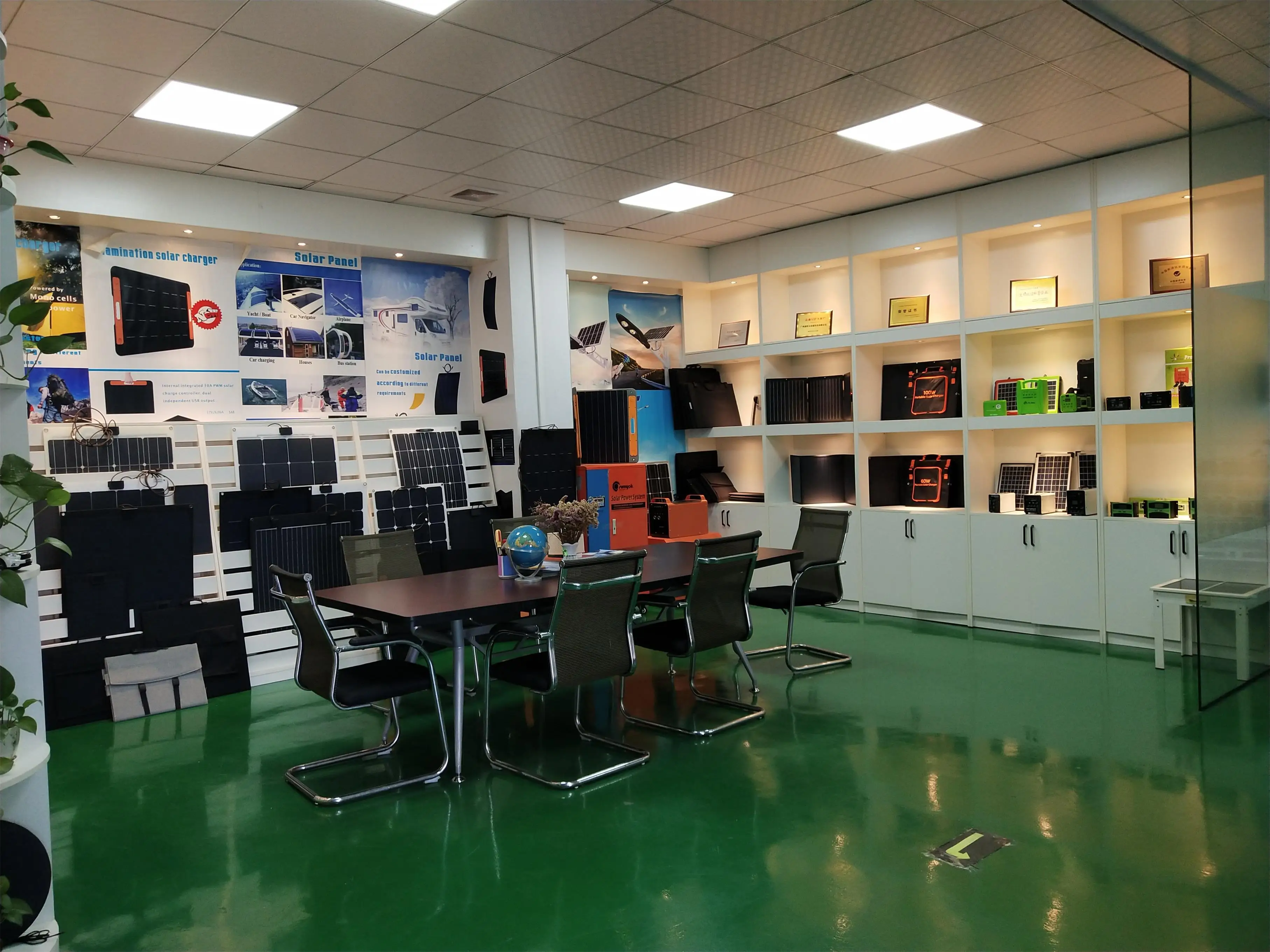

Company Profile
