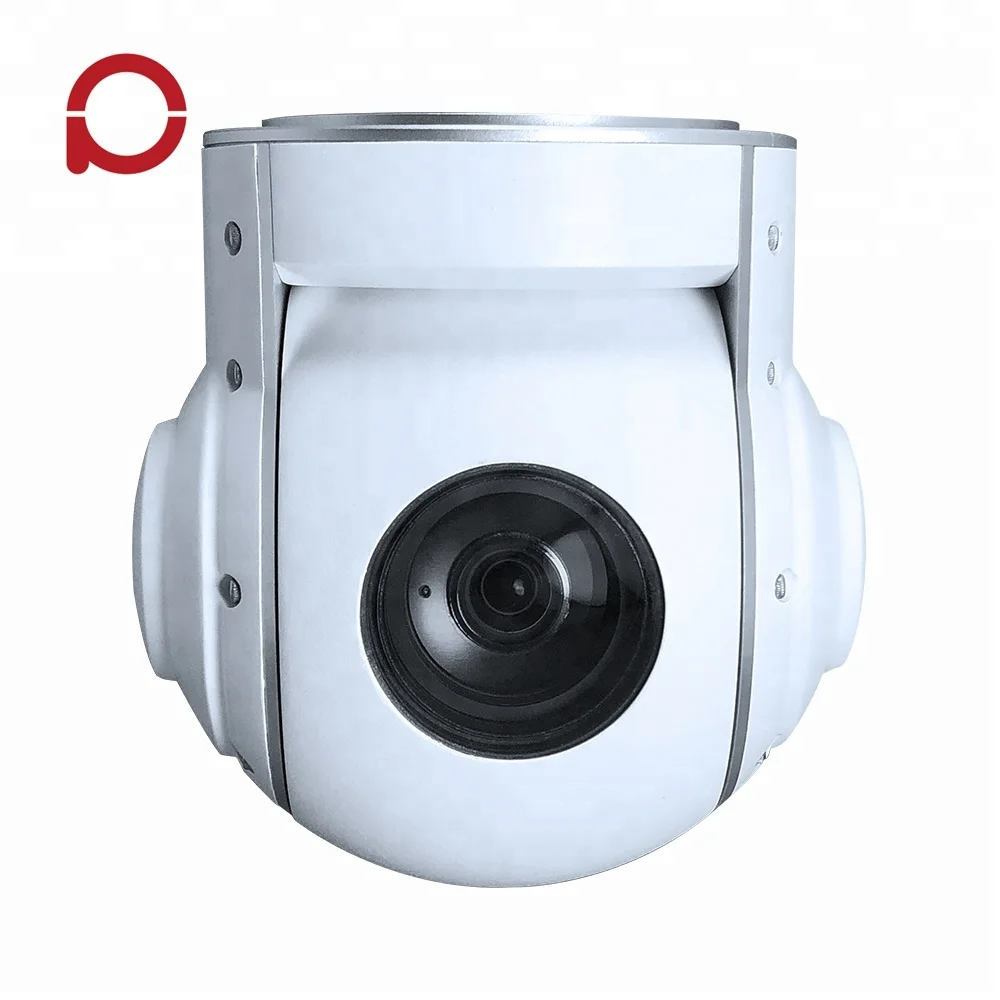

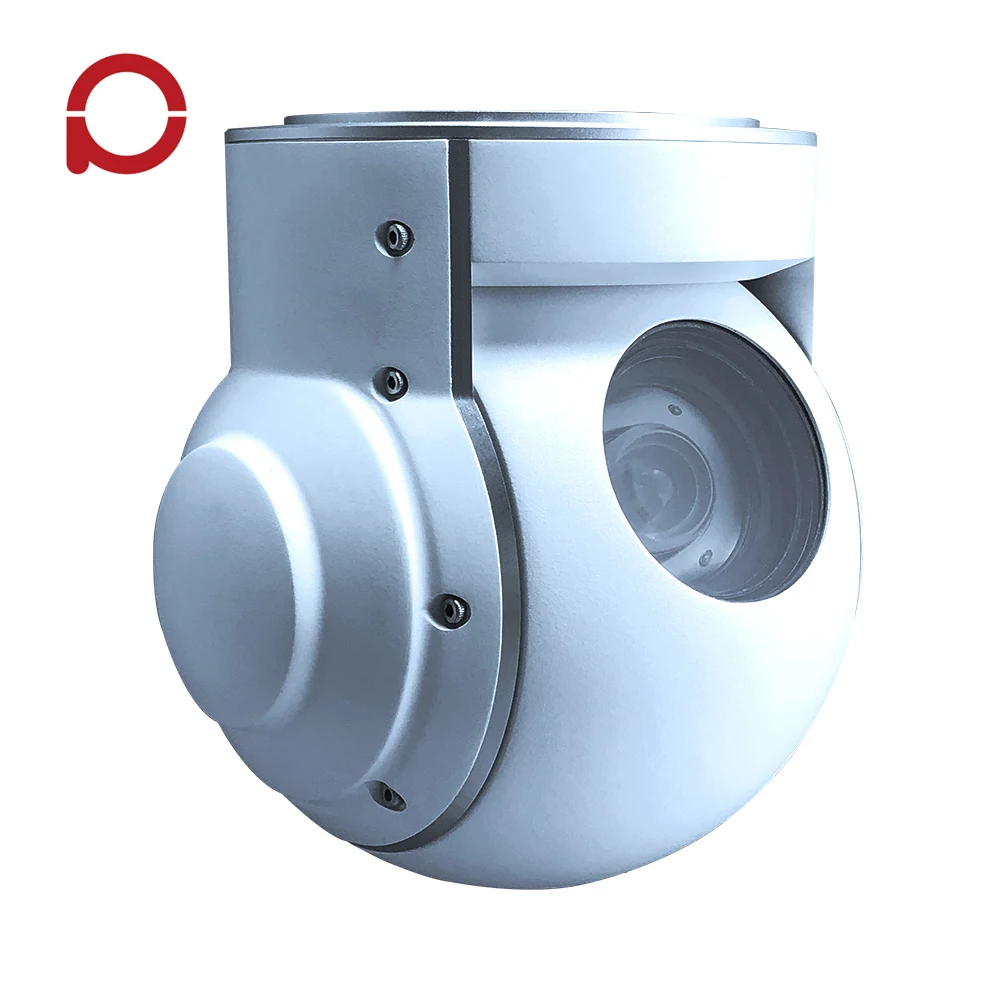

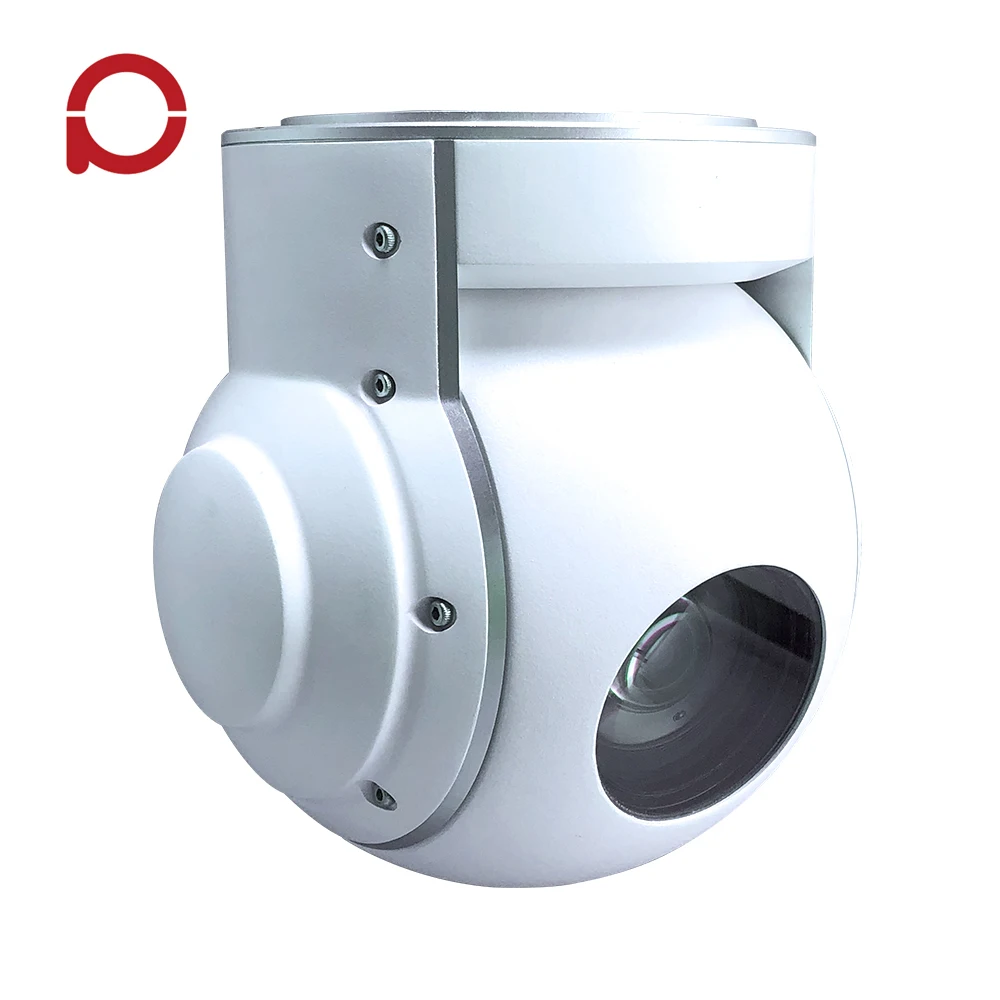

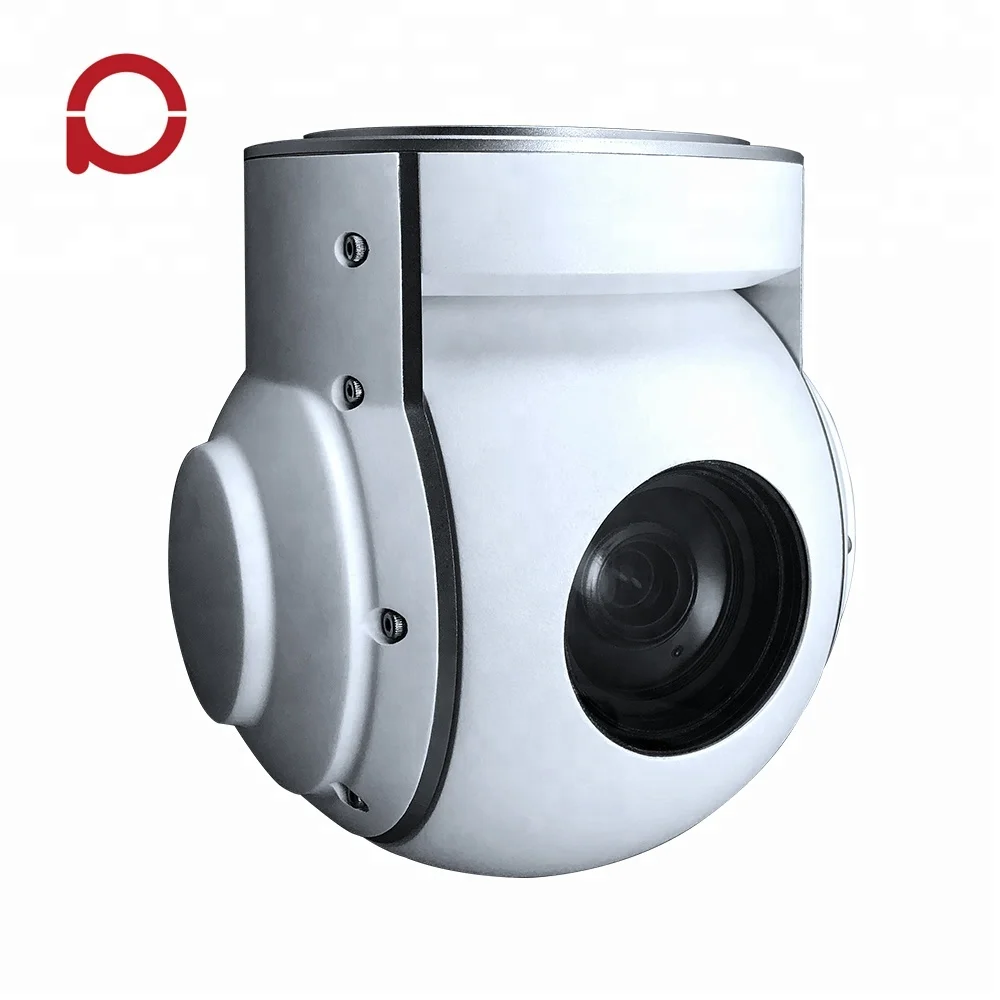

Viewpro 30x Optical Zoom Object Tracking Gimbal Camera for UAV/ Drone Serach and Rescue

Share on (60830648268):


Price:$4,999.00

Quantity:


Product Overview

Description


Product Description

U30T is a pinpoint-precision professional 2-axis gimbal which features high stability, small size, light weight and low power consumption. The 2-axis gimbal based on FOC motor control technology, adopts pinpoint-precision encoder in each motor.

U30T supports PWM, S.BUS and serial command control, suitable for close range remote control or remote data command control.

The speed of U30T gimbal is adjustable, Low speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly.

THE CALCULATION OF AERO-DYNAMIC DESIGN

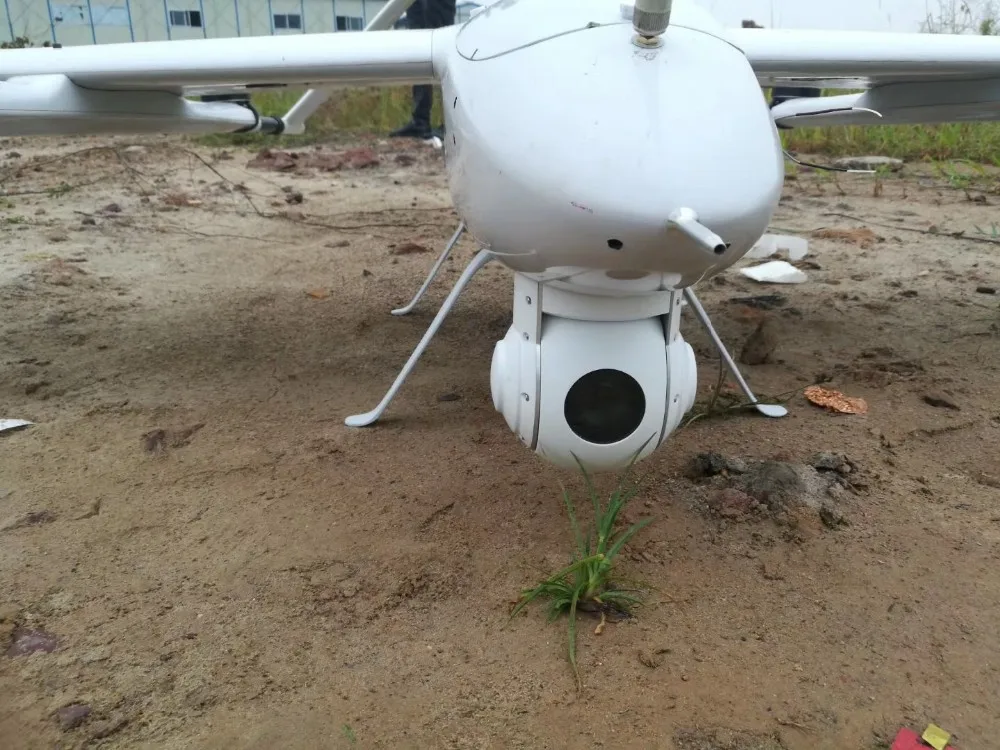

SUITABLE FOR VARIOUS DRONE MODELS
Specifications
\t
HARDWARE PARAMETER
\t
Working Voltage
\t
12V
\t
Input Voltage
\t
4S ~ 6S
\t
Output Voltage
\t
5V (connect with PWM)
\t
Working Environment Temperature
\t
-20℃ ~ +80℃
\t
Output
\t
micro HDMI(HD output 1080P 60fps)
\t
Local-storage
\t
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
\t
Control Method
\t
PWM / TTL / S.BUS
\t
GIMBAL SPECIFICATIONS
\t
Pitch/ Tilt
\t
±90°
\t
Roll
\t
Not support
\t
Yaw/ Pan
\t
±150°
\t
Vibration Angle
\t
Picth/Roll: ±0.02°, Yaw:±0.03°
\t
One-key to Center
\t
\t
CAMERA SPECIFICATIONS
\t
Imager Sensor
\t
SONY 1/2.8-type Exmor R CMOS
\t
Picture Quality
\t
Full HD 1080 (1920*1080)
\t
Lens Optical zoom
\t
30x, F=4.3~129mm
\t
Digital zoom
\t
12x (360x with optical zoom)
\t
Min illumination
\t
Color 0.01lux[at]F1.6
\t
CAMERA OBJECT TRACKING
\t
Update Rate of Deviation Pixel
\t
50Hz
\t
Minimum Object Size
\t
16*16 pixel
\t
Maximum Object Size
\t
160*160 pixel
\t
Tracking Speed
\t
±32 pixel/frame
Related Products

U3OTIR

Q10F


Q30F

Our Company

Shenzhen Viewpro Technology Co., Ltd established in 2005, located in the Hi-tech park of Shenzhen - the " Chinese Silicon Valley", is a Hi-tech manufacturer, specialized in Unmanned Aerial Vehicle ( UAV ) zoom gimbal cameras R&D and manufacturing. It is a leader in the UAV payload industry.

With the strong R&D team and strict quality control system, all of our products are CE, RoHS and FCC certified and highly prised by customers. And we have joined in the DJI commercial drone ecosystem, some of our models can be connected on DJI UAV directly.

Certifications
Packing & Delivery

Packing

G.W.: 2914g
Package size: 360*300*250mm
1 Unit/ High quality plastic box with foam protection
