767HC A3, сверхпрочная Бумага для художественной фотобумаги с покрытием, 3 клеевых ролика, машина для переплетения клея

Product Overview

Description

Product /  Model	767HC-A3
System	Electric motor
Book Block Spine	Max 460mm
Cover Size	Max 460x680mm
Cycle  Speed	360cycle/hr
Book Binding Speed	Max 350books/hr
Book Block Clamp	Steel Plate
Cover Clamp	Steel Plate
Max Book  Thickness	66mm
Warm up  Time	25min
Adhesive(Glue)	EVA Hot Melt
Side Glue	Yes
Cutting	Small Notching + Milling
Glue Roller	3 Rollers
Operating mode	Button operation
Machine  Weight	300 kg.
Power  Consumption	2.0 kw
Voltage/Frequency	AC 220V/50Hz
Machine  Dimensions	1700x990x560mm

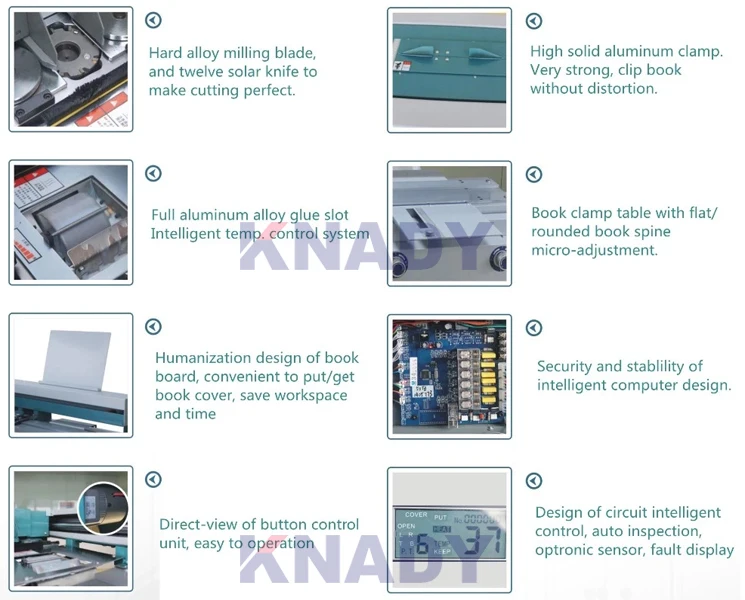

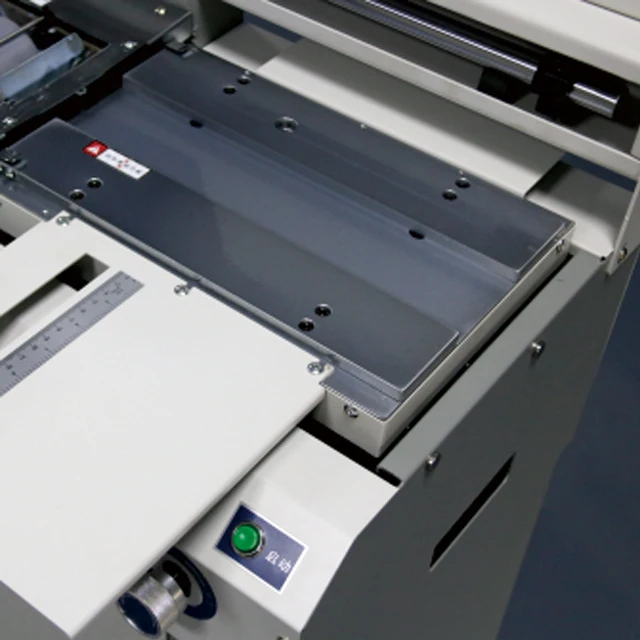

1. Extra-strong structure design, aluminum clamp-plate made cart

High-strength aluminum clamp plate structure and synchronous propulsion technique of bi-direction four-rail clamping board are adopted, which are applicable to book binding of different types with various specifications, making books durable without deformation and distortion at clamping.

2. High-speed linear aluminum-support guide rail design

The equipment uses first-class international high-speed linear aluminum-support guide rail. The design of double-rail express railway structure makes the cart not jump and noise free at raking in high speed.

3. Double-motor structure for clamping-surface platform

Patent design and double-motor control achieves firm book binding and strong stability.

4. Digital adjustment of square and round corner effect of spine

Digital control is suitable for binding of paper and cover of different types.

5. Large screen display, function selection, easy to understand

Mobile-phone like operation interface, extra-large screen display, easy to understand and simple to operate.

6. High-power double milling cutters with perfect with raking and fluting

Double-layer alloy milling cutter and 24-tooth disk milling cutter make clean raking and even fluting.

7. Three gluing wheels and separate side gluing

Three gluing wheel for back gluing is used to get even and full gluing; with separate side gluing, the binding is firmer and the molding is better.

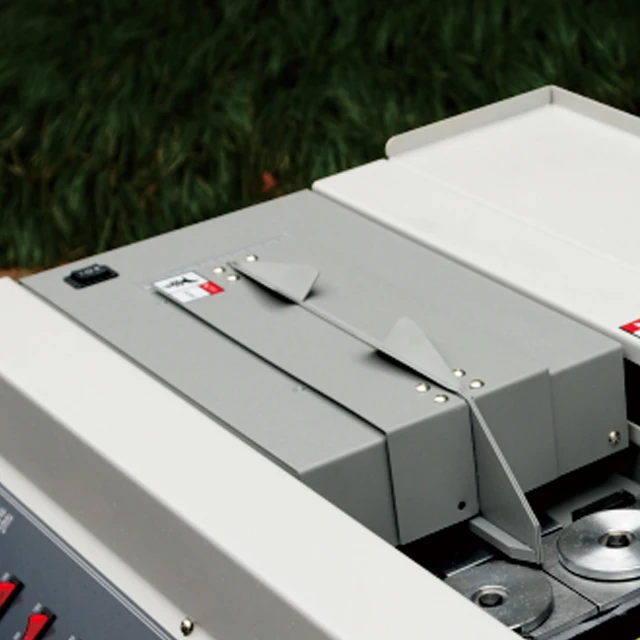

8. Total aluminum alloy glue tank, smart temperature control

Separate heating of double glue tanks and temperature control of program curve help the adhesive to reach its best state.

9. Super-long book making; no problem for sexto glue binding

460mm book making platform and cart meet the binding requirements of printing plant, large graphic production.

10. New type of glue mixing mechanism

A cam mechanism is used to accurately adjust and easily control the thickness of glue layer based on books.

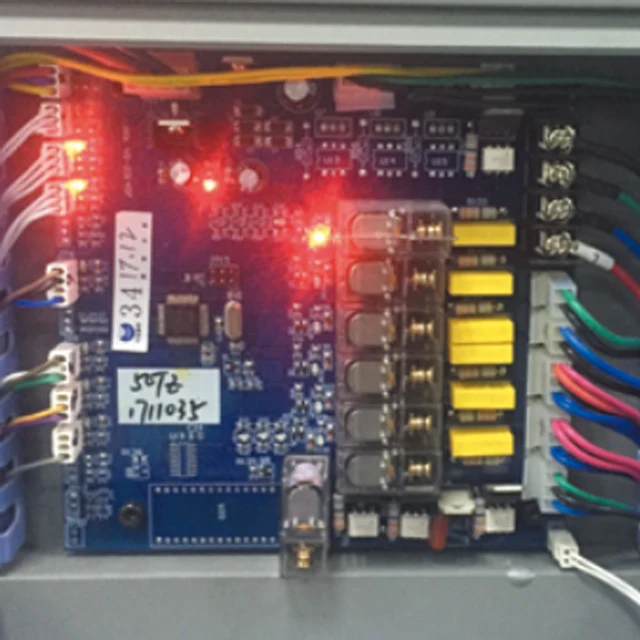

11. Automatic circuit control

Intelligent circuit control, automatic check, photoelectric sensing and failure display.

12. Double-rail cart travelling, accurate brake motor positioning

Brake motor is used for high speed travelling of cart to ensure that the cart can stop exactly at the right position.

13. Switch between Chinese and English interfaces; diversified display modes

One button to switch between Chinese and English interfaces and one button to restore factory settings.

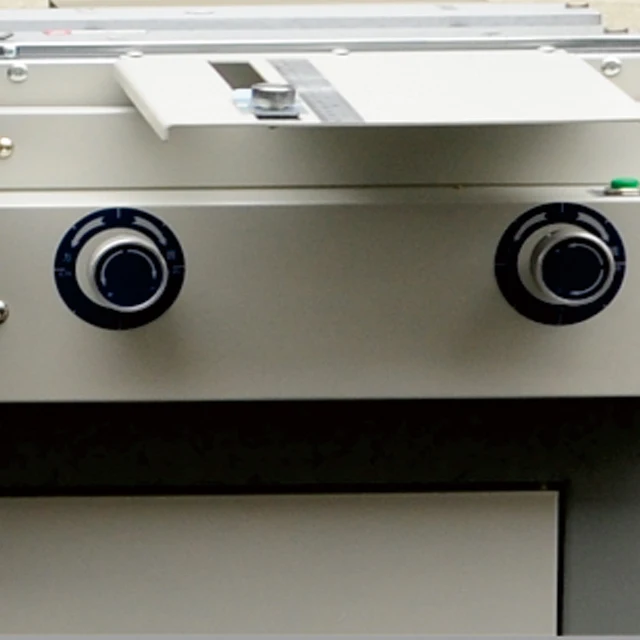

14. Double-motor design for clamping-surface platform, program control of square and round corners on the spine

The clamping-surface platform uses double motors for shunt control of clamping surface and lifting. Left, right, high and low adjusting knobs are specially set on clamping-surface platform to achieve better molding.
