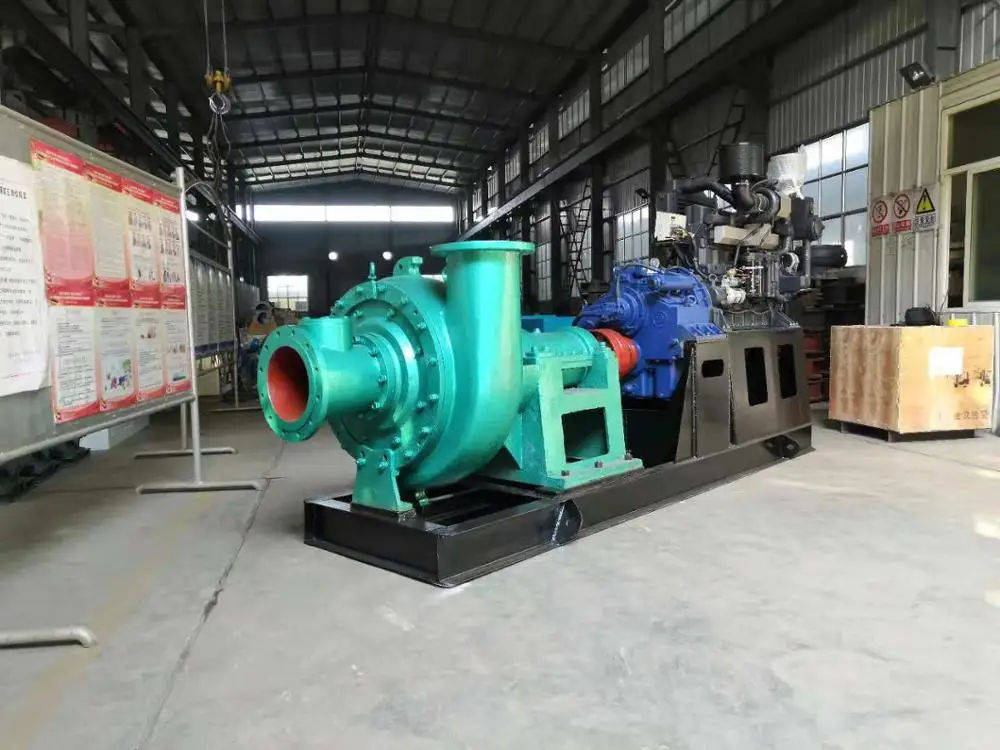

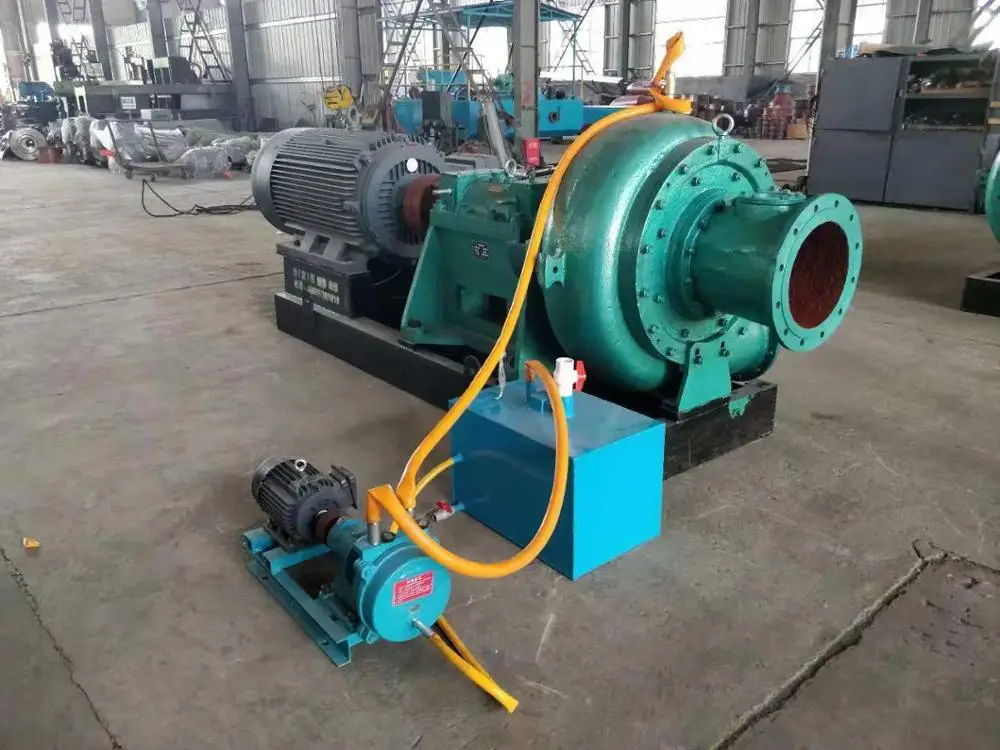

Standard 12inch Sand Water Pump OEM Self priming Pump with The Diesel Engine Mounted O BST Low Pressure Single stage Pump 250mm
- Category: >>>
- Supplier: Weifang Best Power Equipment Co. Ltd.
Share on (60830662641):
Product Overview
Description
Product Description

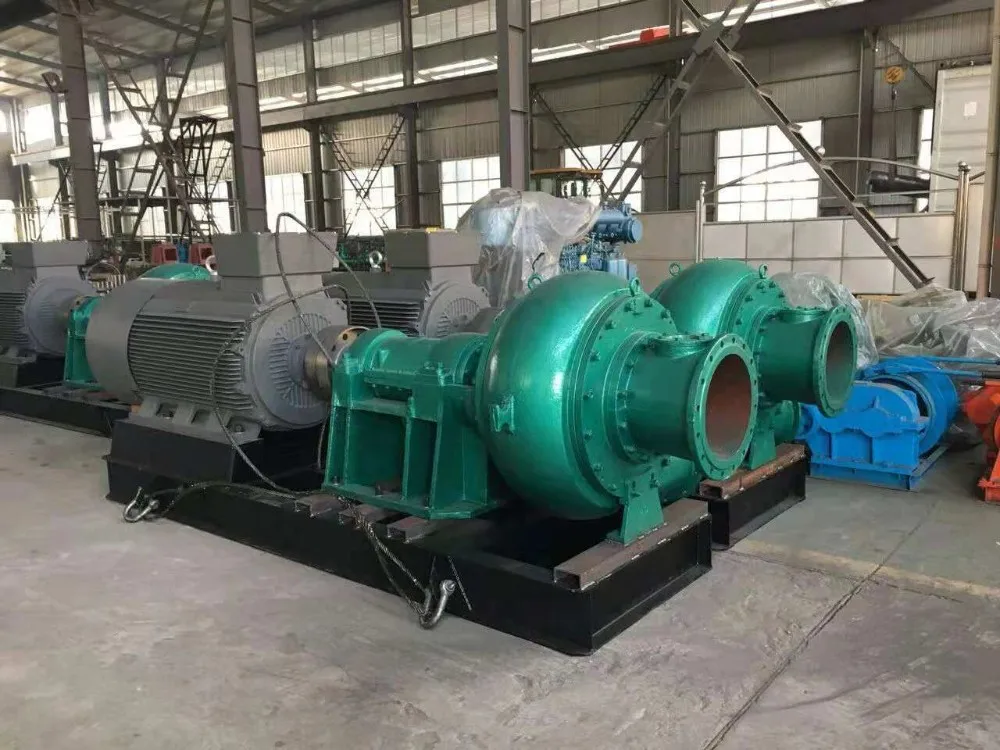

PNS series sand pump is a large flow, high-efficiency and energy-saving, single-stage single-suction, horizontal centrifugal pump developed by our factory according to the theory of two-phase flow. The flow-through part is made of cast iron, cast steel, and corrosion-resistant high-chromium alloy. It has high efficiency, long service life, reasonable structure, reliable operation, low vibration, low noise and convenient maintenance. It is suitable for marine suction, sand pumping, land reclamation and dock construction; it can also be used in electric power, metallurgy industry, etc. The maximum concentration of the transported sediment mixture is 60%. Over the years, the series has been widely used in China, Shandong Province, Shanghai, Jiangsu Province, Hebei Province, Guangdong Province, Fujian Province, Hubei Province, Tianjin and other coastal areas along the Yangtze River region,countries like Singapore, Malaysia, Vietnam and other Southeast Asian countries.
SPECIFICATIONS FOR 12inch 300PNS-35 sediment pump | ||||||
Pump | Flow | m³ | 1450 | |||
Head | m | 35 | ||||
Speed | r/min | 730 | ||||
Motor | kw | 185-200 | ||||
Entrance | mm | 300 | ||||
Exit | mm | 250 | ||||
Diesel engine | Model | 6126AZLD | ||||
Rated power | kw | 308 | ||||
Speed | rpm | 1500 | ||||
Max output power | kw | 330 | ||||
Speed way | Mechanics | |||||
Air inlet | Tuobo inter-cooled | |||||
No.of Cyls | 6 | |||||
Fuel cons | g/kw.h | less or equal than 198 | ||||
The total displacement | L | 11.6 | ||||
Bore/trip | mm | 126/155 | ||||

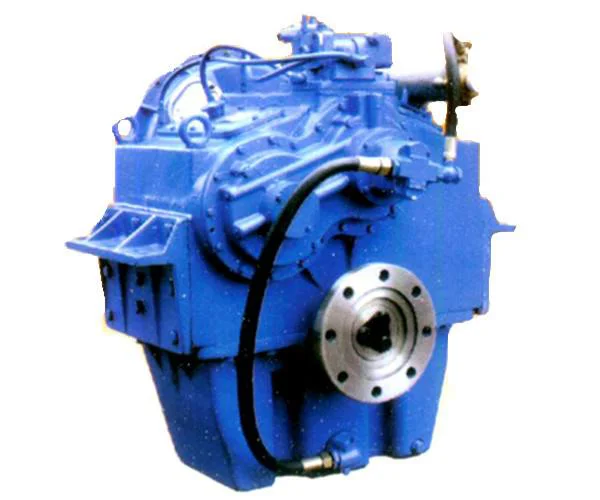

Gear box 300 Specifications | ||||||
Speed input range(r/min) | 750-2500 | |||||
Reduction ratio | 2:1 | |||||
Rated propeller thrust | 50KN | |||||
Dimension | (L*W*H):786*930*864 | |||||
Center distance | 264mm | |||||
Weight | 740KG | |||||
Enclosure | 1 | |||||
Free wheel | 14 | |||||
Other followed parts

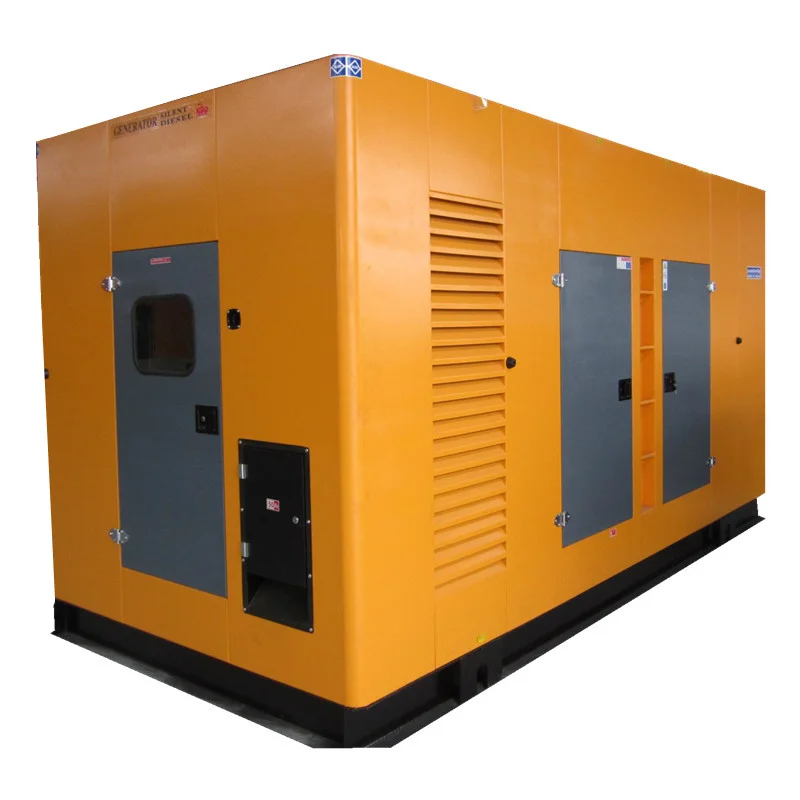

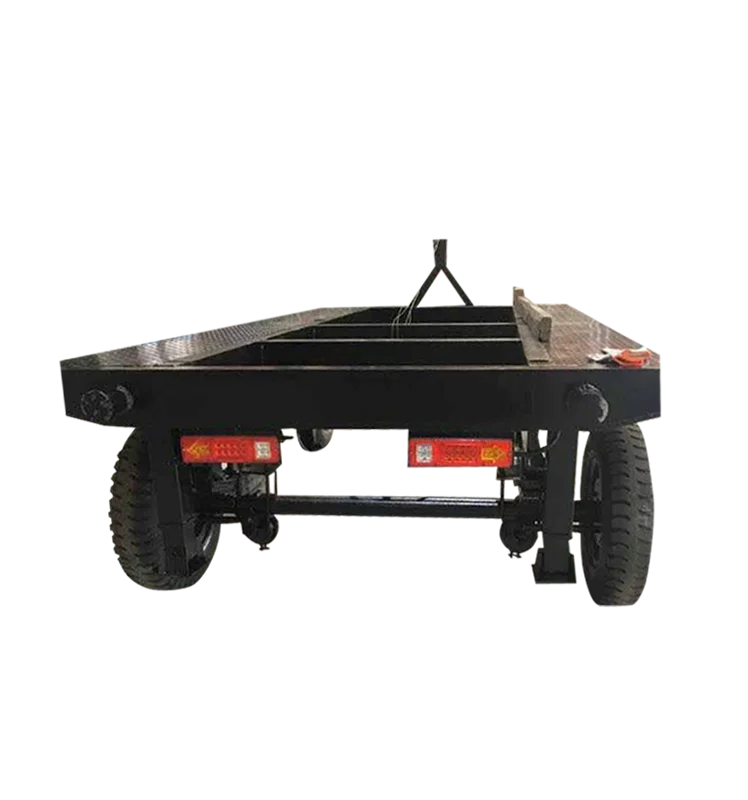

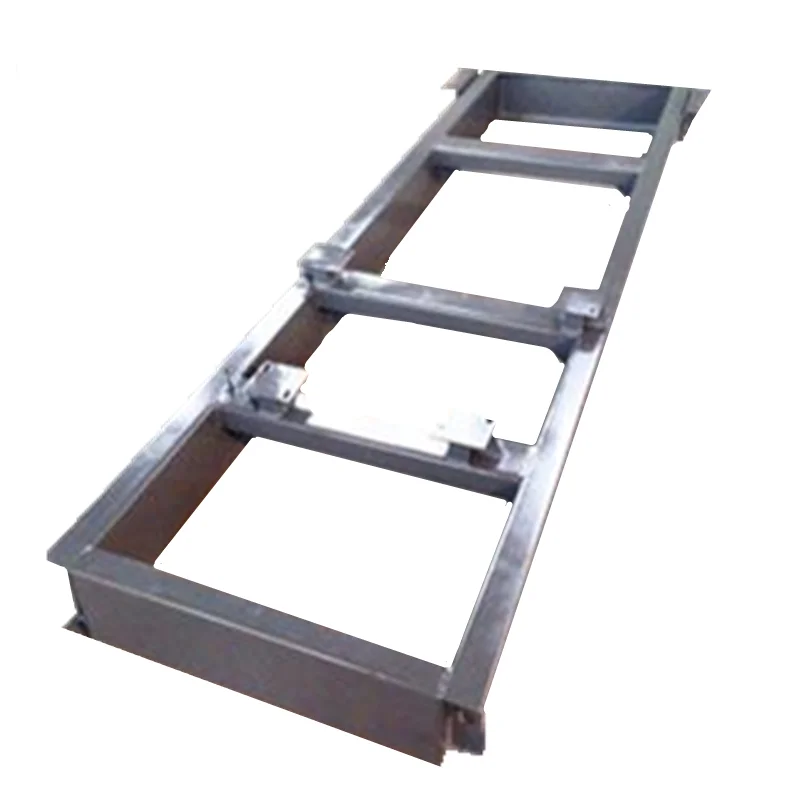

Underframe Coupling Silent box Trailer

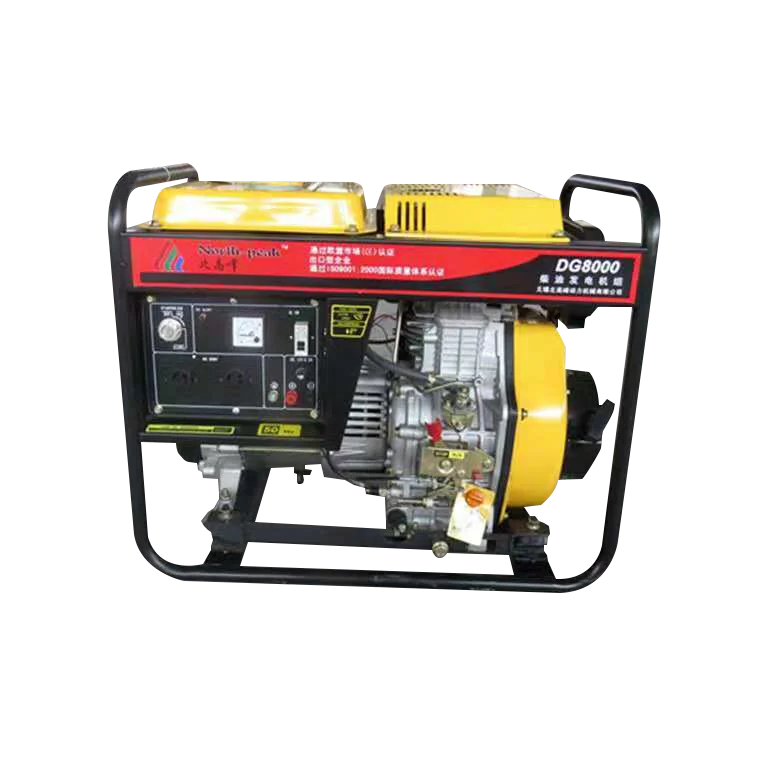

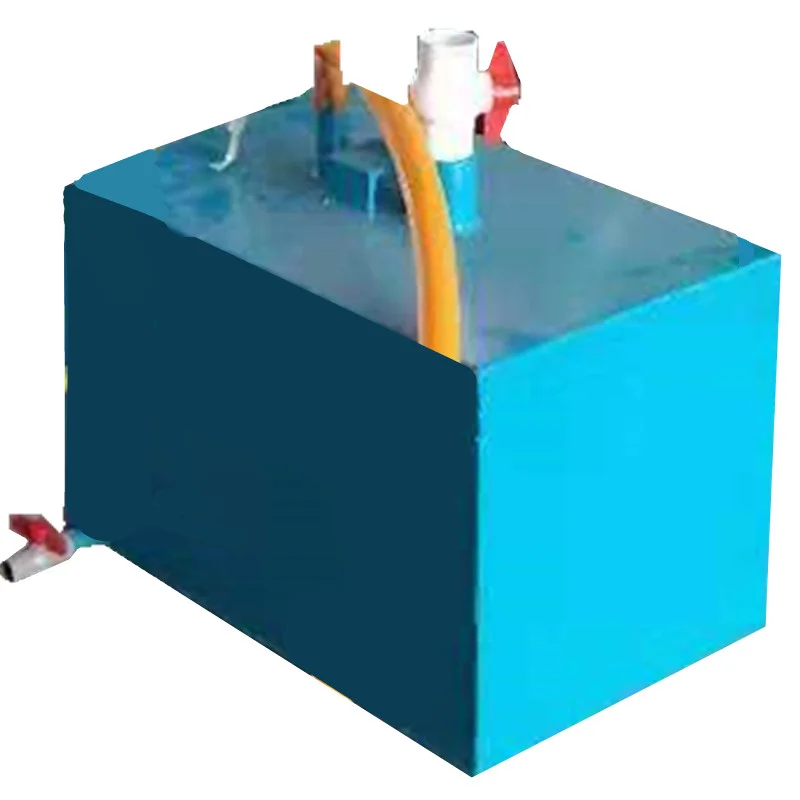

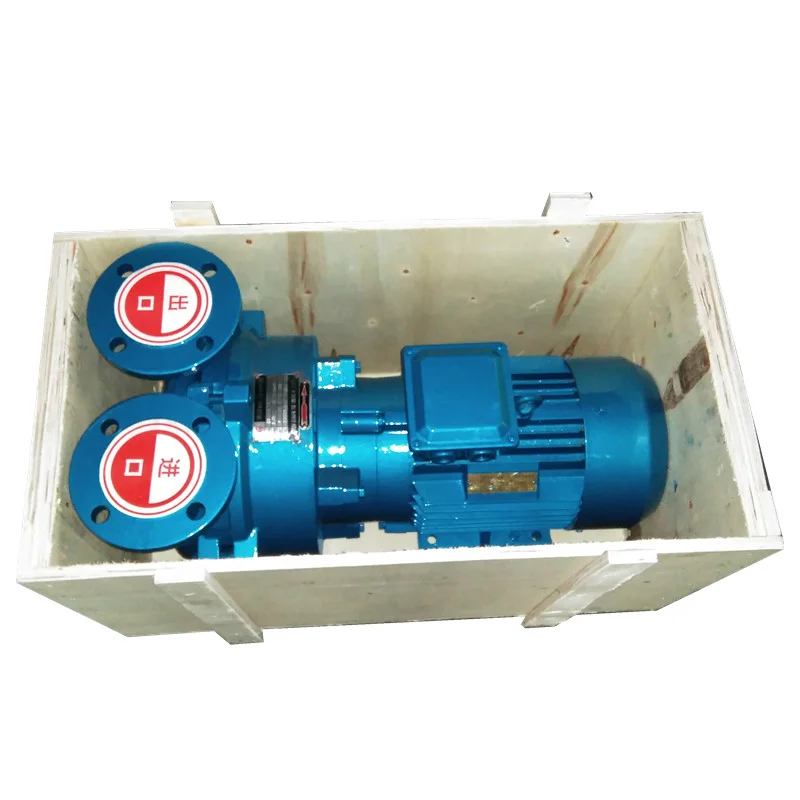

Battery Vacuum pump Water tank Small diesel generator
(with electronic start and battery,rated power:6kw)
Main Features
1.Good wear resistance and long life. The flow-through component is made of high-chromium alloy (Cr28) wear-resistant material;
2.Strong suction. Using advanced fluid mechanics and finite element analysis to optimize the design, the cavitation performance is good, the suction stroke is high, and the underwater pumping depth can reach more than 50 meters;
3.The extraction concentration is high. The concentration of the extraction and transport medium can reach 60% (by weight);
4.The transport distance is long. The pump head is high, and multiple pumps can be used in series to achieve long-distance transportation;
5.Easy to install, easy to operate, easy to maintain.
Size:(L*W*H)4700*1100*2200
Weight: 5TON
Specifications:The normal package is wooden box(Size: L*W*H). If the machine is too large, we will choose the container..
Size:(L*W*H)4700*1100*2200
Specifications:The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
