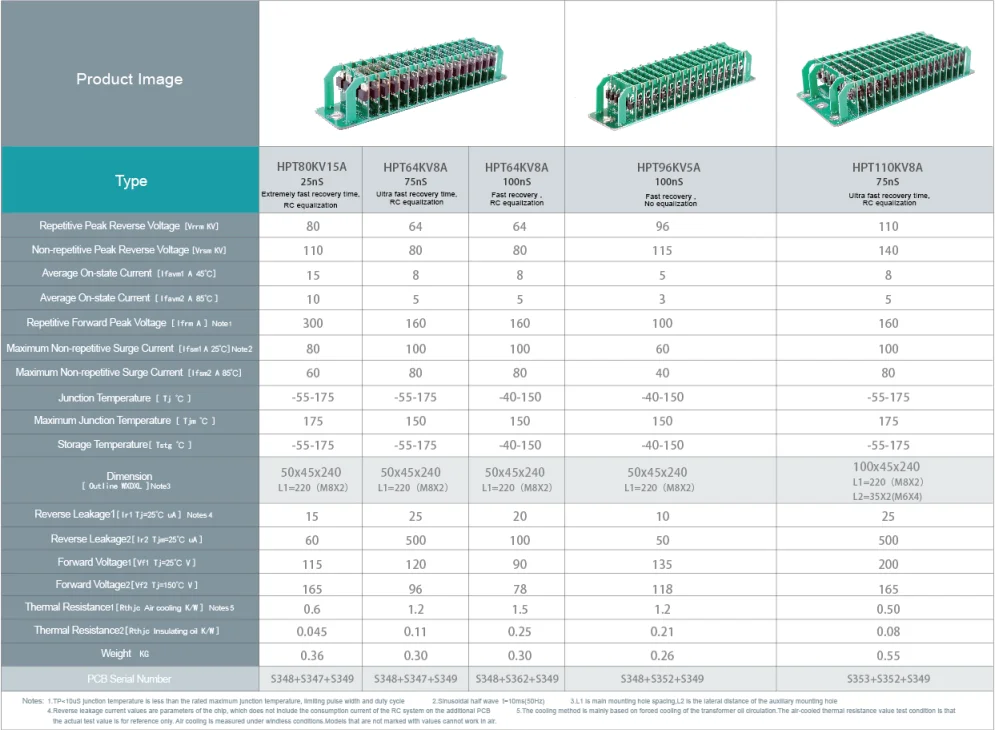

High voltage rectifier board rectifier assembly PCB HPT110KV5A

PCB High Voltage Rectifier Assembly
Product Feature:

1. Adopt advance multi-layer PCB design concept to achieve the best heat dissipation effect.
2. Low leakage current, low power, operating juction temperature -55~+175℃.
3. Optional RC equalization design makes the product more stable.
4. Excellent resistance to instantaneous large current impact and reverse avalanche breakdown characteristics.
5. General sizes or custom service available.

Application:

High frequency high voltage power supply, Electrostatic precipitator transformer rectification, High Frequency voltage multiplier and high frequency isolation protection.
