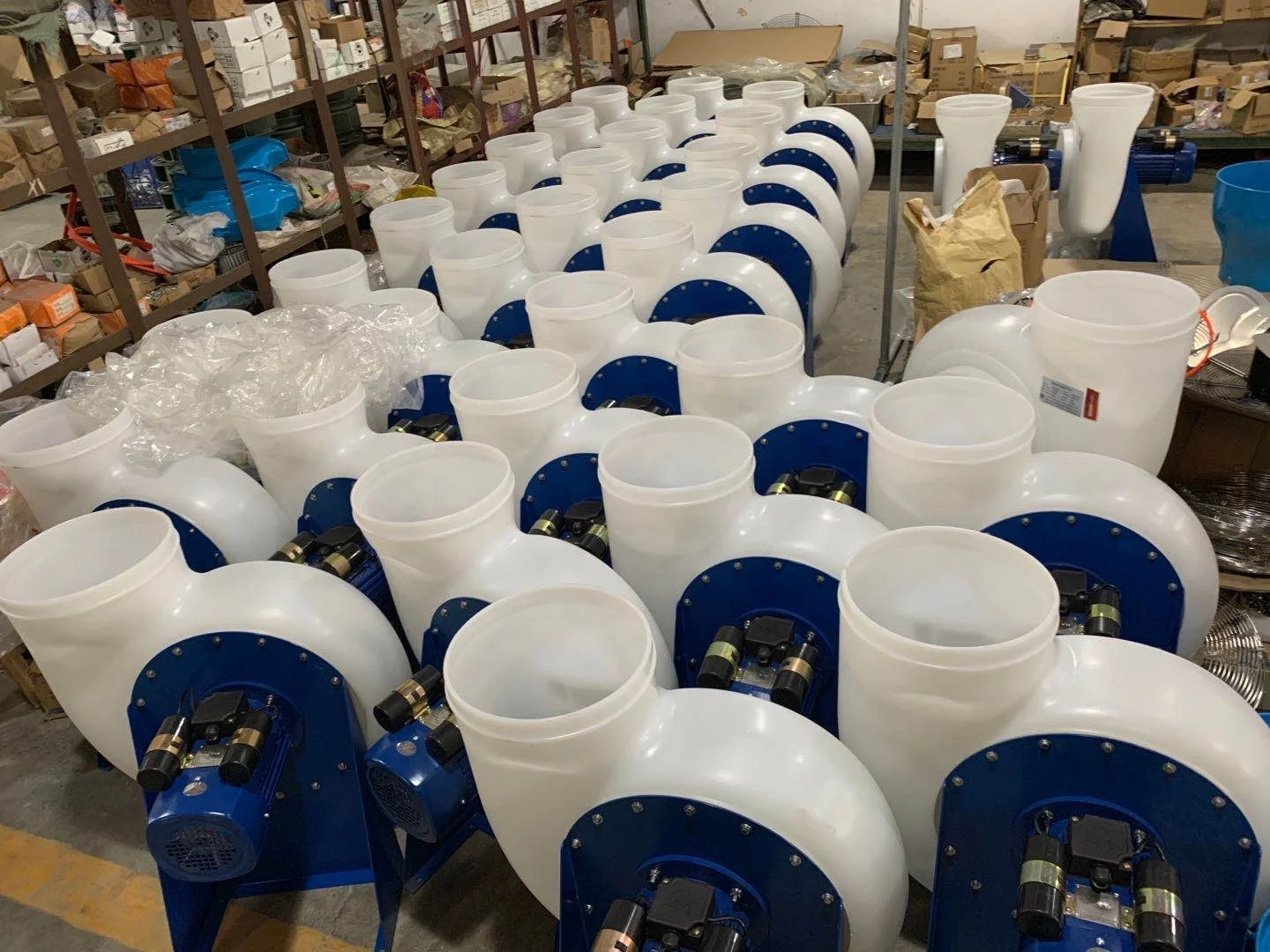

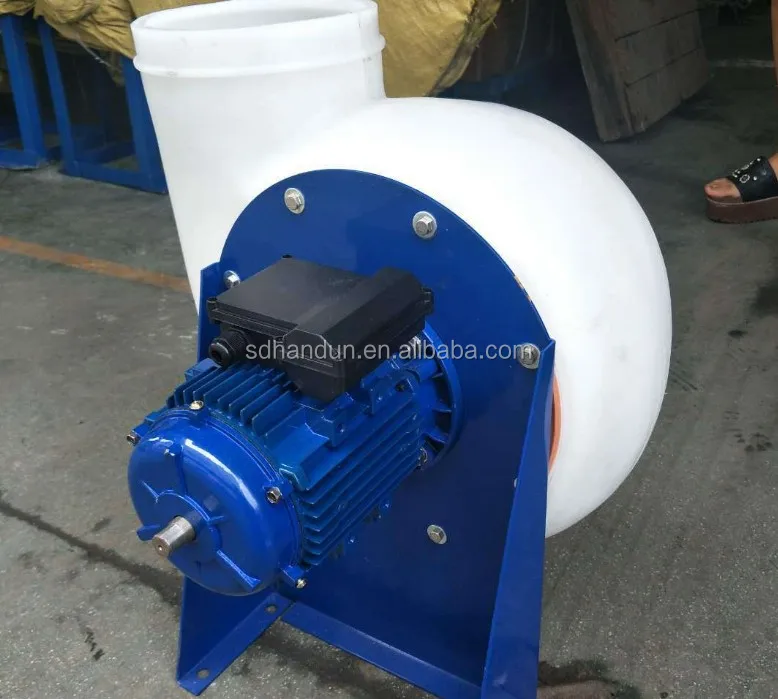

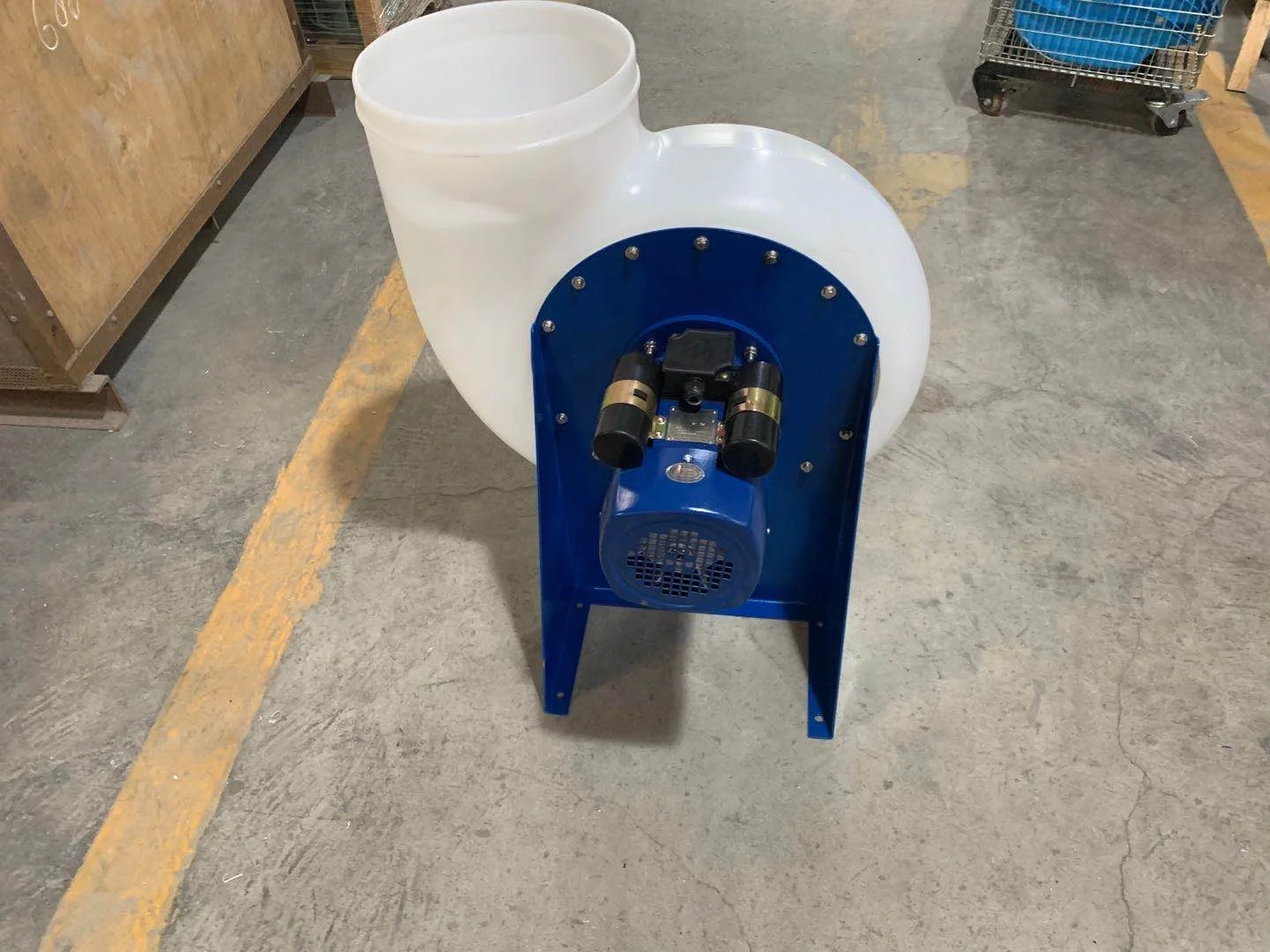

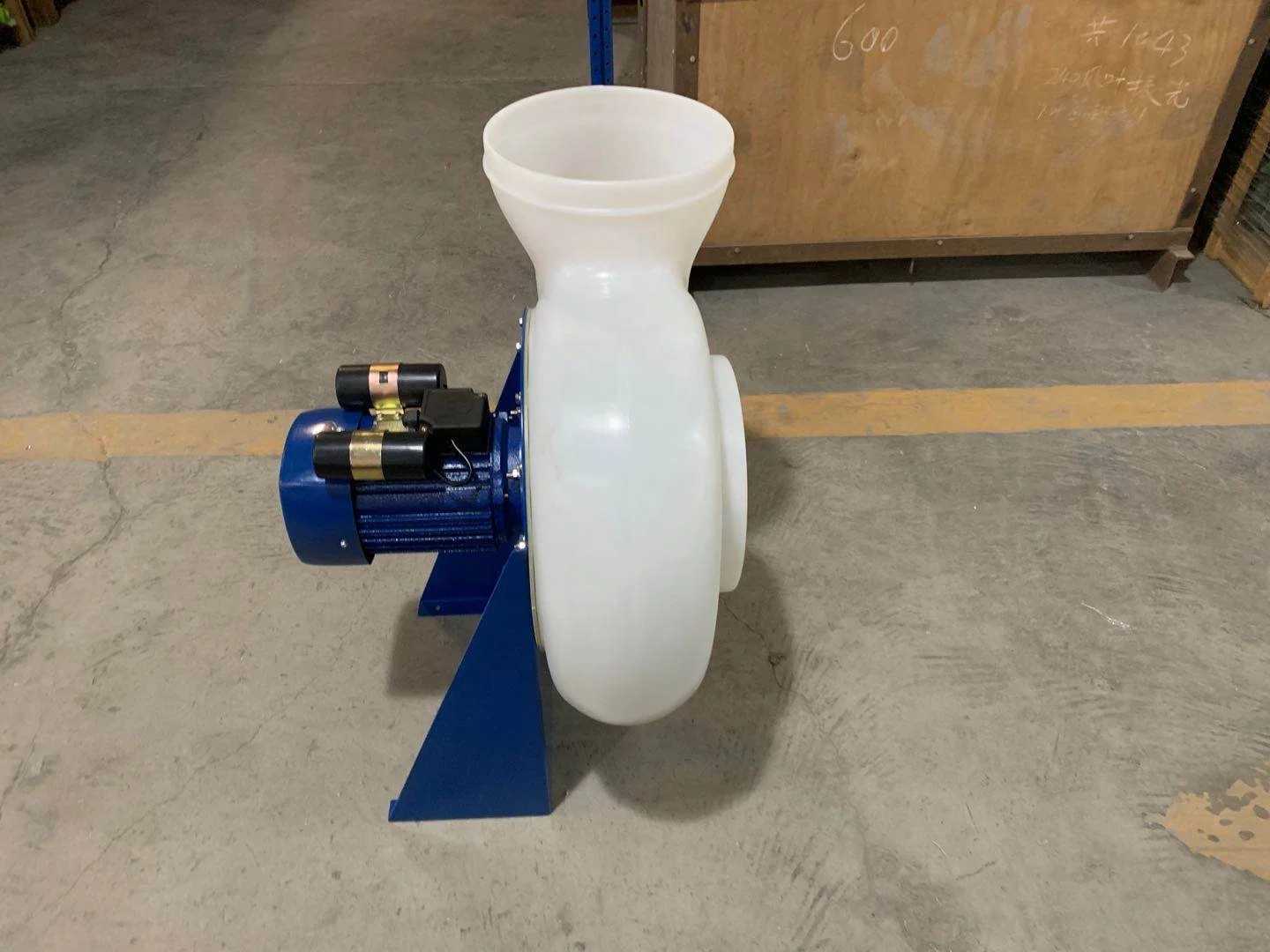

1.5KW Power PP Chemical Resistant Centrifugal Blower Fan

Model HDCF series anti corrosion plastic centrifugal fan is suitable for weak acid and alkali environment.  Main features are anti-corrosion and acid and alkali resistant . which is widely used in scientific research, chemical, metallurgy electronic, medicine galvanizing plant, lab fume hood industries to exhaust acid and corrosion air and other noxious gas out.

Main Characteristic

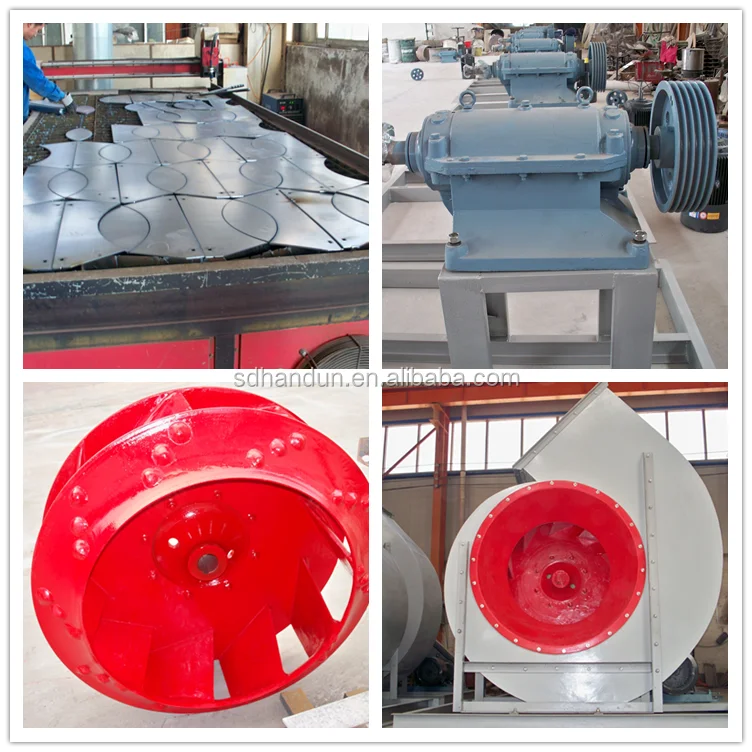

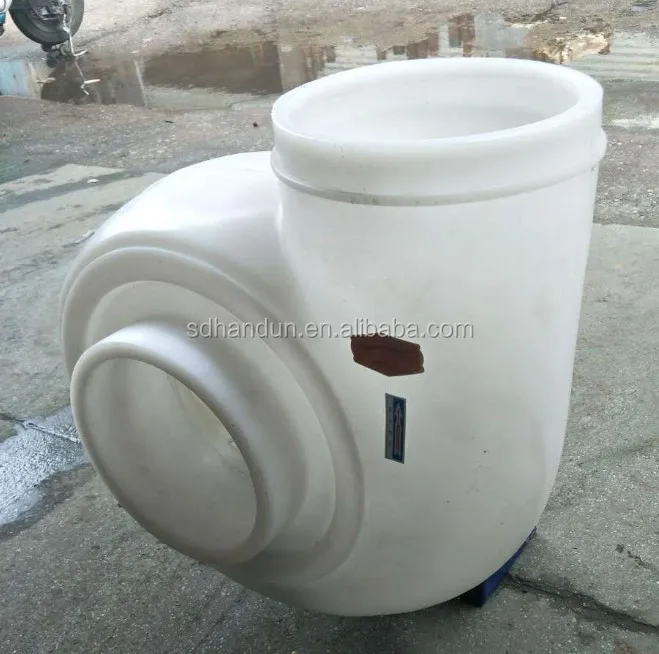

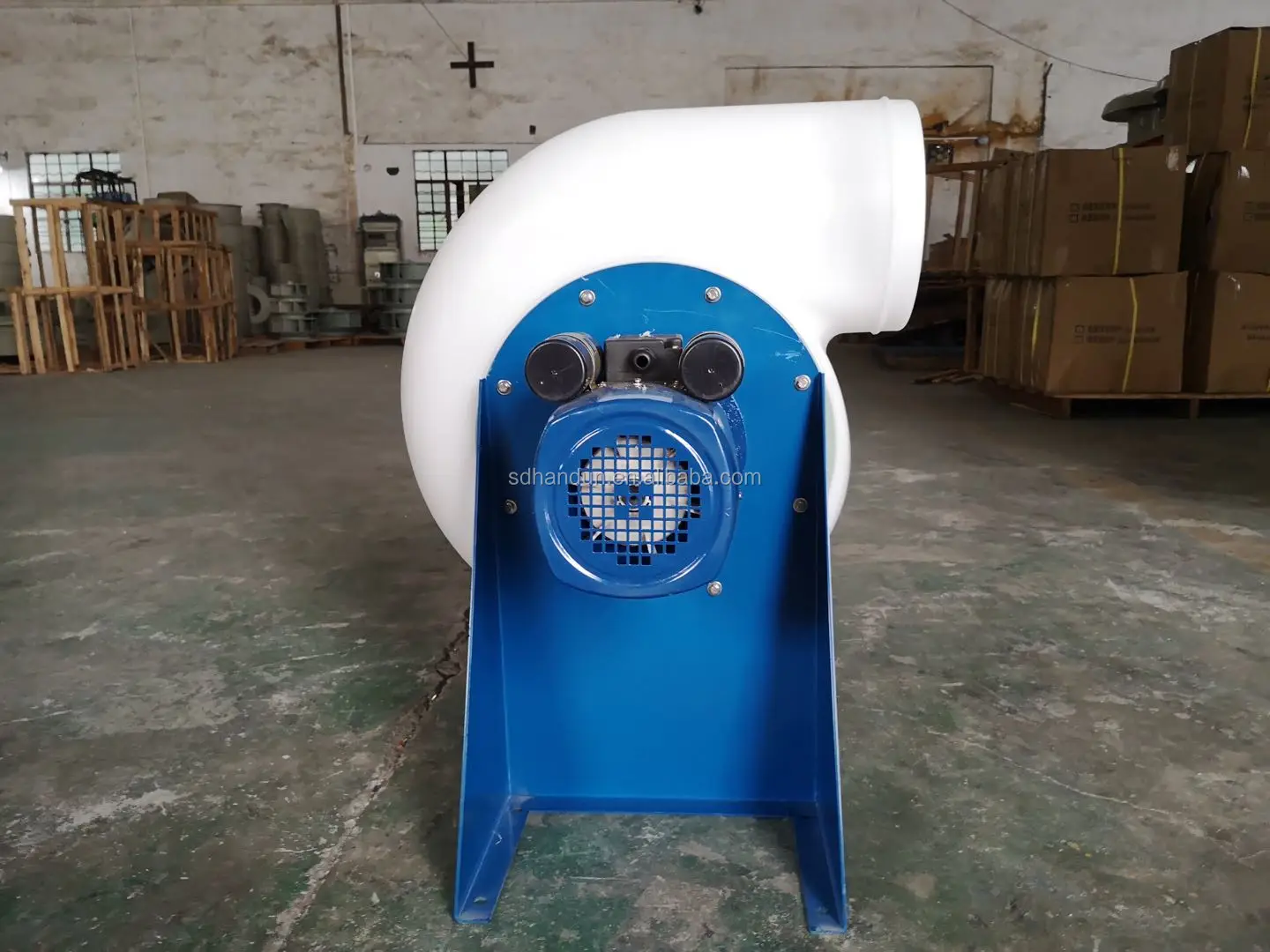

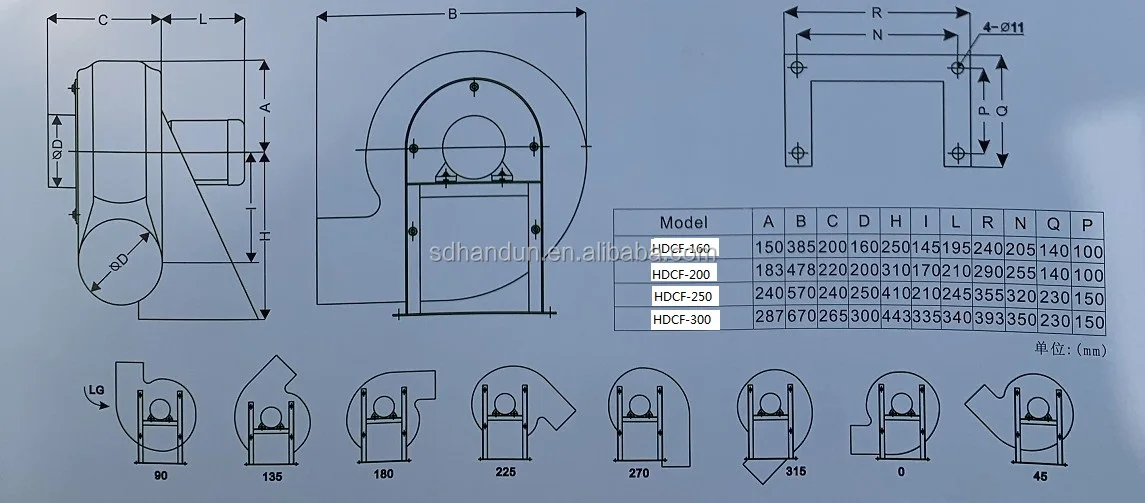

100% copper coil motor and double ball bearing confirm fan long working lift time. Impeller is backward type one and made of fiber reinforced PP. While casing is made of PE. Bolts nuts for fastening impeller and casing is stainless steel 304. Inlet is the standard round type. Normal size is 160mm,200mm,250mm and 300mm. which is convenient to connect standard plastic duct. Motor support is thick steel painted by epoxy resin. Which is better efficiency for anti-corrosion.

which is widely used in scientific research, chemical, metallurgy electronic, medicine galvanizing plant, lab fume hood industries to exhaust acid and corrosion air and other noxious gas out.
