Four Column Hydraulic Press Machine Wheelbarrow making / Producing line
- Category: >>>
- Supplier: Zhongyou Heavy Industry Machinery Equipment Co. Ltd.
Share on (60830672204):
Product Overview
Description
Four Column Hydraulic Press Machine Wheelbarrow making / Producing line
Product Description
Construction wheelbarrow making Machine is mainly used for producing hand truck and wheel barrow ,actually Wheelbarrow Making Machine belongs to "Four-column quick deep drawing hydraulic press machine ".
1. Description of the wheelbarrow tray making machine
1). Y32 Series Four-Column Hydraulic Press is one of the new generation of plate process. Three-beam and four-pole structure design for large operating spaces - suitable for automatic operation forming, punching, bending, straightening and multi-press assemblies to form automatic production line.
2). Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts, slide and bolster tables with T-slots.
3). Uses a variable flow piston pump - offers high pressure resistance, high velocity, good durability and low noise.
4) . Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe.
Wheelbarrow Making Machine adopts advanced design technology of three-dimensional computer controlled (Finite Element Analysis & Prestressed Modal Analysis) and three beams-four columns body structure which makes it classic, contracted and utility.
Technical Parameters
Deep Drawing press machine for wheelbarrow Tray making:Color, Motor power, Workbench size, Opening height , Effective stroke can all be customized, Size of mould included.
| Parameter Iterm | Unit | YQ32-315A | YQ32-315B |
| Nominal Force | Kn | 3150 | 3150 |
| Max Pressure of Hydraulic systerm | Mpa | 25 | 25 |
| Effective stroke | mm | 1250 | 1250 |
| Max opening distance | mm | 800 | 800 |
| Workbench size(L-R) | mm | 1260 | 1000 |
| Workbench Size(F-B) | mm | 1160 | 1100 |
| Ejection cylinder nominal force | Kn | 630 | 630 |
| Stroke of Ejection Cylinder | mm | 300 | 300 |
| Velocity of Freeload | mm/s | 120 | 120 |
| Velocity of loading | mm/s | 8-15 | 8-15 |
| Velocity of retrn | mm/s | 90 | 90 |
Detailed Images

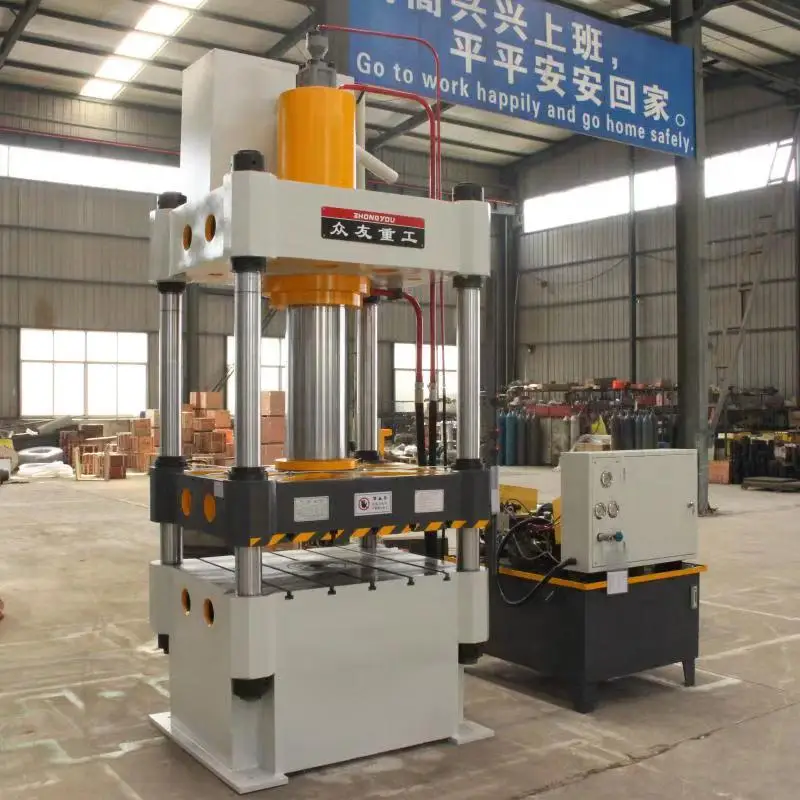

The four-column structure are designed for large operating spaces. The Hydraulic press machine for wheelbarrow is suitable for automatic operations forming, punching, bending, straightening and multi-press assemblies to form automatic production line.It has fully enclosed drive, which is easy accessible to maintenance, eliminating exposed over hanging parts, slide and bolster tables with T-slots.

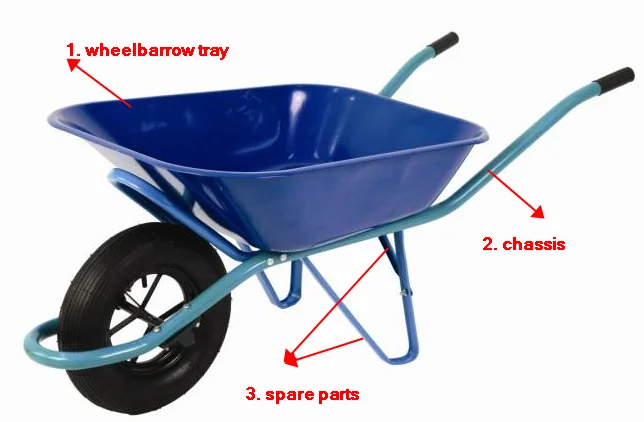

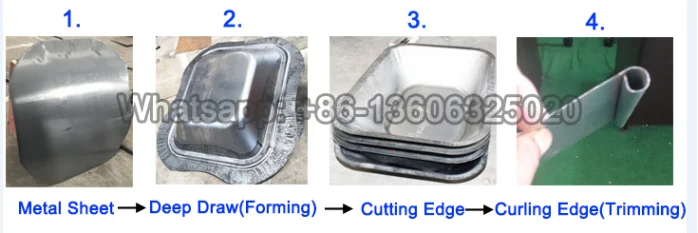

1. The procedure of wheelbarrow making.
1) Wheelbarrow tray making
According to the wheelbarrow tray size and thickness choose the proper pressure of the hydraulic press machine, usually 315T or 400T for deep drawing wheelbarrow tray, 200 ton for cutting edge and edge curling.
Sometimes, we can use curling edge machine for trimming, which according to client`s requirement.
2) Chassis making

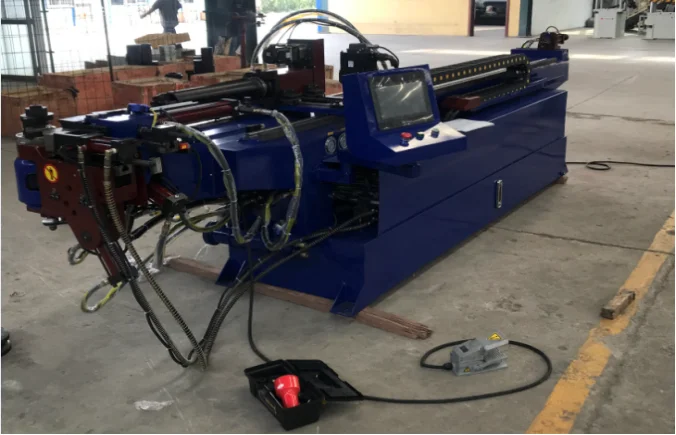

It need pipe bending machine.This need the detail drawings.
3) Spare parts making

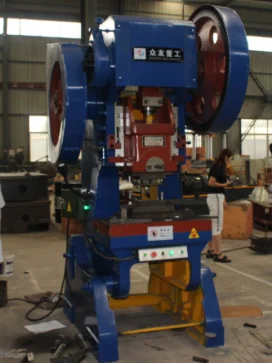

Spare parts need to be made by punching machine machine.Usually we use 63ton and 80ton with molds.
Customers testing wheelbarrow tray making press machine spot

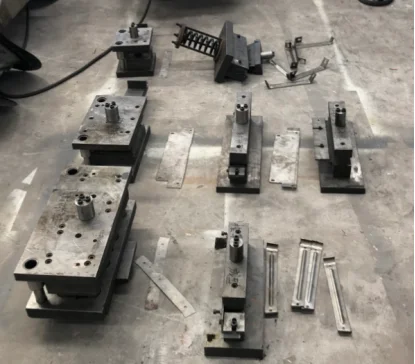

The Molds of Wheelbarrow producing line can be available
Company Information
shandong zhongyou
-----Professional to create a leading brand of hydraulic press
16 years of accumulated experience,
each one is ingenuity.
We hope to strive for excellence.
Satisfied with the experience is the greatest affirmation for us!
Our company is located in Tengzhou City, Shandong Province, China.
A domestic leading hydraulic machine production of the Holy Land.
Completely dependent on first-class production process,
stand out from a large number of hydraulic machine manufacturers .
Over the years, widely praised by customers at home and abroad.

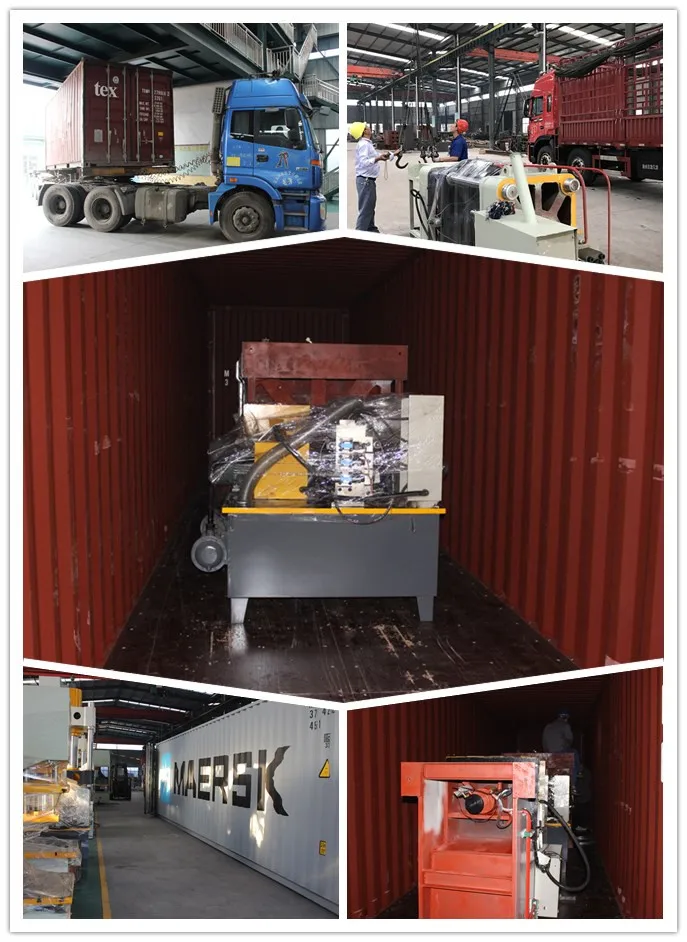

Packaging & Shipping
Delivery Date: 15-40 days
Certificate:
Y32 200 Ton Hydrarulic Construction wheelbarrow Making Machine Pre-sale
to provide detailed advice, as well as press product introduction, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Y32 200 Ton Hydrarulic Construction wheelbarrow Making Machine Sales
can support samples, support diversified payment methods, the production process transparent, standardized and quickly stocking.
Y32 200 Ton Hydrarulic Construction wheelbarrow Making Machine After-sales
support diversification guidance, training, voice and video images, and even overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
FAQ
FAQ
Whether you are factory?
YES!
Give me 5 minutes, i will show you.
Whether the independent production and processing?
YES!
We have been done it for 16 years in the hydraulic press Machine for WheelBarrow field.
Whether to provide technical support?
YES!
We can provide free design, drawings manuals, and even technical staff overseas field guidance when needed.
Whether allowed to put my logo on ?
Sure!
whole press customized.
Whether to accept the site inspection?
Sure!
address:
Economic Development Zone Industrial North Road ,TengZhou ,ShanDong province in China.
You may contact us when arriving in TengZhou CITY.
Whether the motor voltage can be changed?
sure!
machine motors installed as your voltage.
Whether it is prone to problems?
NO!
Electric welding of high precision Usage of high-tech boring machines for extreme precision parts
Production workers have rich experience over the years
Each of the factory products after repeated testing adjustment
what about delivery time?
10-40
days after 30% Prepayments,and 70% paid before delivery.
How long is the product warranty?
12 Months
whole machine 12 Months for free after you get machine,Accessories lifetime warranty.
