Product Overview

Description



Product Description


Introduction

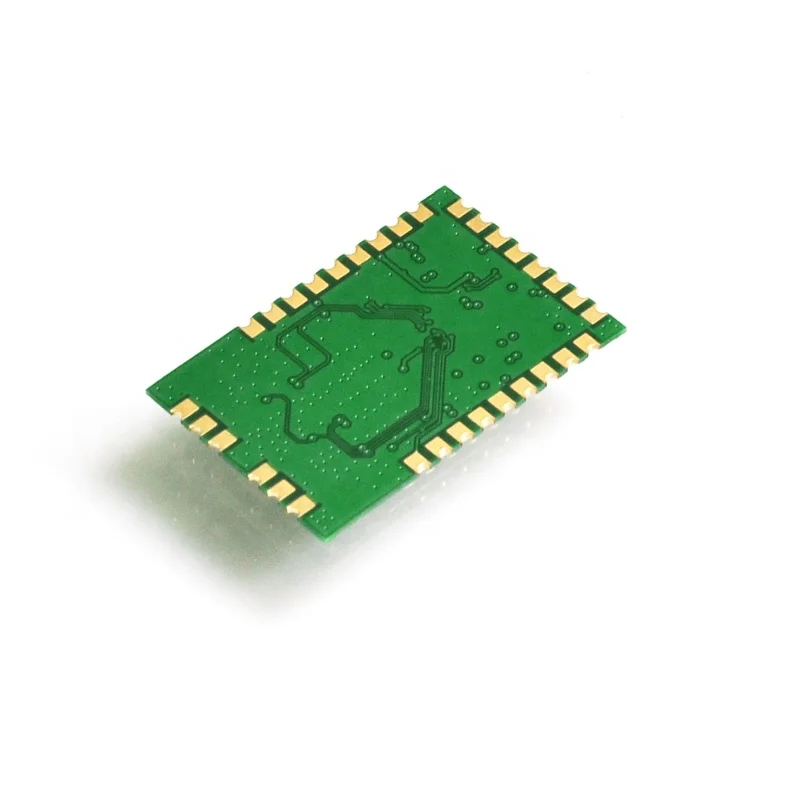

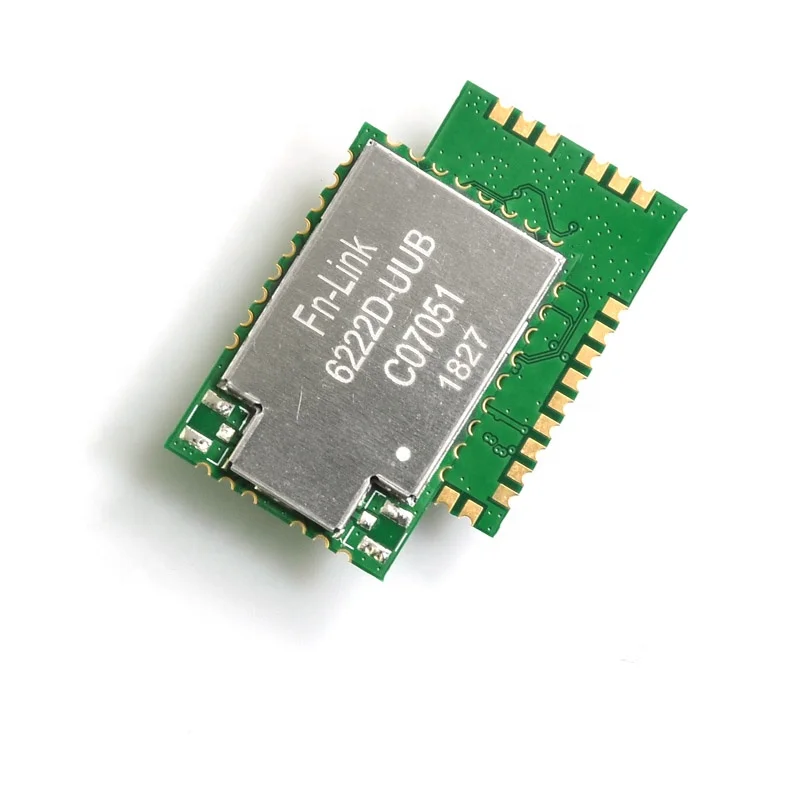

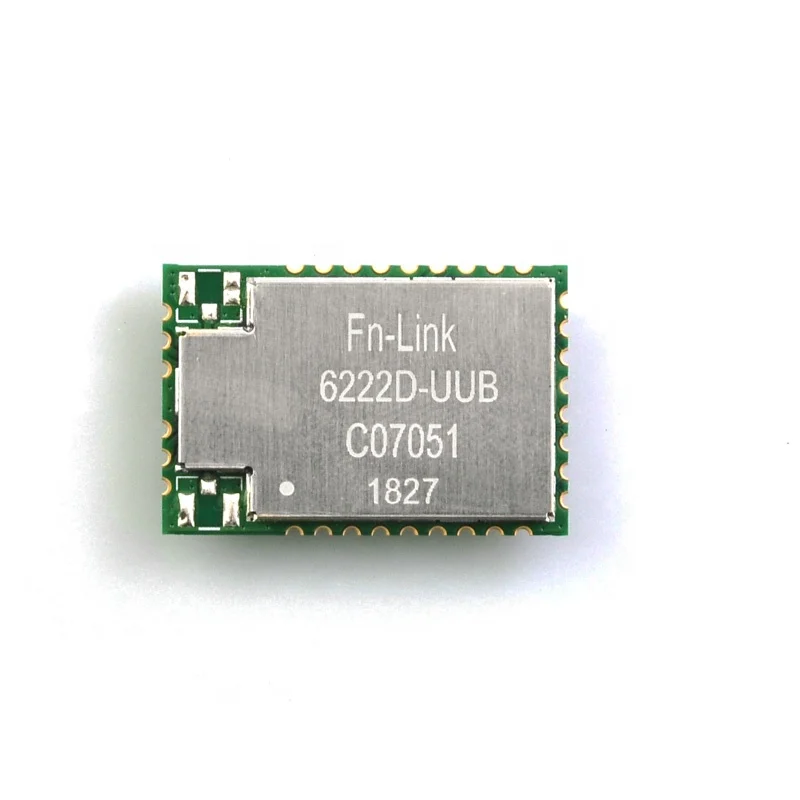

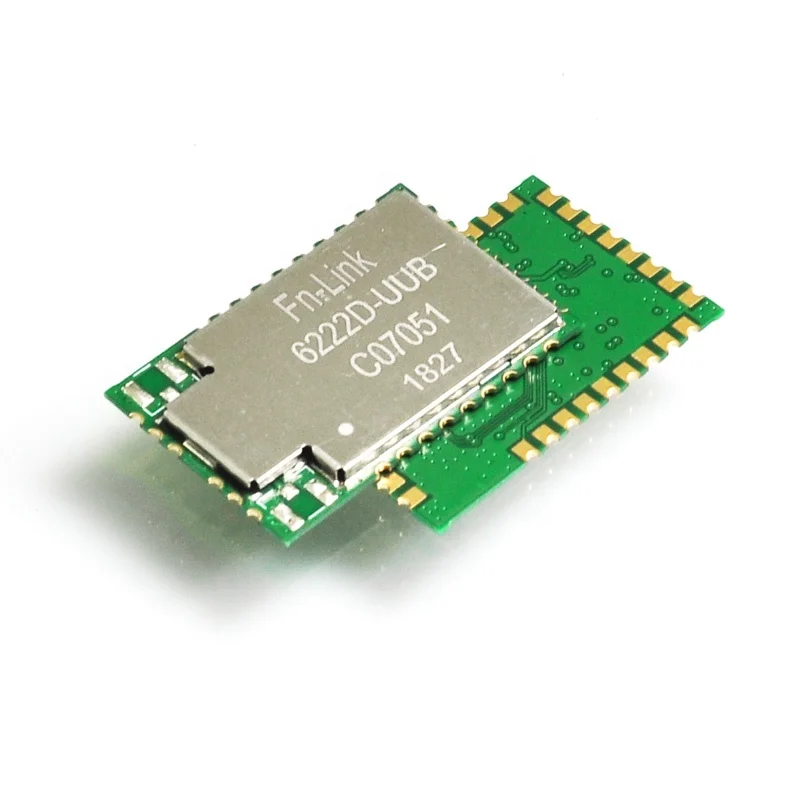

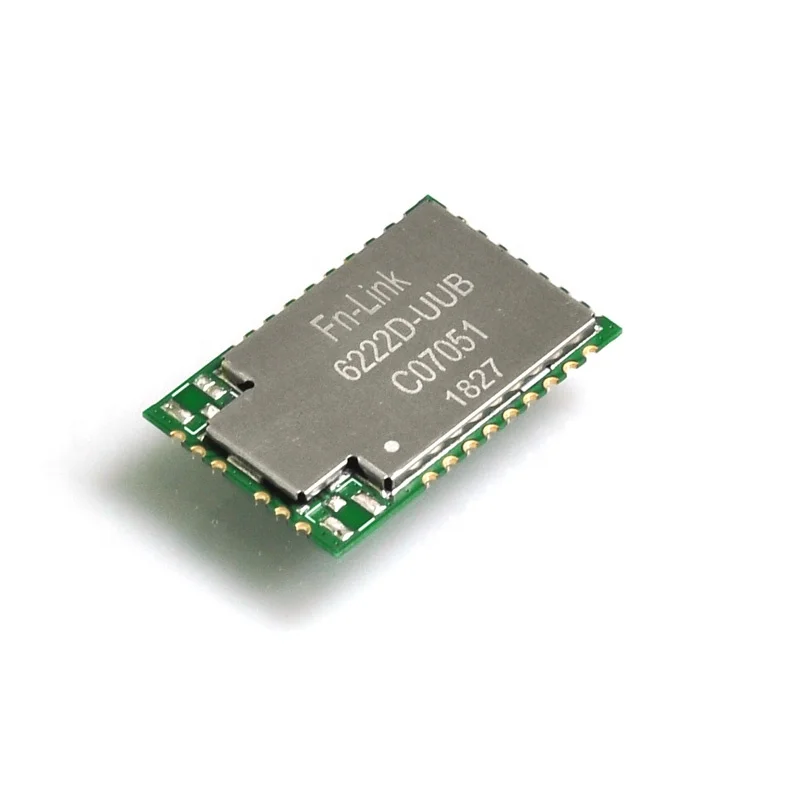

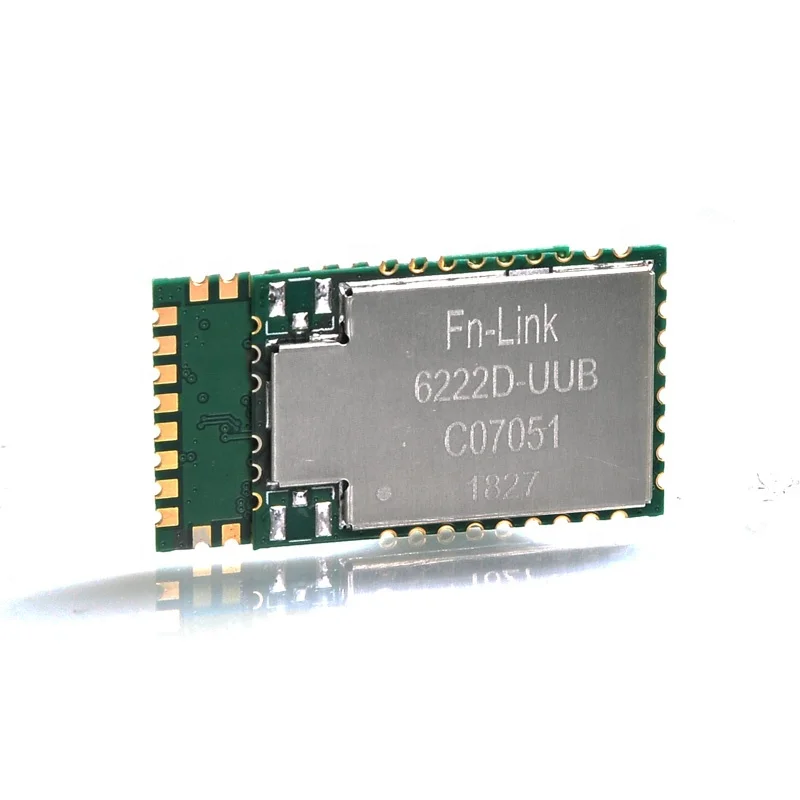

6222D-UUB-W1 is a low-cost and low-power consumption module which has all of the WiFi and Bluetooth functionalities.The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors'802.11a/b/g/n/ac 2x2 Access Points in the wireless LAN.

The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN. The integrated module provides USB interface for WiFi and Bluetooth.


This compact module is a total solution for a combination of WiFi + BT technologies. The module is specifically developed for Smart TV and OTT Box application.



Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.
Dual-stream spatial multiplexing upto 867 Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports USB interface for WLAN and Bluetooth.
Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance datarate.
Supports Bluetooth for class1 and class2 power level transmissions.







Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products





Detailed Parameters


Model No
6222D-UUB-01
Main Chipset
RTL8822BU
WIFI/BT Interface
USB2.0
WIFI Standars
EEE802.11a/b/g/n/ac
Date Rates
867Mbps
Certification
RoHS,REACH
RF Antenna
External Antenna
OS Supported
Android /Linux/Windows
Operating Frequency
2.4/5.8GHz
Operating Voltage
3.3V
Dimensions
27x 18 x1.9mm
RF Chains
2T2R
Operating Temperature
0°C to 70°C
Storage Temperature
-40°C to 85°C


Layout Recommendation





Note


Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
 Detailed specifications docs,please download form the official website or sales.
