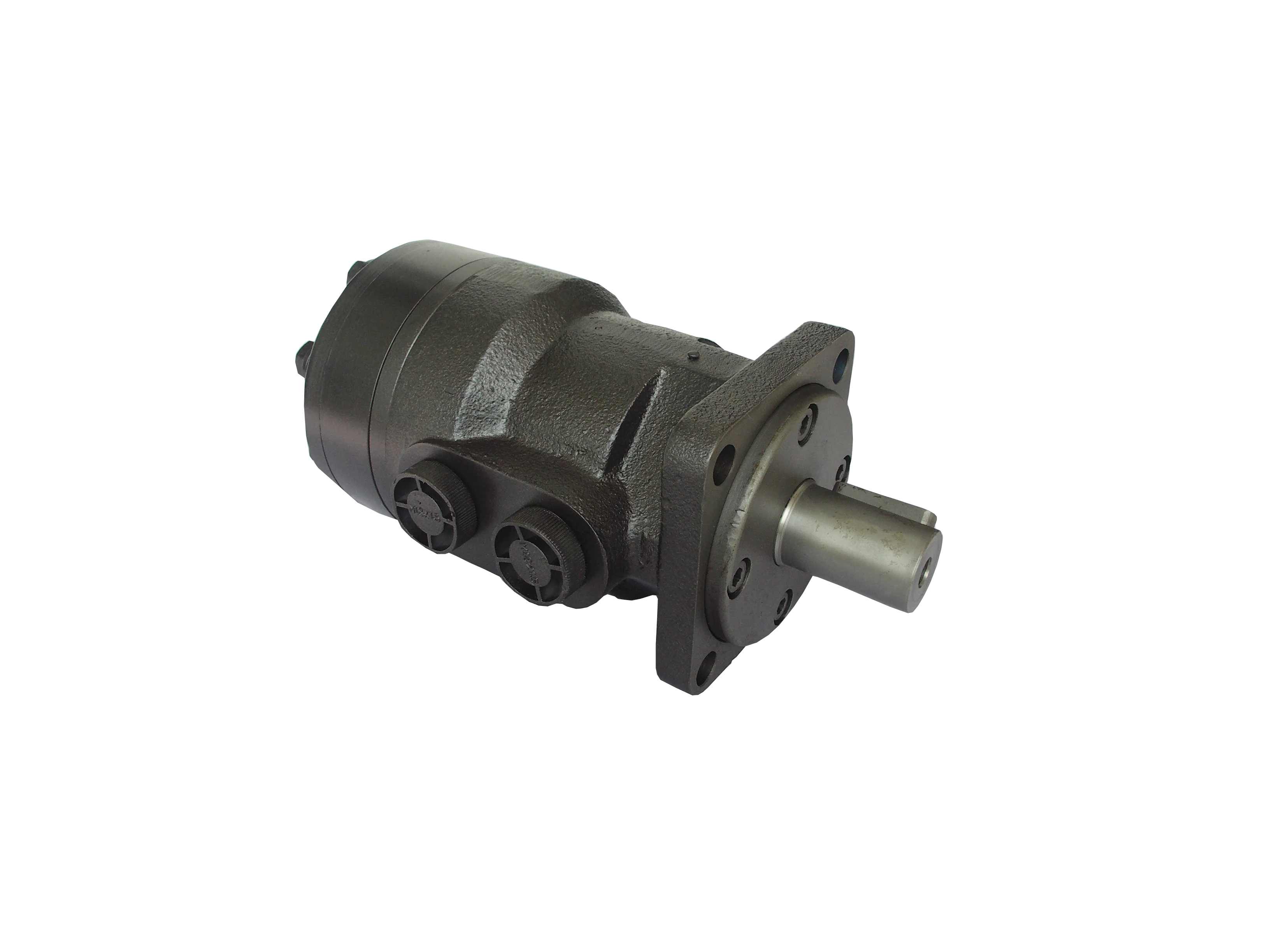

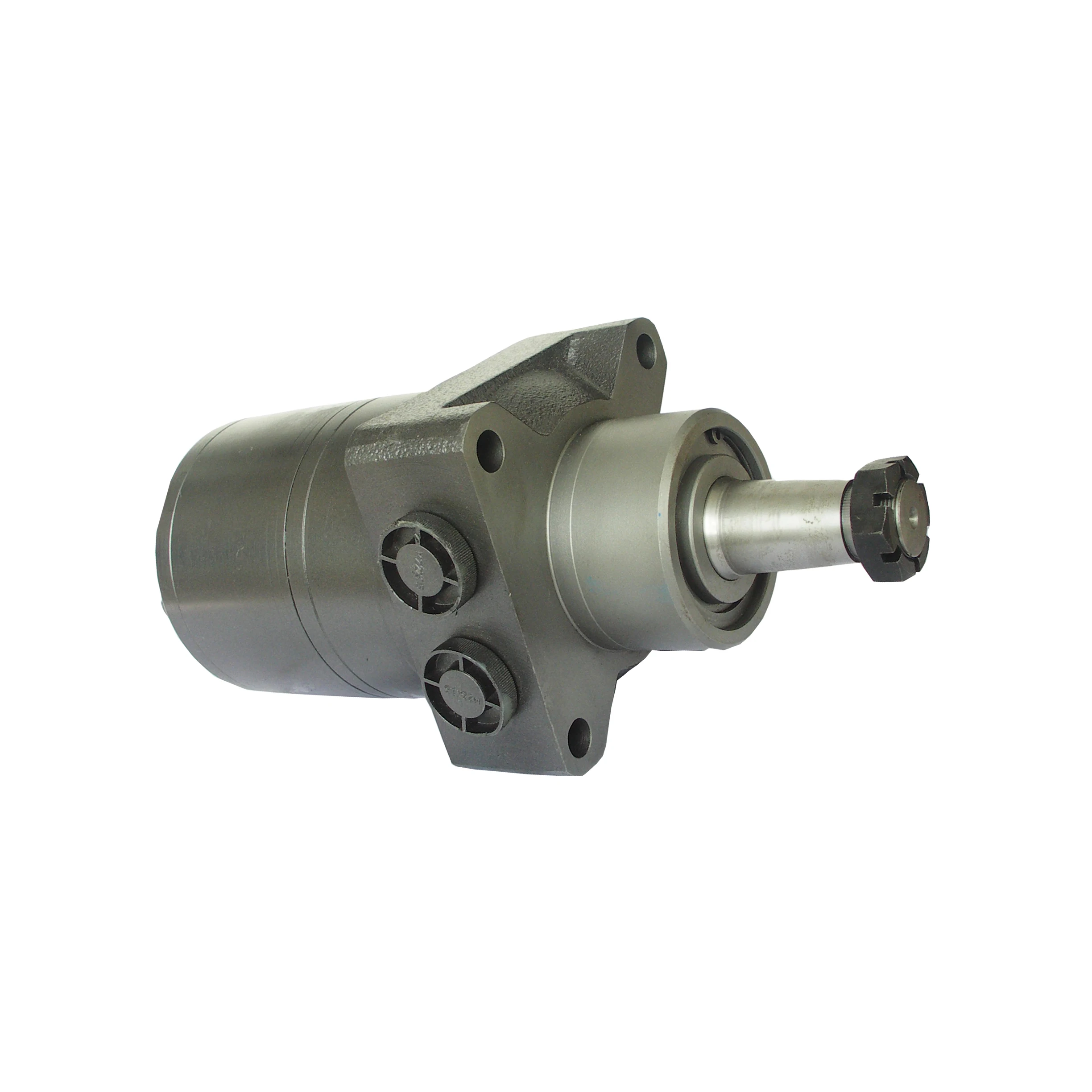

Low Displacement GP50 Orbital Motors
- Category: >>>
- Supplier: Shanghai Ryan Fluid Power Company Ltd.
Share on (60830816926):
Product Overview
Description
Product Description
- Iterminttent operation:the permissible values may occur for max.10% of every minute.
- Peak load:the permissible values may occur for max.1% of every minute.
- For speeds lower than given, consult factory or your regional manager.
- 1.Intermittent speed and intermittent pressure must not occur simultaneously.
- 2.Recommended filtration is per ISO clealiness code 20/16. A nominal fltration of 25 micron or better.
- 3.Recommend using a premium quality,anti-wear type mineral based hydraulic oil HLP(DIN51524)or HM(ISO6743/4) If using synthetic fluids consult the factory for alternative seal materials.
- 4.Recommended minimum oil viscosity 13mm / s[70SUS] at 50℃[122°F]
- 5.Recommended maximum system operating temperature is 82℃[180℉]
- 6.To assure optimum motor life fill with fluid prior to loading and run at moderate load and speed for 10-15 minutes.
