Stamping Molds D7145 EDM Die Sinking Machine Professional Supplier High Quality Die Sinking Mould Sparking Machine

Product Overview

Description

Product Description

Ipretech Machinery——Die Sinker is widely used in fields of mold, bulk production, electronic equipment, precision machinery, medical equipment, auto parts, aerospace and military industries, etc.



Specification	Unit	D7145
Worktable size	mm	700*410
X-Y Stroke	mm	450*350
Z axis stroke	mm	200
Spindle head axis	mm	200
distance from electrode head to worktable	um	260-660
working tank inner size	mm	1150×710×450
Max. Electrode weight	kgs	70
workable loading	kgs	800
Machine Overall size	mm	1470*1250*2050
Machine Weight	kgs	2000
Processing current	A	30/50/75
Positioning accuracy	mm	0.005
Repositioning accuracy	mm	0.003
Max.working speed	mm3/min	360/550
Max. Roughness	um	Ra:0.2
Max.electrode consumption		<0.2%
Controller Overall Size	mm	750*650*1750
Controller Weight	kgs	200

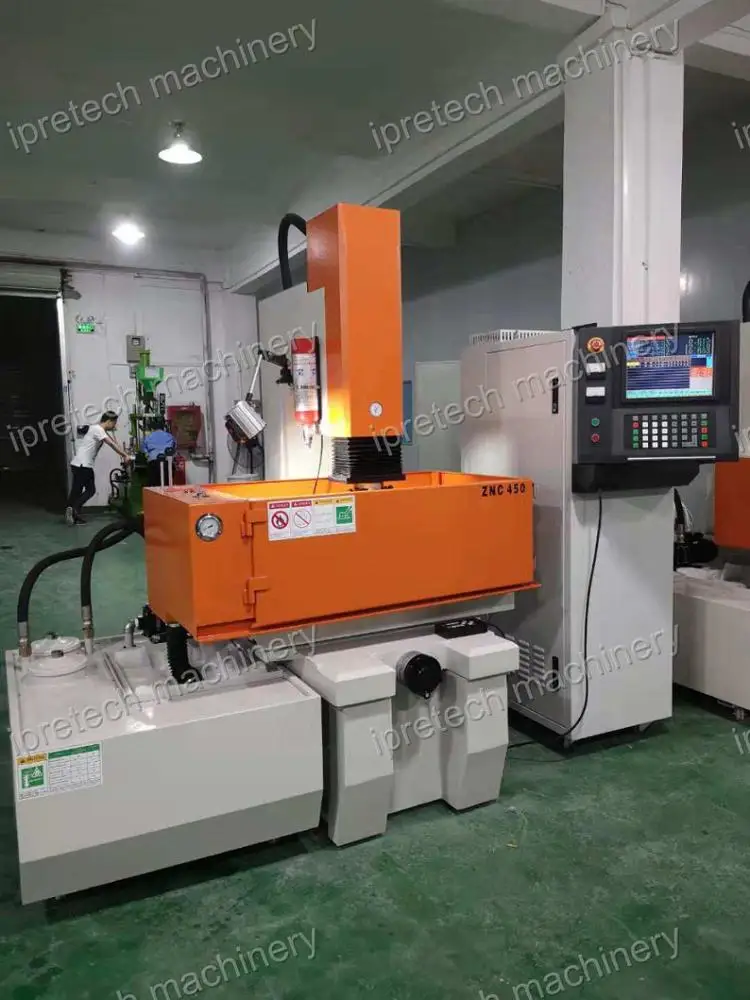

Machine Photo





Machine Features



*Highly equipped: adopt Taiwan Cteck system, Japan DC servo motor, hiwin linear guide rail , steady safety device, optical sensors, auto answer, fire extinguisher and power cut off, high quality imported oil pump.

*Optimized structure: good machine structure, high rigidity ,high precision, adopt V slide design, adopt HT300 aging treatment casting ,keep precision long time, three-axis linear scale

*High Performance: lubrication system uses recovery mode, rail lubrication action at once, and keep the look clean, equipped with Taiwan configuration, the parameters can automatic set up. LCD display, the new design meets European CE safety standards., an be dustproof, waterproof, anti-interference and improve the life of electronic board.

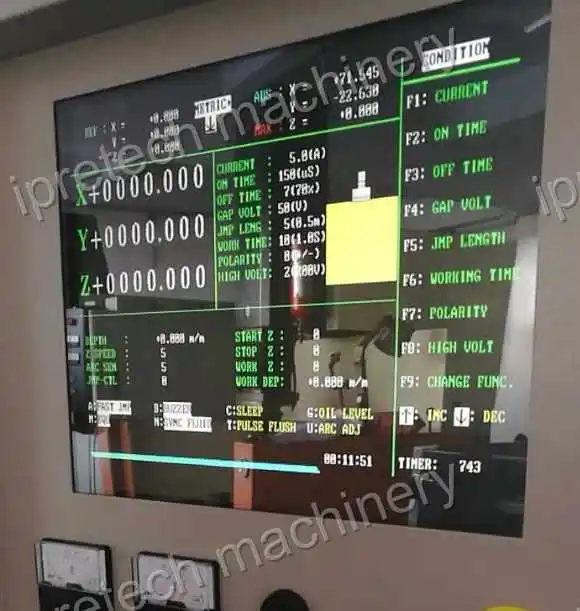

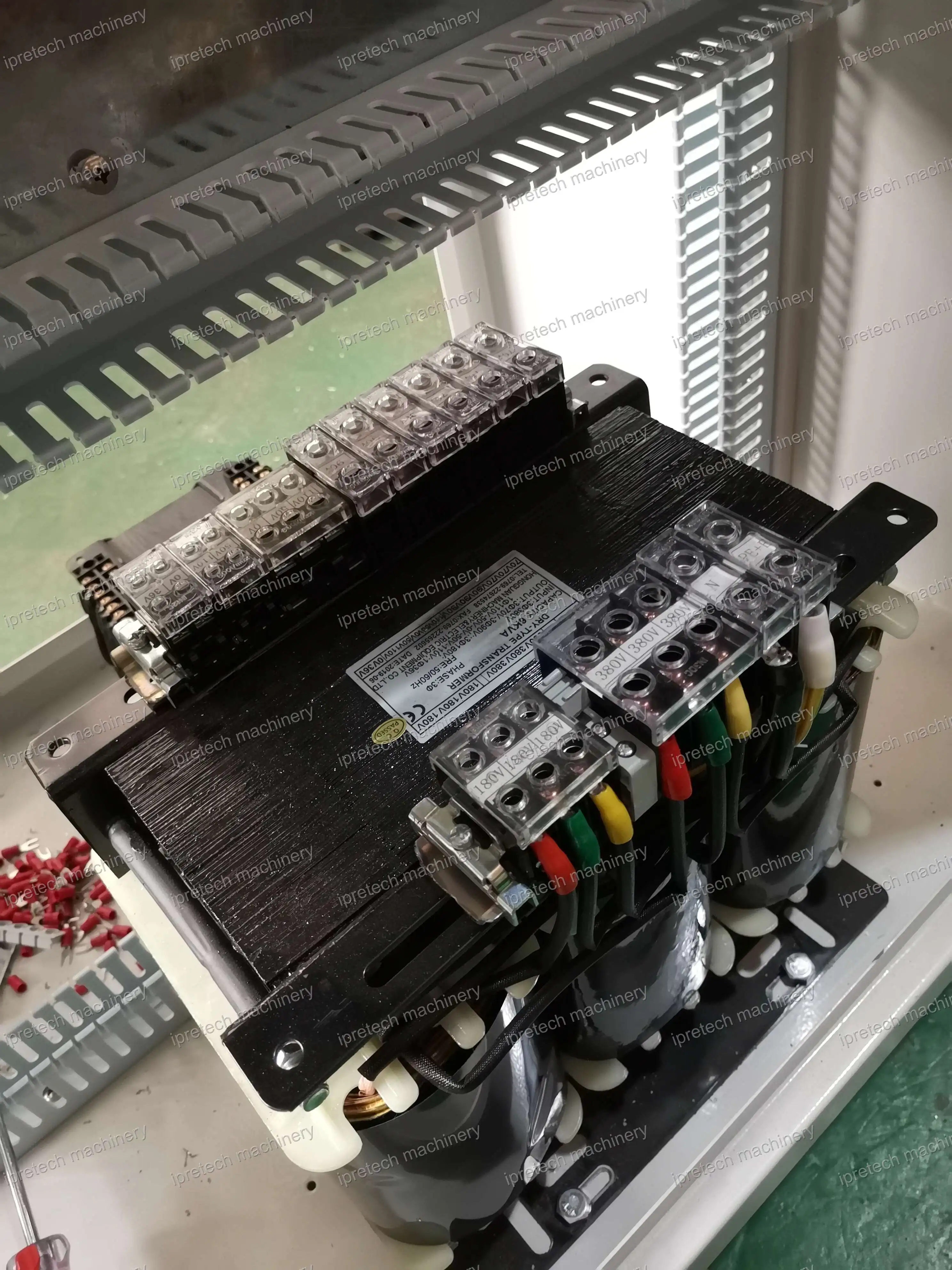

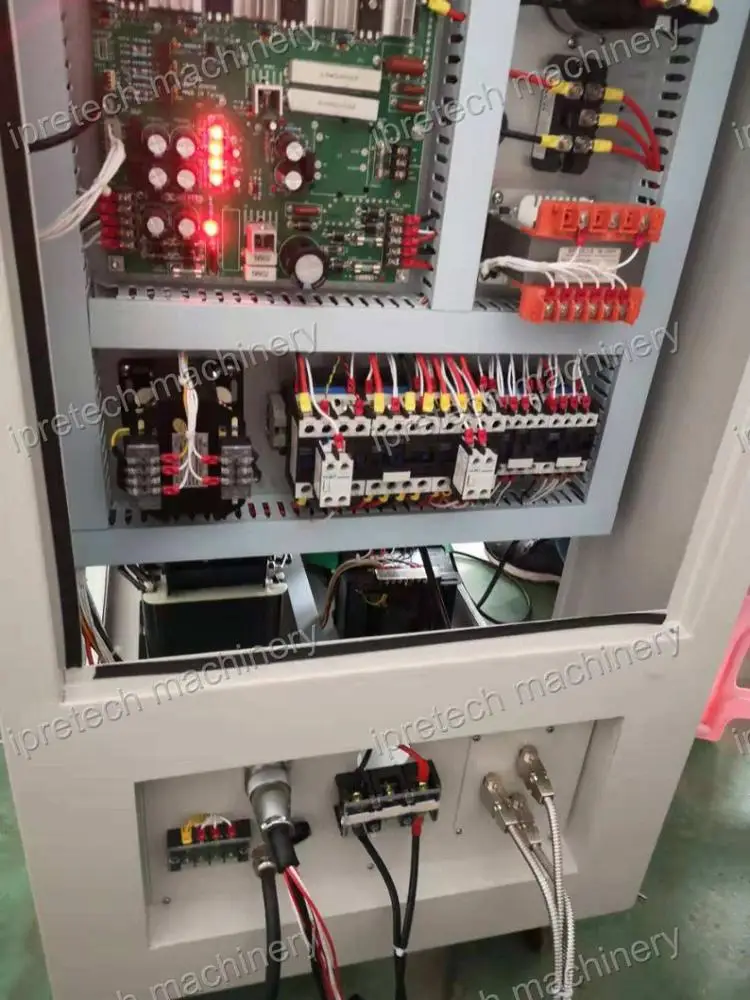

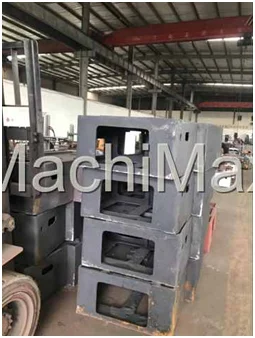

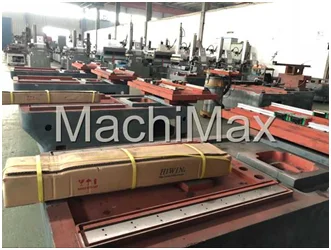

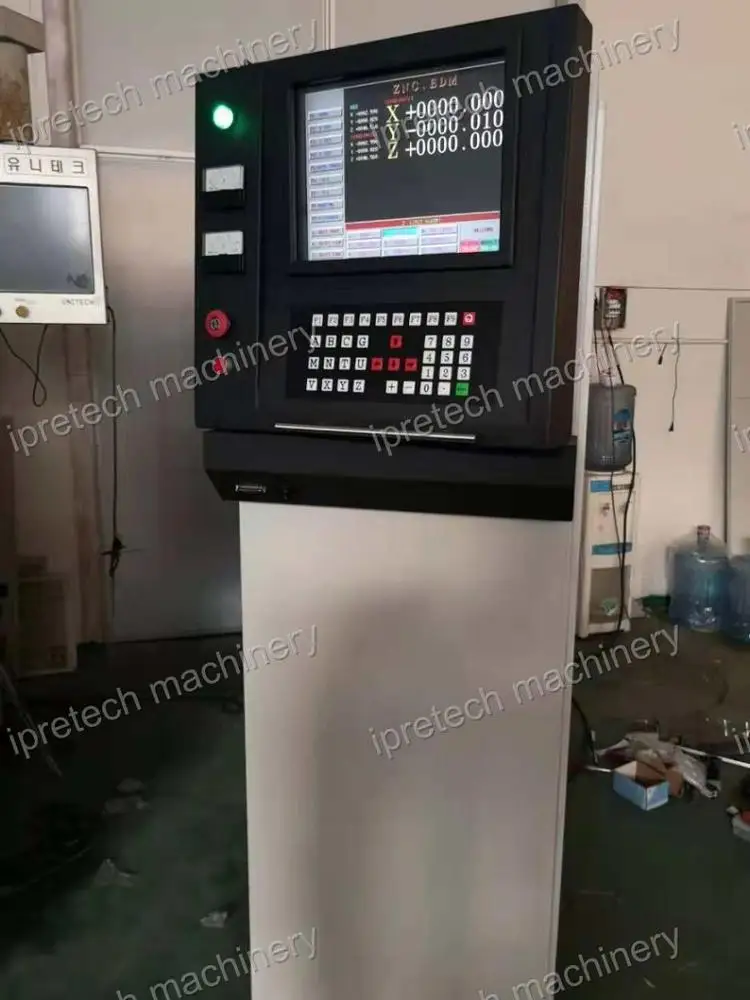

Detailed Images



Our Service

1. Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

2. After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* One-year warranty.

*Free technical support for machine life-span

Packing & Delivery

Packing: Wooden case

Delivery: Popular type 15-20 days, complicated or customized types for 20-30 days.









Company Information



Ipretech machinery company limited is an integrated research & development, manufacturing, import & export as one of the professional CNC machinery tool enterprises. Mainly engaged in a full ranges production of electric sparking series CNC machine and milling machine, machine center, CNC lathe and so on. Our company all products are independent research and development, design and manufacture by advanced design idea & method, the machine body adopts modularization, solid sealed box type structure, after artificial aging qualified castings and a long time the natural aging, obtain complete and reliable stability, with our company independent research and development of the circuit system and software, has excellent mechanical and electrical matching performance, thus greatly improve the stability of product electrical performance.



Under the leadership of our boss Mr.JiaYi, the company has gained two systems ----ISO9001:2000 Quality System Certification and ISO14001:1996 Environmental System Certification, And own appearance design patent certificate and utility model patent certificate, science and technology enterprise qualification certificate 16pcs, ALSO ovserve contracts and keep promises etc. qualification and honor. Ipretech machinery have grown up to be one of the Top EDM manufacturer and Exporter in China. Our market covers the United States, Mexico, Brazil, Argentina, Chile, South Korea, Indonesia, Malaysia, Vietnam, India, Pakistan, Russia, Turkey,Egypt, Italy, Poland, the Czech Republic, Hungary and the United Kingdom.
