1500mm Stretch film making machine

Share on (60830875940):


Price:$100,000.00

Quantity:


Product Overview

Description





5





Product Description

Product Description




Product Application

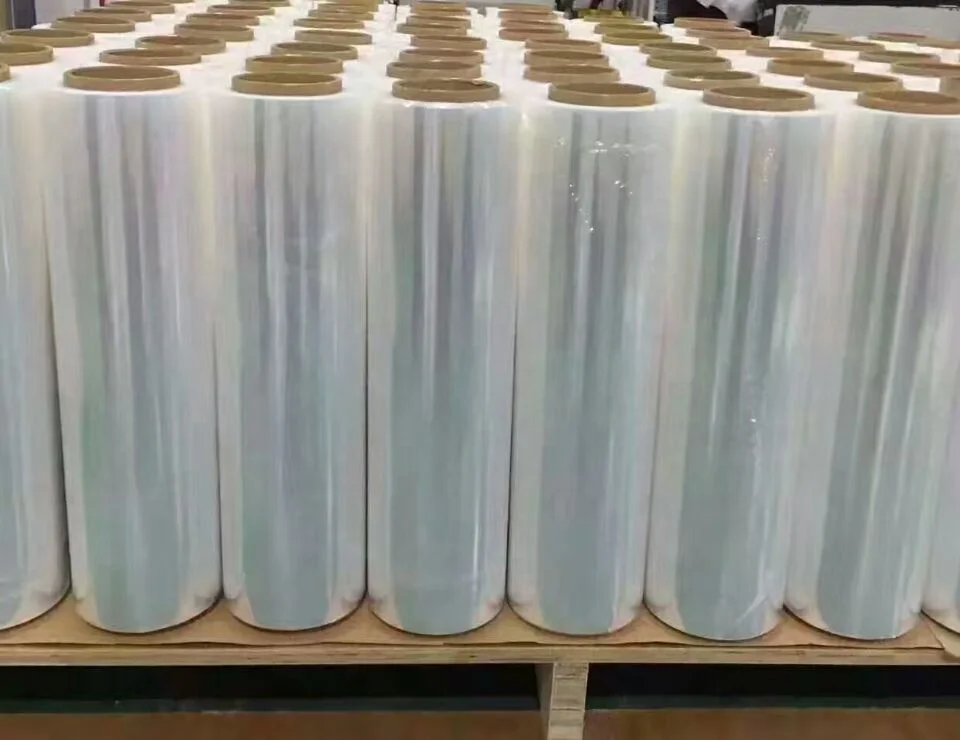

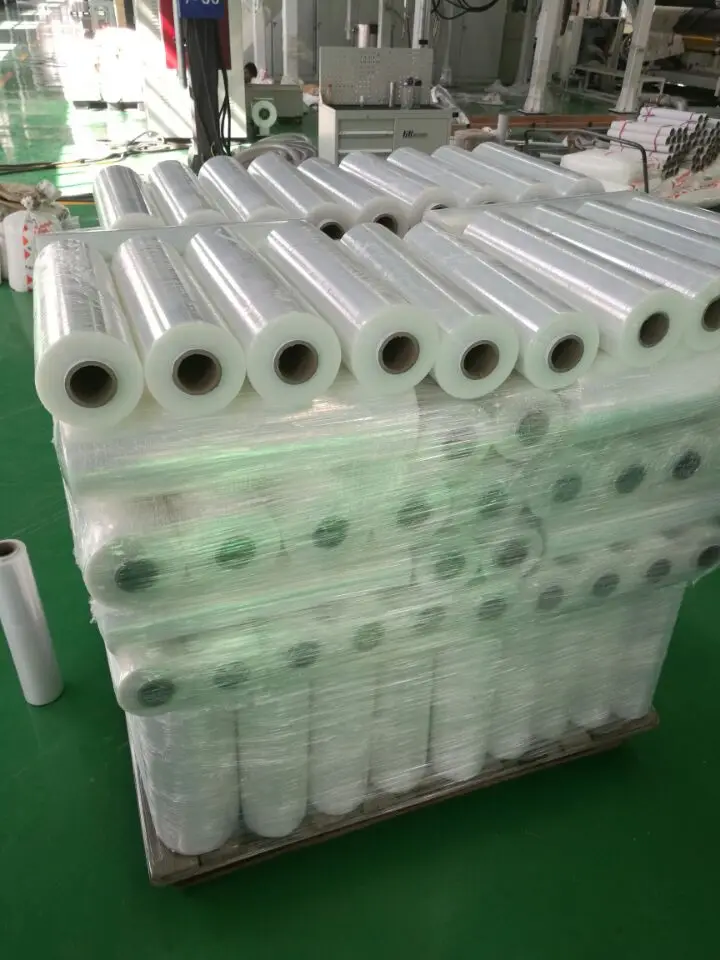

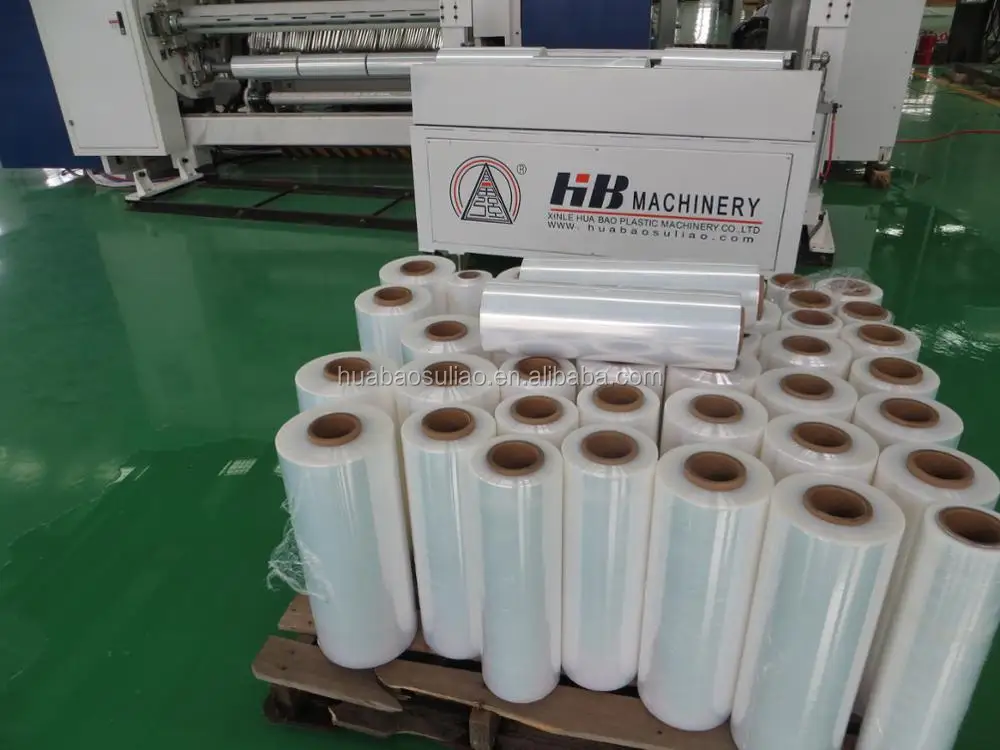

Fully automatic cast PE stretch film machine is for producing sigle/double-side self-adhesice three-layer or five-layer stretch film by extruder with LLDPE and serveral kingds of resins.PEstretch film can be widely used in wrapping of palletized goods.It's a good substitute for hot shrink packaging film.

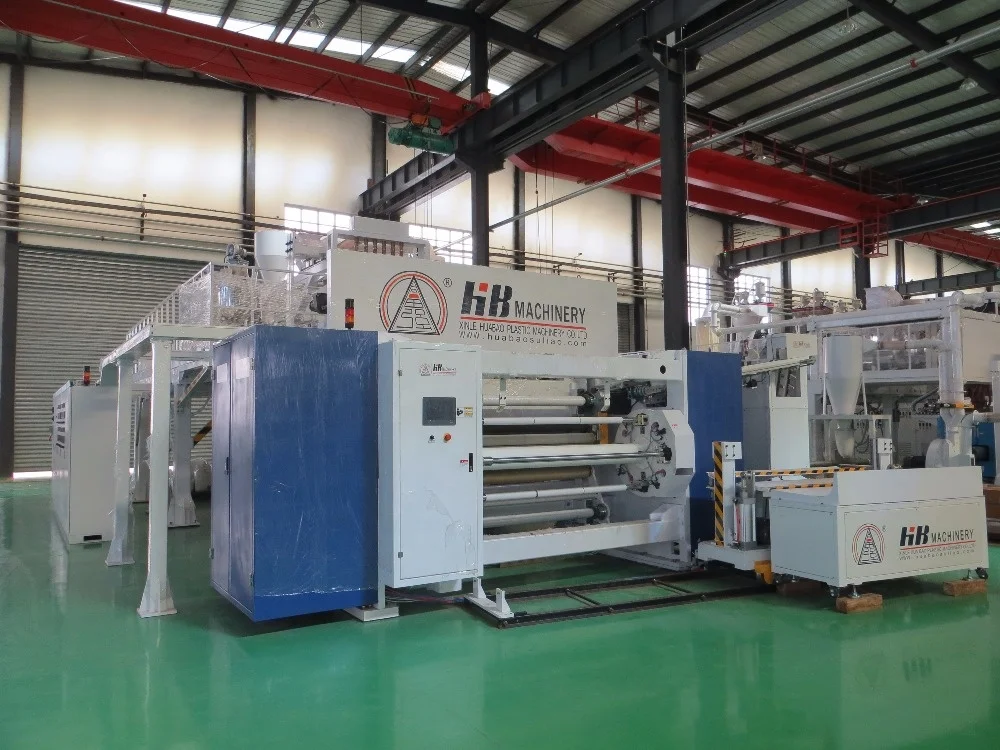

IMG_3754

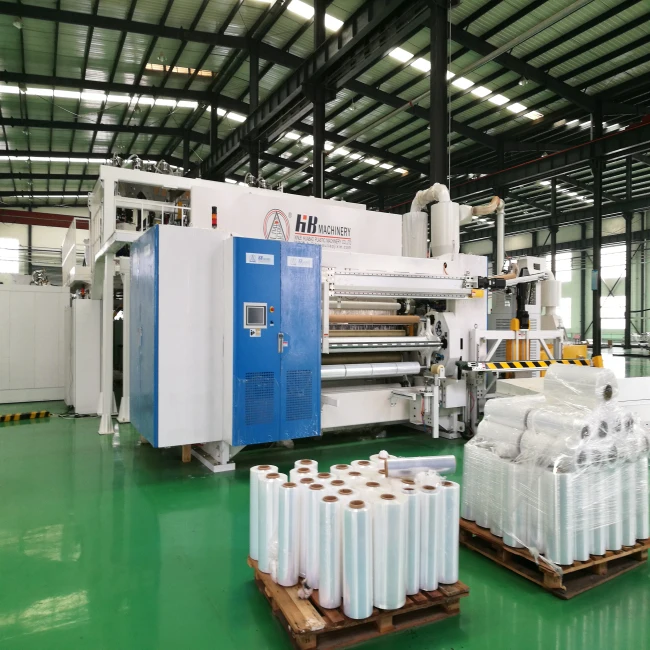

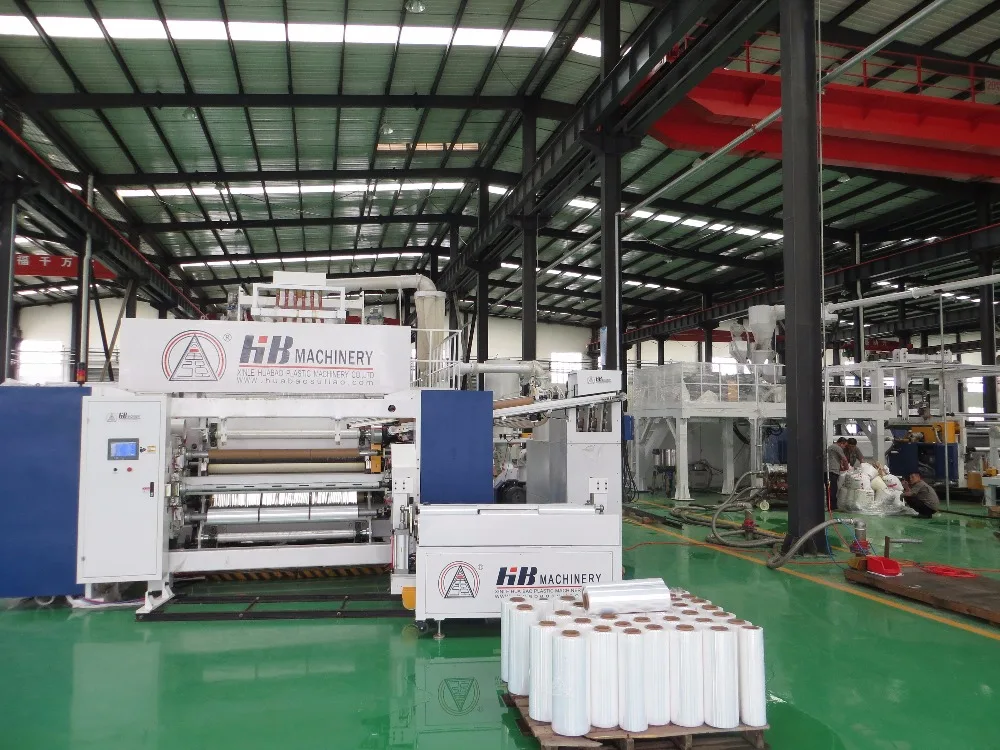

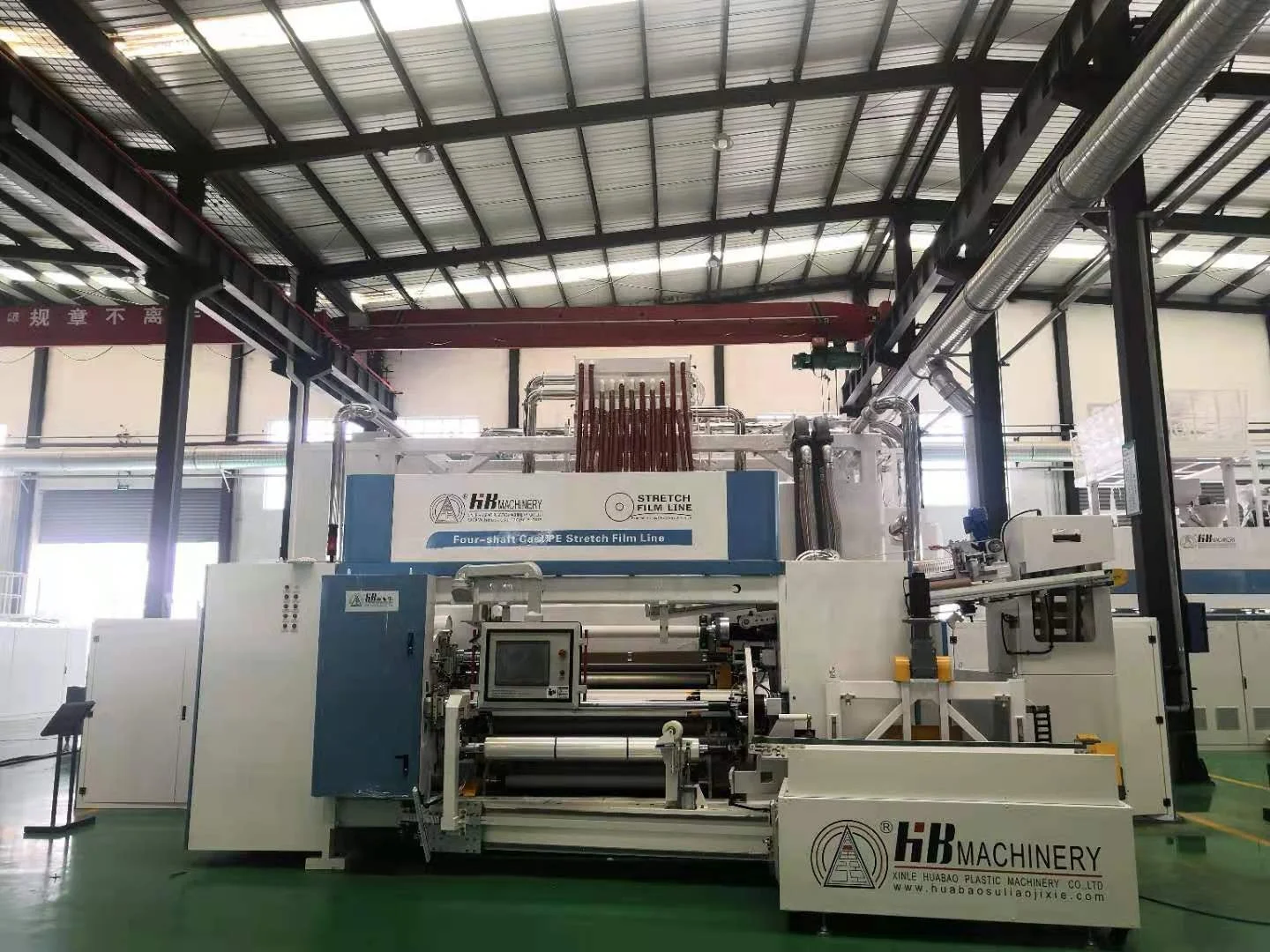

1500mm cast stretch film/silage film line


Screw Diameter(mm)


65/125/80


L/D Ratio of Screw


32:1


Width of Die(mm)


1900


Width of Fished Film(mm)


1500(500*3 rolls)


Thickness of Finished Film(mm)


0.010-0.03


Structure of Film


A/B/C


Max.Extrusion Capacity(kg/h)


700


Design Line Speed(m/min)


350


Total Installed Power(kw)


480


Overall Dimensions(L*W*H)(m)


17*10*6


Weight(T)


45















Main Features




 1. Adopt newest four shaft winding unit, automatic shaft loading, paper core loading, saving labor cost.


2. Compact structure, high cost performance, three-layer or five-layer co-extrusion, automatic roll change, high quality appearance and performance.








Certifications

Certifications












Detailed Images

Detailed Images







Machine Parts

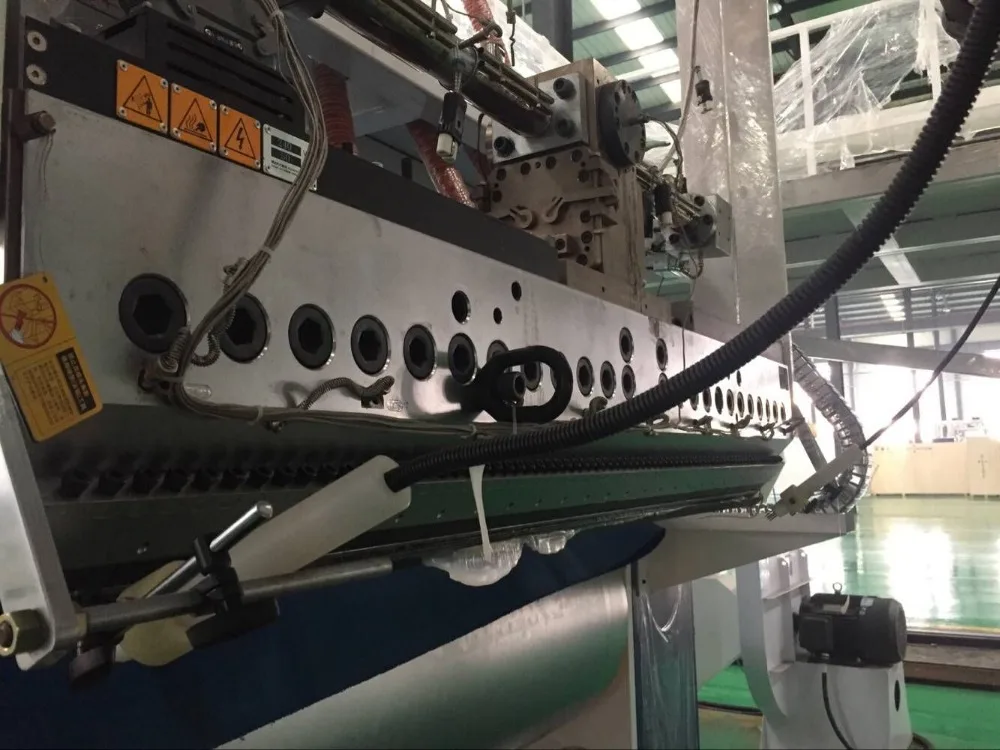

Name: T-Die


Brand: JINGCHENG


Original: China


Domestic famous T-die, using the special die steel,hanger type design,the runner durionise and mirror polish.








Main Features

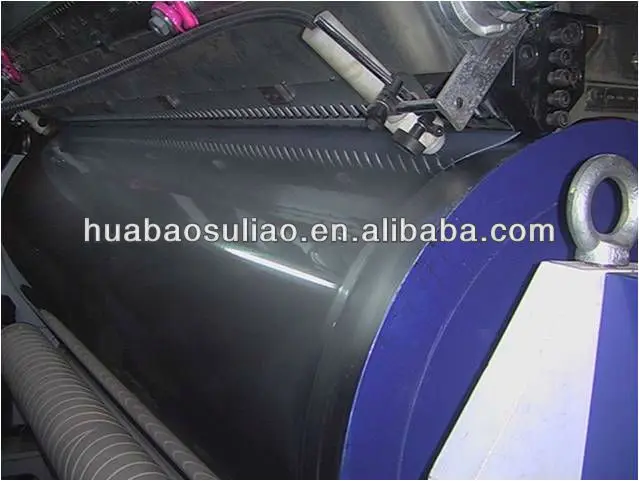

Name:Foring roller
Original: China
Precise temperature, uniform thickness











Our Service

Our Service














Pre-Sales Service




* Inquiry and consulting support.


* Sample testing support.


* View our Factory.






After-Sales Service




* Training how to instal the machine, training how to use the machine.


* Engineers available to service machinery overseas.
