New Type Sell Well medical use Anesthesia vaporizer

Products description:

Dolphinmed deliver high quality anesthesia vaporizer with latest innovative design, deliver accurate concentrations under varying conditions of variable flowrate, pressure, temperature, CE certificated anesthesia vaporizer, now Dolphinmed are the biggest vaporizer producer in China, with different  mounting type and filler type,could supply to different brand anesthesia machine at domestic and abroad.

Features:

Advanced temperature, flow and pressure compensation, ensuring accurate anesthetic output concentration in various complex situations
Stably deliver agent, automatic temperature-compensating .deliver accurate agent
Sophisticated delivery system,Stable, prompt, accurate
Various kinds of mounting types. Meet different anesthetic machine requirements.

h high precision and designed to comply with EU standard

The biggest vaporizer producer in China, supply to anesthesia machine manufactuer at domestic and abroad.

Adopts well selected high precision and super clean monobloc copper alloy, processes the tested structure pieces by numerical control, processed by fine treatment, rubbing, matching, rinsing and disinfection, complied with the highest industrial processing standard---Food Grade Standard

Gas filtration system adopts agglomeration copper, ensuring to supply clean gas to the patient and securing the patients safety to the maximum

The output concentration of Halothane, Enflurane and Isoflurane ranges from 0% to 5%, and Sevoflurane ranges from 0% to 8%

The internal key parts use imported materials with good air tightness. The compensation range is from15°C to 35°C for temperature and from 200ml/min to 15000ml/min for flow.

Safety lock device to prevent the anesthetic gas volatile accidentally.

The big view window is convenient to observe drug usage levels.

Ergonomics,acurancy,safety and reliability

With flow, pressure, temperature compensation

Support a solution in filler types and mounting types

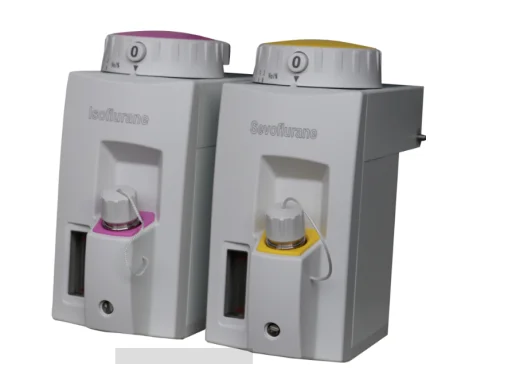

Dvapo Series Anestheisa Vaporizer

The Dvapo serial anesthesia vaporizer combine the feature of ergonomics,acurancy,safety and reliability. Dvapo vaporizer with the sophisticated design, would provide a reliable and safe solution in filler types and mounting types.

With latest innovative design of delivery system, Dvapo vaporizers delivery accurate concentrations under varying conditions of variable flowrate, pressure, temperature, and so on

Dvapo vaporizer are calibrated by skilled calibrated by skilled technicians. The advanced temperature-compensative system can make the concentration delivery stably.

Dvapo vaporizer is designed sophisticated and produced strictly confirming to test standards. Dolphinmed can promise every Dvapo vaporizer apply to international standard ISO8835-4.

Dvapo vaporizer have been made by special high tech materials, which prove the vaporizer anti-corrosion from agent. Beside, with special rubber gaskets ,it can make sure agent leak-proofness and corrosion-resistant.

Dvapo vaporizer have safety locking device to prevent the anesthetic gas volatile accidentally, provide very safe anesthesia environment.

There is no need for regular maintenance to Dvapo vaporizer, we can provide the 36 months warranty and life-long free calibration service

Stability

With latest innovative design of delivery system,Dvapo vaporizers delivery accurate concentrations under varying conditions of variable flowrate, pressure, temperature, and so on

Diversity Dvapo Vaporizer meet the different agent need ,i.e. Isoflurane, Halothane,Sevflurane. and Enflurane.
Dvapo provide several mounting types
Safety Dvapo series vaporizer is marked on from view with agent matching color labels and agent name labels. It can prove the agent-filling correct and safety .With various filler types.
Dvapo vaporizer have safety locking device to prevent the anesthetic gas volatile accidentally, provide very safe anesthesia environment.

Specification/

Concentration range:
Enflurane 0.2 to 5%
Isoflurane 0.2 to 5%
Halothane 0.2 to 5%
Sevoflurane 0.2 to 8%

Flow range:0.2 to 15L/min
0.2 to 10L/min(normal usage) For concentrations>5 vol%

Filling volume for agent:

About 340ml with dry wick

About 300 ml with moist wick

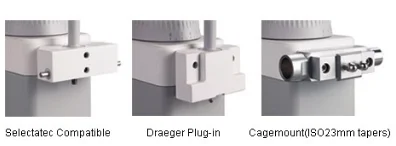

Mounting type:
Selectatec compatible
Draeger plug in(Option)
Cagemount(ISO 23mm tapers)(Option)
Cagemount with interlock (Option)

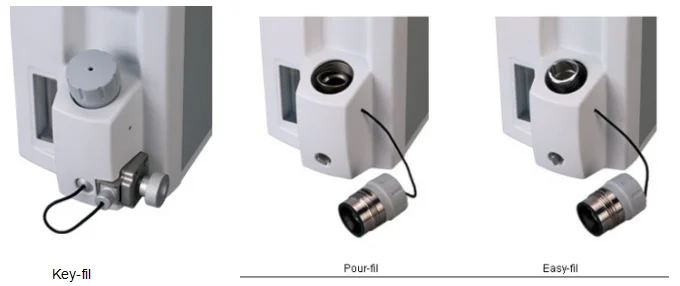

Filler type:

Pour-fill

Easy-fill(option)

Quik -fill(only for sevflurane)(Option)

Operation environment

Flow meter:0.2~15L/min(0.2~10L/min For concentration>5%)

Temperature: 15~+35°C

Humidity: 0~95%

Atmospheric pressure: 70~106Pa

Storage/Transport environment:

Temperature: -40~+65°C

Humidity: 0~95%

Atmospheric pressure: 11.5~110Pa

1.What is Dolphinmed business?

Re:The main business is ICU ventilator,anesthesia machine ,Medical Air Compressor,Anesthesia vaporizer(isoflurane ,sevoflurane,halothane,enflurane),Anesthesia ventialtor,veterinary anesthesia machine,veterinary anesthesia ventilator,Bellows,Flowmeter,CO2 absorber,support arm,Selectatec bar, anesthesia NC parts etc.

2.How we can cooperate with Dolphinmed?Is there some requirement?

Re:Now main business is as follows:

a,Brand(Dolphimed) sole agent business, at important country and area, sigh the sole agent agreement letter, start the long-term distributer cooperation, win-win cooperation; 2,ODM business, mainly for Anesthesia Machine& ventilator and Vaporier business, specially designed and produced for customer, unique cover design, sole sales right, excellant after-sale service.; 3,OEM business, provide OEM business at some country and some area, label stamped is available; Anesthesia&ventilator system spares parts machining business service, for example,CO2 Absorber, Selectatec bar,flow meter,bellow, mechanical processing service as the drawing design,etc

We require long-term cooperation based mutual benefit.

3.What is Dolphinmed products warranty?

For Anesthesia machine,icu ventilator ,medical air compressor,it is two year.

For anesthesia vaporizer ,it is five year

For flowmeter,bellows,cagemout bar,selectatec bar,support arm etc,it is one year.

For other consumables products,it is 3 month.

4.What is delivery time of Dolphinmed products?

For Anesthesia machine,icu ventilator ,medical air compressor, 7 working day after payment

For anesthesia vaporizer ,5 working day after payment For flowmeter,bellows,cagemout bar,selectatec bar,support arm etc,it is one year. 15 working day after payment.

For other consumables products,it is 3 month. 10 working day after payment.

5.Could we visit Dolphinmed factory?

Yes ,welocme to visit us ,we have factory at Zibo,Shandong Province,.marketing and R&D center are at Beijing.Before it have plan,please make reservation with first,we will make the schedule for your visit.

6.How your side can ship or delivery our goods to our country

By sea ,by Air or By express,and some country we have “ double clearance to office” Service. Before order,will confirm the shipping details according to goods situation.

7.How is your payment term?

T/T(bank transfer),L/C,Cash,Western Union,Money Gram,Paypal is accepted.
