Product Overview

Description

10" Table Saw with 50" Rip Fence System

Item# 25103











Description

This 10” table saw is light duty machine of the best features of the professional cabinet style table saw. It has an enclosed cabinet with 4" dust port, heavy-duty cabinet-mounted cast iron trunnions, and a powerful 2 HP motor to easily rip through hardwoods or dado cutting. The fence on this machine has the easy lift-off and simple adjustability of the popular T-shape Classic fence. To top it all off, this saw features an innovative quick-release blade guard and riving knife system that can be changed in seconds. It's one of the popular table saws in the market.









Features

• Precision grounded cast iron table


• Cast iron trunnions


• Cabinet mounted trunnions for good accuracy and stability during the cutting


• Powerful 2HP motor


• Blade left tilts 0 - 45°

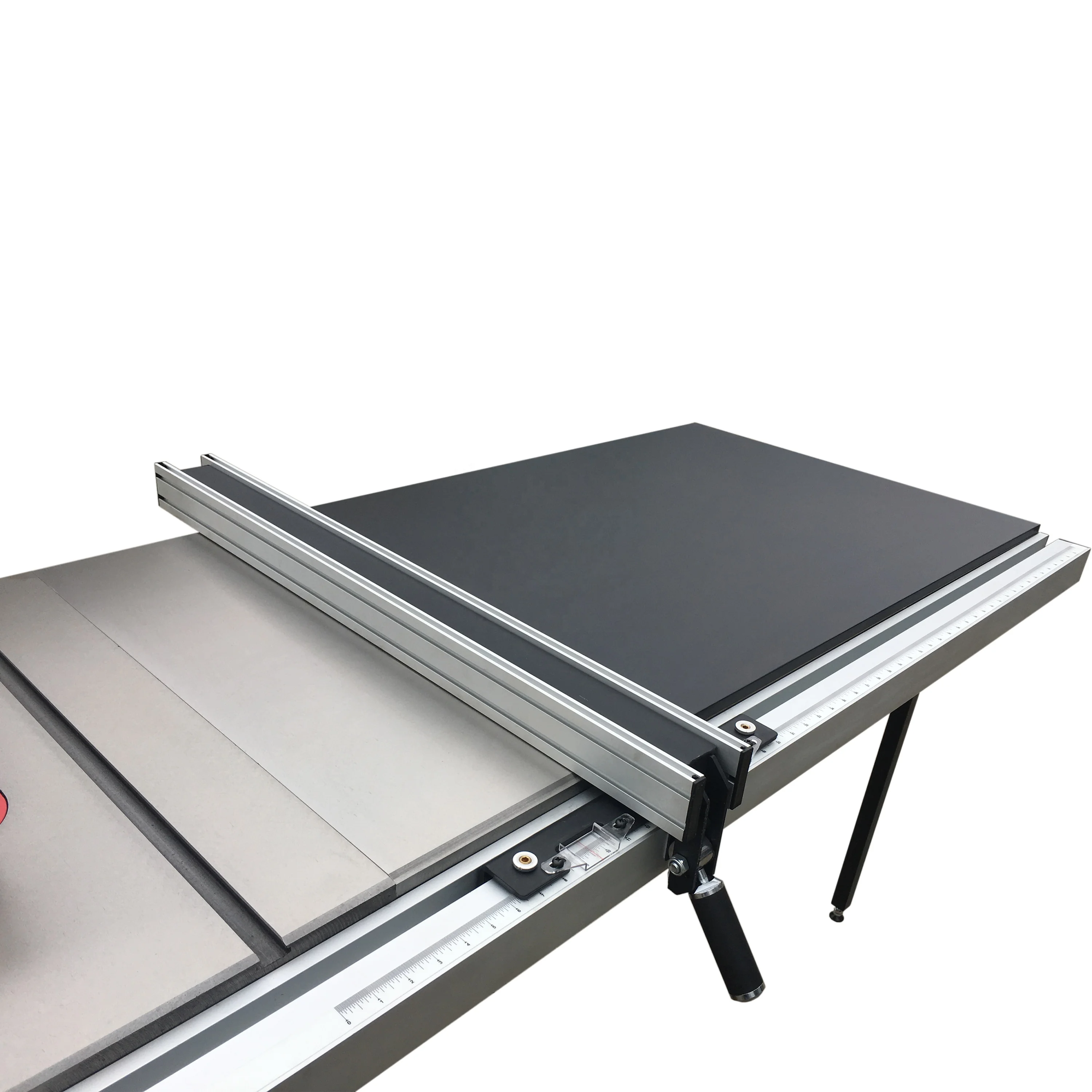

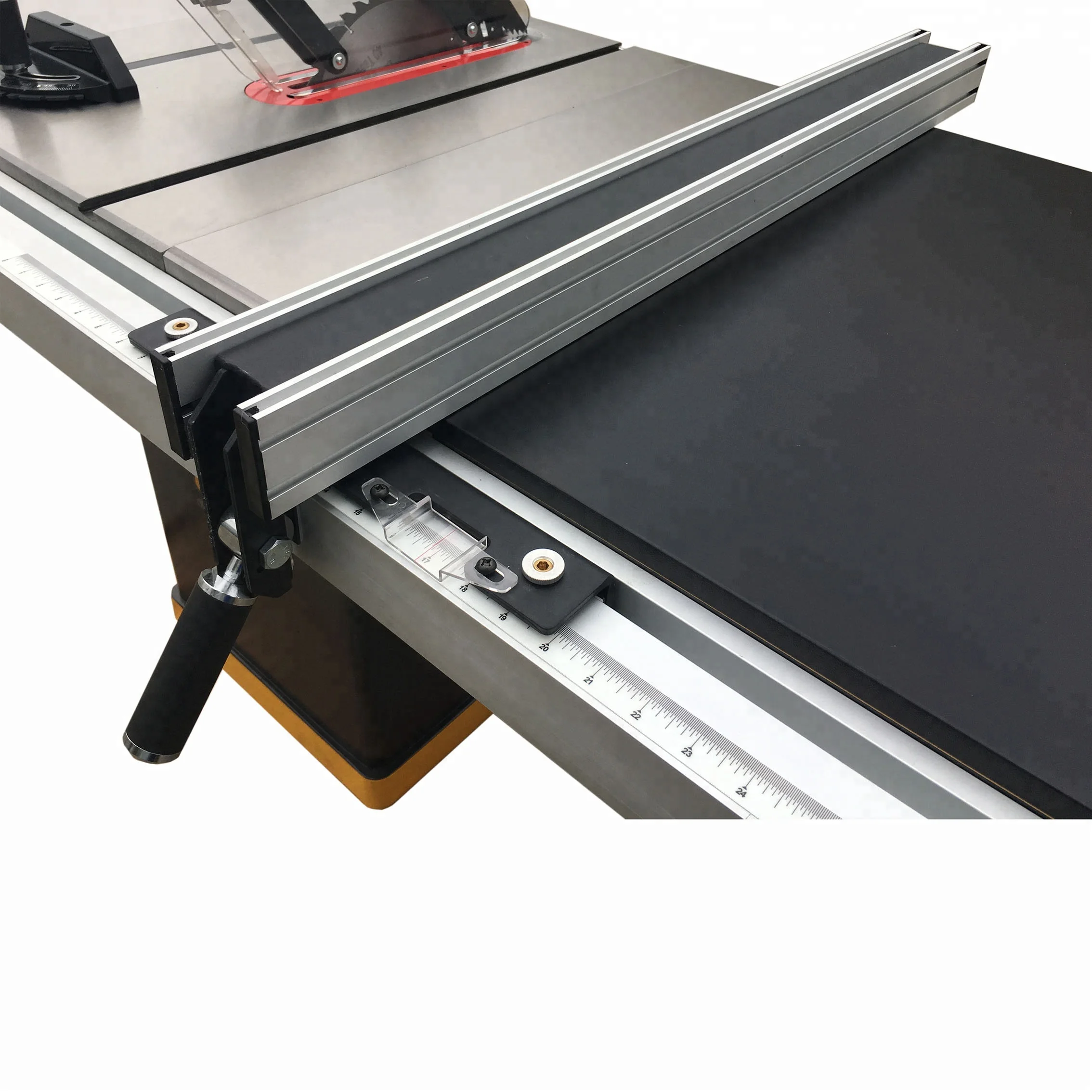

• Easy-glide fence system features easy lift-off and simple adjustability

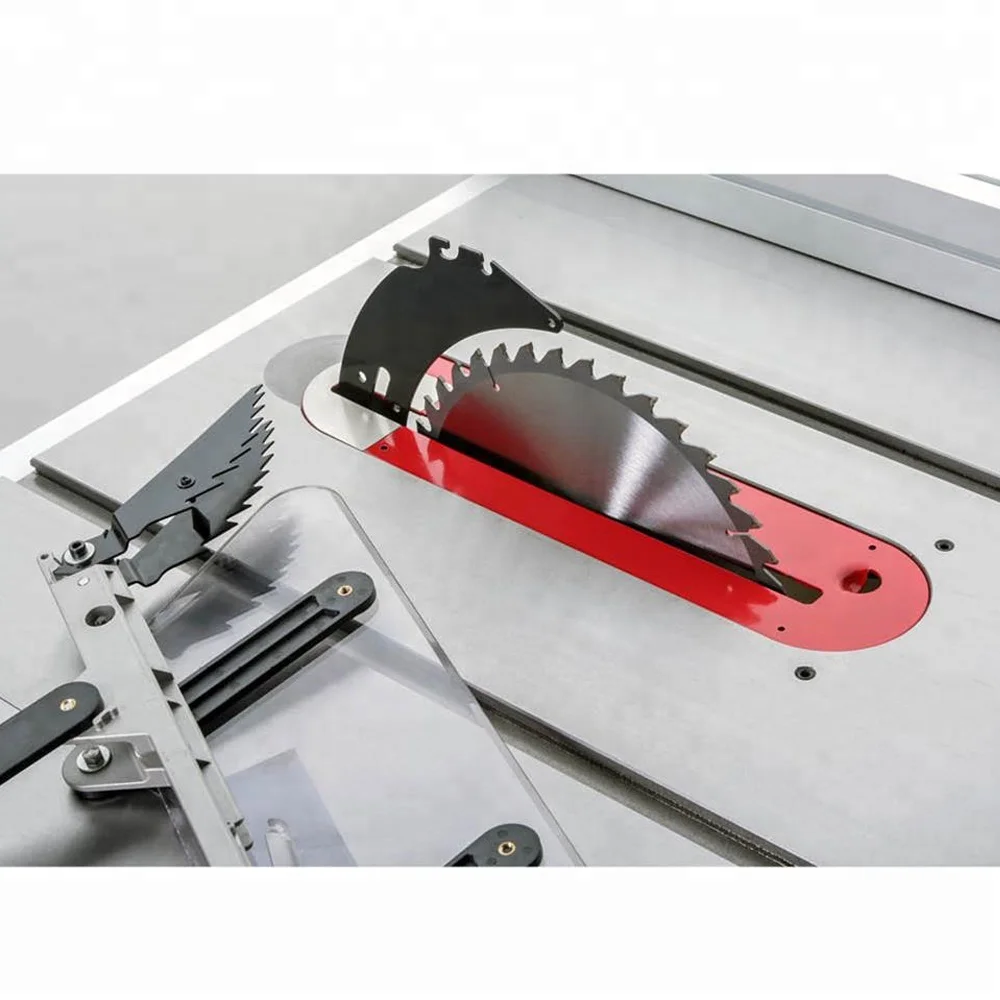

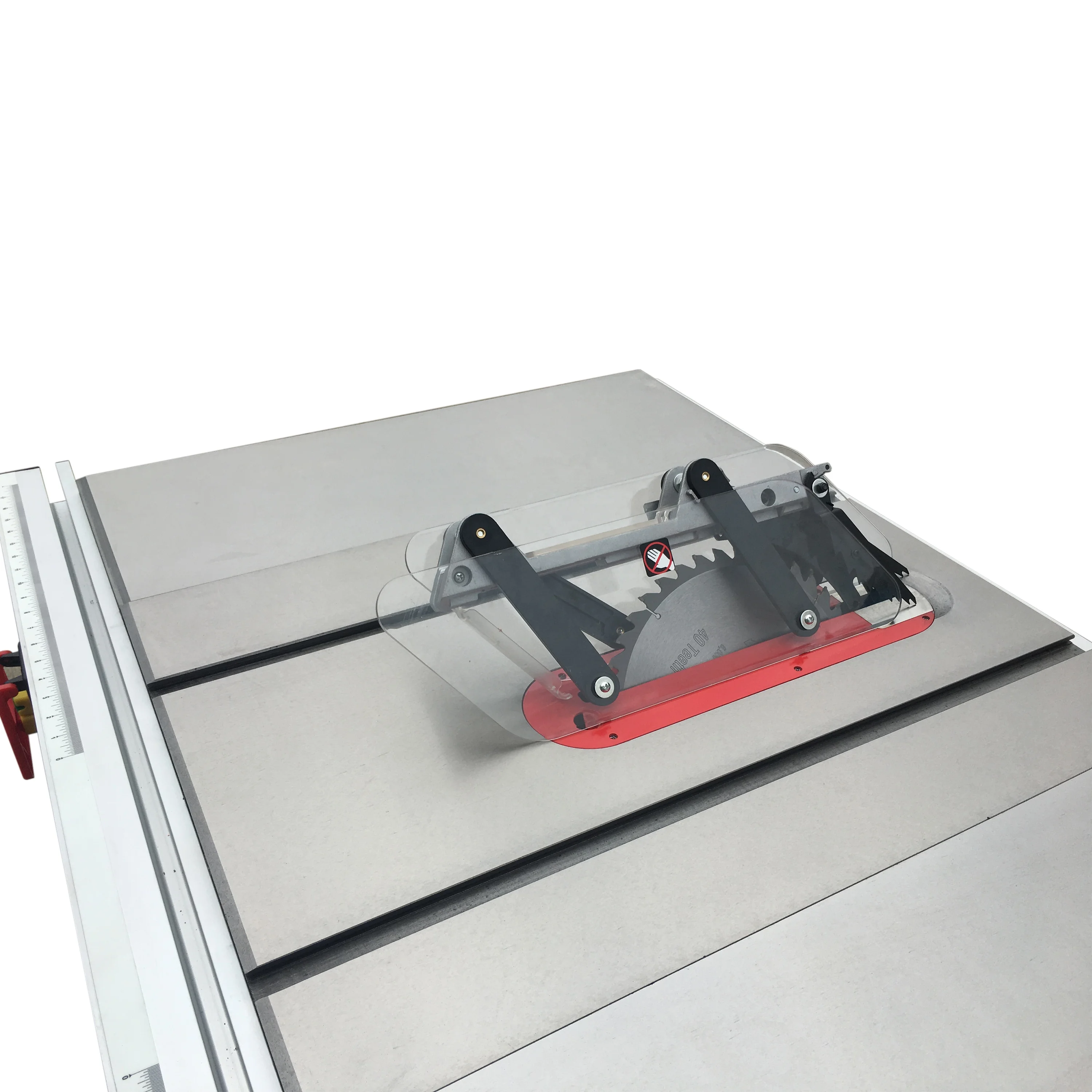

• Innovative quick-release blade guard and riving knife system that can be changed in seconds


• Casting handwheels provide smooth operation on blade lifting and tilting


• 4" Dust port


• Big stop pedal switch for safety

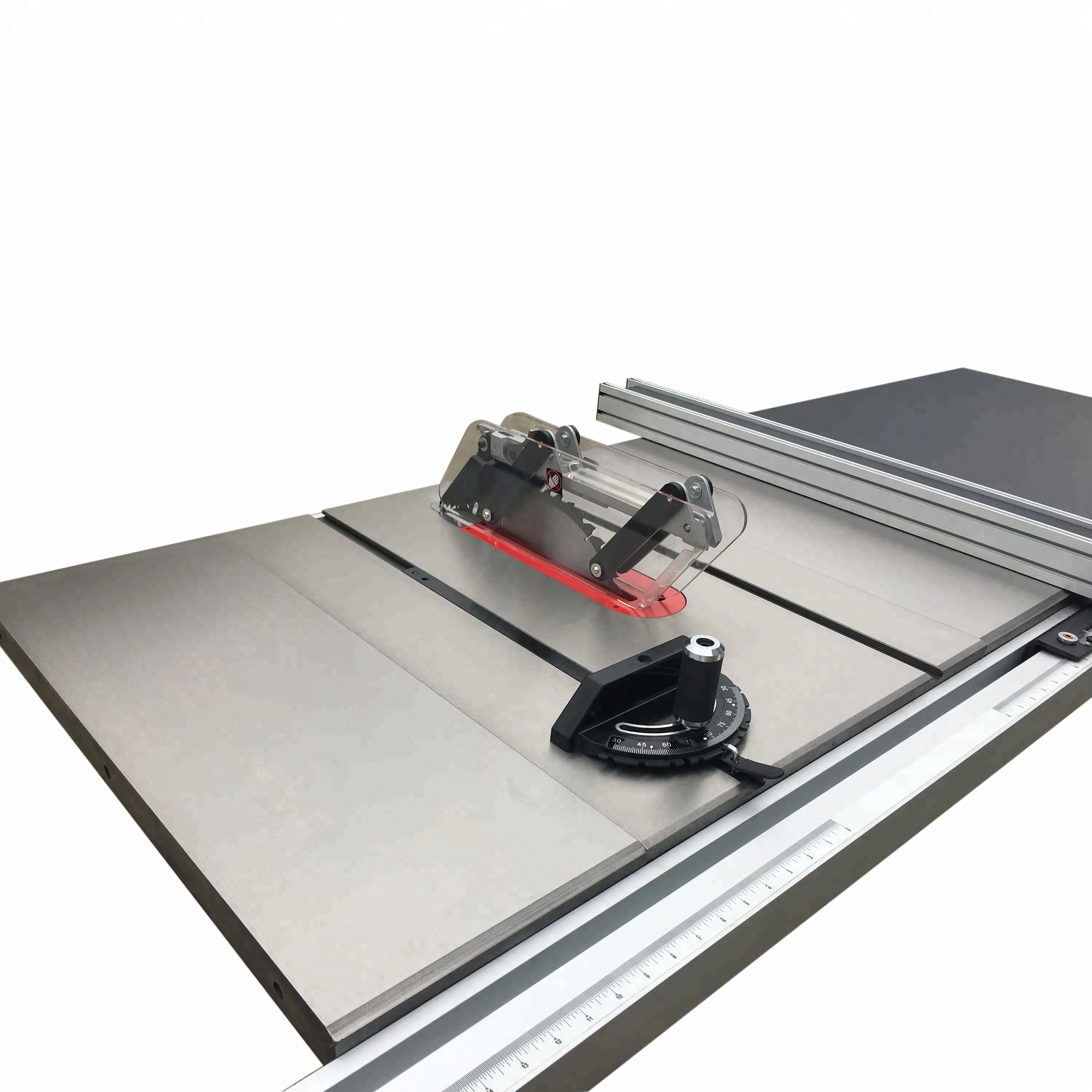

• T-slot miter gauge


• Includes 10" x 40T carbide-tipped blade


• CSA approved







Specification

• Motor: 2 HP, 110V or 220V, single-phase


• Precision-ground cast iron table with wings measures: 1021mm x 687mm


• Table height: 900mm


• Footprint: 533mm x 495mm


• Arbor: 5/8" (15.88mm)


• Arbor speed: 3450 RPM


• Blade dia.: 254mm


• Blade tilts: 0 - 45°, left


• Max. depth of cut @ 90°: 82mm


• Max. depth of cut @ 45°: 58mm


• Rip capacity: 1290mm right, 425 left


• Max. Dado width: 20mm


• Max. Dado dia.: 205mm


• Dust port size: 100mm


• Overall size: 2130mm x 900mm x 1022mm


• Machine weight: 150kgs


• Packing dimensions: 760mm x660mm x1100mm (saw body), 2200mm x270mm x140mm (Fence))


• Shipping weight: 175kgs
