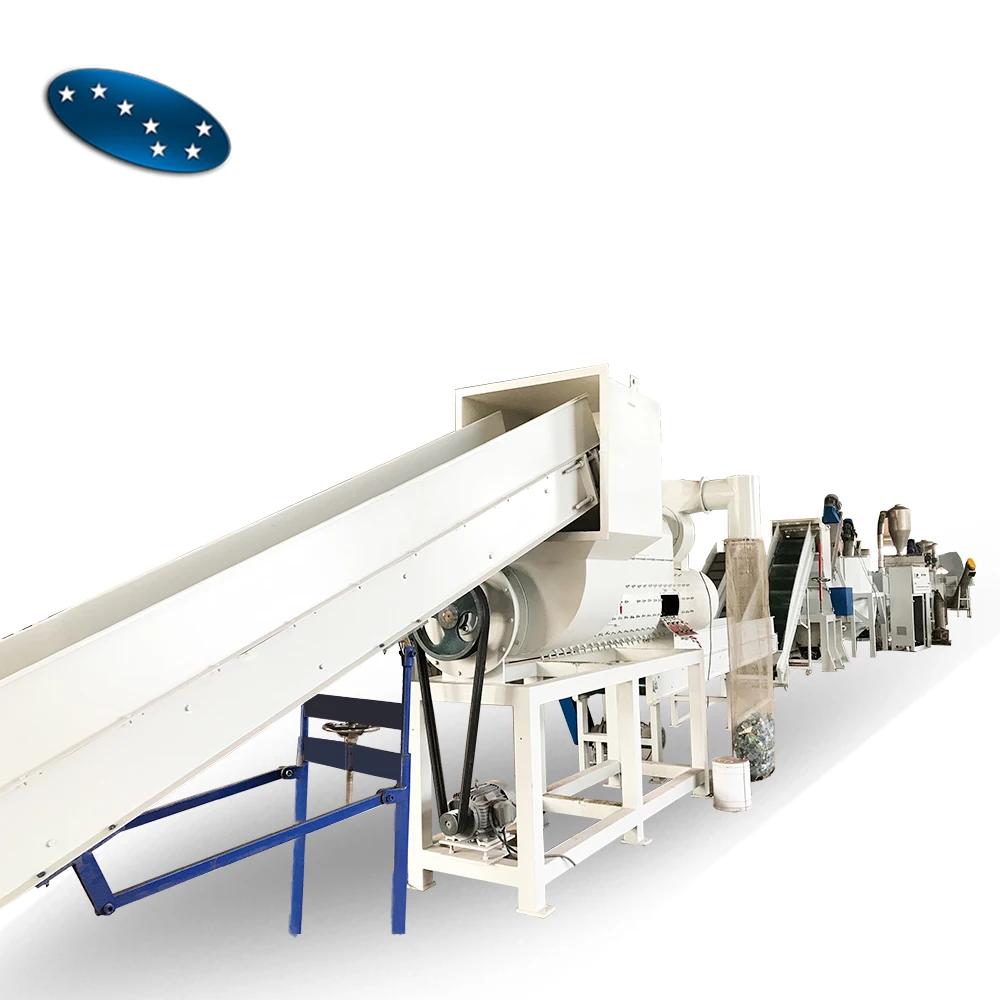

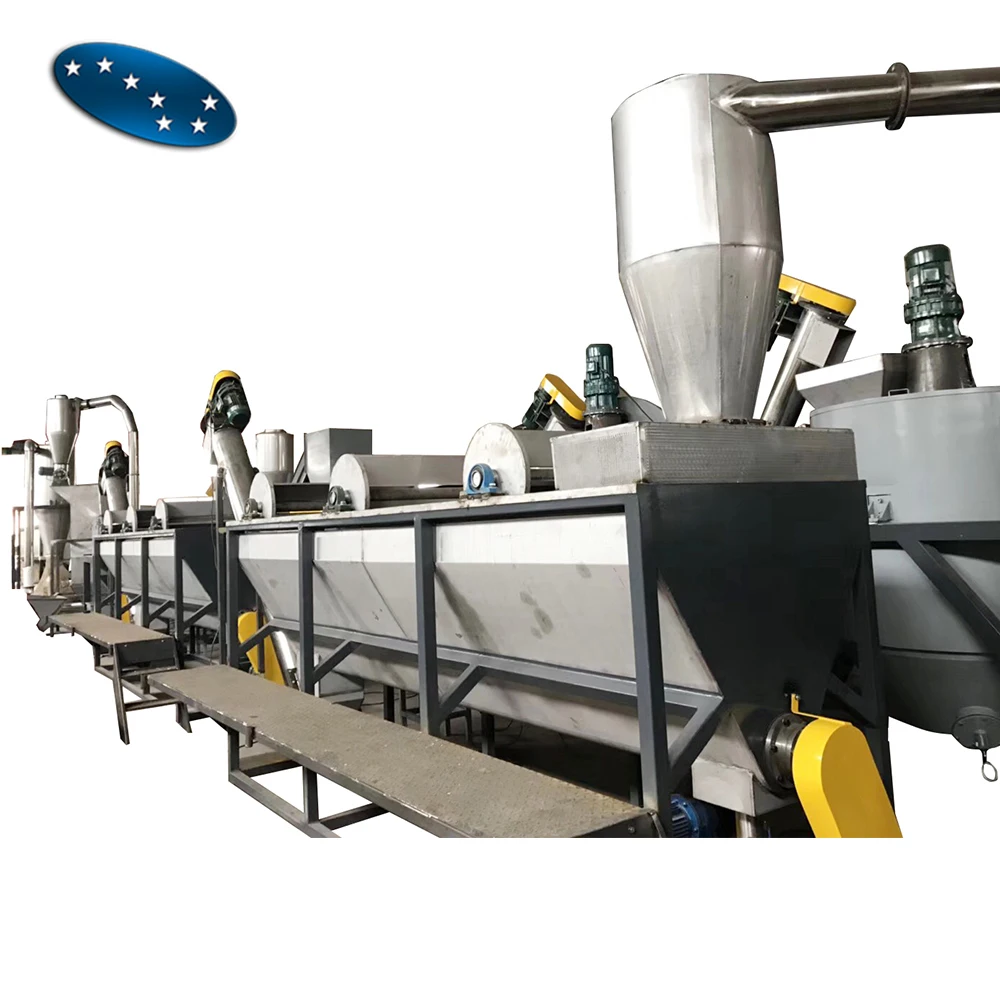

PET bottle recycling machine price/PET Flakes Hot Washing Machine /bottle flakes washing machine
- Category: >>>
- Supplier: Zhangjiagang Sevenstars Machinery Co. Ltd.
Share on (60831055832):
Product Overview
Description

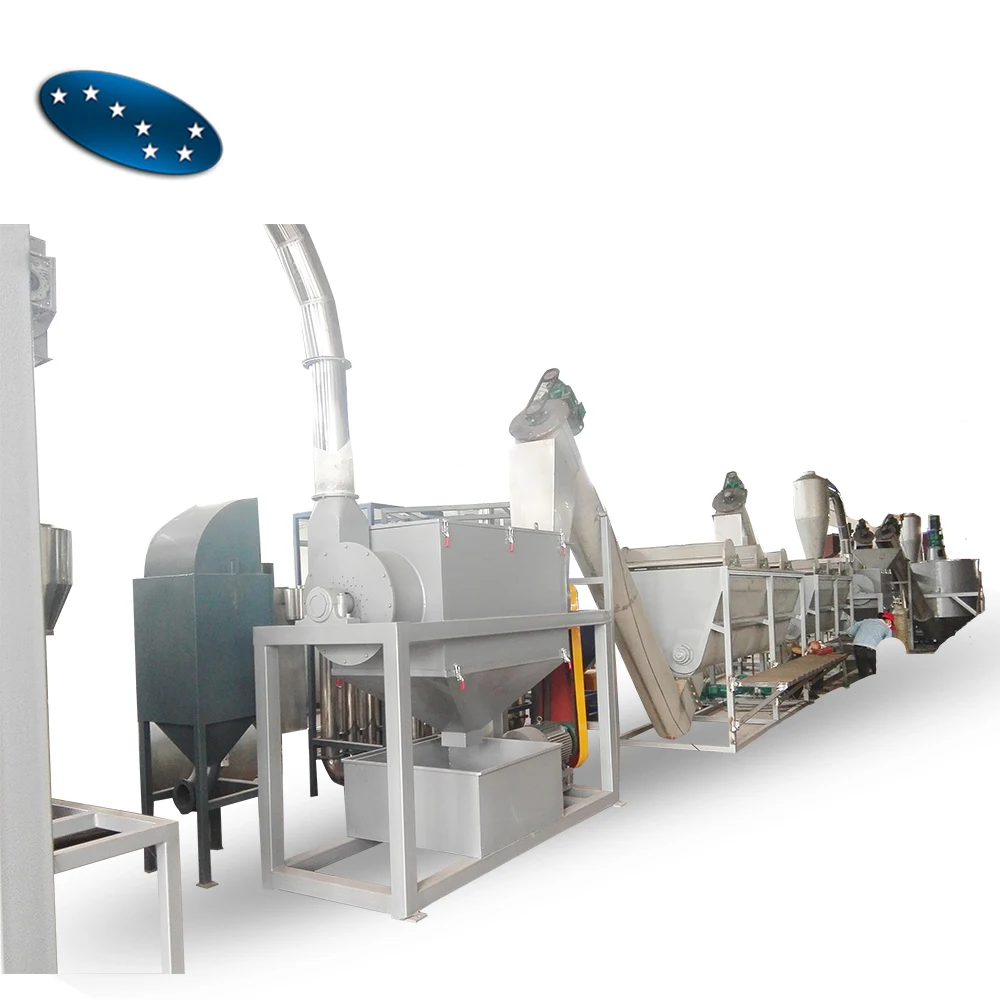

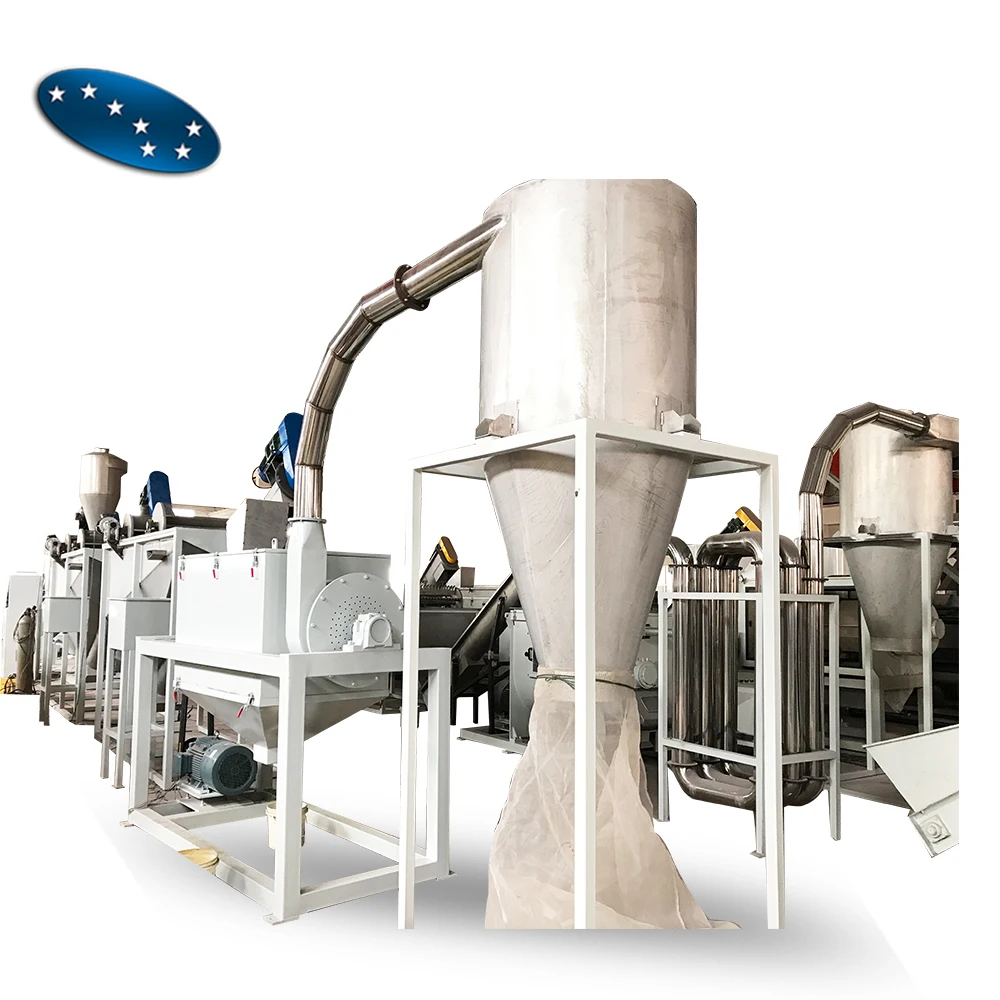

PET bottle recycling machine price/PET Flakes Hot Washing Machine /bottle flakes washing machine
Product Description
Features of Pet Bottle Crushing Washing Drying Recycling Line
1. This mineral water bottle recycling mainly used for dealing with waste PET bottle, barrel etc.
2. To separate PET bottles and flakes from label, cap, oil, garbage.
3. This PET bottle washing machine is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
4. Easy to operate,Full automatic.
Flow line of Pet Bottle Crushing Washing Drying Recycling Line
Conveying PET bottle→lable remover→ manual sorting table → wet crusher→screw loader →Hot washer→screw loader→high speed friction washer→screw loader→floating washer→screw loader→spray washer → dewater machine → pipe line dryer → label seperator → blower → hopper
common configuration of Pet Bottle Crushing Washing Drying Recycling Line
No. | Equipment Name | Quantity | Comments | ||
1 | Belt conveyor | 1 set | for feeding the material | ||
2 | Baler opener | 1 set | Break the PET bales | ||
3 | Belt conveyor | 1 set | Feeding the material into trommel | ||
4 | Trommel | 1 set | Separate the sand and other solid waste | ||
5 | Belt conveyor | 1 set | feeding the material into label remover | ||
6 | Label remover machine | 1 set | Remove the label from PET bottle | ||
7 | Manual sorting conveyor | 1 set | Sort out some bottle with label and other color bottle and metal scraps and no-metal scraps | ||

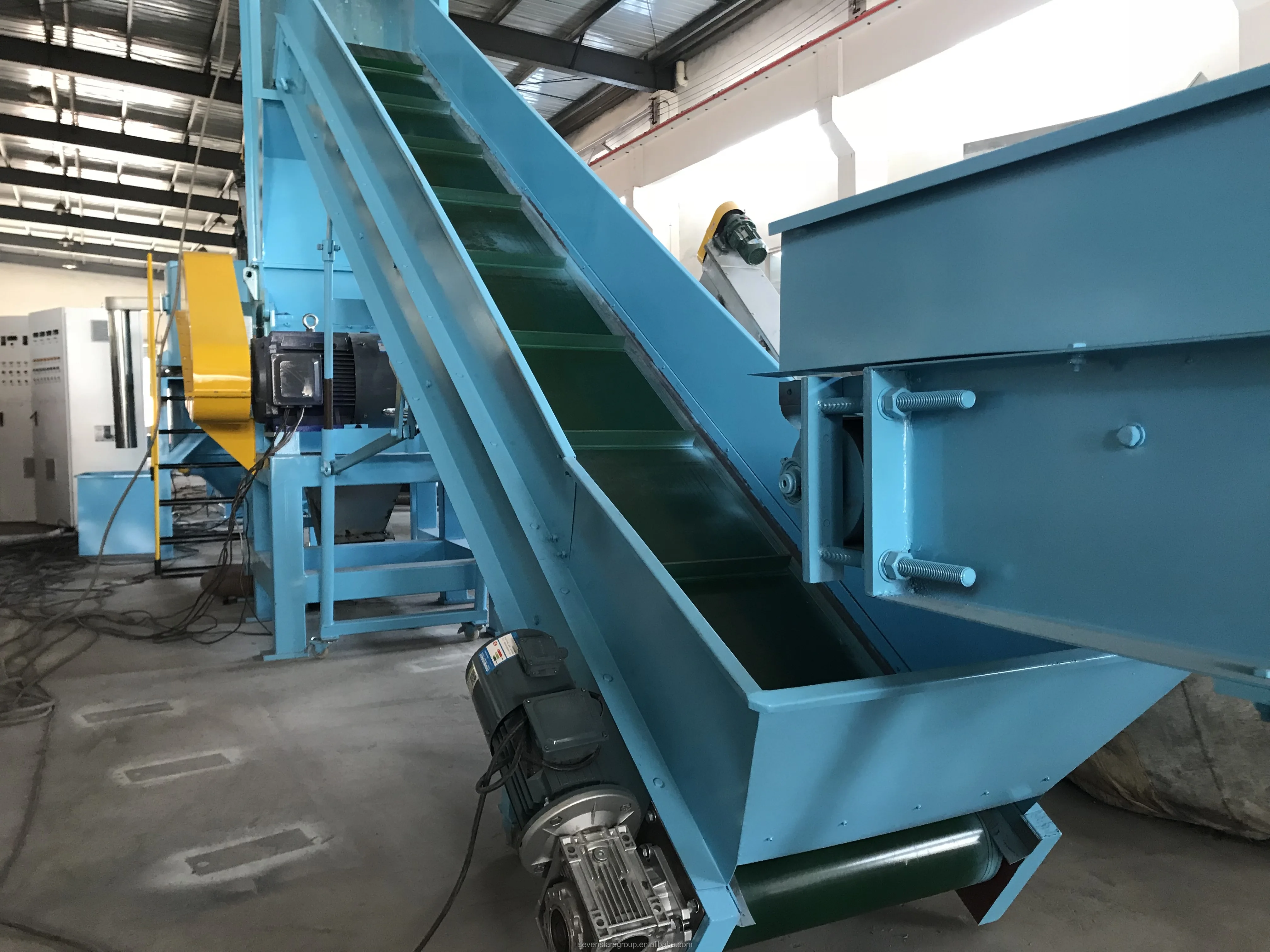

8 | Belt conveyor | 1 set | Feeding the material into crusher | ||
9 | Crusher | 1-2 sets | Crushing the material into the small size flakes, crushing with water can pre-washing the materials. | ||
10 | Screw conveyor | 1 set | Rubbing, washing, conveying | ||
11 | Washing tank | 1 set | Separate cap/ring/label...etc | ||
12 | High speed friction washer | 1 set | Reducing water in PET flake, so less dirty water go in hot washer | ||

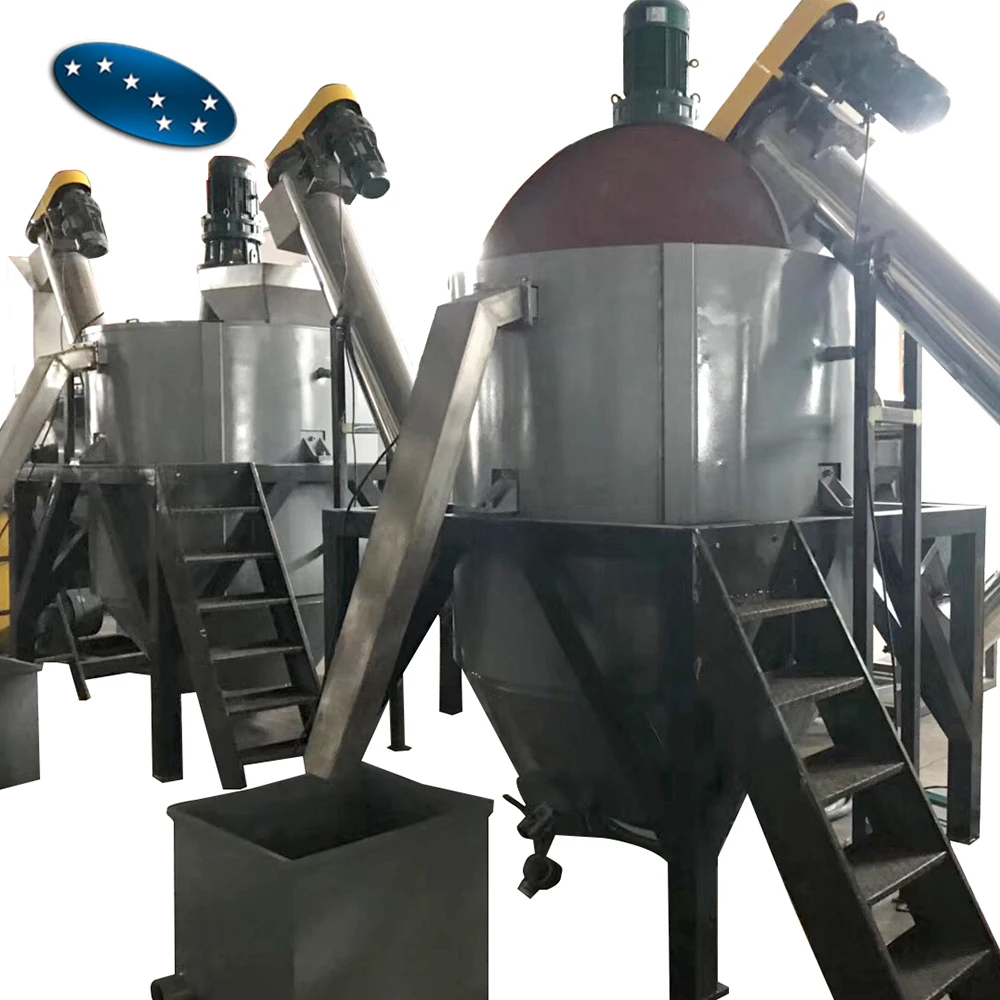

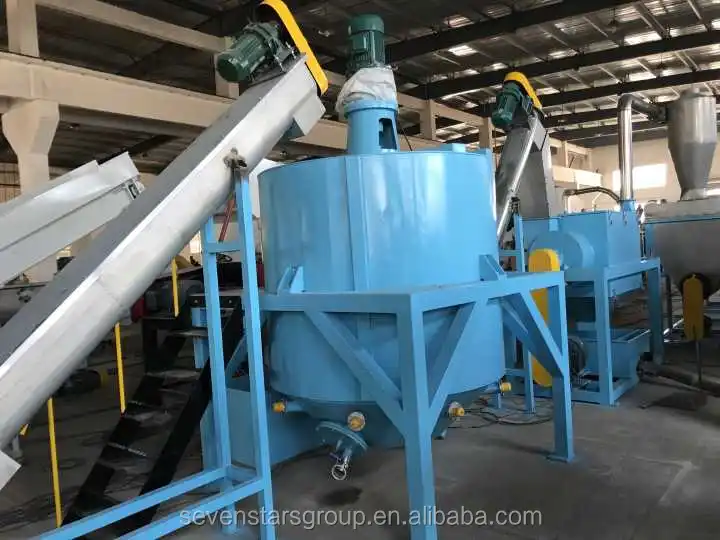

13 | Cooking boiler or Horizontal Hot washer | 1-2 sets | Washing the flakes with hot water and caustic soda, remove glue and oil impurity and etc | ||
14 | Screw conveyor | 1 set | Rubbing, washing, conveying | ||
15 | High speed friction washer | 1 set | Rubbing, washing, dewatering. So dirty water will not goes into washing tank | ||
16 | Washing tank | 1 set | Separate cap/ring/label...etc | ||
17 | Screw conveyor | 1 set | Rubbing, washing, conveying | ||

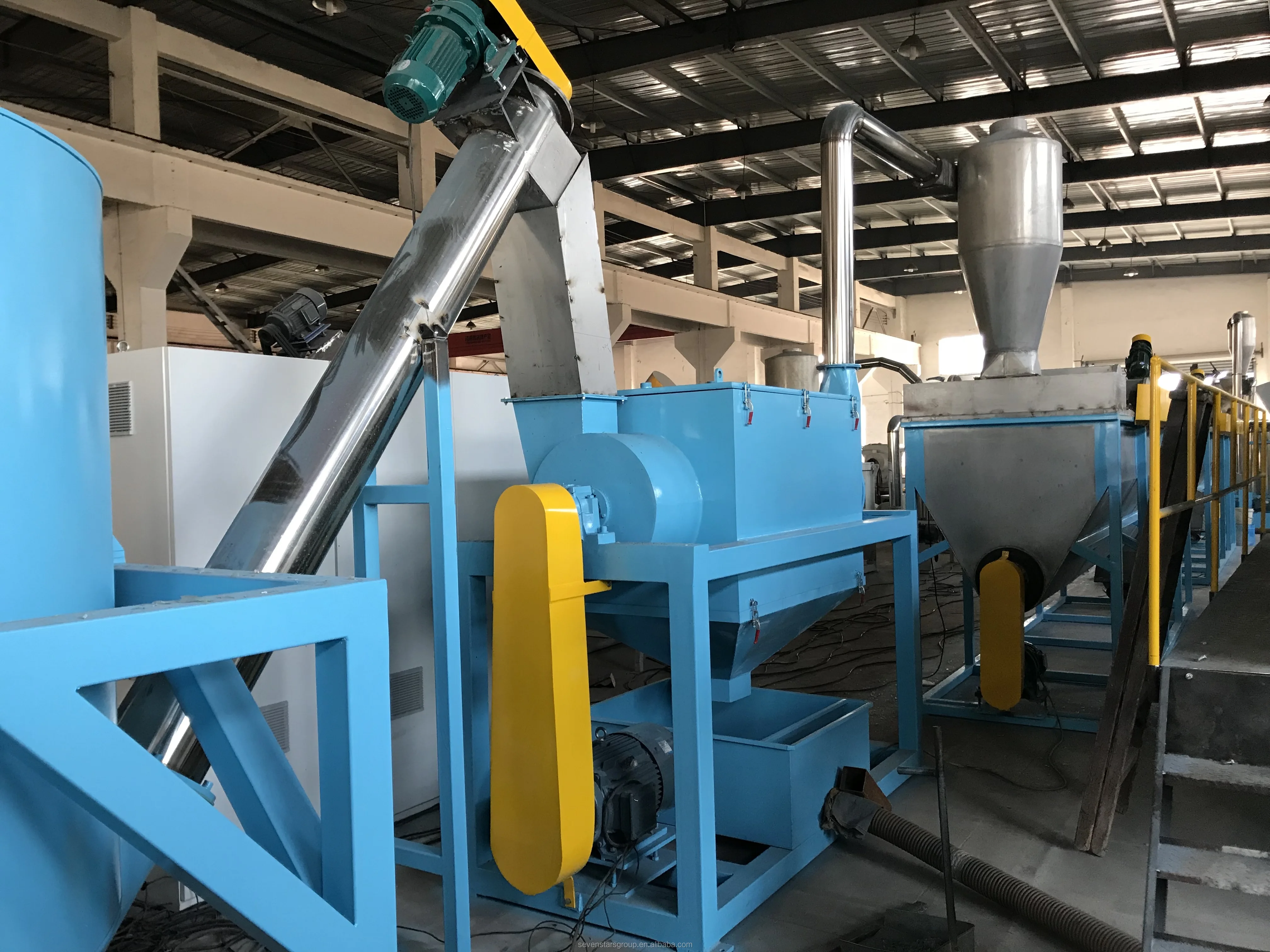

18 | Horizontal Dewatering Machine | 1 set | Use centrifugal to dry PET flake | ||
19 | Cyclone separator | 1 set | conveying | ||
20 | Drying system | 1 set | use hot air to dry the flakes | ||
21 | Label separator | 1-2 sets | Remove the mini size labels, dust etc. | ||
22 | Final product silo | 1 set | We can equipped with two label separators in the whole line, one at the beginning, another at the end | ||
23 | Control System | 1 set | Control the complete line | ||
