ISUZU 600P double cab 14m 16m working height hydraulic lift basket manlift truck

Share on (60831071303):


Price:$28,500.00 - $29,500.00

Quantity:


Product Overview

Description


CLW 16m ISUZU Manlift Truck


—— Japan ISUZUchassis, double cab, 16m 3-section boom





Product Description


Aerial work platform truck, also called high altitude operation truck, is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.





Parameters of Japan ISUZU Manlift Trcuk:


















































































































Product nameISUZU manlift truck
Options
ProducerChengLi Special Automobile Co.,Ltd
BrandCLW
Max Working Height16 meters
Overall dimention7400x2000x3300(mm)
Boom TypeKnuckle boom, hydraulic system

Section of Boom3-section12~32m
Working Raduim7.4 meters
Platform bucket loadmax 200kg
Chassis Brand

Japan brand ISUZU


Dongfeng, Forland,Sinotruk,etc
Drive cabDouble cab, LHD
Engine120hp engine
BrakeDual circuit oil brake
SteeringPower steering
Transmission5 forward and 1 reverse
Wheelbase3360mm
Tire 7.00-16 radial tire
Max speed90km/h
Options
Lifting hook1 tons lifting weight
Misuse operation protectOptional to prevent misuse of the automatic protection system
Emergency Optional emergency power source, ignition, flameout device
Electronic control systemOptional electro-hydraulic proportional control of the electronic control system, stepless speed control, smooth operation / electronic control system optional ground wireless remote control operating system

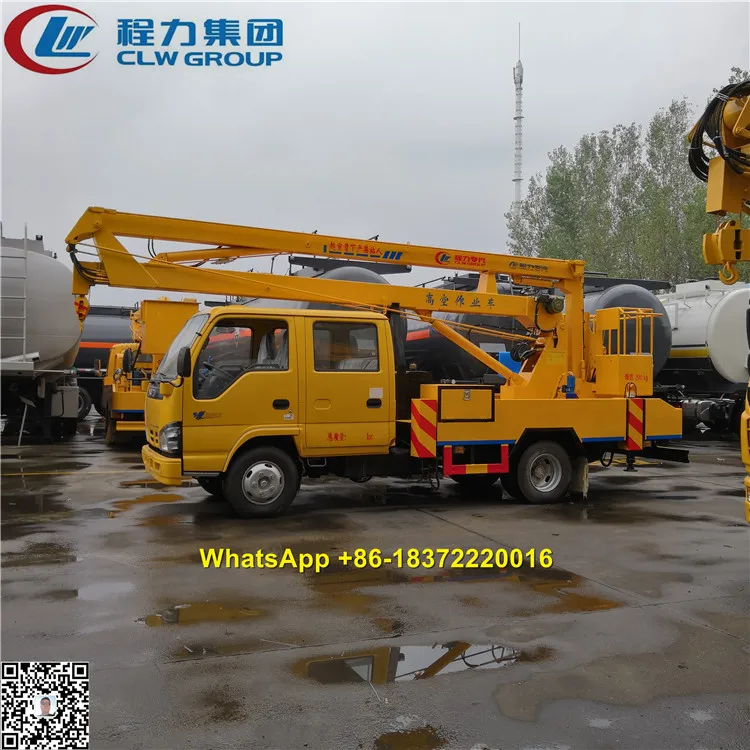

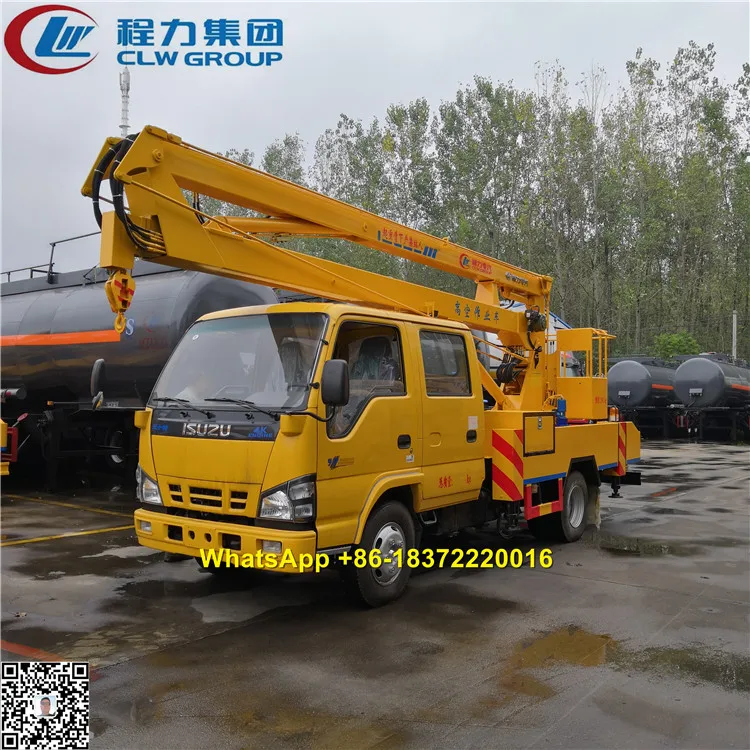

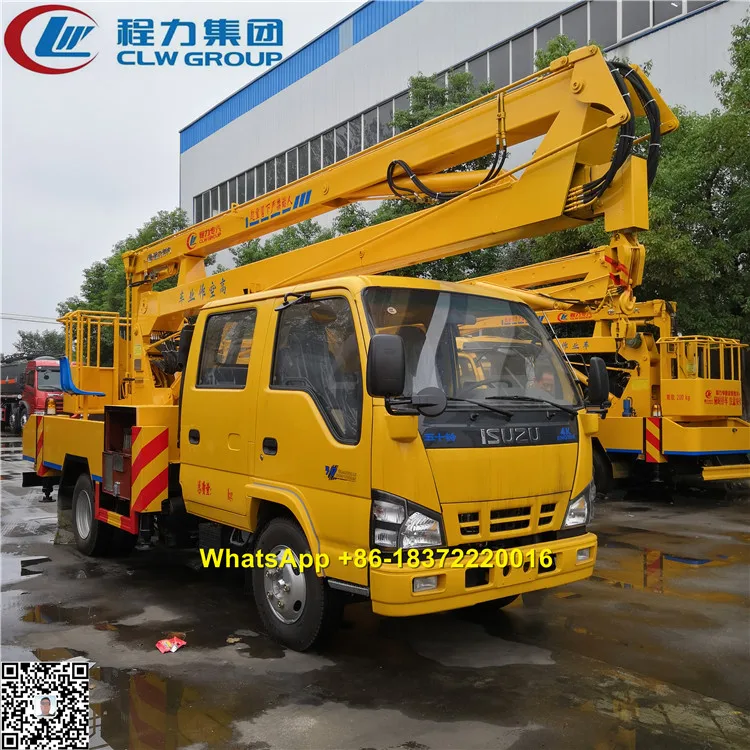

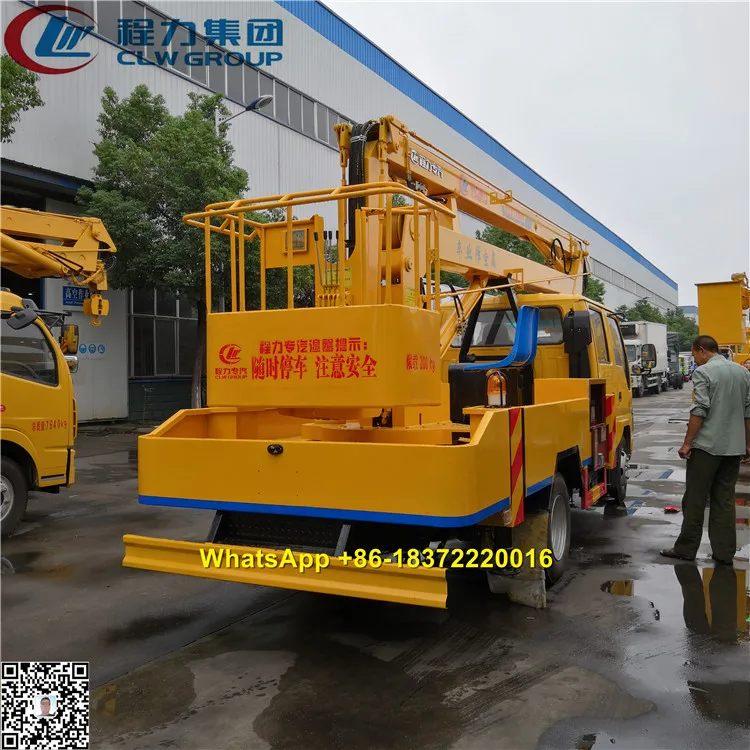

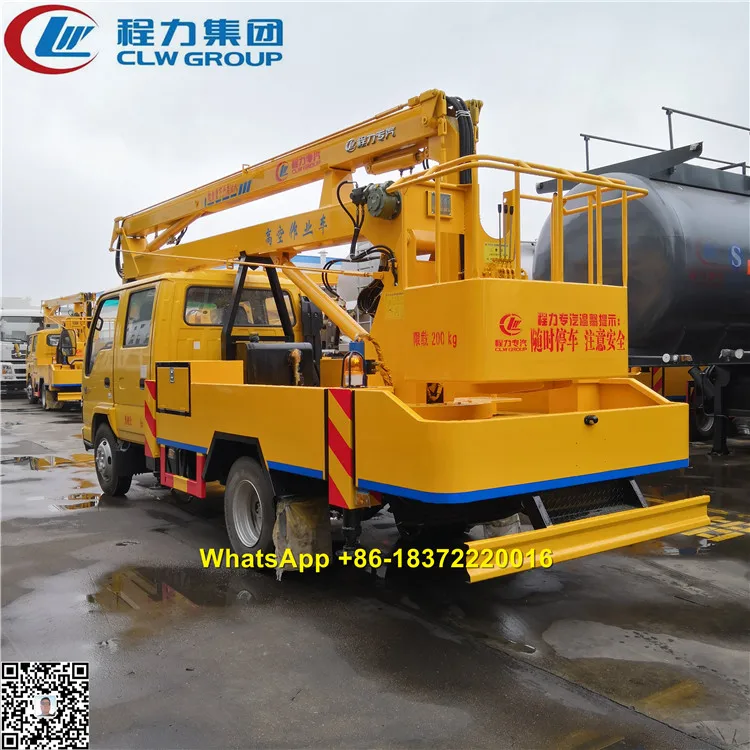

Detail images of Japan ISUZU aerial work platform truck:






Biggest Advantages of CLW truck mounted 14m aerial platform:



  • High quality chassis, strong bearing capacity, enough power;

  • Turntable, up and down double operation. 360-degree full swing base, high-altitude operations without dead ends. The boom is compact, maneuverable and has a wide range of operations.

  • Each boom arm is equipped with directional balance valve, used to enhance the boom lift, drop, stop the smoothness of the process.

  • Outrigger with H-type structure, large span, good stability, the legs can be independently controlled, equipped with leg flash lights, the operation can effectively prompt the past pedestrians to ensure safe operation. Legs and work arm support a key interlock, to prevent misuse, safe and reliable.


Aerial platform truck maufacturer process, aerial platform truck company, aerial platform truck is the best one, best aerial platform truck, usages of aerial platform truck is widely, 28m 26m 16m 12m 14m high altitude operation truck, 12 14 16 18 20 22 meters aerial working platform truck with 200kg capacity.



Company Information


timg.jpgChengli Special Automobile Co.,Ltd

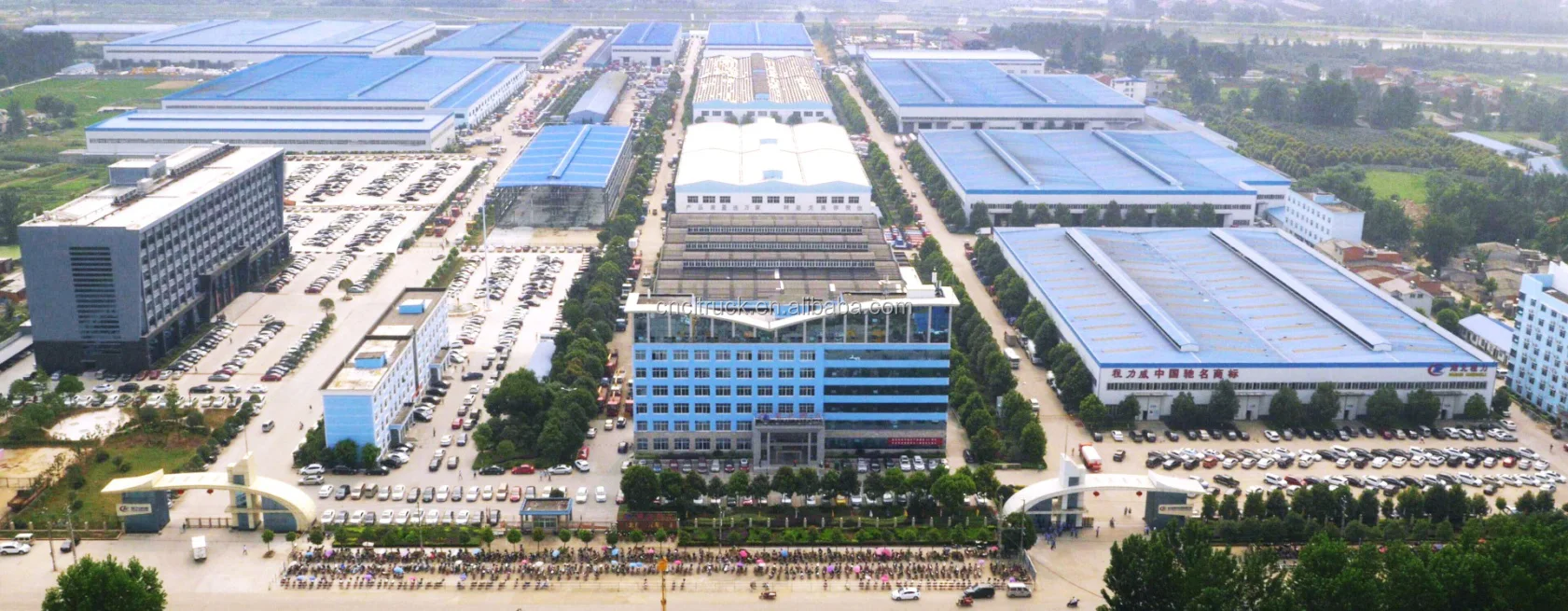

ChengLi Group, located in the Southern Suburb of Zengdu District, Suizhou City, is a diversified group company integrating automobile technology research and development, automobile manufacturing, automobile modification, auto parts, finance, education and home investment.


company iamge.png



CLW Group "CHENGLIWEI" brand special trucks are the best sells in whole nation, and exported to South America, the Middle East, Central Asia, Southeast Asia, Africa, more than 30 countries and regions.


CLW Group "CHENGLIWEI" brand products occupy an important share in the domestic and international market. The leading products include: all kinds of water trucks, garbage trucks, suction sewage trucks, road sweeper trucks, fuel tank trucks, chemical trucks, wrecker trucks, aerial work trucks, fire trucks, truck mounted crane, refrigerated trucks, van trucks,LPG(pressure vessel), highway maintenance trucks, flatbed transport trucks,  bulk grain trucks, stage trucks, LED advertising trucks, mobile sales truck, heavy duty truck mounted crane, concrete pump trucks, drug transport trucks, new energy trucks, and other series of more than 800 varieties.

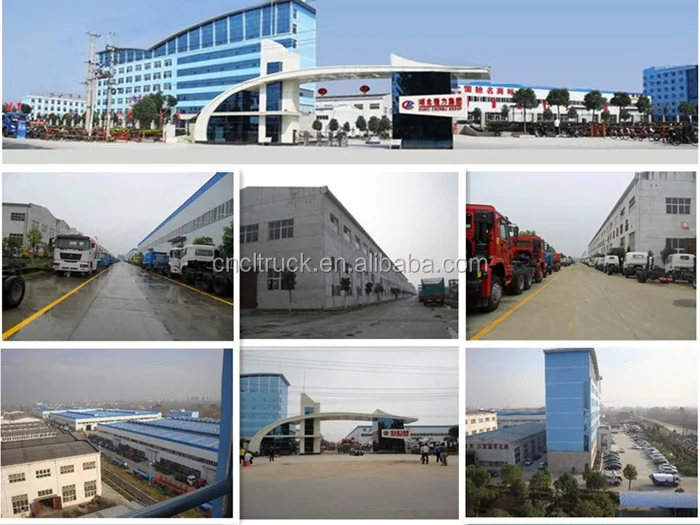

Factory Images:


.jpg



We have passed certifications of ISO9001-2008 Quality Management, ISO 14001 Environmental Management, OHSAS18001 Occupational Health And Safety Management System Certification, 3C Mandatory Certification, GJB9001B-2009 National Military Standard Certification and Confidentiality Certification (national level 3), the Bational Weapons and Equipment Production License, Energy-saving Environmental Certification, Automotive Exemption Certification, the US Mechanical Rngineer Asme (ASME) Certification, the EU Agreement ADR Certification. We have obtained production license qualification for special trucks including : A2, C2, C3 pressure vessels, truck mounted crane, crane trucks, fire trucks, buses, new energy vehicles production and other qualifications.


Certificates:


.jpg





Packaging & Shipping


Packaging: nude packaged, waxed


Transport type: Land transport, train transport, ship transport according to detail situation.


                             Ship type: ro/ro ship, bulk ship, container ship(20GP/40GP/40HQ/40OT,etc)


Marine shipping time: 7 days~45 days according to distance.


*Remark: for details about packaging and shipping, please confirm before placing an order.
