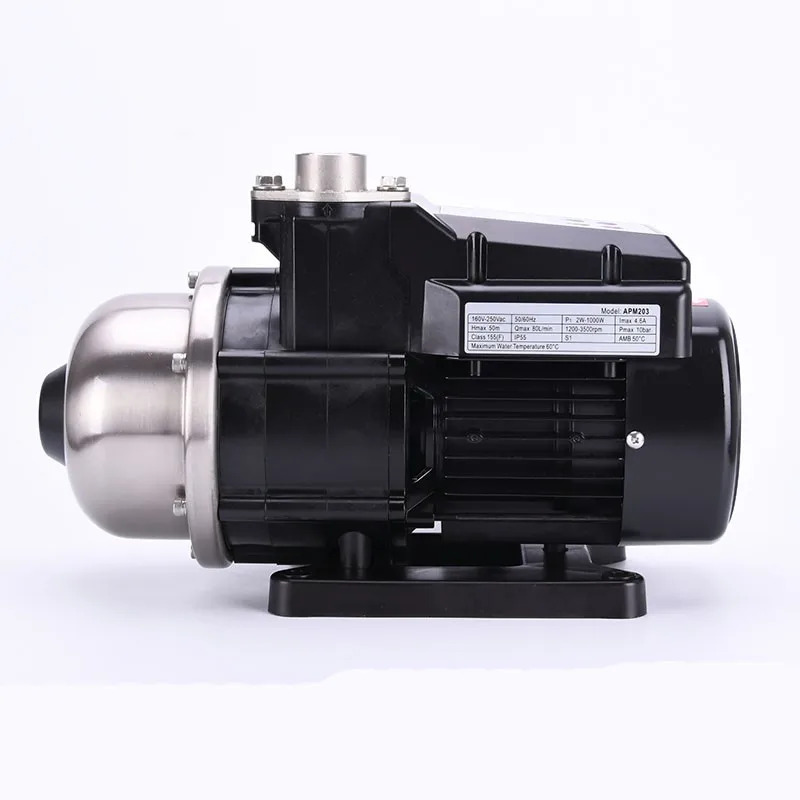

APM Permanent Magnet Synchronous Motor Variable Frequency Drive Water Pressure Booster Pump
- Category: >>>
- Supplier: Ningbo Chuheng Electric Co. Ltd.
Share on (60831088186):
Product Overview
Description
Product Description
Product Application
The product is a small constant pressure water supply system. The product integrates constant pressure water supply system components such as pressure tank and pressure control. It is mainly used for tap water pressurization and constant pressure water supply in household and commercial places, and also suitable for transportation industry. Non-corrosive liquid.
SPECIFICATIONS | ||||
Performance Parameters | Max.flow | 80 L/min | ||
Max.head | 50 m | |||
Motor | Style | Permanent magnet synchronous motor | ||
Input Voltage | 160-260 V | |||
Input Power | 1000 KW | |||
Rotating Speed | 1200-3500 r/min | |||
Wet-end | Number of Impeller | 3 | ||
Material of Impeller | PPO | |||
Material of Diffuser | PPO | |||
Material of Shaft | SUS304 for wet-end | |||
Mechanical Seal | Carbon-Ceramic | |||
Working Conditions | Max. Working Pressure | 10 bar | ||
Max. Liquid Temperature | 60 ℃ | |||
Max. Ambient Temperature | 0-50℃ | |||
Main Features
1) Constant pressure water supply function
2) Can set the water supply pressure
3) water shortage protection
4) Water hammer protection
5) Power on automatically
6) Wide voltage operation
7) Comprehensive motor protection functions such as overvoltage protection, overcurrent protection, overload protection, overtemperature protection, etc.
8) Fault code prompt
Certifications

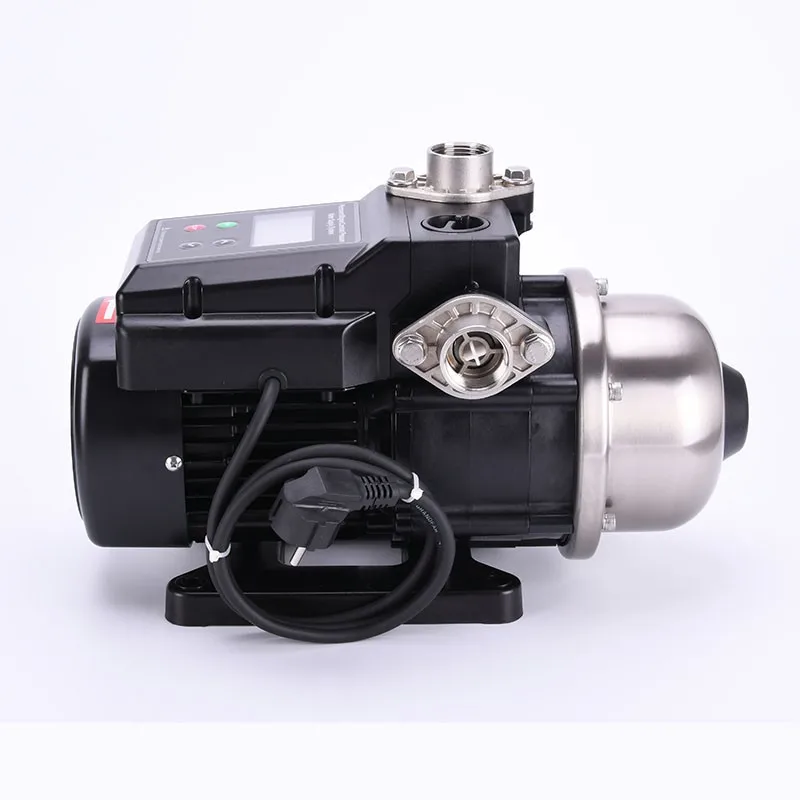

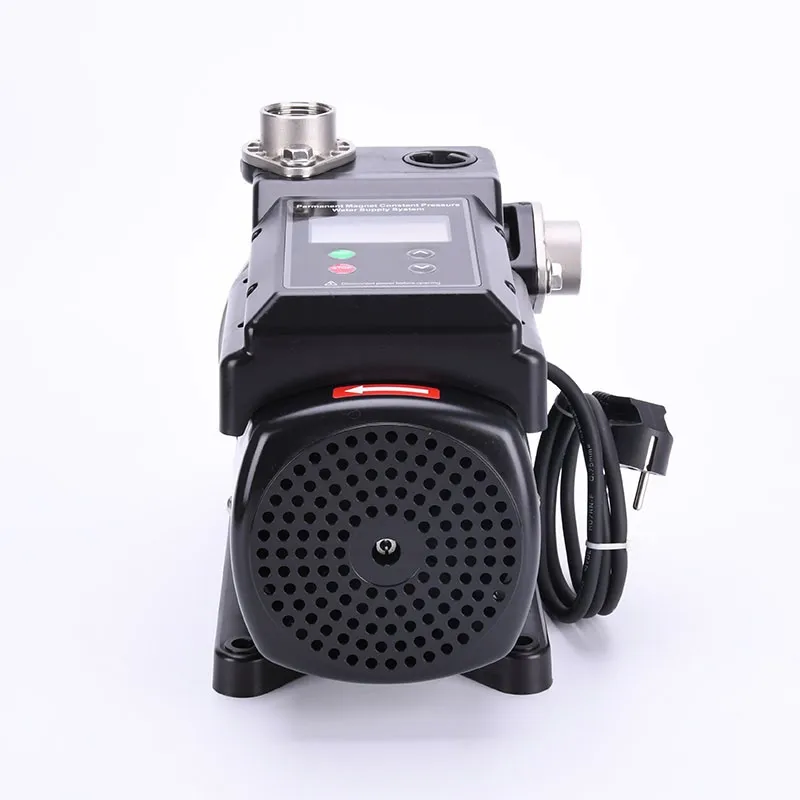

Detailed Images

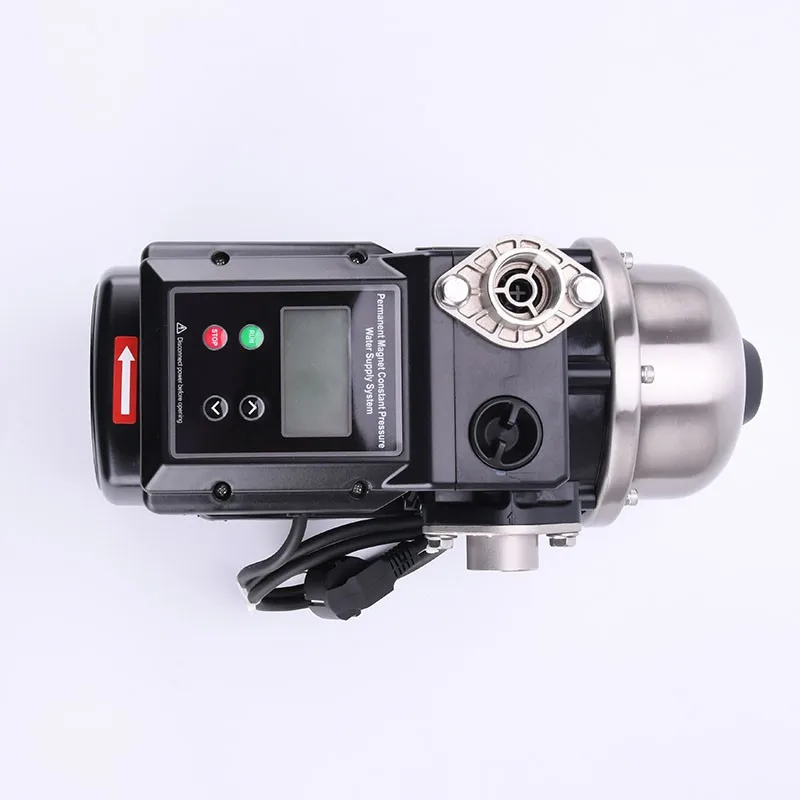

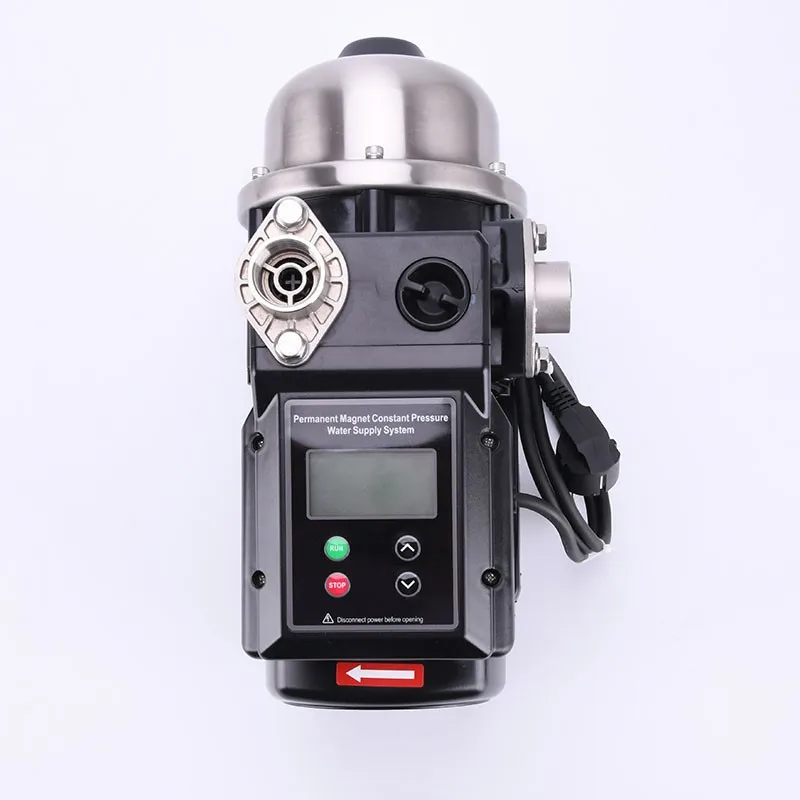

Inverter
Function: Run and stop the pump, Set the working pressure, Display the running states.
Displaying Method: LED
The inverter is water-proof and lightning-proof.
Pressure Tank
Style: Diaphragm
Material: SUS304
Membrane: EPDM-Food Grade
Compact SUS304 stainless steel pressure tank with food grade diaphragm
Inlet and Outlet
Technology: Precision casting
Material: SUS304
Size: G1"
There are two check valves in the inlet and outlet of the pump. The check valve has water hammer protection for the pump
Pump bracket
Material: ABS with 30% glass fiber
High-quality materials combined with large-scale design allow the pump to operate stably while avoiding damage to the pump during transportation
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the pump, training how to use the pump.
* Technology support.
* Spare parts service.
* Warranty for 18 Months.
Packing & Delivery
Packaging | ||
Size | 43.5 (L) * 23 (W) * 31 (D)CM | |
Weight | 8 KGS | |
Packaging Details | The normal package is carton. | |
