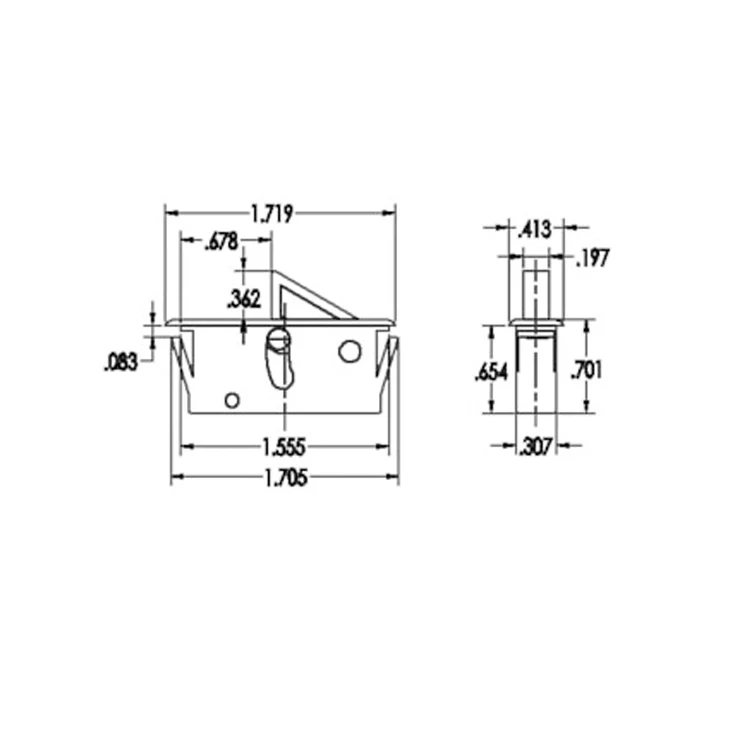

Child safety lock sliding window limit vent stop Patented lock safety lock 1719

Share on (60831088638):


Price:

Quantity:


Product Overview

Description




Single-Hung-Window



Window accessory vent stop lock 1719









Brand name

VIG

Model number

1719

Material

PA6 housing and tongue

Application

For hung windows

Match with thickness 1.7-2.1mm profile, and with 39.7x7.95mm slot

Performance

Tensile force test passed

Load test and cycle test passed, based on AAMA specification

Package

5000 pcs/carton, Carton fits for export standard

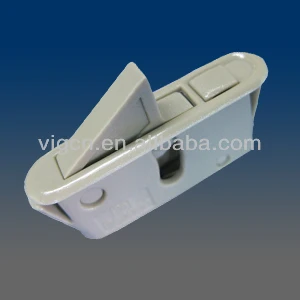

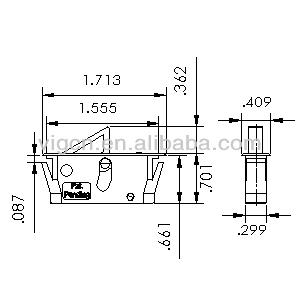

 1719_f.jpg   1719_d.jpg

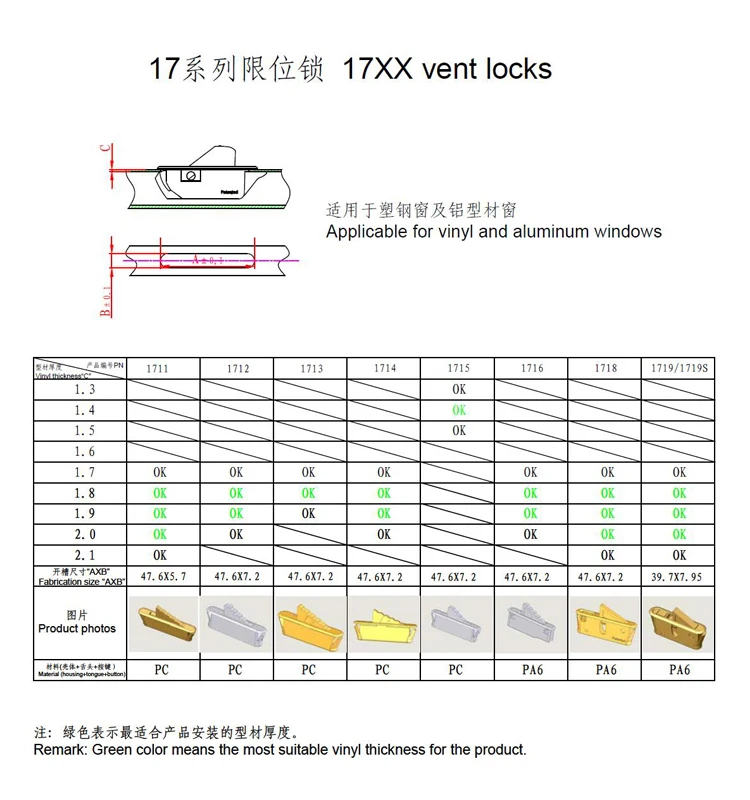

171X Series



Installation_3Main parts 2-3Product Application 4-1Injection 6About Us
