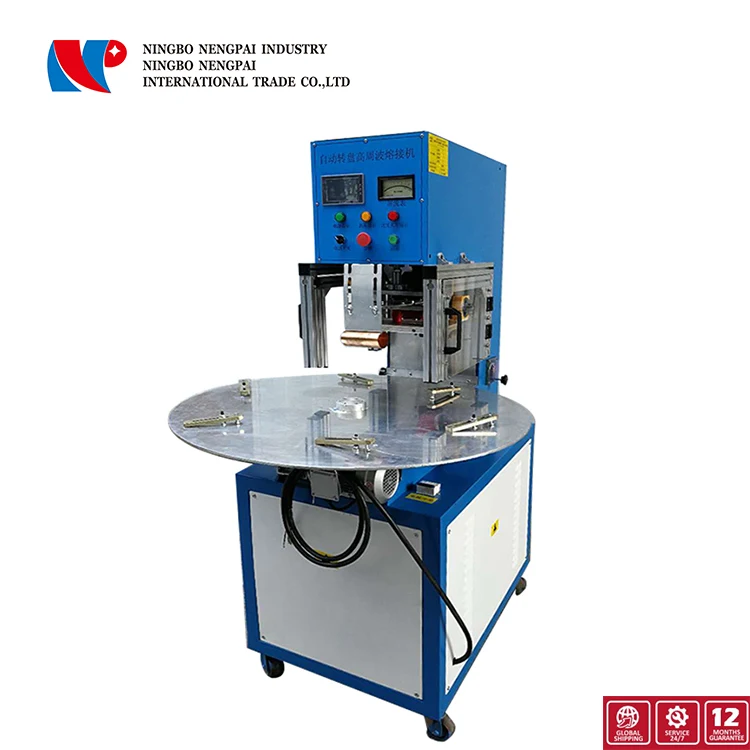

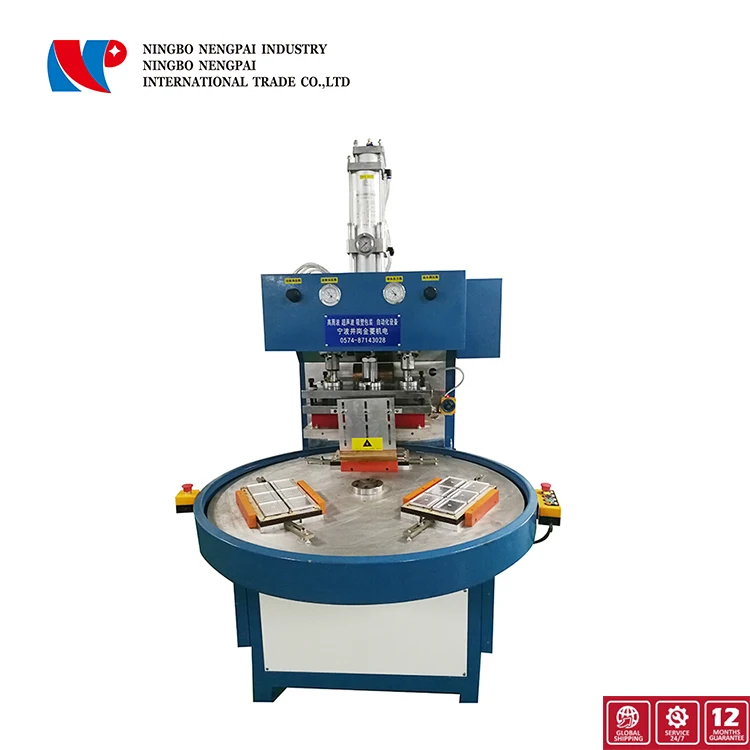

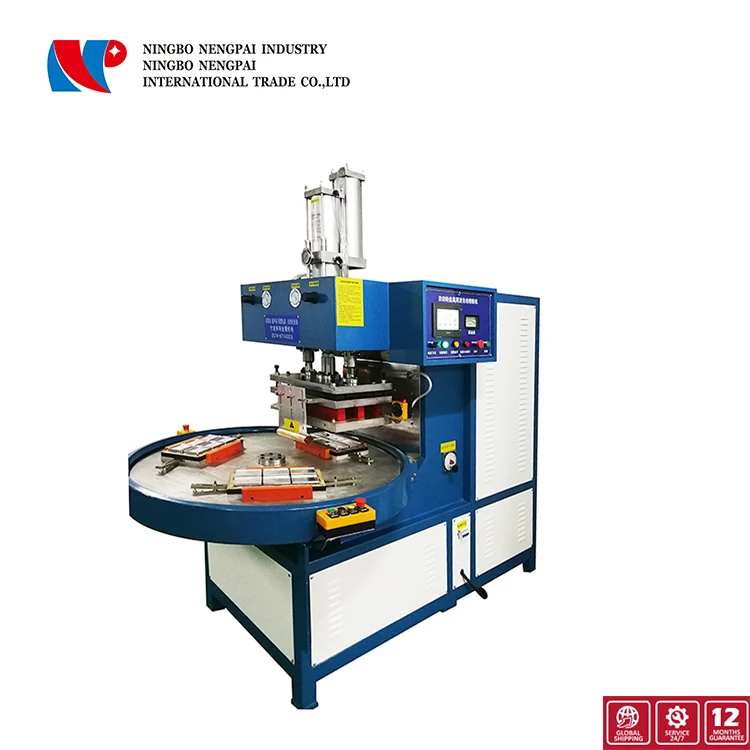

Auto Rotary turntable high frequency blister sealing machine clam shell and blister PVC, PET G, A PET PET/PVC with carton
Auto Rotary turntable high frequency blister sealing machine clam-shell and blister PVC, PET-G, A-PET PET/PVC with carton
Auto Rotary turntable high frequency blister sealing machine clam-shell and blister PVC, PET-G, A-PET PET/PVC with carton
Auto Rotary turntable high frequency blister sealing machine clam-shell and blister PVC, PET-G, A-PET PET/PVC with carton
Auto Rotary turntable high frequency blister sealing machine clam-shell and blister PVC, PET-G, A-PET PET/PVC with carton

Auto Rotary turntable high frequency blister sealing machine clam shell and blister PVC, PET G, A PET PET/PVC with carton

Share on (60831125618):


Price:

Quantity:


Product Overview

Description


Main Features
3,4 workstations

Single, double or triple HF weld heads operation

Precision (to 0.1mm) indexing rotary work table

Fully automated HF weld cycles with adjustable rotating speed

High pressure sealing with enhanced ram guidance

Production speed: 5/10 cycles/min

Touch screen HMI and onboard PLC

C-frame welded steel structure with integrated HF generator

Pneumatic HF press operation (hydraulic on request)

Customized size work platens

Ideal for PVC, PU, PET-G, A-PET, PLA products

\t\t\t\t\t\t\t\t\tTechnical Data \t\t\t\t\t\t\t
\t
Model
\t
NP-5GRQ3Z
\t
NP-8GRQ3Z
\t
NP-10GRQ3Z
\t
Installed Power
\t
8KVA
\t
12KVA
\t
15KVA
\t
Power Supply
\t
AC 3X380 V / Customizing
\t
Output Power
\t
5KW
\t
8KW
\t
10KW
\t
Working Frequency
\t
27.12MHZ ±0.6%
\t
Power Tube
\t
7T85RB/FU947
\t
7T69RB/FU946
\t
E3069
\t
HF Auto-tunning System
\t
Cam Indexing Unit
\t
Antiflash System
\t
NL5557
\t
PLC Control Panel
\t
Touch Screen HMI & Onboard PLC
\t
Work Tables Sizes
\t
Diameter 1000MM
\t
Diameter 1200MM
\t
Diameter 1200MM
\t
Electrode Platen Dimensions
\t
200*300MM
\t
300*400MM
\t
300*450MM
\t
Weight
\t
500KG
\t
600KG
\t
680KG
Application

Small and large format technical textiles PVC or PU coated

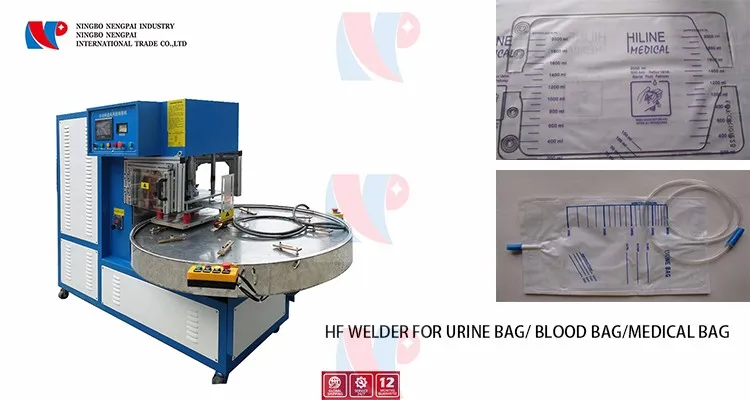

Medical equipment: blood, urine, colostomy and drainage bags

Automotive: pneumatic lumbar support systems, sun visors, fuel and air assembly parts

Packaging: clam-shell and blister PVC, PET-G, A-PET； PET/PVC with carton； PET-G with PET-G； PVC with PVC；
Stationery: covers, albums, business card holders, notebooks

Elements of garments and protective clothing

Advertising, embossed logos, traffic signs

Packing & Delivery
Exported standard wooden cases

Related Products
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t

Q:Are you manufacturer or trading company?
A:We are manufacturer,we have own two factory.
Q:Could you make supporting mould/die?
A:Yes,we have mould department,we design and manufacture the mould/die according to your product sample or drawings.
Q:Will you test the machine before delivery?
A:Yes,we will test each machine and take the video,then we feedback test results to the customer.We will arrange delivery when we get the approval from the customer.
Q:How can I install and operate the machine?
A:We will provide you with installation video and machine manual.Follow our steps and you will be easy to install and operate.If you think you can not finish it,our engineer avalibale go to your factory for machine installation and worker training.
Q:What about your warranty?
A:We guarantee 1 year for whole machine.
If machine components damaged during the warranty period,we will send new one for free(Not including man-made damage).
